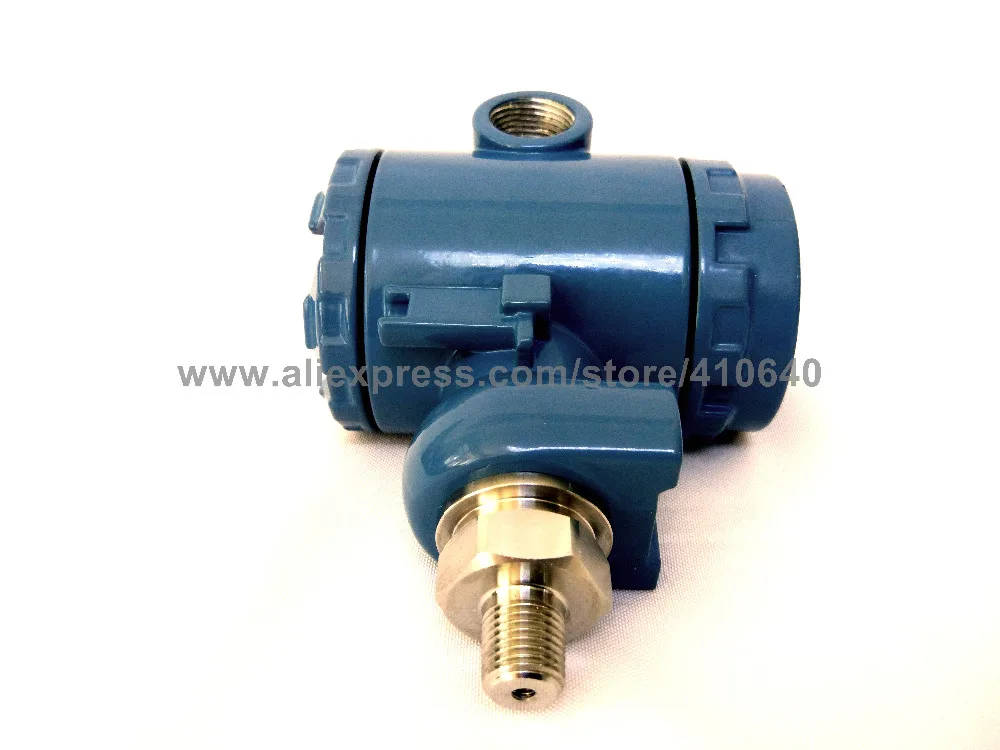

Industrial Ex-proof 2088 Diffused Silicon Smart Pressure Transducer 4~20mA With LCD Display

1 . Specification

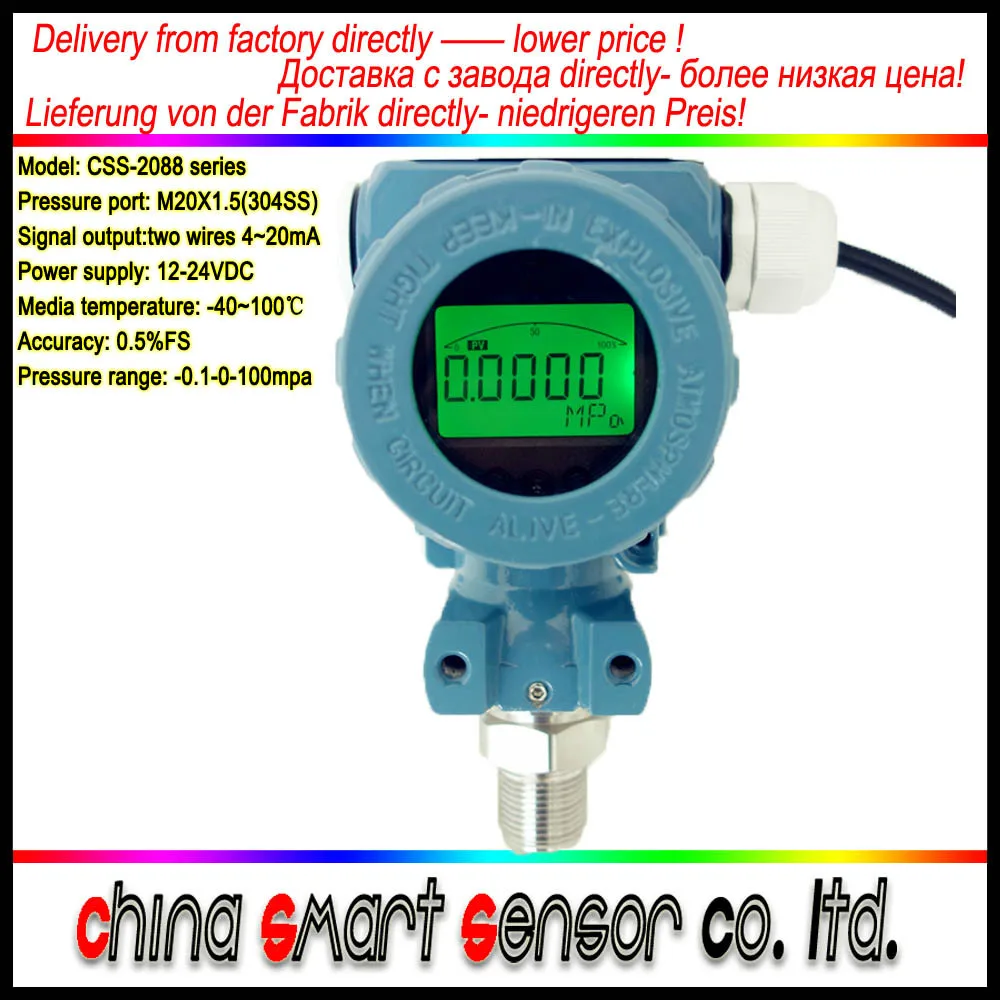

CSS-2088 series pressure transmitter with display

Housing material: 304 full stainless steel connector, high strength aluminum housing

Connector size: M20x1.5(customize is available)

Measurement range: -0.1-0-100mpa

Accuracy: 0.5%, 0.2% can be customized

Pressure sensor core: imported diffused silicon sensor core

Current output: 4-20ma  (plus MODBUS RTU RS485 or Hart protocol is available)

Working environment: in normal temperature, normal pressure, can work reliably for a long time

2 Feature

24 cores resolution and useful bits to 18 bits.
Imported diffused silicon chip
Providing the main variable zero clearance , active and passive migration, 19 kinds of unit conversion, 6 display modes
Full digital calibration, no movable potentiometer, low temperature drift.
Enhanced anti-interference design suitable for a variety of harsh electromagnetic environment industrial environments

Pls note the price for this link is for,

Range 1 : -1 - 0 -1.5 bar
Range 2 : 0 - 25 bar


2: Two wires 4~20mA output

3: Pressure connection M20x1.5.

4: Accuracy 0.5%

5: Normal temperature, normal pressure, normal working environment.

6: Product apprearance, pls refer to the main photo

Multiple range is in stock(-0.1-0-100mpa), customize is available, just leave us a message about:

1: Range?

2: Accuracy?

3: Pressure port?

4: Electrical connection?

5: Output signal?

6: Power supply?

7: Your working media?

8: Your working temperature?

9: Need a cable? Cable length?

Welcome your inquiry and order=)
