Outstanding CE standard 1500*3000mm pcb router

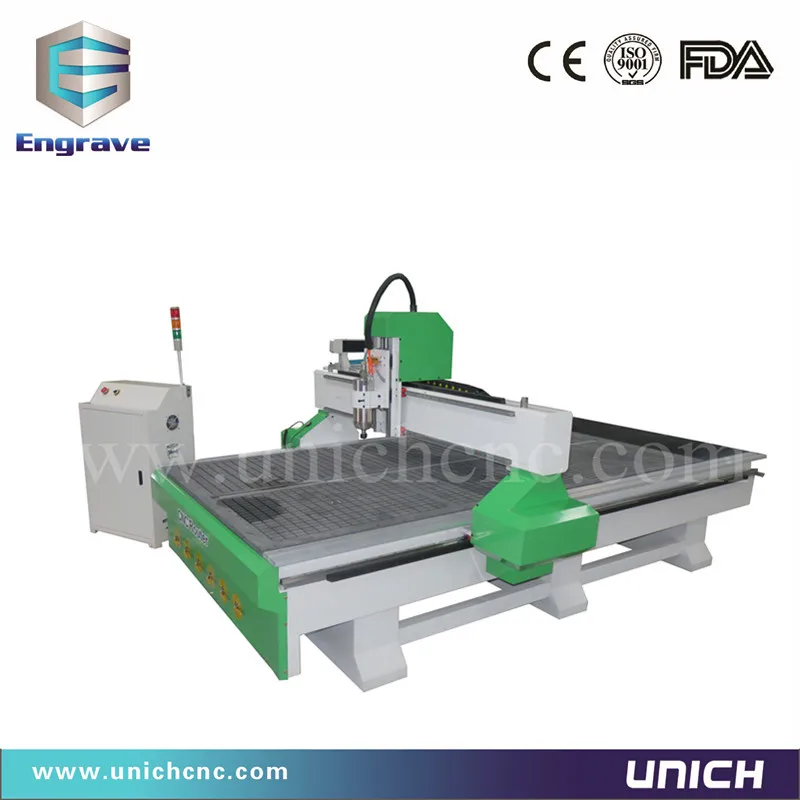

cnc router machine Photos

cnc router machine Technical parameters

	Model	LXM1530
1	X/Y/Z Axis working size	X=1500mm, Y=3000mm, Z=200mm
2	Feeding height	200mm
3	X/Y/Z Axis reposition accuracy	+/-0.02mm
4	Max running speed	50m/min
5	Max working speed	30m/min
6	X/Y Axis transmission	Gear and rack
7	Z Axis transmission	TBI Ball screw
8	Guide rail	Taiwan Hiwin square guide rail
9	Working table	Vacuum table with vacuum pump
10	Spindle power	3.0kw water cooling spindle
11	Max spindle speed	24000rpm
12	Collet	ER32(3-20mm)
13	Control system	Nc-studio or DSP control system
14	Driver system	Stepper motor
15	Working voltage	380v/50HZ
16	Gross weight	2500KGS
17	Command	G code
18	Computer interface	USB port
19	Software compatibility	Artcam
20	Certificate	CE ISO

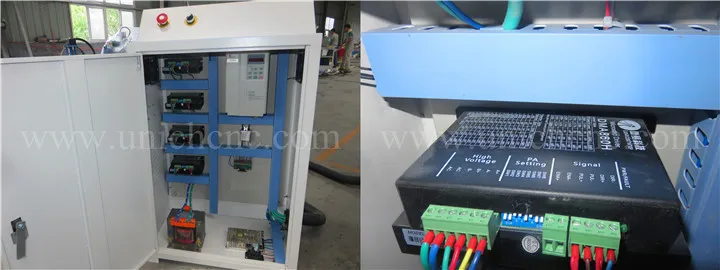

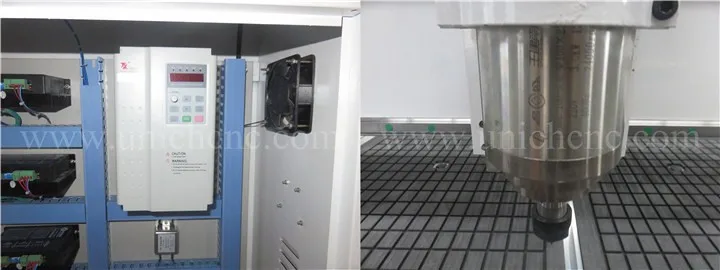

cnc router machine Detail photos

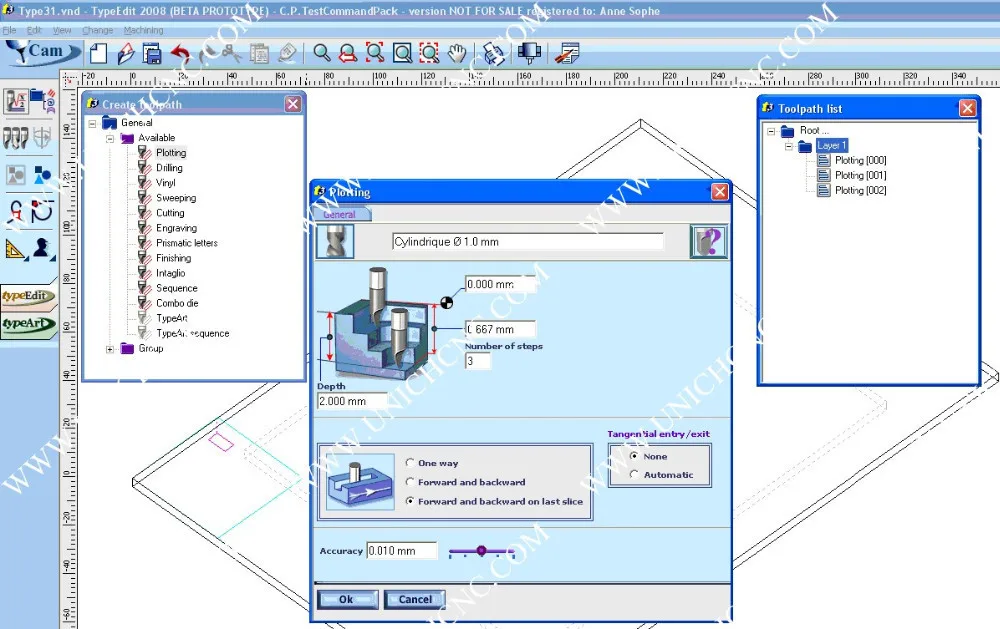

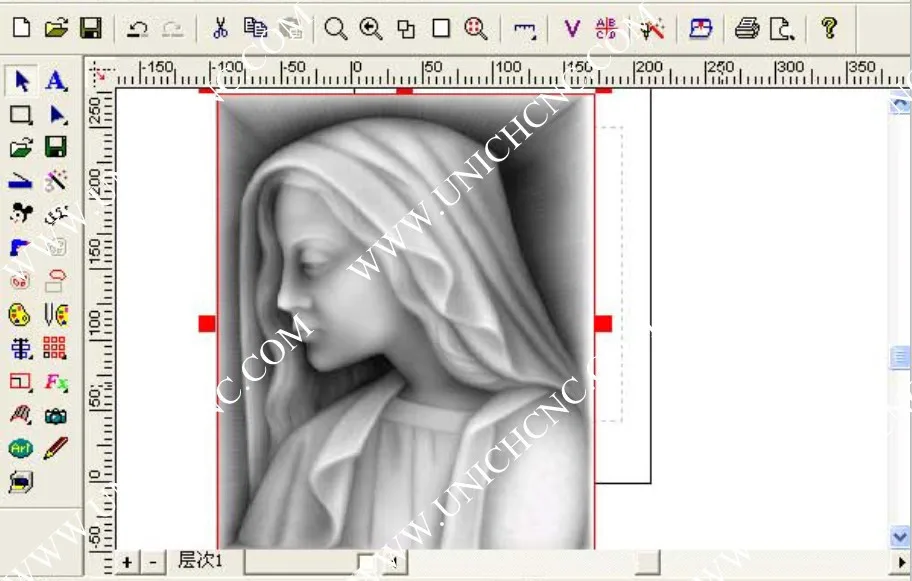

cnc router machine Software

cnc router machine Features

1. Cast steel structure makes our routers more stable.

2. Excellent part: Hiwin linear rails,import TBI ball screw, high speed air-cooling spindle, high precision bearing which has low noise and long life.

3. Modularize frame design: select a variety of machining spindle configuration that can carve,hollow cut and mill.

4. Reasonable designs: advanced rack and pinion drive in Y axis with larger speed and strength.

5. Easy operation:advanced file pre-processing functions to ensure speed and accuracy of operation.

6. Taiwan strong vacuum holding device that up to 312 cubic meter per hour.

7. Compatible software:open softwares prots,compatible with processing codes created by many CAD/CAM sofewares including Type3/Artcam/Castmate/Wentai to pave the way for designs.

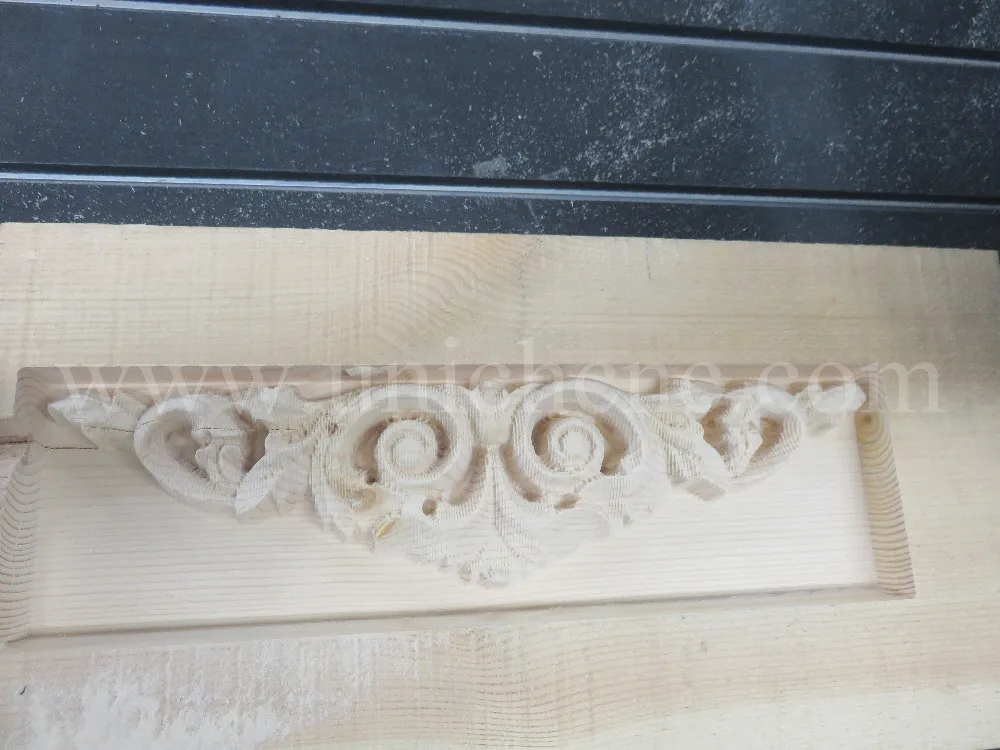

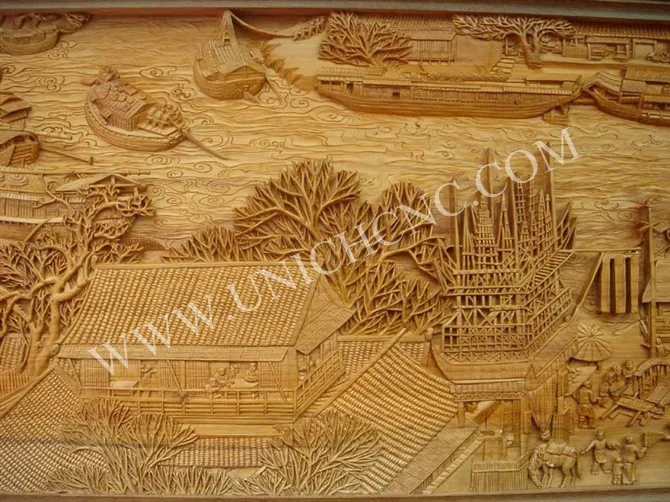

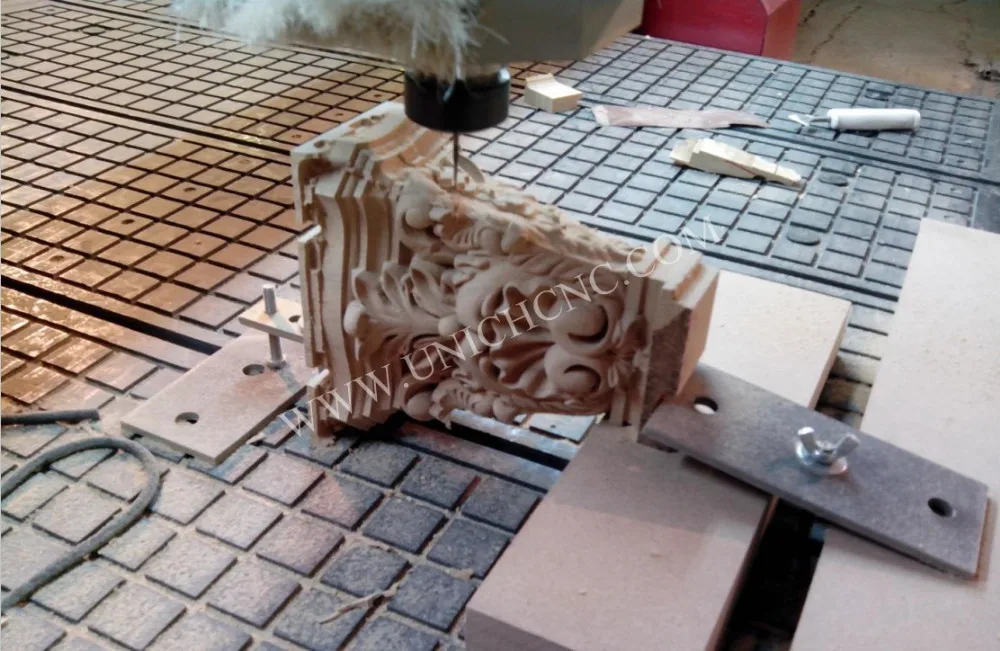

cnc router machine Samples

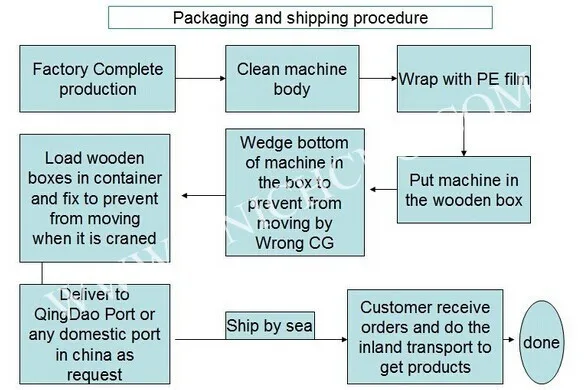

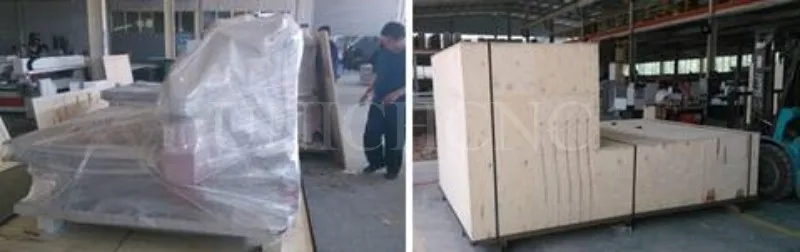

cnc router machine Packaging





JINAN UNICH MACHINERY CO., LTD is specialized in the production of CNC woodworking equipment of high-tech enterprises. Our products have covered woodworking, advertisement decoration, stone operation  and other various industries. Our machines combine of high precision,fast speed and reliability as a whole, can carve various three-dimensional  materials  , formed a series of engraving machine industrial advantages. Company will continue to adopt international advanced production technology and production processes, development and production of high quality, high price ratio of numerical control equipment, continuing to create maximum value for customers.
     Unich company takes the "quality, integrity, innovation, service" spirit, always adhere to the customer demands as the guide, it was well welcomed by almost all customers with its high-quality product and good after-sales service.
