YHChem 220/110V Optional and Customizable 5L Chemical Borosilicate Single Glass Reactor

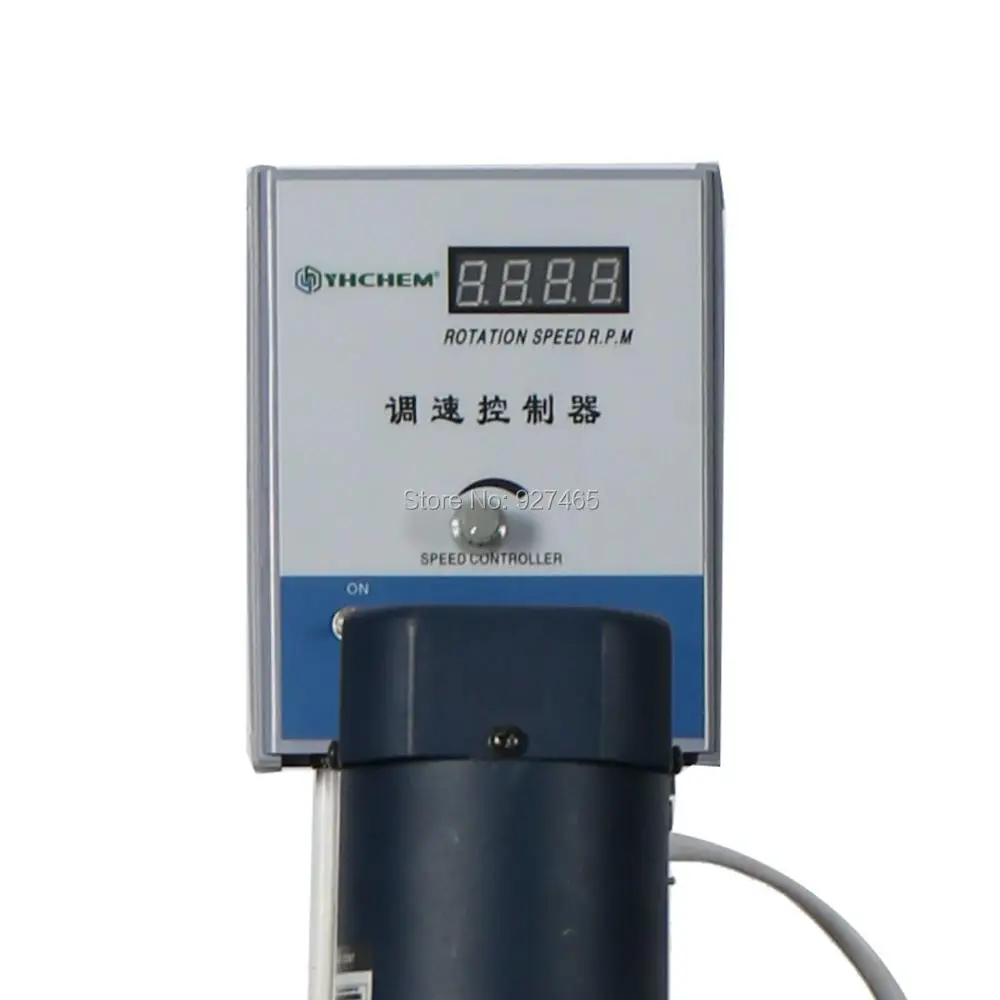

Main Parts 1
Name: Variable-frequencing Governor
Brand: YHCHEM
Original: China (Mainland)
* Digital display of stirring speed
* Accurate control of stirring speed by the knob
* Optional: Explosion-proof type is also available

Main Parts 2
Name: Reactor Lid
Brand: YHCHEM
Original: China (Mainland)
* 5-neck lid, also can be customizable as clients' request

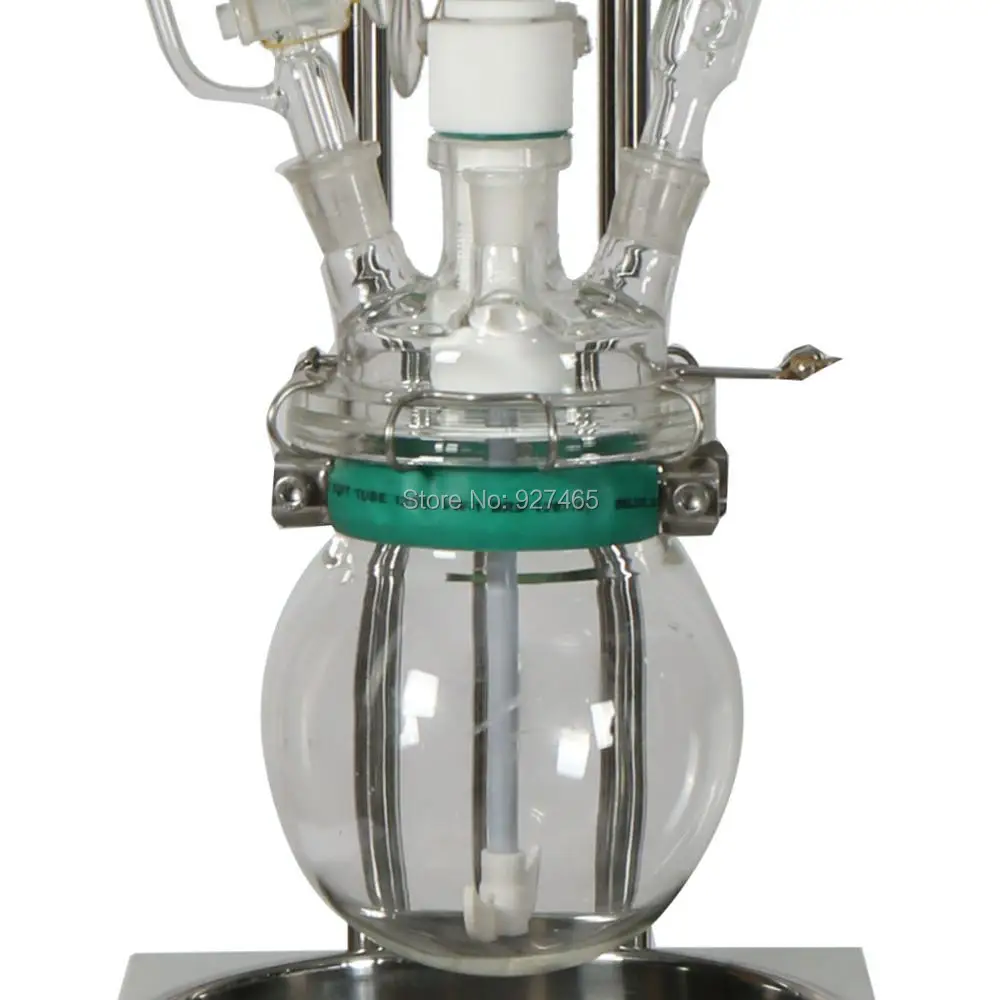

Main Parts 3
Name: Reaction Flask
Brand: YHCHEM
Original: China (Mainland)
* High quality High Borosilicate Glass 3.3
* Rugged steel-reinforced anti-corrosive PTFE
agitator with anchor to lead enough mixing
* Flask volume is customizable from 1L to 5L

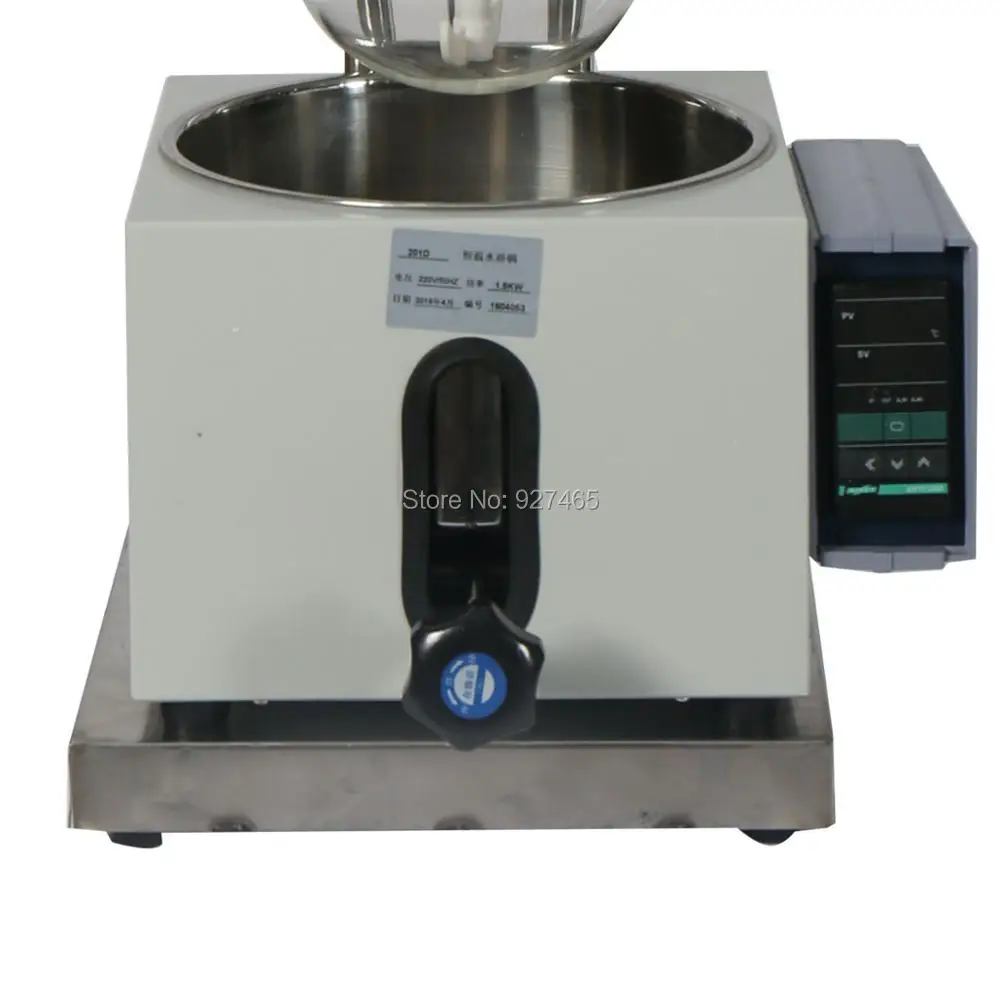

Main Parts 4

Name: Heating Bath
Brand: YHCHEM
Original: China (Mainland)
* Digital display of temperature

* Manual lift to adjust the height to bath
* Stainless steel material, more reliable

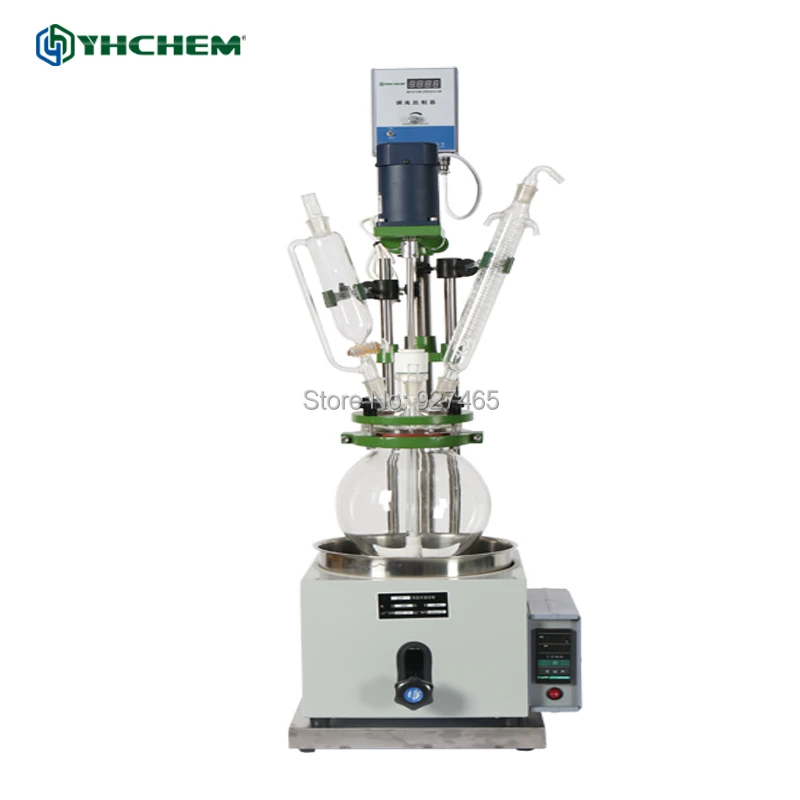

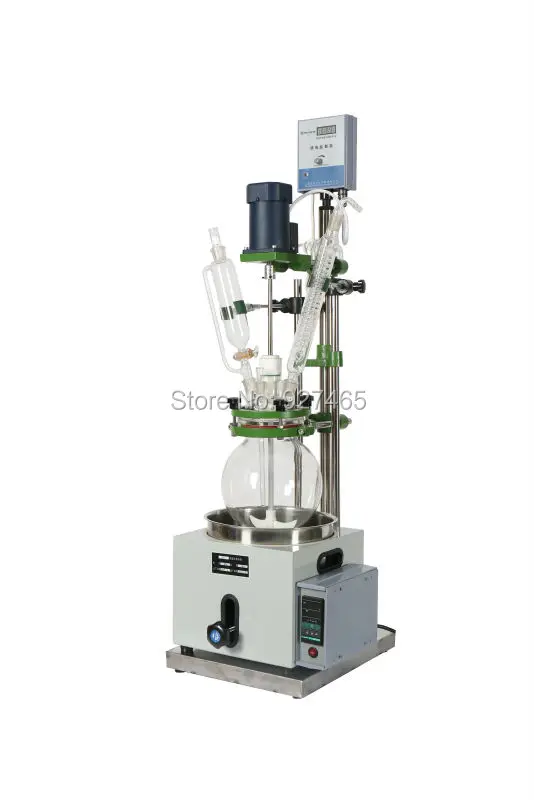

Lab single-layer glass chemical stirring reactor

The lab stirring reactor has been widely used in chemical reaction, combination, separation and concentration. The water bath can provide needed temperature for the chemical reaction. It also can provide excellent mixing in the reaction flask under positive or negative pressure.



Features of the lab stirring reactor

1. Frequency control, AC induction motor, speed digital display constant, brushless, no spark, safe and stable;
2. All glass parts are made of high borosilicate 3.3, with good chemical and physical properties; big bottle mouth design, hand-in cleaning;
3. PTFE mechanical component sealing, it can get the best vacuum degree among the similar products in the market;
4. Overall stainless steel frame structure, compact and solid, stable and reliable without shaking when mixing;
5. The PTFE discharge valve without dead corner;
6. Computer controlled thermostatic oil bath, intelligent PID control, temperature control is accurate and convenient;
7. Distillation, reflux can be simultaneously;
8. Explosion-proof series available.

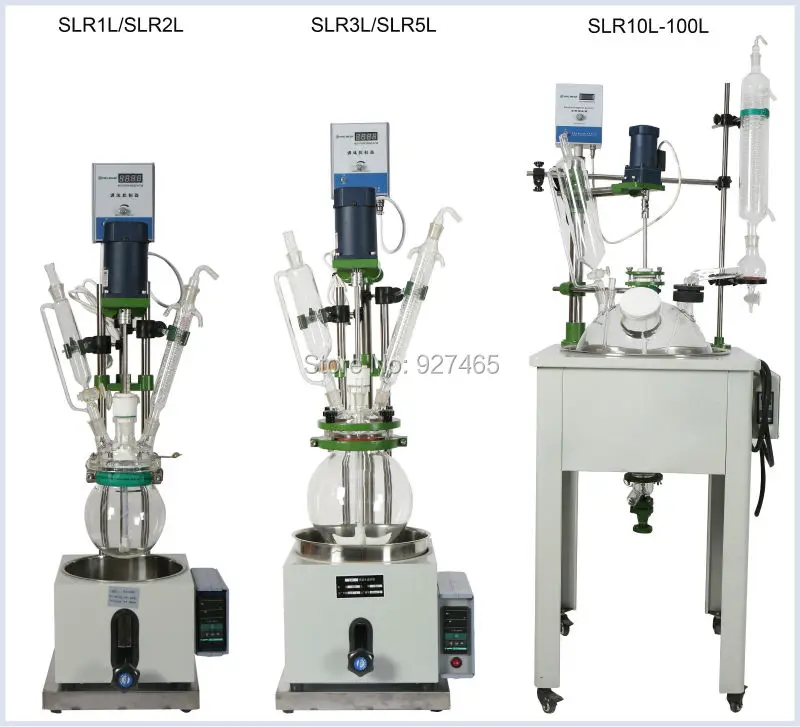

Technical specifications of the lab stirring reactor

Model	SLR1L	SLR2L	SLR3L	SLR5L
Volume(L)	1	2	3	5
Neck on lid	5	5	5	5
Stirring Power(W)	90	90	90	90
Rotational Speed(rpm)	0-980	0-980	0-980	0-980
Stirring Shaft Diameter(mm)	Φ8	Φ8	Φ8	Φ8
Heating Power(KW)	1.5	1.5	1.5	1.5
Power supply	220V/50-60Hz(Optional: 110V)
