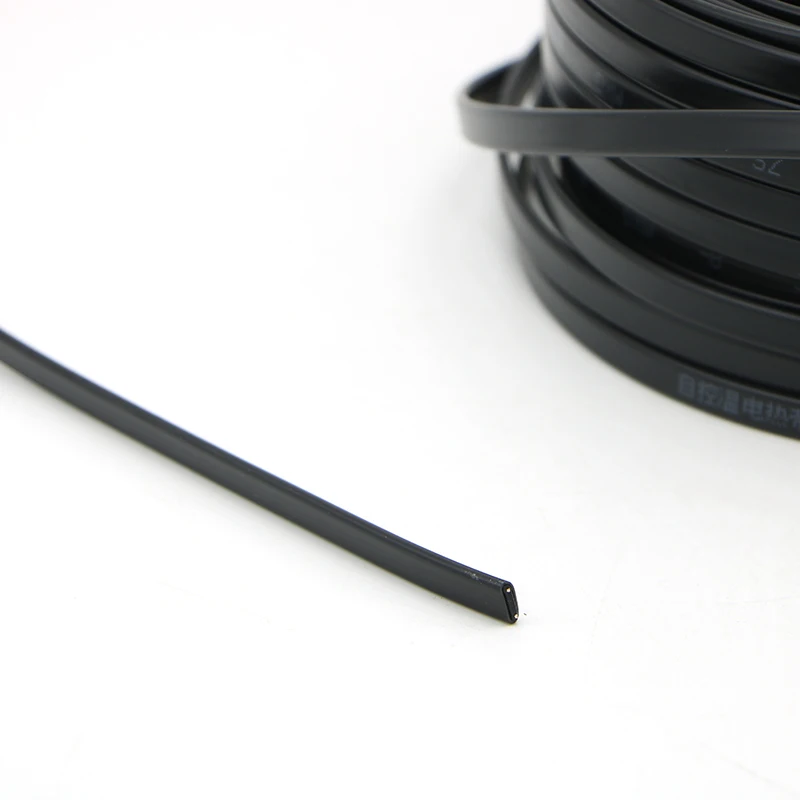

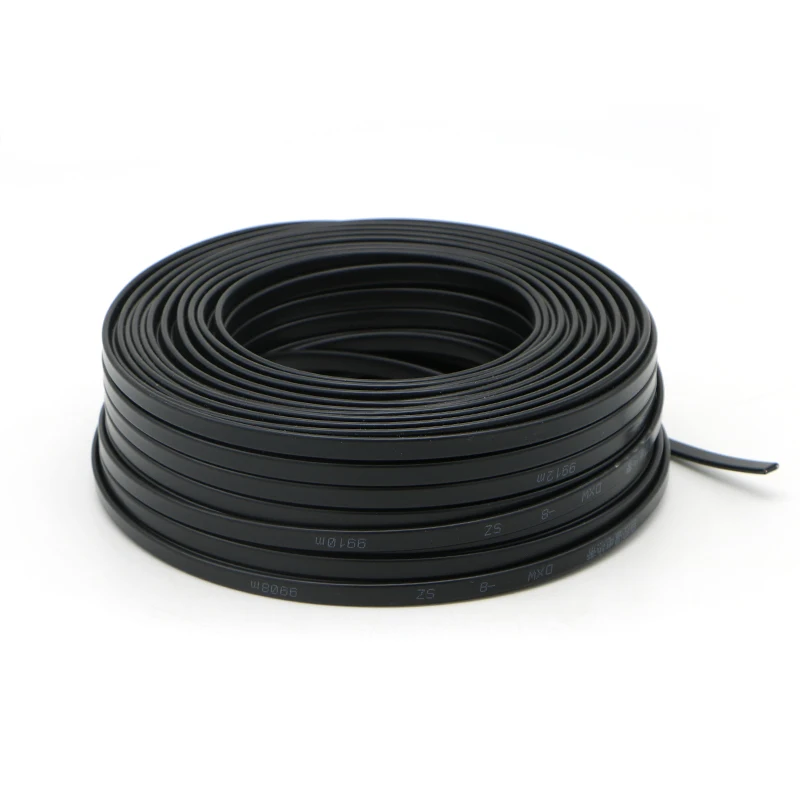

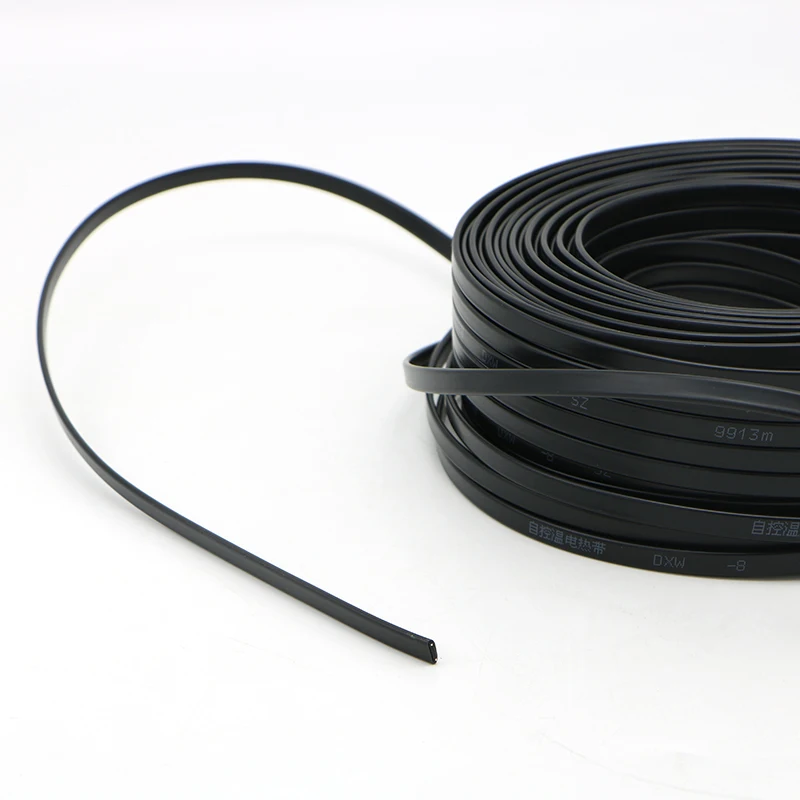

Product name: water pipe heating cable/self regulating heat trace cable

Voltage: 220V 230V 240V

Power: 20W/m @10 centigrade

Max working temperature: 60 centigrade

Min installation temperature: -40 centigrade

Start-up current: less than 0.6 A/m

Min. bend radius: @20C:25.4mm   @-30C:35.0mm

Structure: 1. Pure copper conductor

                 2. PTC heating element

                 3. PVC insulation

The cable is designed for house water pipe and solar upper water pipe freeze protection requirement in winter, to maintain the water in pipes above 0 centigrade, and do not need a controller.

The cable is very easy to install, suit for metal and plastic water pipes.

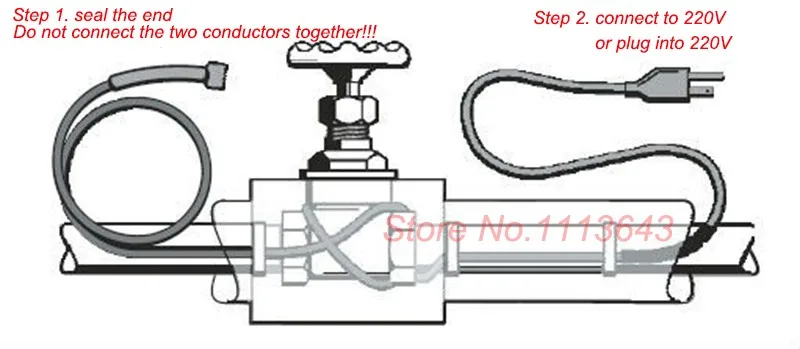

Installation steps:

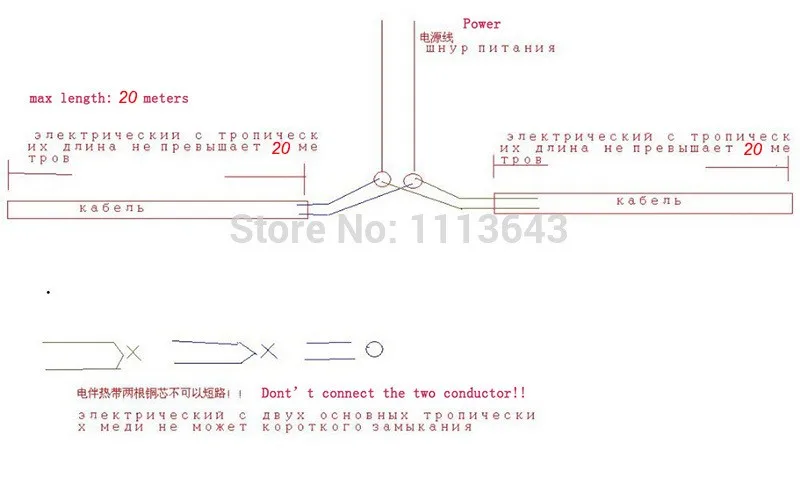

1) Seal the end of the cable with heat shrinkable tube or other electrical insulating tape. DO NOT connect the two conductors together!

2) Connect the other end with cold wire or plug (for connecting to the power supply).

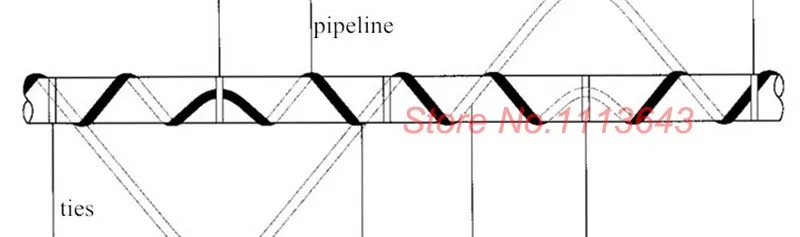

3) Wrap the heating cable on water pipes or fastening straight on pipes, both are ok. Put the whole cable on the pipes and fasten it every 30~60cm with thermal tape or aluminum tape(sold in my store).

4) Suggest to wrap a layer of rubber insulation on the pipe, enhance efficiency of the heating cable and save energy, also can protect the heating cables.

5) Connect or plug into 220~240V. The heat trace system is finished.

Notice: This cable can not use in the water or inside pipes. If need to use inside pipe, please contact us.

Quality guarantee: 2 years
