Setup,Rise,Hold Time:200ms,100ms,30ms at full load
Size:83*49*100mm

ERP Rule Switching power supply
1.CE CCC Approval
2.ISO9001 standard company
3.Historical manufacturing of SMPS ,Inverter

  ERP Rule Switching power supply Product Description

Model LP-150-12 LP-150-24

DC output voltage 12V 24V

Output voltage tolerance 1% 1%

Rated output current 12.5A 6.25A

Output current range 0~12.5A 0~6.25A

Output power 150W 150W

Ripple and noise 120mVp-p 240mVp-p

Adjustable DC voltage range 11.4~13.2V 20.5~26.5V



INPUT
Input voltage range 85~132VAC/176~264VAC(switchover) or 248~373VDC 47~63Hz

AC input current 3A/115VAC 1.5A/230VAC

Efficiency 83% 85%

Impulse current Cold starting current: 10A/115VAC 20A/230VAC

Leakage current <2mA/240VAC



PROTECTION

Overload protection 110%~150%

Protection mode: cut off output and reset automatically

Overvoltage protection 13.8~16.2V 27~30V

Protection mode: cut off output and reset automatically



ENVIRONMENT

Work temperature, humidity -10C~+50C;20%~90 %RH

Storage temperature, humidity -20C~+85C;10%~95 %RH

Shock resistance 10~500Hz,2G 10min./1 cycle,duration: 60min, each shaft



SAFETY

Voltage withstand capacity Input-output: 2KVAC Input-earth: 1.5KVAC Output-earth: 0.5KVAC

Insulation resistance Input-output, input-earth, output-earth: 100M Ohms/500VDC



STANDARD

Safety standard Conforms to CE1012

EMC standard Design refer to FCC Part15 J Conduction Class B



OTHERS

Weight 0.39KG

Package

Outline size 83*49*100mm(L*W*H)

According to your order,we can provide different cartons for you.



NOTE:

1. All parameters, except special situation, are measured under 230VAC voltage input and rated load at 25C.

2. The ripple and noise voltage are measured in condition that capacitance of 0.1 and 47 are applied to ends of 12inch twisted-pair of 20MHz bandwidth oscilloscope.

3. The tolerance is the sum of setting voltage error, voltage and current regulation factor.



ERP Rule Switching power supply connecting wire:

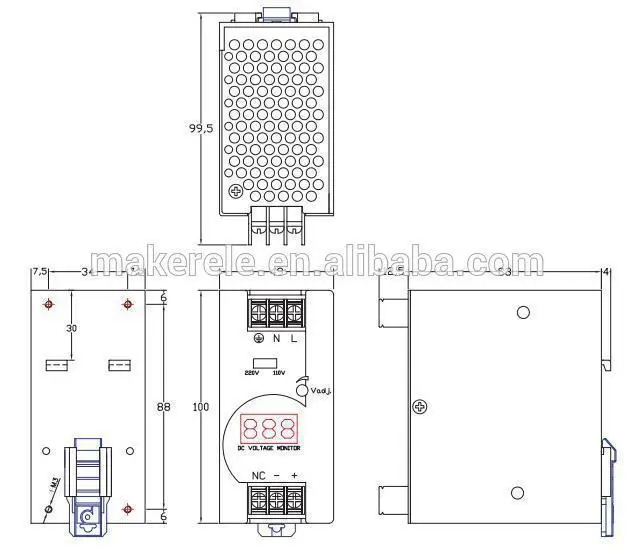

ERP Rule Switching power supply Size:



All switching power supply:

    ERP Rule Switching power supply Shipping

1. Item will be shipped within 5-7 business days.

2. Delivery Time:

----Via Air: Generally 1-3 working days

----Via Express: Generally 3-7 working days.

----Via China Post Air Mail: Generally 15-25 working days

----Via Sea: According to the order.

3.If you have not received your shipment within 30 days from payment,Please contact with us,We will track the shipment and get back to you as soon as possible with a reply.

  Maker Electric Services

Maker Industrial and Trading Company started to run businiess since 2006, which is located in Wenzhou Yueqing - The world-famous city for low-voltage electric apparatus.

Custom Product Design

OEM/ODM

Profession in export service from Maker Electric

High quality Product, Affordable Price

  FAQ

What is a switching power supply?

Switching power supply is the use of modern power electronic technology, control switch tube opened and shut off time ratio, to maintain stable output voltage of a power supply, switching power supply by general pulse width modulation (PWM) control IC and MOSFET.





What is the application scope of switch power supply?





Switching power supply products are widely used in industrial automation control, military industry equipment, scientific research equipment, LED lighting, industrial control equipment, communications equipment, electrical equipment, instrumentation, medical equipment, semiconductor refrigeration and heating, air purifier, electronic refrigerator, LCD, LED lamps and lanterns, communications equipment, audio and video products, security monitoring, leds bags, computer case, digital products and instruments, etc.





What is the structure of switch power supply products?

Roughly by the main switch power supply circuit, control circuit, detection circuit, auxiliary power supply of the four most.



Switching Power Supply Common faults:

1.Blown fuse.
2.No dc voltage output or the output voltage is not stable.
3.The power load ability is poor.
