 The company receives the remote control board, Mainly used in lamps and lanterns,  hoisting equipment,  remote control electric doors and Windows, signal control, industrial control.

       The electric control circuit of lifting equipment and security industry and so on. This product is simple to use, the line 2   into   of   2  out, easy to operate.

 The company design and manufacture of small single remote control switch 220 volts  using  Max 10 a relay, can load 1500 watts of electrical appliances; Can learn more remote control, and each remote control all buttons can learn, can be a remote control multiple switch, a switch can also be multiple remote controller, operation is simple and flexible supporting any combination. +This kind of switch design reserved various works, inching, self-locking, interlocking switch by 1, 2, 3, solder joints; Output mode can through the preset A, B, C three bonding pad for the output switch electrically charged

Technical parameters
Working voltage: 220V
Work frequency: 315 MHz / 433 MHz
Maximum load: 1500 W
Working way: jog , self-lock and inter-lock(Adjustable by pad)

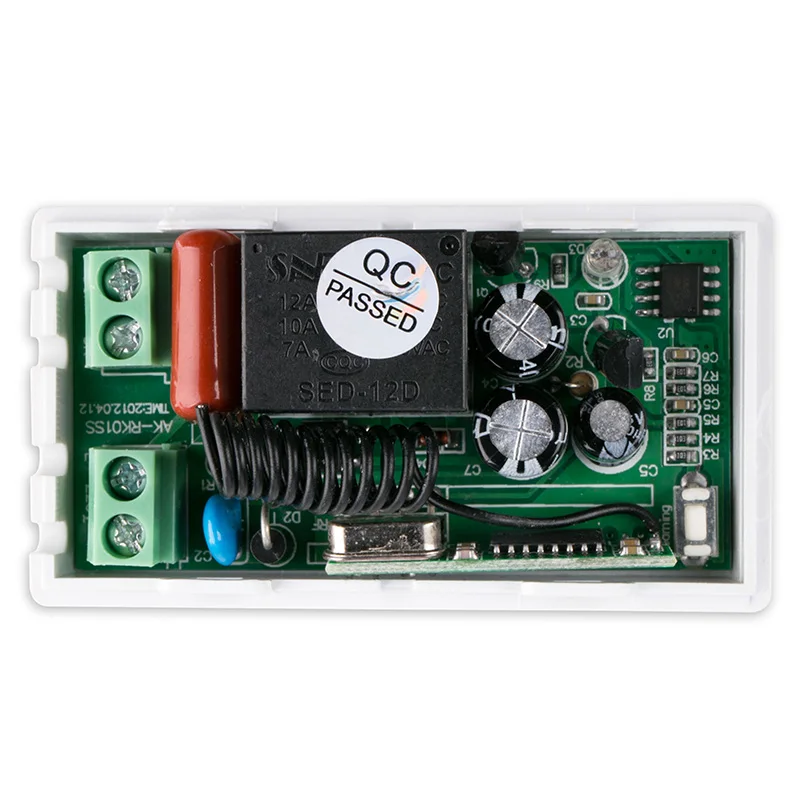

Circuit board size: 60 × 30 × 17 mm
Shell size: 66 x 36 × 21 mm
Learning and removing method:

1 .There is a learning button on the control panel of touch switch, the button is used to
learn and remove the code.

2 .Press and hold the learning button for three seconds. When the indicator light flashes
,we enter the learning state. Press any key on the remote controller to emit signal, the light flashes two times and off .It means you learn it successfully.

3 .It can learn more than 12 PCS 2262 or 1527 chip with the different code wireless remote
controller.
4. Delete remote control method: hold down the learning button for about 8 seconds, the indicator light turns on to off, then the code you learned before will be deleted.
5. working way switching

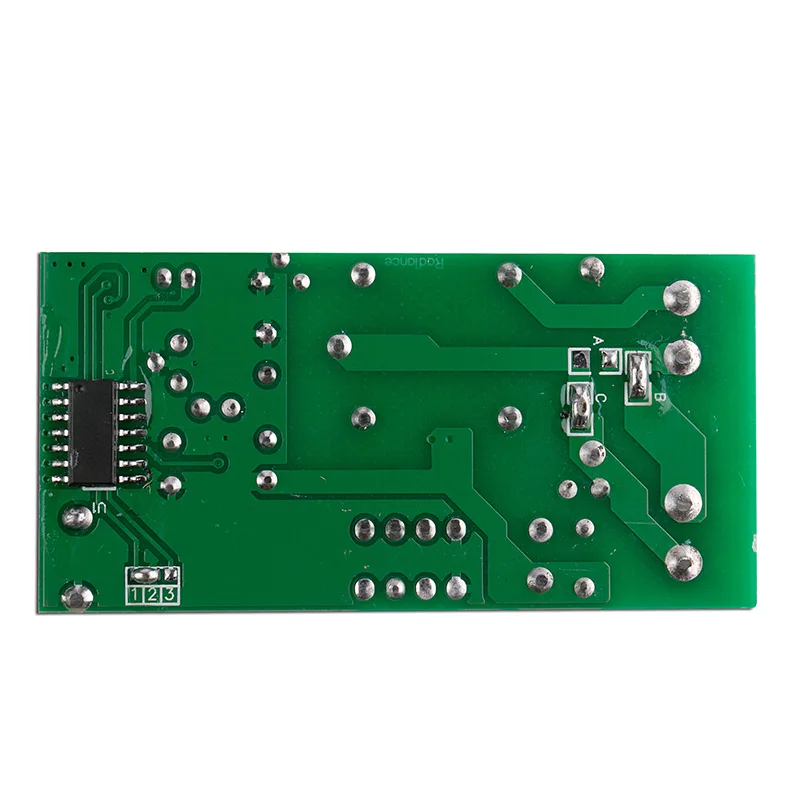

Through the sub circuit board behind the pad 1, 2, 3 different local to switch working way
   1 jog1, 2, 3 pads non-occupation, not connect
   2 self-lock, shorted 1, 2
   3, inter-locking shorted 2, 3
Jog---- press the button is ON . loosen your finger is OFF

Self -lock----- press one button for one time is ON .press the same button again is OFF

Inter-lock-------press one button is ON , press another button is OFF .

Note: 433mhz or 315 mhz can be choose   ,315mhz will be sent out if there is no message

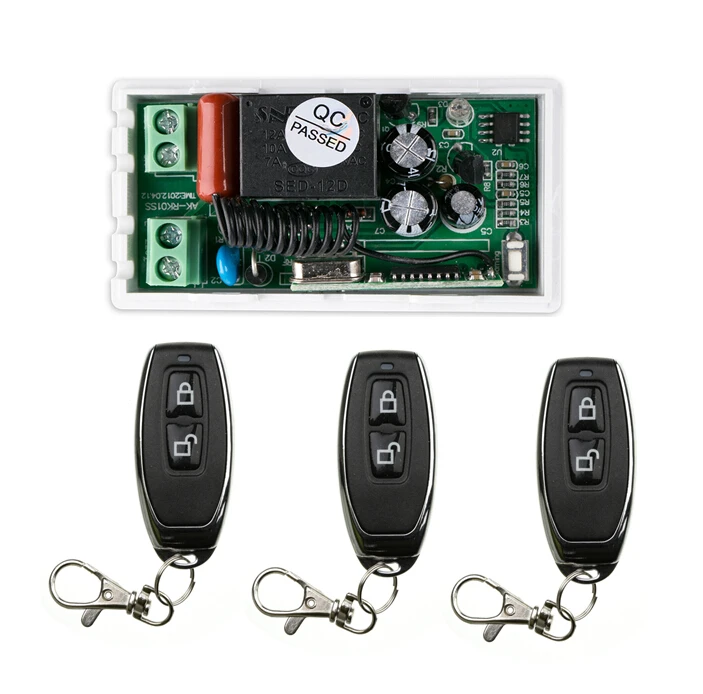

package include:
1*receiver

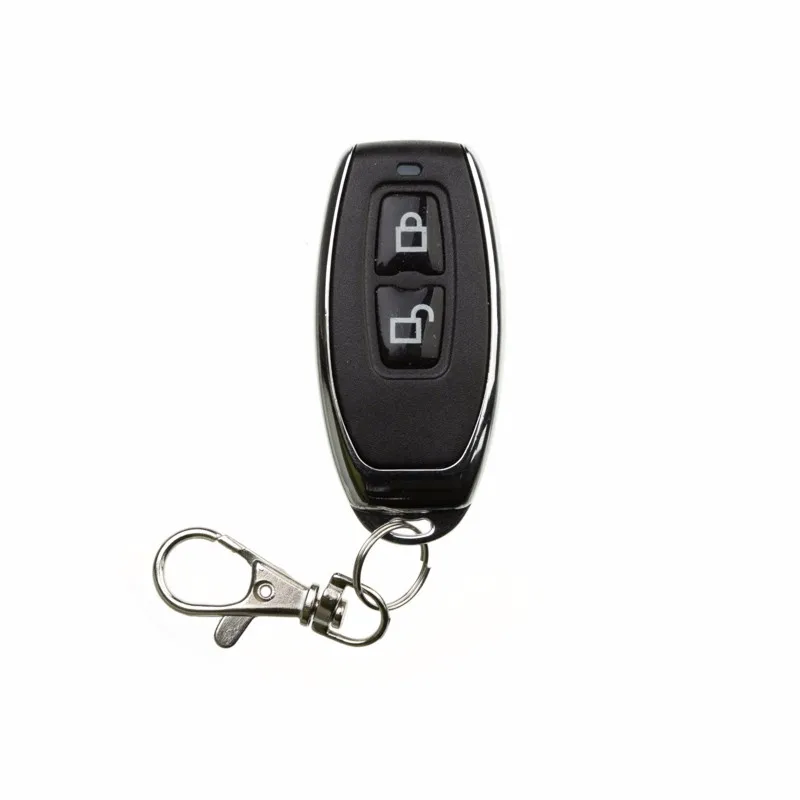

3*transmitter
