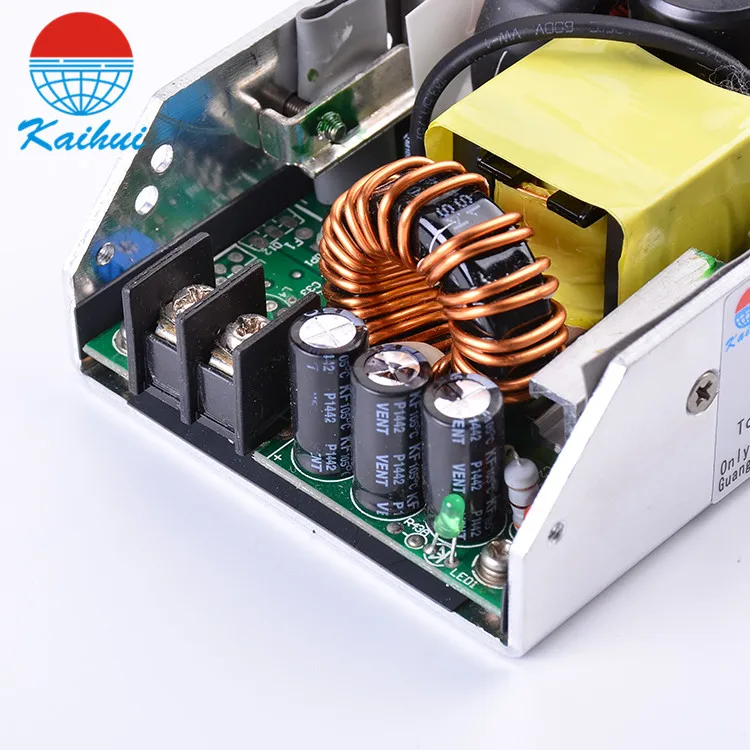

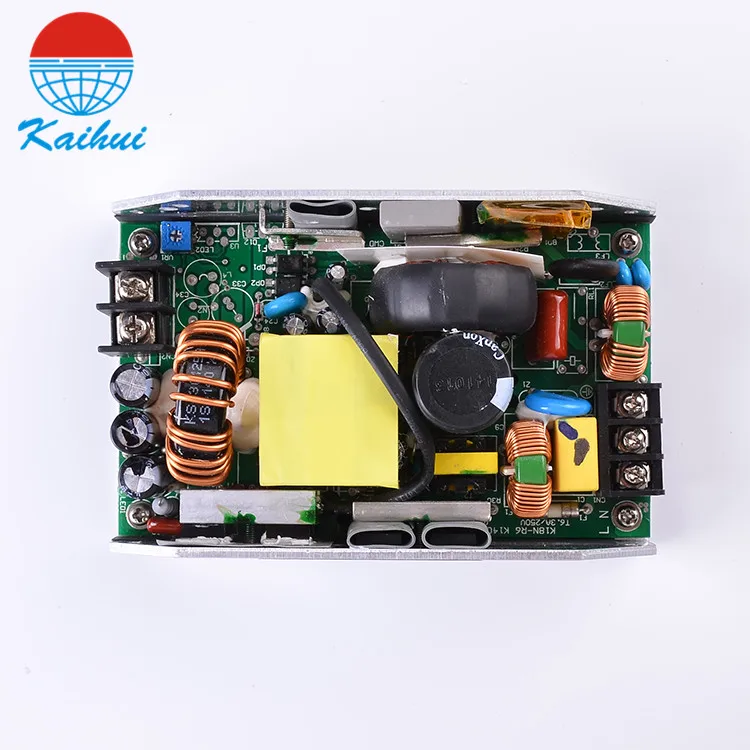

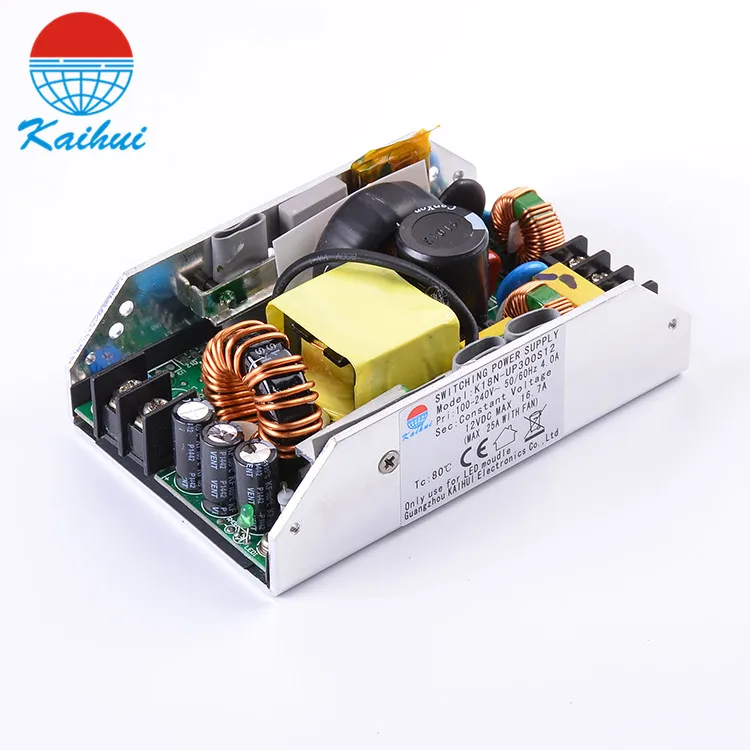

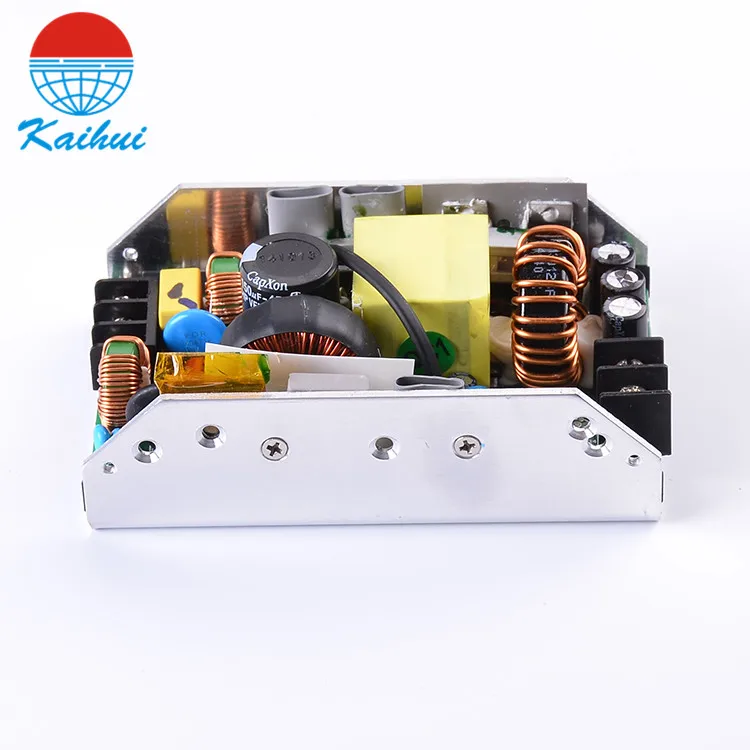

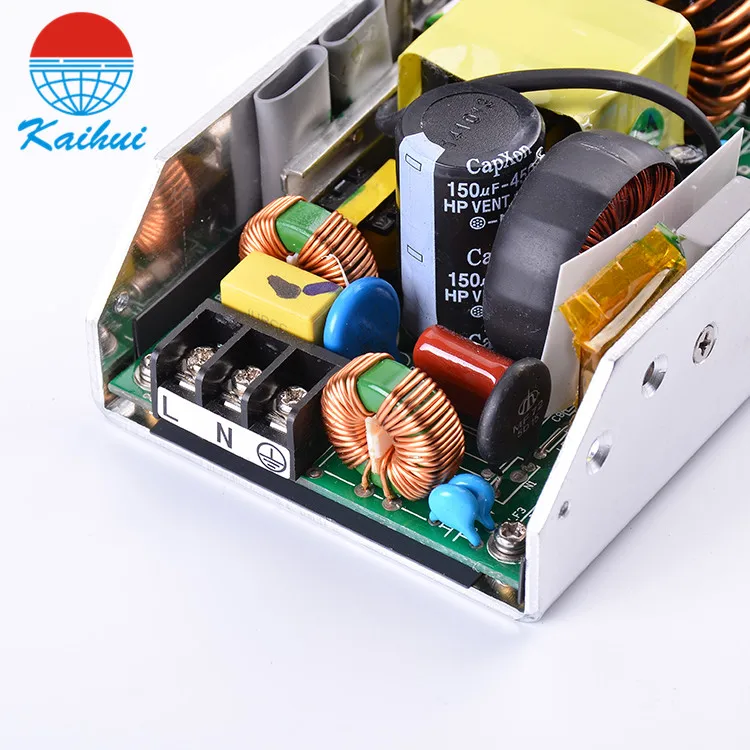

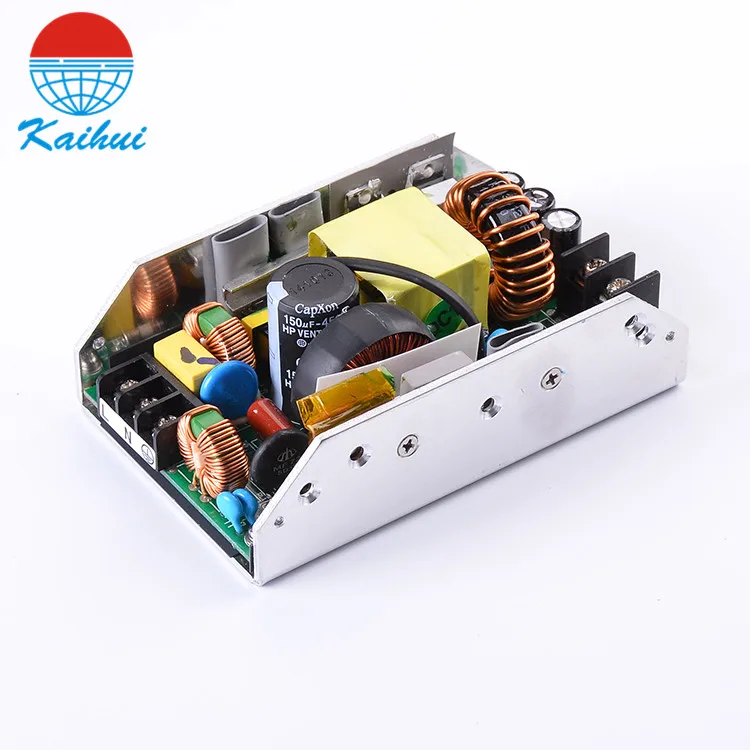

Kaihui AC DC Power Supply 36V 8.3A Led Switching for Stage Lights Обустройство дома - купить
Специальная цена от US $26.02 руб.*
Категория товара: Switching Power Supply
История изменения цены
*Внимание! Указанная цена US $26.02 уже могла изменится, перед тем как купить данный товар перейдите на страницу продавца и проверьте актуальную стоимость.
| Месяц | Мин. | Макс. | Цена |
|---|---|---|---|
| 13.06.2026 | 31.24 | 33.48 | 32 руб. |
| 13.05.2026 | 31.22 | 33.80 | 32 руб. |
| 13.04.2026 | 26.46 | 27.69 | 26.5 руб. |
| 13.03.2026 | 30.13 | 32.89 | 31 руб. |
| 13.02.2026 | 26.51 | 27.7 | 26.5 руб. |
| 13.01.2026 | 30.10 | 32.7 | 31 руб. |
| 13.12.2025 | 29.64 | 30.53 | 29.5 руб. |
| 13.11.2025 | 29.45 | 30.66 | 29.5 руб. |
| 13.10.2025 | 29.61 | 30.25 | 29.5 руб. |
Купить Kaihui AC DC Power Supply 36V 8.3A Led Switching for Stage Lights | Обустройство дома
|
|
Features: Wide range AC input voltage; Built-in PFC; High efficiency; Short circuit, overload protection. |
|||||
|
Item No parameter |
K18N-UP300S12 |
K18N-UP300S24 |
K18N-UP300S36 |
K18N-UP300S48 |
||
|
Output |
Output voltage |
+12V |
+24V |
+36V |
+48V |
|
|
|
Rated current |
25A |
12.5A |
8.3A |
6.25A |
|
|
|
Current range（Natural cooling） |
0-16.7A |
0-8.3A |
0-5.6A |
0-4.2A |
|
|
|
Current range (20CFM fan cooling) |
0-25A |
0-12.5A |
0-8.3A |
0-6.25A |
|
|
|
Rated power（Natural cooling） |
200.4W |
199.2W |
201.6W |
201.6W |
|
|
|
Rated power (20CFM fan cooling) |
300W |
300W |
298.8W |
300W |
|
|
|
Ripple |
200mVp-p |
240mVp-p |
360mVp-p |
480mVp-p |
|
|
|
Adjustable output range |
±10% |
||||
|
|
Output Accuracy |
±1% |
||||
|
|
Line Regulation |
±0.5% |
||||
|
|
Load Regulation |
±0.5% |
||||
|
|
Set up,Rise,Keep up time |
500ms,50ms,20ms |
||||
|
Input |
Input Voltage range |
90-264V AC |
||||
|
|
Input current |
1.6A @ 220V AC |
||||
|
|
Input frequency |
47-63 Hz |
||||
|
|
Efficiency |
>88% @ 220V AC |
||||
|
|
PF |
>0.99@110V;>0.95@220V |
||||
|
|
Inrush current |
COLD START 20A/115V，40A/230V |
||||
|
|
Leakage Current |
<0.75mA@240V AC |
||||
|
Protection |
Over load protection |
110~150%,Hiccup protection, automatic recovery |
||||
|
|
Output overvoltage |
15-18V |
28-33V |
42-46V |
55-60V |
|
|
|
Over Temp.protection |
Cover’s temp. >105℃，output closed，automatic recovery |
||||
|
Other Function |
|
|
||||
|
Environment |
Working Temp.,Humidity |
-20~50℃，10~90% RH， No condensation |
||||
|
|
Storage Temp.,Humidity |
-20~85℃，10~95% RH |
||||
|
|
Temp.,Drift |
±0.03%/℃(0~50℃) |
||||
|
|
Vibration |
10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES |
||||
|
Safety&EMC Standards |
Safety standards |
EN60950-1 |
||||
|
|
Pressure |
I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:500VAC |
||||
|
|
Insulation resistance |
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms |
||||
|
|
EMC standards |
EN55022 CLASS A, EN61000-3-2,EN61000-3-3 |
||||
|
Others |
Dimension |
127*82*45mm |
||||
|
|
Weight |
0.6Kg |
||||
|
Note |
1.All parameters 230V AC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity. 2. Accuracy: includes set up tolerance, line regulation, load regulation, etc. 3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end 4. Line regulation: high load conditions change in the rated input voltage from low to measured 5. Load regulation: the measured output load from 20% to 100% load change measured, other load is fixed at 60% load |
|||||
What’s the Feature and Advantages of our Product?
We can make the products according to your kind requirement
Low price and high reliability
High efficiency and low operation temperature
With short-circuit and overload protection
Small size, High efficiency, High reliablility, Long lifetime;
100% full-load burn-in test
Built-in EMI filter, low ripple noise
