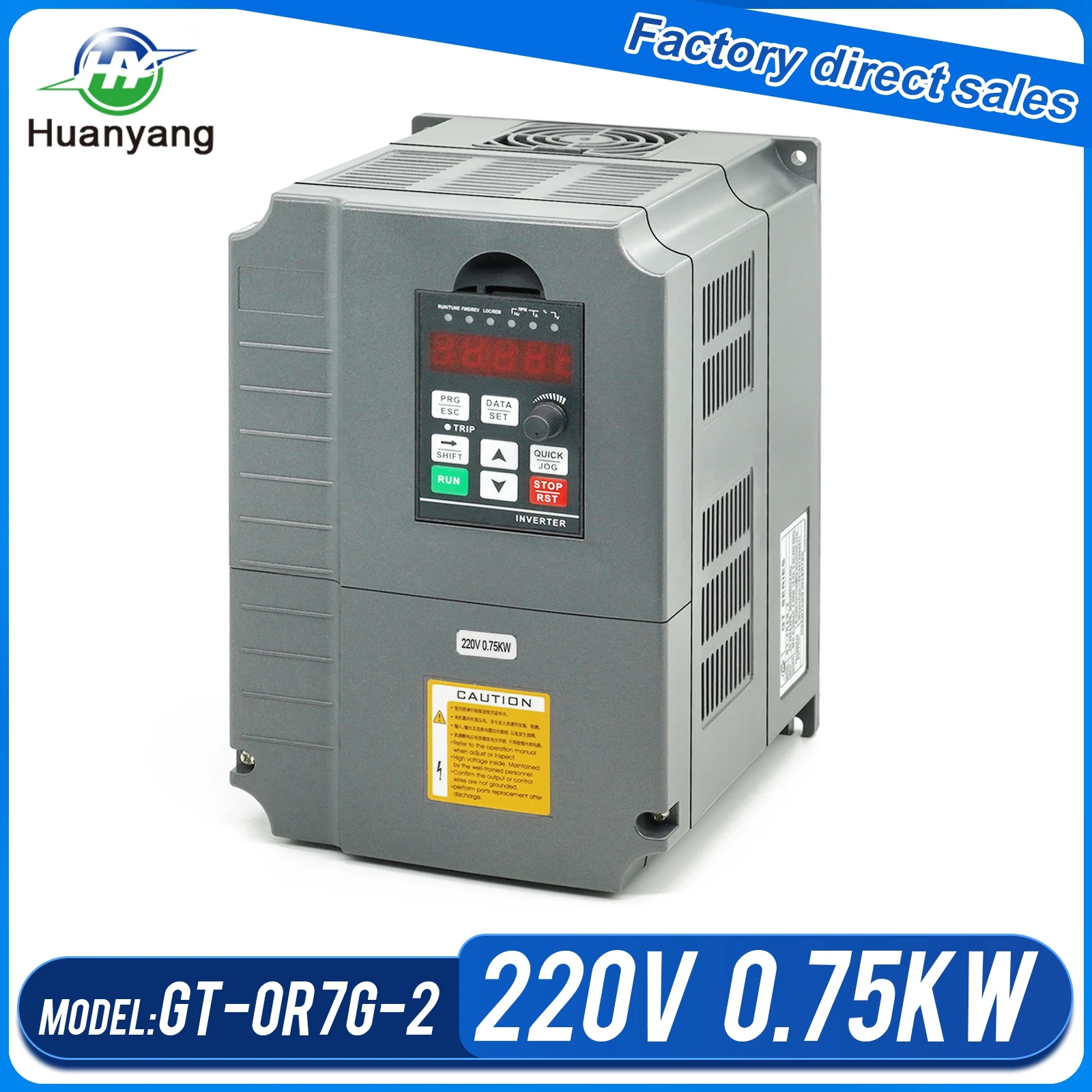

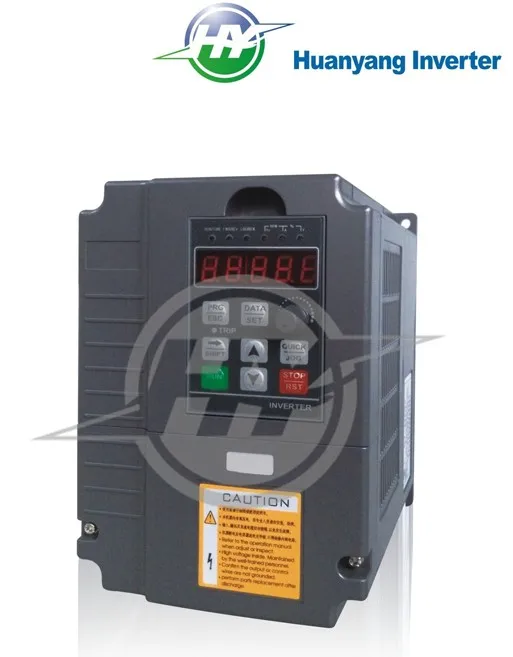

 MODEL:GT-0R7G-2

Technical Features:

Input & Output

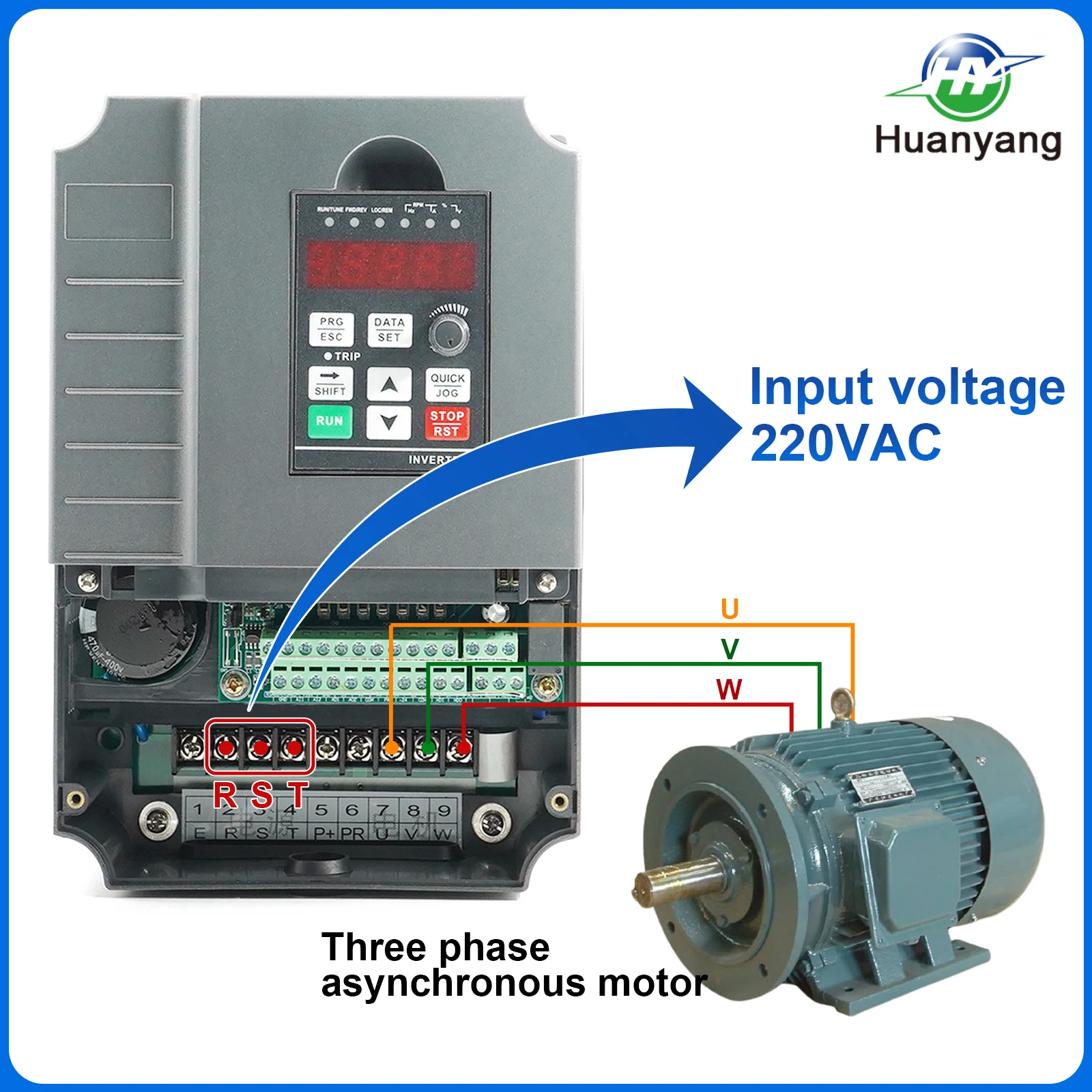

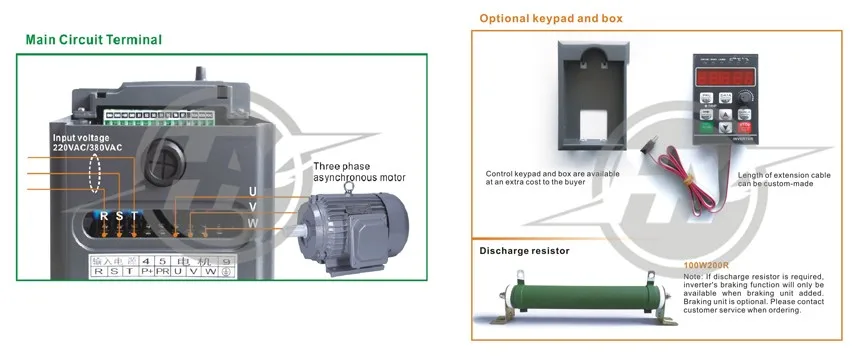

Input Voltage : 220V, single phase

Input Frequency: 50Hz/60Hz

Output Voltage : 220V, three phase

Output Frequency: 0.5-50/60Hz, 0.5-400Hz

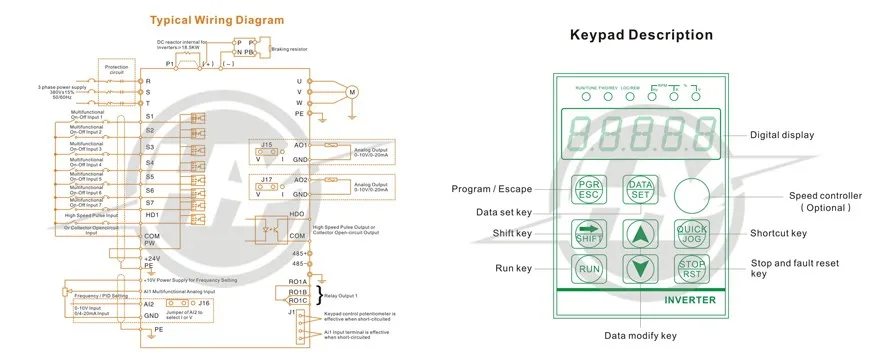

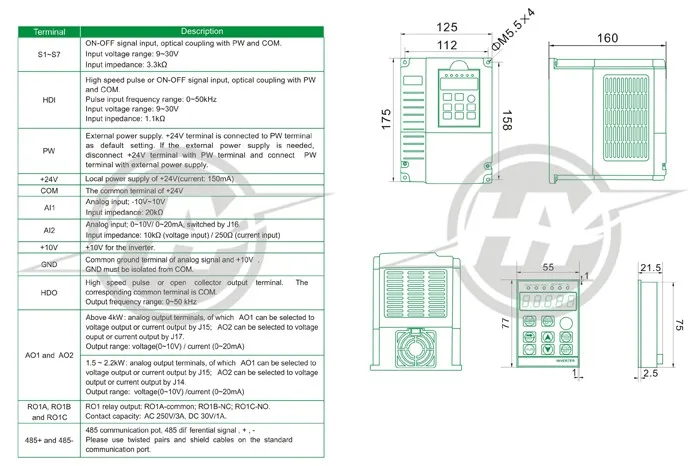

I/O Features

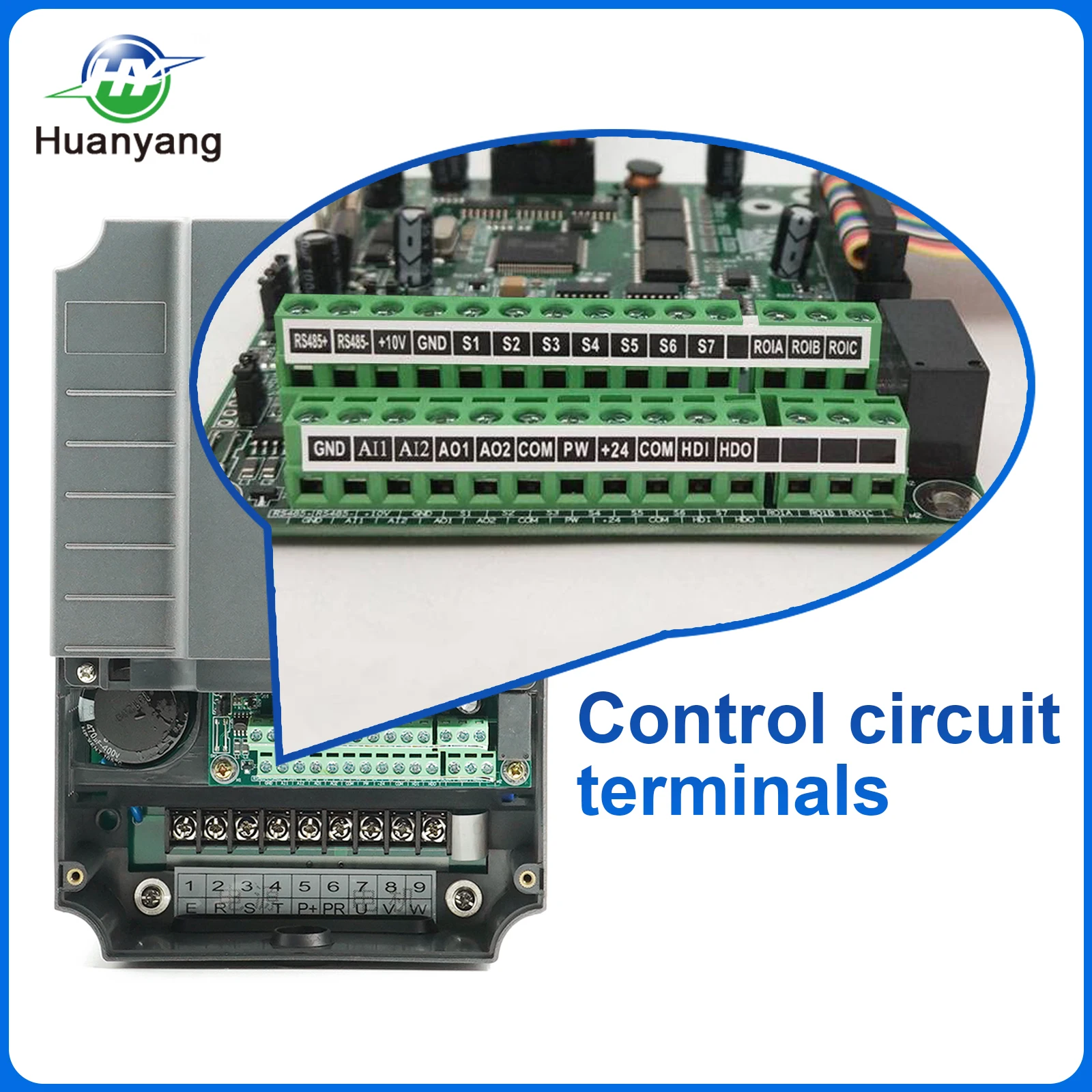

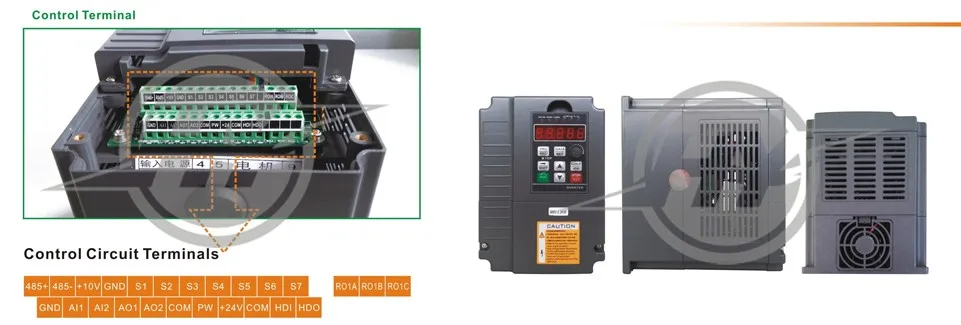

Programmable Digital Input: Provide 7 terminals which can support ON-OFF inputs, 1 terminal which can support high speed pulse input and PNP, NPN

Programmable Analog Input: AI1 can accept input of -10V-10V, AI2 can accept input 0-10V or 0-20mA

Programmable Open Collector Output: Provide 1 output terminal (open collector output or high speed pulse output)

Relay Output: Provide 1 output terminal

Analog Output: Provide 2 output terminal, whose output range can be 0/4-20mA or 0-10V, as chosen.

Main Control Function

Control Mode: V/F, Sensorless Vector Control (SVC), Torque control

Overload Capacity: 60s with 150% of rated current, 10s with 180% of rated current

Speed Adjusting Range: 1:100 (SVC)

Carrier Frequency: 1kHz - 15.0kHz

Frequency reference source: keypad, analog input, HDI, serial communication, multi-stage speed, simple PLC and PID setting. The combination of multi-modes and the switch between diffrent modes can be realized

PID Control Function

Simple PLC, Multi-Steps Speed Control Function: 16 stages speed can be set

Traverse Control Function

None-Stop when instantaneous power off

Speed Trace Function: Smoothly start the running motor

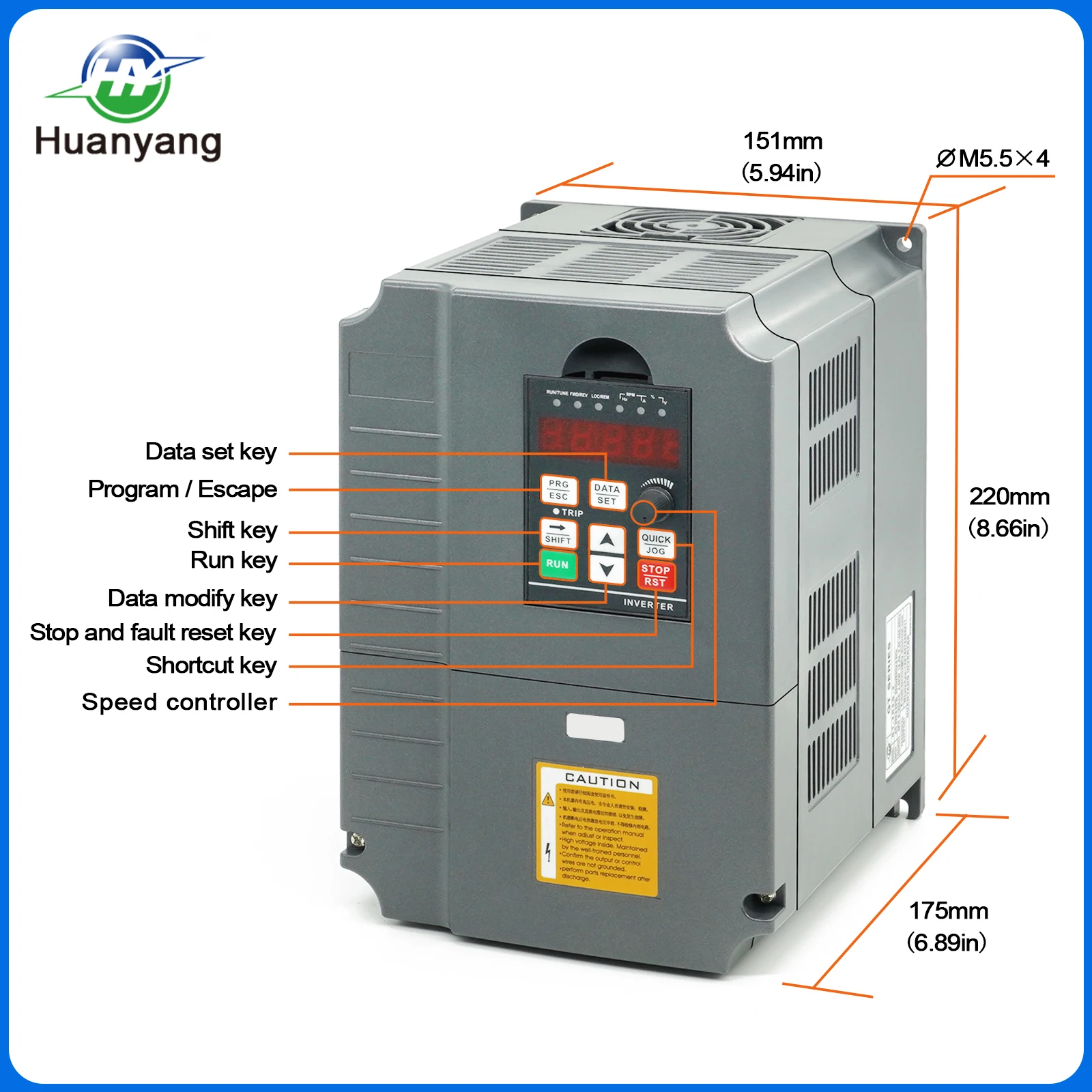

QUICK/JOG Key: User defined shortcut key can be realized

Automatic Voltage Regulation Function (AVR)

Automatically keep the output voltage stable when input voltage flucuating

Fault protections: Protect from over current, over voltage, under voltage, over temperature, phase failure, over load etc.

Application:

Mettalurgy,petroleum,chemical, textile, electricity, building material, coal, medicine, food, paper making, plastic, printing, lifting, cable, washing, water supply, HVAC, sewage disposal and other industries.

Machinery: CNC router, CNC machine, milling machine, drilling machine, wingding machine, mixer, extruder, slitter, winder, compressor, ventilator, pump, grinder, conveyor, elevator, centrifuger and other speed control machines.

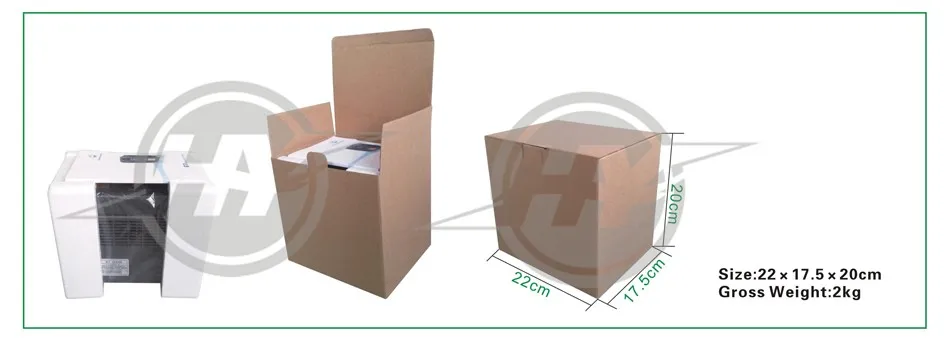

Package include:  1 x HuanYang Drive

                             1 x User Manual

Welcome to view other items in our store

These products are directly from the manufacturer with competitive price and guaranteed quality. Pls feel free to contact us for stock.

Note: 220V to 380V inverter's current is much larger than standard one, so inverter's power have to be larger than motor's, or damage will be caused to inverter.

Above inverter model selection is for underload motor. If your motor is heavy load, pls contact sales for model selection suggestion.
