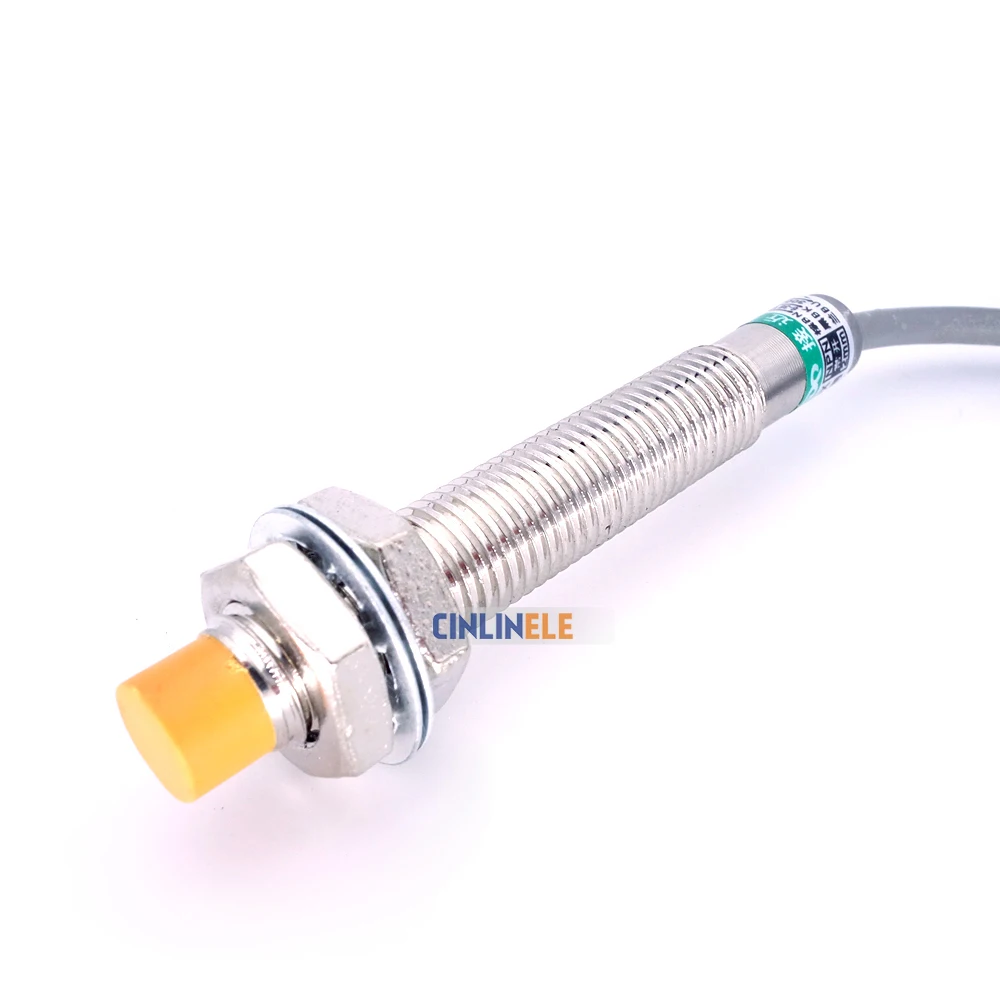

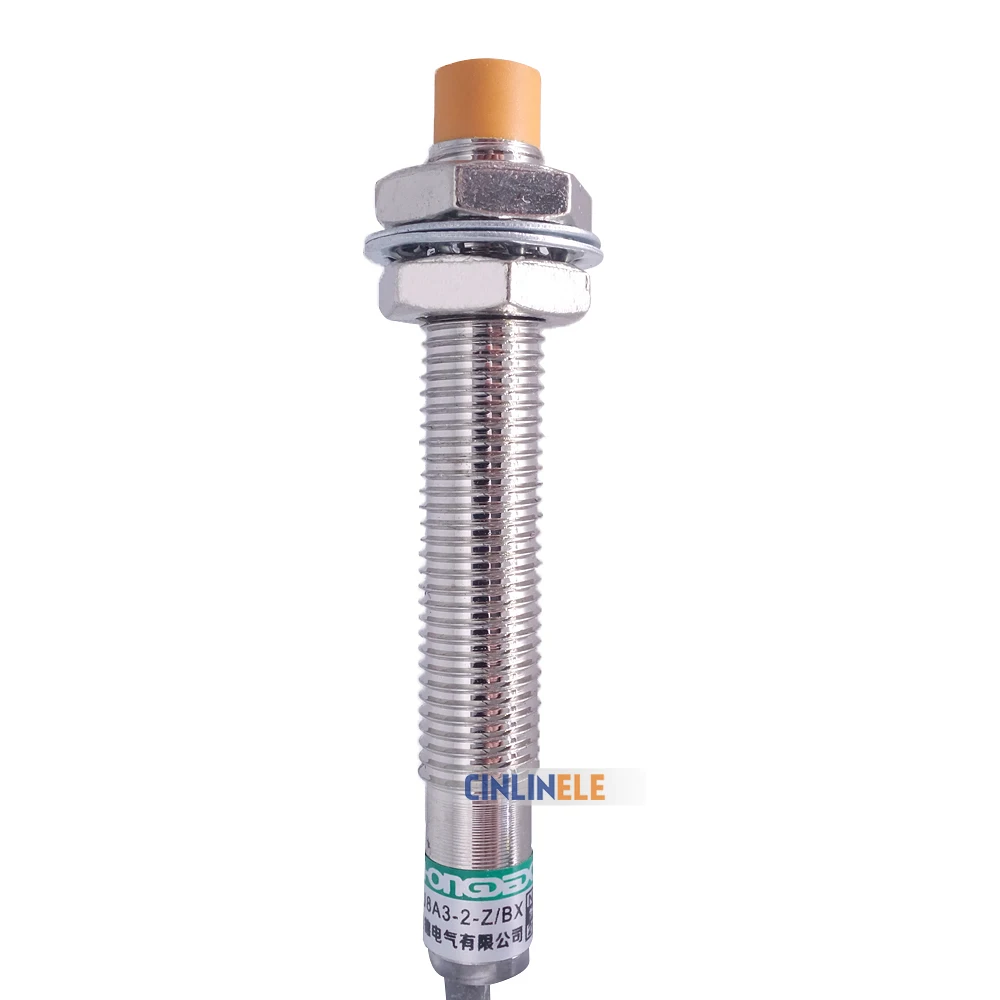

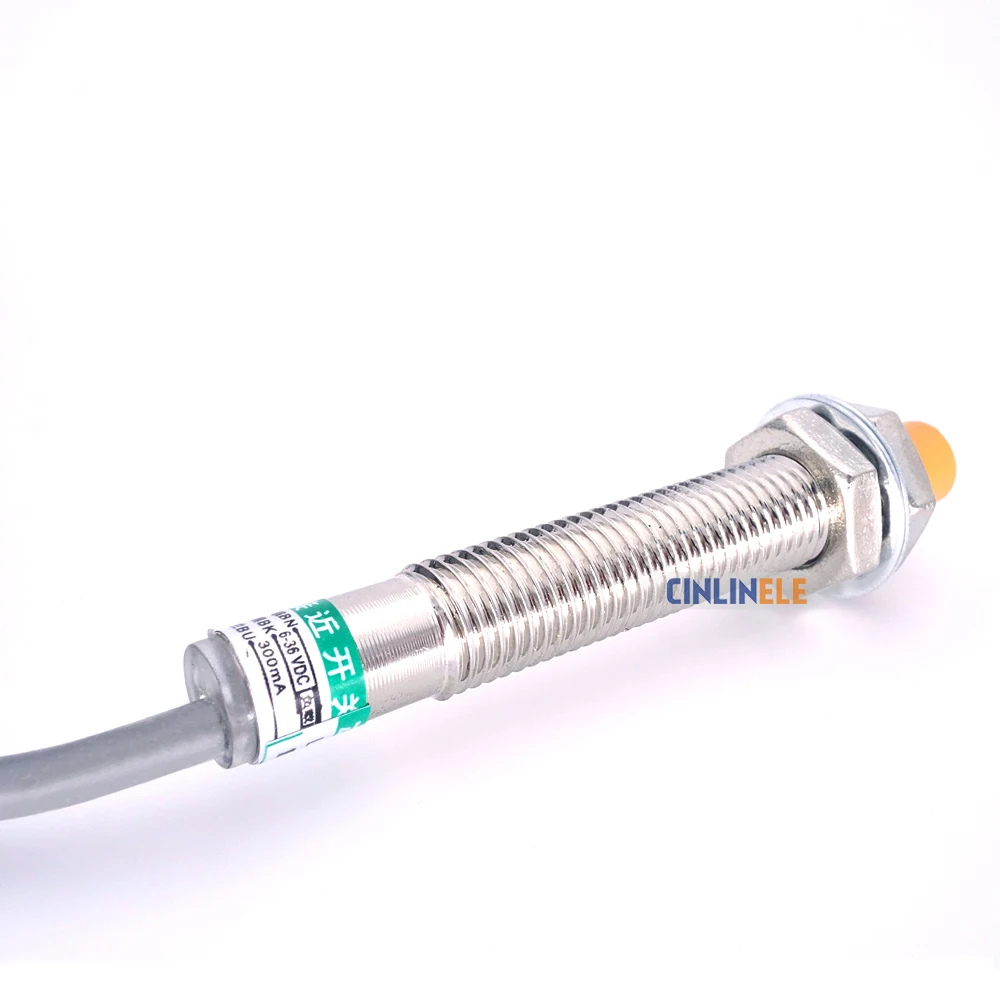

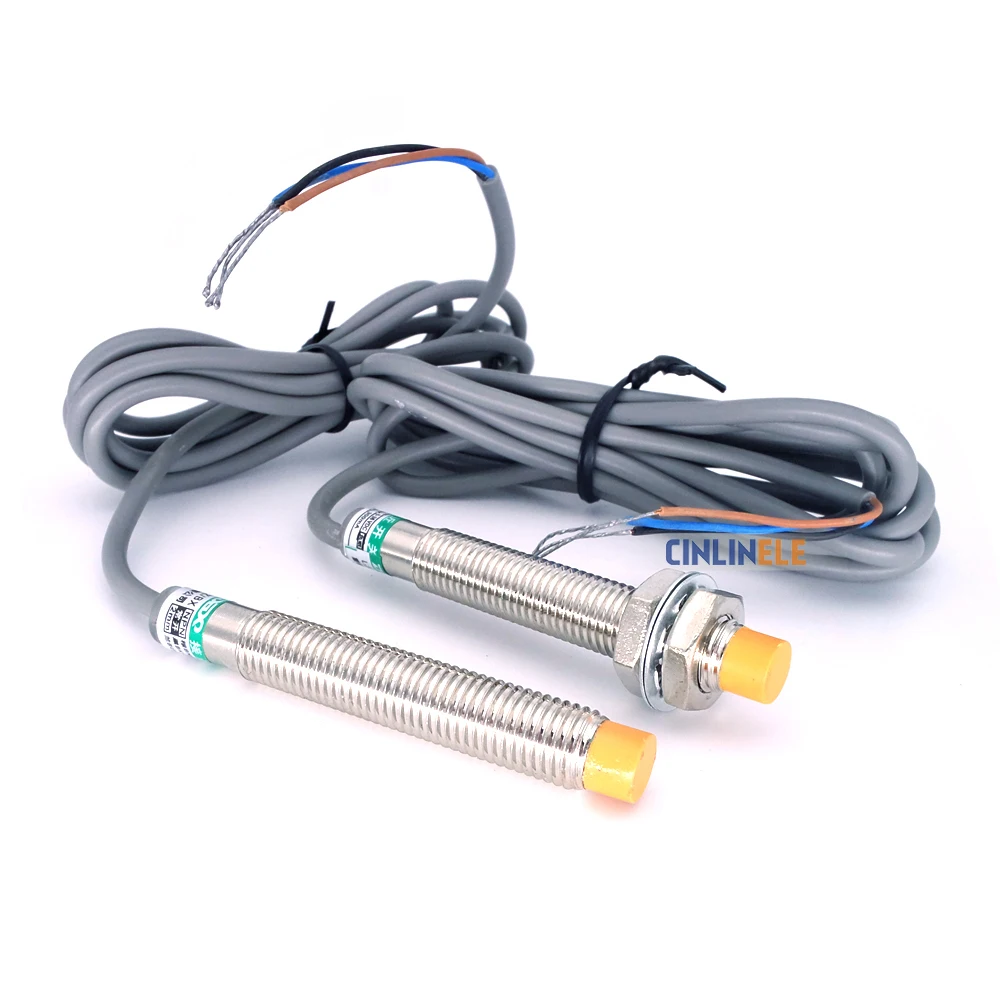

M8 LJ8A3-2-Z/DX 2мм 6-36В индукционный DC 2-проводный НО металлический датчик индуктивного приближения с экранным щитом типа LJ8A3 on - купить
Специальная цена *
Категория товара: Switches
История изменения цены
Купить M8 LJ8A3-2-Z/DX 2мм 6-36В индукционный DC 2-проводный НО металлический датчик индуктивного приближения с экранным щитом типа LJ8A3 on.
Brand NameGiexperienceModel NumberLJ8A3-2-Z/DXOriginMainland ChinaMaterialCopperItem TypeSwitchesFeaturesInductive proximity sensorCertificationCCCWarranty1 yeahSwitch TypeProximity SwitchMeasurement unitpiece/piecesEach pack1Detection distance2mmSupply voltage6V-36VSetting distance0-1.6mmSensing objectMagnetic metalsTypeInductive proximity sensorReverse connection protectionYesUnavailable in
Description
| ||
|
Dimension | M8 | LJ8A3-1 | |||
Mounting way | Screen shield type | NON-Screen shield type | LJ8A3-2 | ||
DC | NPN | NO | LJ8A3-1-Z/BX | LJ8A3-2-Z/BX | LJ12A3-2 |
NC | LJ8A3-1-Z/AX | LJ8A3-2-Z/AX | |||
NO+NC | LJ12A3-4 | ||||
PNP | NO | LJ8A3-1-Z/BY | LJ8A3-2-Z/BY | ||
NC | LJ8A3-1-Z/AY | LJ8A3-2-Z/AY | LJ18A3-5 | ||
NO+NC | |||||
Two | NO | LJ8A3-1-Z/EX | LJ8A3-2-Z/EX | LJ18A3-8 | |
NC | LJ8A3-1-Z/DX | LJ8A3-2-Z/DX | |||
AC | Two | NO | LJ8A3-1-J/EZ | LJ8A3-2-J/EZ | LJ24A3-8 |
NC | LJ8A3-1-J/DZ | LJ8A3-2-J/DZ | |||
3-wire | NO+NC | LJ24A3-10 | |||
Detection distance | 1mm | 2mm | |||
Set distance | 0-1.2mm | 0-1.6mm | LJ30A3-10 | ||
Standard detection objict | 8x8x1mm | 12x12x1mm | |||
Response frequency | DC:0.5kHz | DC:0.5kHz | LJ30A3-15 | ||
Click to buy | Click to buy | Click to buy | |||
Model number:LJ8A3-2 series
External dimensions:M8x45
Installation type: Shielded
Detection distance: 2mm
Setting distance: 0-1.6 mm
Supply voltage: 6-36Vdc
Output current: DC type: 300mA max; AC Type: 400mA
Standard detected object: Mild steel (12x12x1mm)
Sensing object: Magnetic metals (if it is not magnetic metals, the sensing distance would decrease)
Response frequency: 500Hz
Output indication: Red LED
Short-circuit protection: NO
Reverse connection protection: Yes
Insulation resistance: 50MΩ min (between charging part and housing)
Dielectric strength: 1000Vac, 1min (between charging part and housing)
IP Rating: IP65
Operating temperature: 25 to 70 °C (13 to 158 °F)
Cable length: 1.2m, PVC cable
Material: Case: Brass-nickel plated; Sensing surface: ABS
