G1" Two-way Motorized Water Valve Electric Actuator Two Way 220VAC Power Supply Обустройство дома - купить

Купить G1" Two-way Motorized Water Valve Electric Actuator Two Way 220VAC Power Supply | Обустройство дома

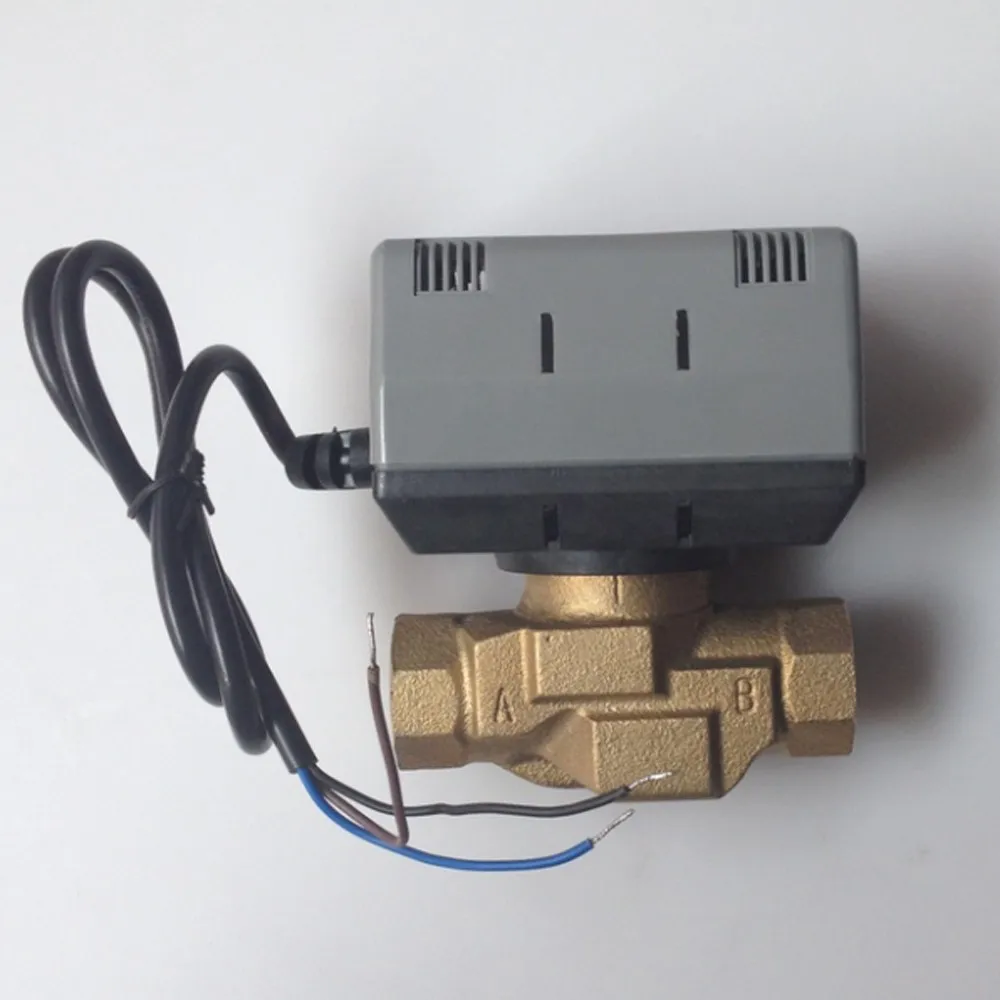

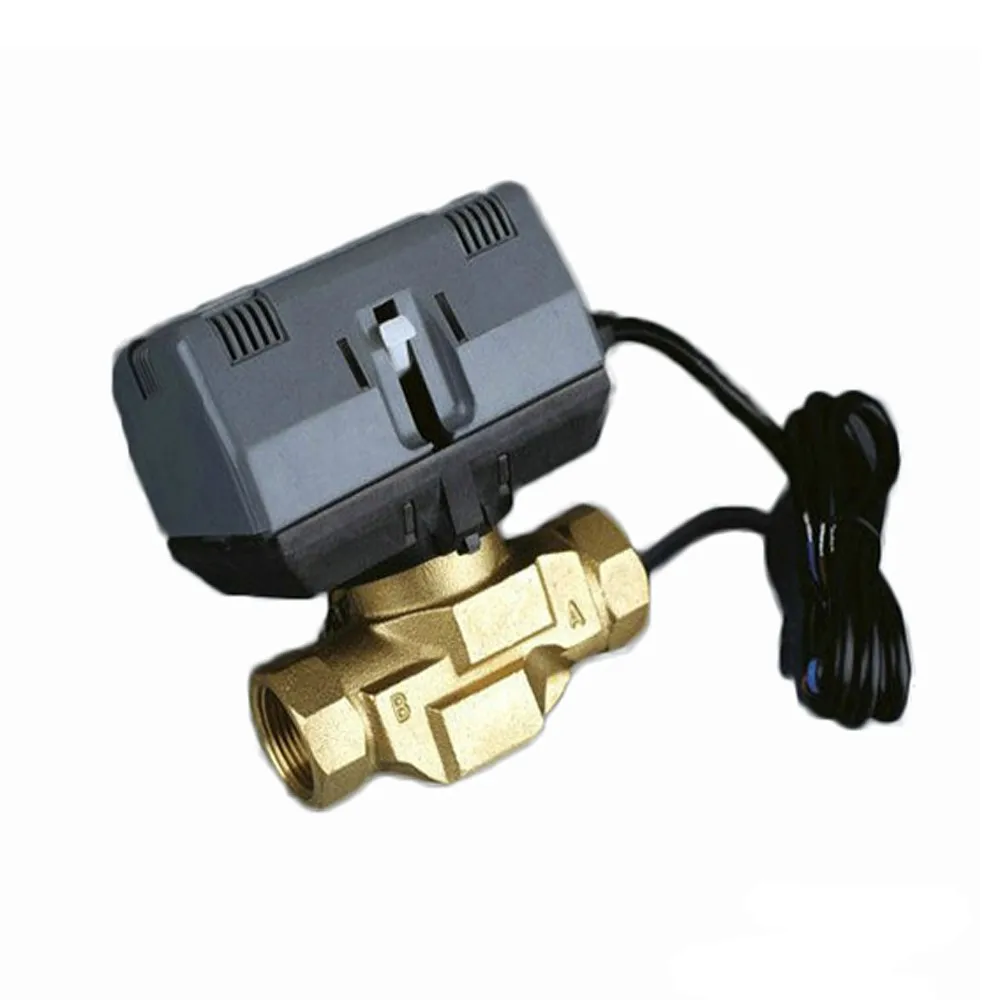

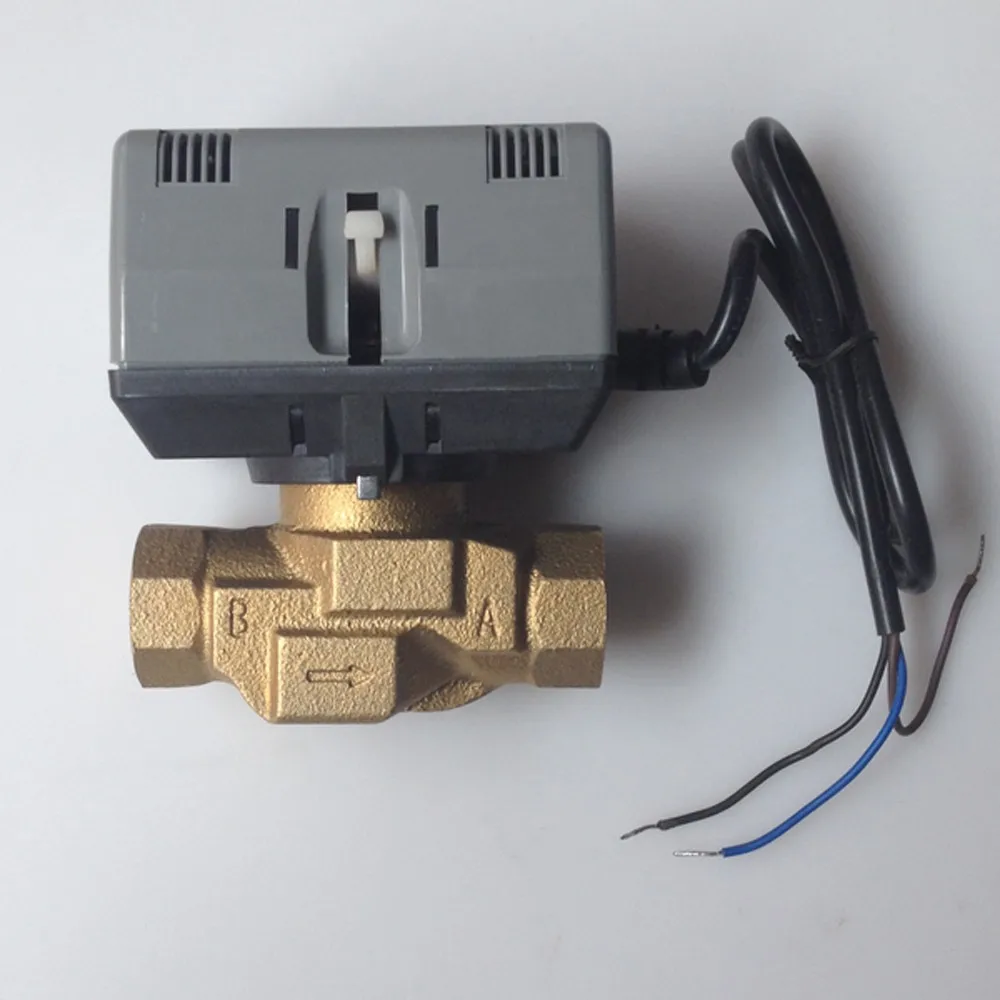

                  Product Name: Motorised Valve Item No.:AE-D series Description:

The AE-D series 2-position hydronic valves are used in domestic and small commercial applications to control the flow of hot and/or cold water. These 3-Way valves are designed for ON-OFF control and can be piped for either diverting or mixing valve applications for domestic hot water service, in central heating and/or cooling systems; or for individual room temperature control (fan coil, radiator or convector applications).

Technical Specifications

Power supply:220VAC

Power consumption:5VA (only during valve position change)
Norminal pressure: 1.6Mpa
Allowed pressure differential: 1.0Mpa
Media:hot or chilled water
Opening and closing time:16S 16S
Media temperature:1-95°C
Ambient temperature:0-65°C
Connection:inner screw (or customerized)
Protection Class: IP40
Approval: CE


Port	Size		L	H	Kv
2-way	1/2’’	DN15	90	114	4.5
	3/4”	DN20	95	116	5.7
	1”	DN25	105	128	8.7
3-way	1/2’’	DN15	90	133	4.3
	3/4”	DN20	95	133	5.5
	1”	DN25	105	144	8.3
