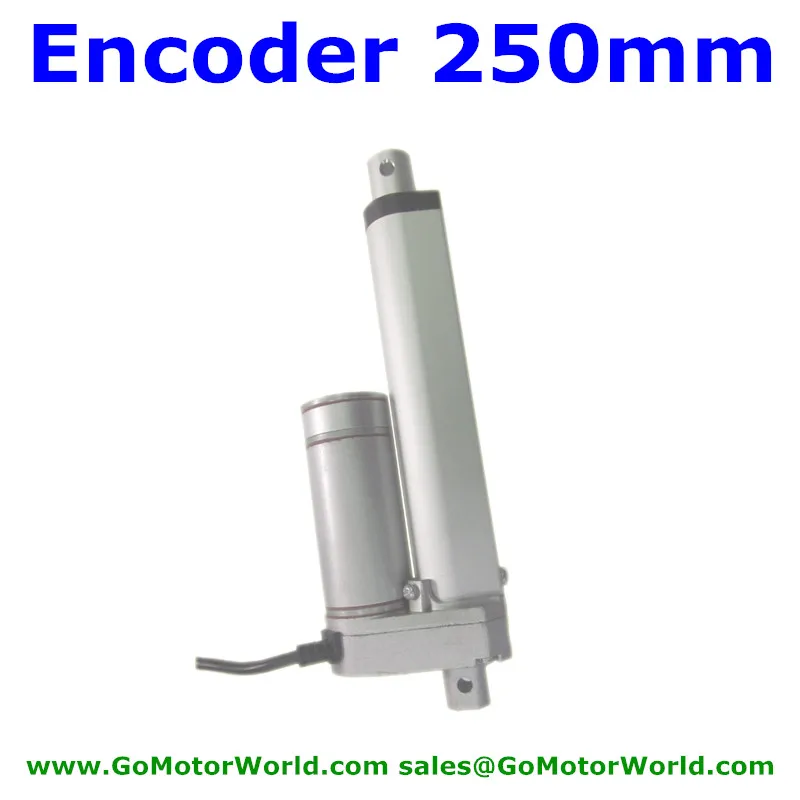

Водонепроницаемый 12 в 250 мм ход 900N 198LBS нагрузка 80 мм/сек. мощный линейный привод - купить

Купить Водонепроницаемый 12 в 250 мм ход 900N 198LBS нагрузка 80 мм/сек. мощный линейный привод

 1    Type                             LA10E with encoder

 2    Input                            12V 24V DC

 3    Load                             Max 900N=90KG=198LBS

 4    Speed                           Max 80mm/s

 5    Limited  switch               With

 6    Duty cycle                      25%

 7    Inner tube material         Aluminum Alloy

 8    Stroke length                 250mm=10inch

 9    Color                             Silver

10   Operation temperature   -26 ~ +65 degree

11   IP                                   IP 65

Questions,what is the advantage:

It is with encode,can operate by DIY designer.

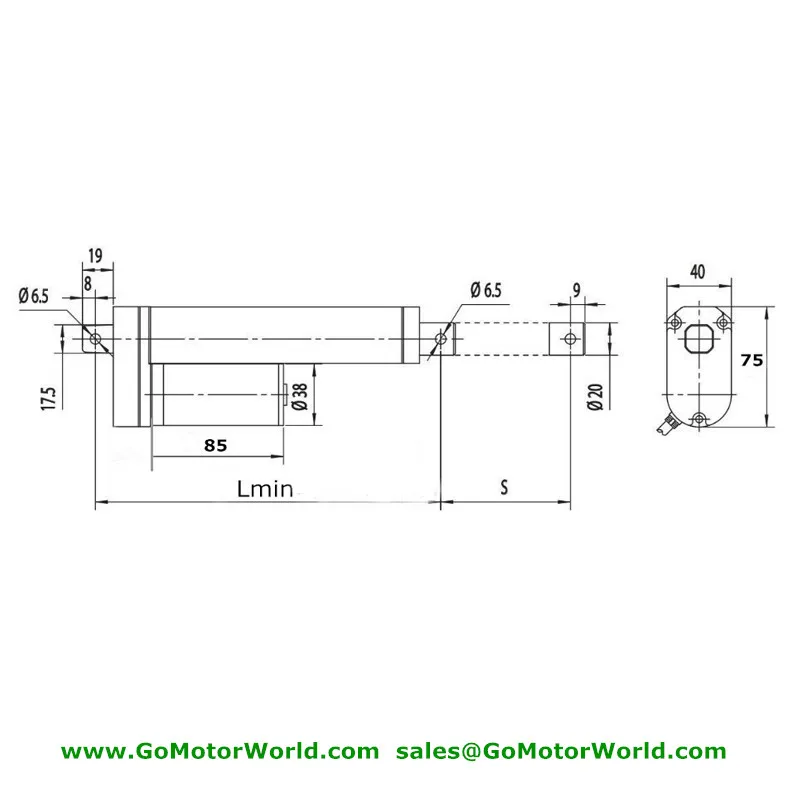

Drawing:

1.  Retracted length=Lmin=105+Stroke=105+250=355mm

Lmin means the length when linear actuator 100% fully retracts, meanwhile,it will touch the tail limited switch and stop automatically,very safe.

2.  Stroke means the movement length of linear actuator.

3.  Lmax=Lmin+Stroke=355+250=605mm

Lmax means the length when linear actuator 100% fully extends, meanwhile,it will touch the head limited switch and stop automatically,very safe.

It is LA10E-5 type,if customer wants other type,I offer customized service.

Customized service:

1. Input : 12V or 24V or 36V or 48V

2. Load : 100N or 100KG or 220LBS and so on

3. Speed : 5mm/sec or 10mm/sec or 1inch/sec or 4inch/sec and so on

4. Stroke : 50mm or 200mm or 1000mm 4inch or 16inch or 40inch and so on

5. Rectracted Length=Lmin : The 100% fully retracted length

6. Cable length : 1m or 2m or 20inch or 40inch and so on

7. G: Customer’s special requirement
