4L/Min Fog Machine High Pressure Foggy System Anti-Drip Misting Nozzle Outdoor Cooling Water for Pig facility Дом и сад - купить

Купить 4L/Min Fog Machine High Pressure Foggy System Anti-Drip Misting Nozzle Outdoor Cooling Water for Pig facility | Дом и сад

Packing list（Whole Set):

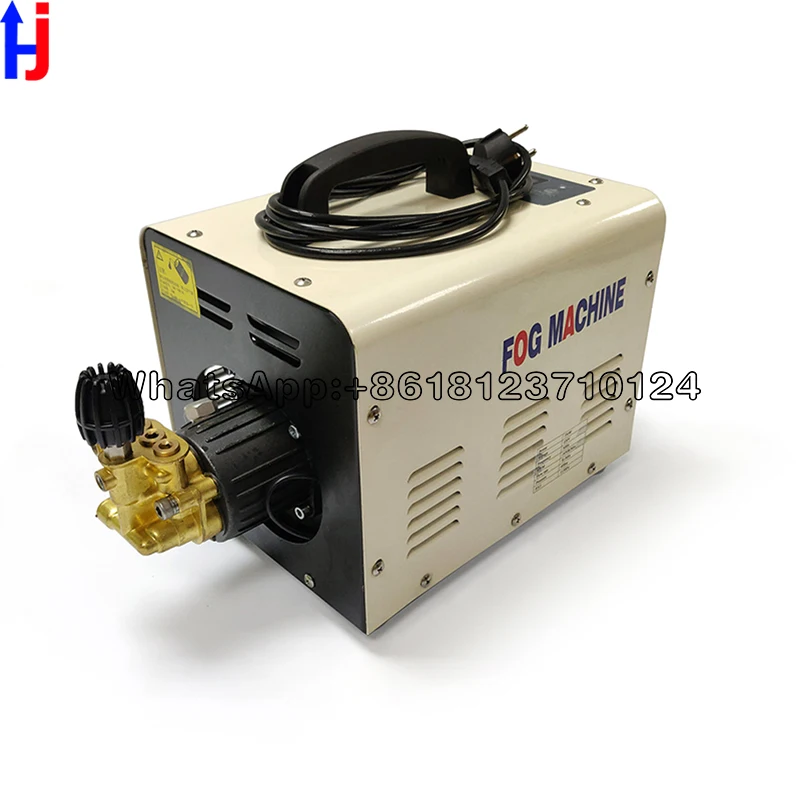

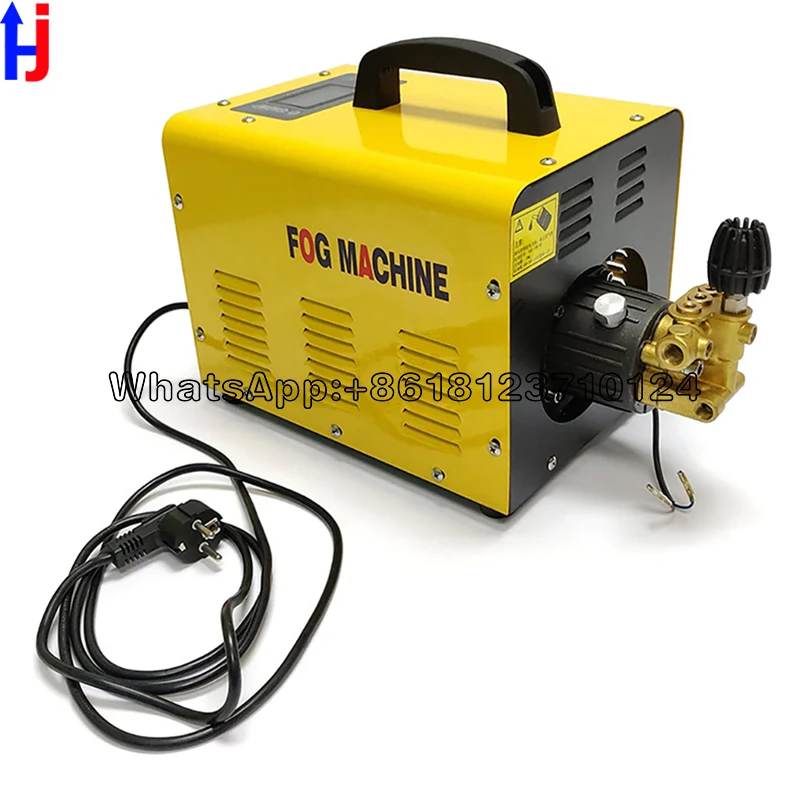

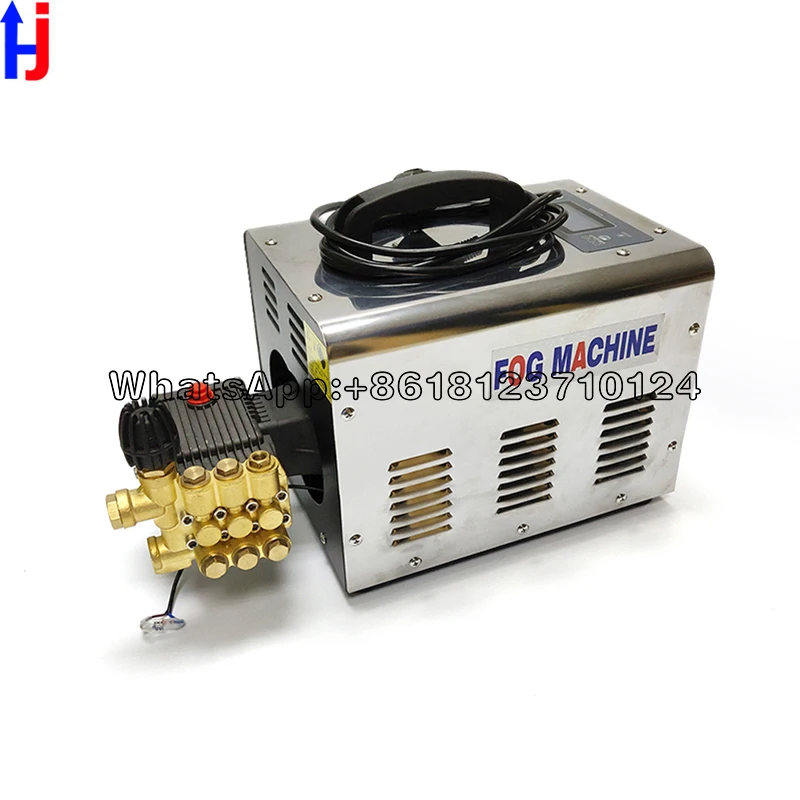

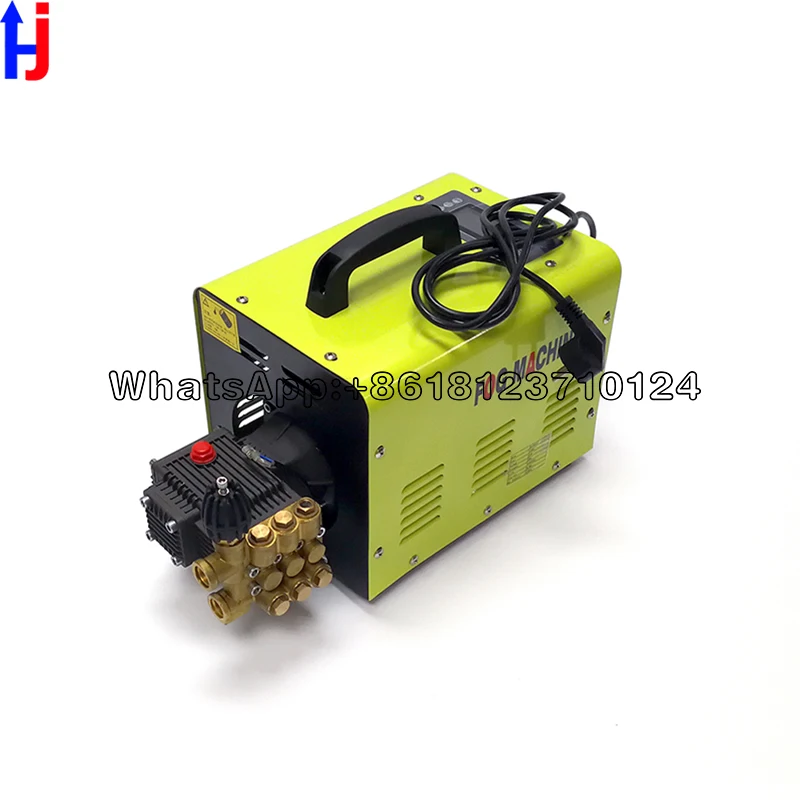

 4LPM High Pressure Fog Machine                                     1pcs

 High pressure Nylon pipe(good quality)                              70m

 Slip lock single spray nozzle seat                                        64pcs

 Slip lock end plug                                                                1pcs

 Tee Connector                                                                     4pcs

  High pressure fog nozzle                                                    65pcs

  Elbow connector                                                                 6pcs

 Tubing clamps                                                                     40pcs

 Four-way connector                                                            1pcs

 Valve Connecting mainframe                                              1pcs

 Valve switch                                                                        1pcs

 With filter

With timer

Designing high pressure fog misting systems for your project can be confusing. With over 10 years in the industry, we have the expertise to simplify the process. Whether for cooling, humidification, greenhouse propagation, or dust/odor control, we can help define the products and the placement of the system to provide maximum performance.

Our product range includes stainless steel fog lines, a proprietary line of cooling and humidification misting fans, specialized humidity and temperature controllers, and both standard and cleanable fog nozzles.

Our product range also includes standard and custom pump designs. The pump selection provides an extensive list of custom pump additions including variable frequency drive, 1 phase or 3 phase voltages, multiple zones, remote control capability, and integration with existing controllers and low voltage signaling.

High Pressure Fine Misting System, Cooling Misting System for Chicken House.

  1. Nozzle Material: Brass, SS

  2. Orifice:Ruby,Ceramic,SS

3.Connection Type: Quick Slip Lock, Thread type

3.Tube size: 3/8" (9.52mm)

  3. Working Pressue: 9bar to 100bar (100PSI to 1000PSI)

  4. Droplet size: 5-40 Micron

  5. Motor Model: 220V/50HZ, 220V/60H

Packing list（4L Fog System Whole Set):

1,4LPM High Pressure Fog Machine                                        1pcs2,High pressure Nylon pipe(good quality)                                70m3,Slip lock single spray nozzle seat                                          64pcs4,Slip lock end plug                                                               1pcs5,Tee Connector                                                                   4pcs6,Fog nozzle                                                                         65pcs7,Elbow connector                                                                 6pcs8,Tubing clamps                                                                   40pcs9,Four-way connector                                                           1pcs
10,Valve Connecting mainframe                                              1pcs11,Valve switch                                                                    1pcs12,With filter                                                                         1pcs13,Tubing Cutter                                                                   1pcs

Fog Nozzle:

Material of spray orifice : SS ,ceramic or ruby for selectionMeterials of connection body : brass ,SS304, SS316, nickel plated brassSpray orifice diameter : 0.1mm 0.15mm 0.2mm ,0.3mm ,0.4mm, 0.5 mm,Inlet connection thread : 10/24 , 12/24, 3/16 anAd 1/8

Connectors:

Material: brass

Nozzle thread: 10/24

Tubing Size: 3/8" (9.52mm)

Hose:

OD: 3/8" (9.52mm)

Applicaton
1, Increase profitability
2, Reduce stress
3, Refresh the atmosphere
4, Cooling
Residential cooling, outdoor cooling, commercial place cooling
5, Control humidity(humidification):
Industrial, agricultural and horticultural: Green house, garden, livestock farming;
6, Reduce dust & smell (Dedusting and Deodorization):
Industry process, bulk powder, cement plant, foundry dust, fly ash control, waste transfer, recycling process
7. Insect Control

Advantage
Stop working automaticly when lack of water;
Fog can spray with different frequencies;
Controlled by the Timer;
Fog can spray at different humidity range according to the data setted;

OPTIONAL
Humidity control
Stop water function
Relief pressure function

Function

1. CoolingResidential cooling, outdoor cooling, commercial place cooling2. HumidificationIndustrial, agricultural and horticultural: green house, garden, livestock farming3. Dedusting and DeodorizationIndustry process, bulk powder, cement plant, foundry dust, fly ash control, waste transfer, recycling process4. Insect ControlPlease use water-soluble chemical to kill insect.We can also supply all the accessories separately, such as nozzle, connectors, hose and hose cutter

2, If you have an order, you have like the shell of color, please leave a message.Otherwise the random delivery.

Designing high pressure fog misting systems for your project can be confusing. With over 10 years in the industry, we have the expertise to simplify the process. Whether for cooling, humidification, greenhouse propagation, or dust/odor control, we can help define the products and the placement of the system to provide maximum performance.

Our product range includes stainless steel fog lines, a proprietary line of cooling and humidification misting fans, specialized humidity and temperature controllers, and both standard and cleanable fog nozzles.

Our product range also includes standard and custom pump designs. The pump selection provides an extensive list of custom pump additions including variable frequency drive, 1 phase or 3 phase voltages, multiple zones, remote control capability, and integration with existing controllers and low voltage signaling.

High Pressure Fine Misting System, Cooling Misting System for Chicken House.

  1. Nozzle Material: Brass, SS

  2. Orifice:Ruby,Ceramic,SS

3.Connection Type: Quick Slip Lock, Thread type

3.Tube size: 3/8" (9.52mm)

  3. Working Pressue: 9bar to 100bar (100PSI to 1000PSI)

  4. Droplet size: 5-40 Micron

  5. Motor Model: 220V/50HZ, 220V/60HZ, 380/50HZ

  6. Fittings Models: Nozzle, Nozzle connector, Tubing, Tubing Cutter, Water filter, Tee, Elbow, End, End Plug, Union, Male/female adapter, ball valve and water filter, etc.

Huajue  Spray Professional make high quality misting system kits for cooling and misting, DIY mist cooling system simple for any applications.

We also separately supply the Fog misting nozzle, connectors, coupling, tubing and pumps.

1. Fog Misting Nozzle:

Orifice diameter: 0.1mm up to 0.5mm

Working pressure: 60-80 bar

Body material: 304SS, brass and 316ss

orifice material: SS, ceramic and ruby

Inlet thread: 10/24, 12/24, 3/16 and 1/8

2. 3/8 Connectors,Fittings and Couplings:

Material: brass and SS

Nozzle thread: 10/24,12/24UNC

Tubing Size: 3/8" (9.52mm)

Working Pressure: 70bar/1000PSI

3. Nylon Tubing & PE Tubing:

Outside diameter: 3/8"

Working Presure: 70 bar up to 120 bar

Temperature:40C.degree

4.Technical data sheet for Fog Nozzles:

5. Misting Pump Capacity:

0.3LPM,0.5L, 1LPM, 2LPM,3LPM, 4L, 5LPM,6LPM,7LPM,8L,11LPM,12LPM,15.4LPM,17LPM,18LPM,21LPM,25LPM

6. Pump Specification:

Products SeriesHigh Pressure - HJ Pump

Item NO. HJ8010-4-FGS10 Outdoor cooling fine fogging system

Introduction

healthier environmental quality! indoor & outdoor cool finest water droplet ! simple installation & easy user-interface and maintance!! more compact !!!

Specifications:

Pump No. : HJ8010-3 Pump : Plunger Flow rate: 3.0L/min Pressure: 80bar Power: 750w Rpm: 1450rpm 220 Volt - 50 / 60 HZ

One: High pressure water mist systemscan be used in small residential backyards as well as large commercial venues.They can provide effective outdoor cooling for any size area or precisely increased humidity levels in large commercial storage facilities and greenhouses. It meansenvironmental control of temperature and humidityis easily achievable.

Two:Adavatages for the pump

Oil bottle, easy for maintance
Pressure gauge,adjust the pressure conveniently
Low flow sensor,the machine will turn off when lack off water
Led timer screen,control the system as your reqiuirement
Manual air relief,release the air in the pipe when turn on the machine
Antidrip nozzle.no leaking when the machine off

Three:Application

A. Humidifying,cooling,noise reducing

1.Bus stations;

2.Train stationexternal;

3.Air port terminal external;

4.Entrance of shop and scenic;

5.All kinds of exhibition, expo, fair;

6.The beach, swimming pool, clubhouse...

7.Other open area;

B. Sterilizing,dedusting, mosquit & flies removing

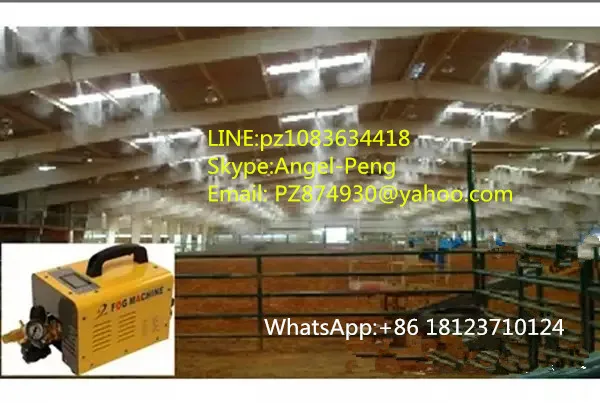

1.Stockbreeding industry of chicken farm, Cattle Farm etc.;

2.Dump area to kill virus & bacteria and remove odor;

3.Open public place remove mosquit & flies;

4.Mining, explosion-proof remove the dust;

5.Public washroom remove odor;

6.Infectious disease & epidemic area kill virus & bacteria ;

C . Landscaping,beauty & remove haze

1.Rockery, boskage, lakes, bridge... in scenic spot;

2.Villas, townhouses & other high-end house;

3.Farm stay, shopping malls & others place for decoration;

4.Support the stage effect;

D. Watering, planting, spraying for Greenhouse, farm and garden

1.Precious flowers, plants, trees;

2.Mushrooms & seedling;

3.Vegetable greenhouse, orchards & nurseries;

4.Sunshine ecological restaurant;

----------Fog Cooling Systems use ultra-high pressure and fine nozzle orifices in 0.1mm to produce 10-15 micron droplets that humidify the environment and suppress dust and diesel exhaust in a confined area.This equipment is not only applicable to the roof, garden, and corridor for temperature drop and landscaping, but also is the best option for humidifying and cooling in factory, growing and greenhouse.

----------Whether you are looking for Cooling, Humidifying,Dust Suppression,or Outdor Control System have the solution that satisfies your need.The dedication to our work,experience,skillful technicians,and competitive prices has confirmed our products and services as the winning solution.

Four:Please Note(Attention Please)--------Maintenance Of Fog Machine:  1, Advise Use 15W-40 Engine Oil.  2, First use recommended 50 hours for Engine oil change.Follow-up 200 hours to change Engine Oil. 3, Refuel to two-thirds of the oil mirror.
