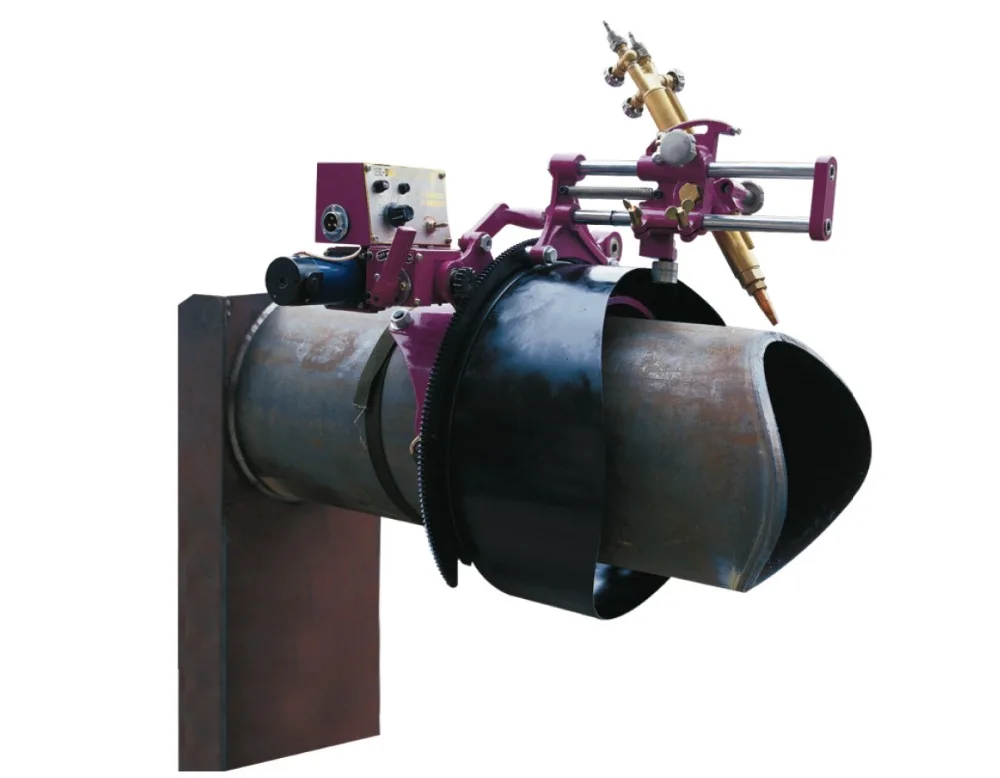

HK-203 Portable Pipe intersection tube profiling shape cutter cutting machine

HK series pipe crossing cutter is portable. The machine is used to cut pipe for intersection welding. Pipe intersection welding needs to cut saddle orifice’s shape. The trace of the torch is determined by saddle pattern plate. The pattern plate making is according to the saddle orifice’s shape, which needs to be cut. The machine also can cut common pipe or bevel cutting. The machine is constituted of control box, torch, mainly body base. The control box which is fixed on offside of the cutter structure is operated and repaired easily.

The machine is designed in reason and the structure is unique. It has four balanced foot screw bar which is used to maintain the machine on the pipe. You can allocate the machine accurately by safety device which has features of high precision of butt contact of the pipe cutting, few subsidiary time of the cutting, and so on.

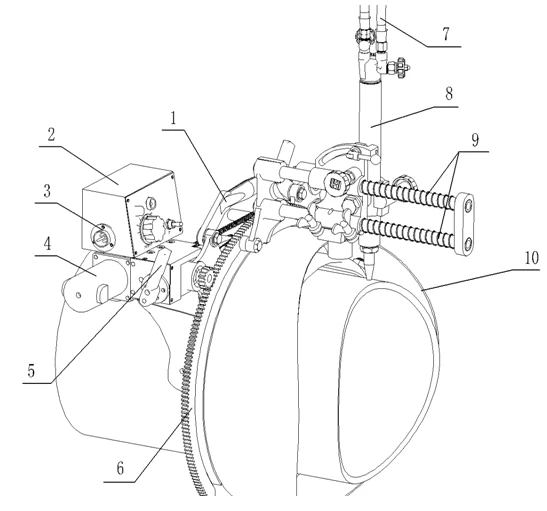

Techincal Specification

1. Hand knob	7.Gas-in hose: Oxygen hose (the clockwise screwed connection) and fuel gas hose (the anti-clockwise screwed connection)
2.Electric appliance control box: Equipped with velocity modulation knob and normal/reverse changeover switch
	8. Torch
3.Electric outlet	9. Setting bolt spring of the moving object: The moving object taking the torch walks along the brim of the pattern plate by the pressure of the two setting bolt spring.
4 .Direct current motor
5.Clutch hand knob When the knob is on the left, the knob is in the declutching position and the machine disengages the electric equipment. You can operate the machine by manual method and allocate the torch rapidly.
	10.The saddle-orifice pattern plate Make the pattern plate according to the shape which need be cut.

  Contents of package Carefully take the machine out of its case.

The contents of the standard package are shown below. Check them carefully before assembling the machine

1 Body 1 set 2 Standard torch and sections  1 set 3 Floating structure of the torch 1 set 4 Tip G02 or G03 #1,2,3 1 pc each 5 Safety device 1 set 6 Gas-in junction 1 set 7 Spanner 1 set 8.Specification sheets and certificate of qualification 1 pc each 9 Power cable 1 pc 10 Foundation bolt 18 sets (4 pc each set) 11 Phillips screwdriver 1 set 12 Needle 1 set 13 Hand-operated knob 1 set More Information Please Contact With Blow：
