DIY 2520 4axis Mini CNC router for wood, pcb, plastic carving and milling

cnc milling machine Technical Parameters

CNC 2520 4axis parameters:

Machine Dimensions:	450X350X400mm
Max. working stroke	XYZ=20030095mm
Acceptable material thickness:	≤95mm
Rail type:	12 mm optical axis, 10 mm trapezoidal screw
Spindle motor:	300W DC spindle , 0-10000r/min
Collet type:	ER11,1/8"(3.175mm) Collet
Stepper motor and drive:	57HS (NEMA23)
Maximum operating speed:	2500mm/min (Engraving speed :　300-2500mm/min)
Repeat positioning Accuracy:	0.03mm
Communication interface:	Parallel port
System requirements	Win-XP operating system
Software Compatability:	Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam)
Command code:	G code/.nc/.ncc/.tab/.txt
Machine weight:	23kg
With Rotation Axis (4th Axis)	Weight: 3kg 65MM cast iron 3 jaw chuck, 1: 4 synchronous wheel drive, 57 stepper 6560 drive With active thimble, the center height 51mm

cnc engraving machine Packing list:

1× DIY CNC 2520 Engraving machine

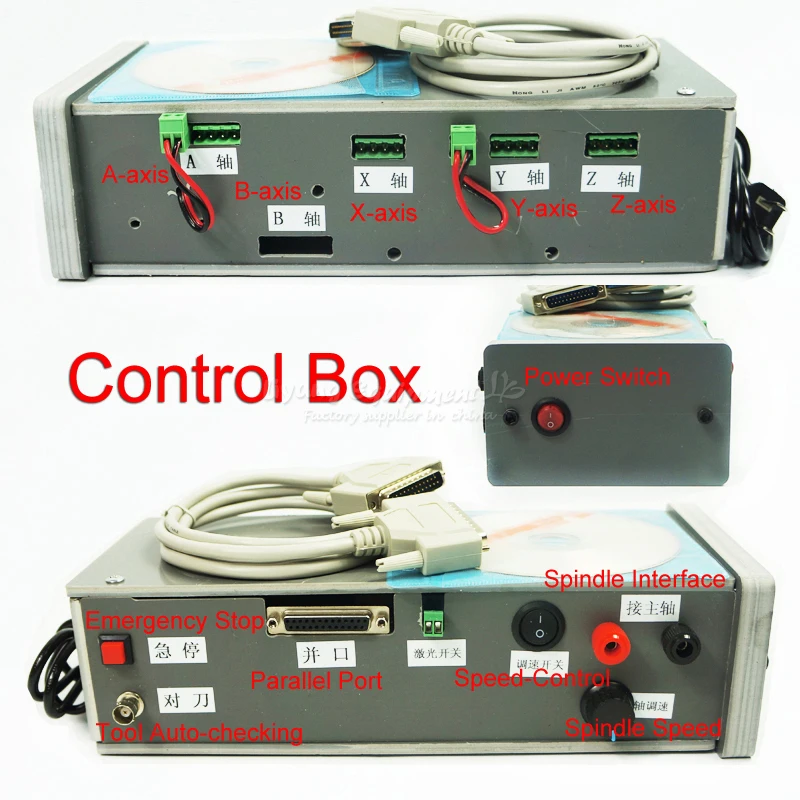

1× Control box

1× Power cable

1× Parallel port cable 25pin

1× Tool package (include tools 5 pcs, wrench 2pcs)

1× Tool auto-checking instrument

1× CD of manual and software MACH3 (if not get, may be lost in customs, please contact us)

1× Rotation axis

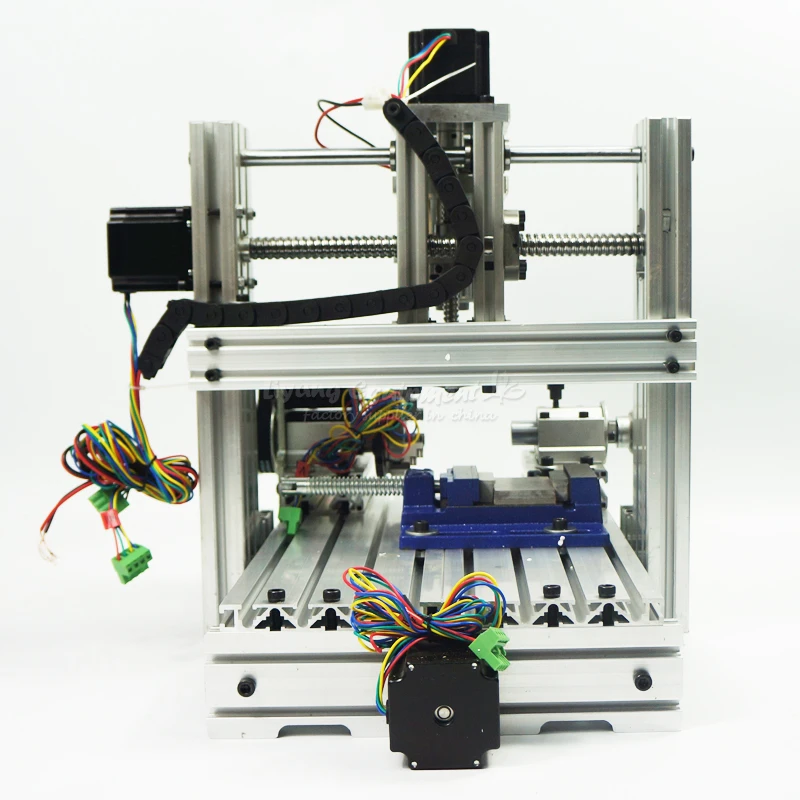

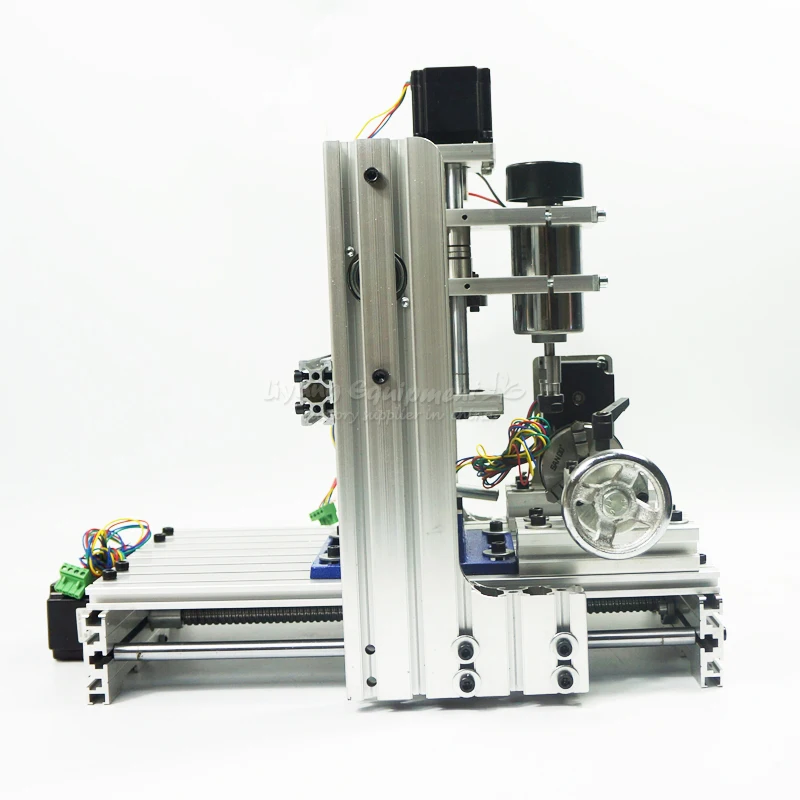

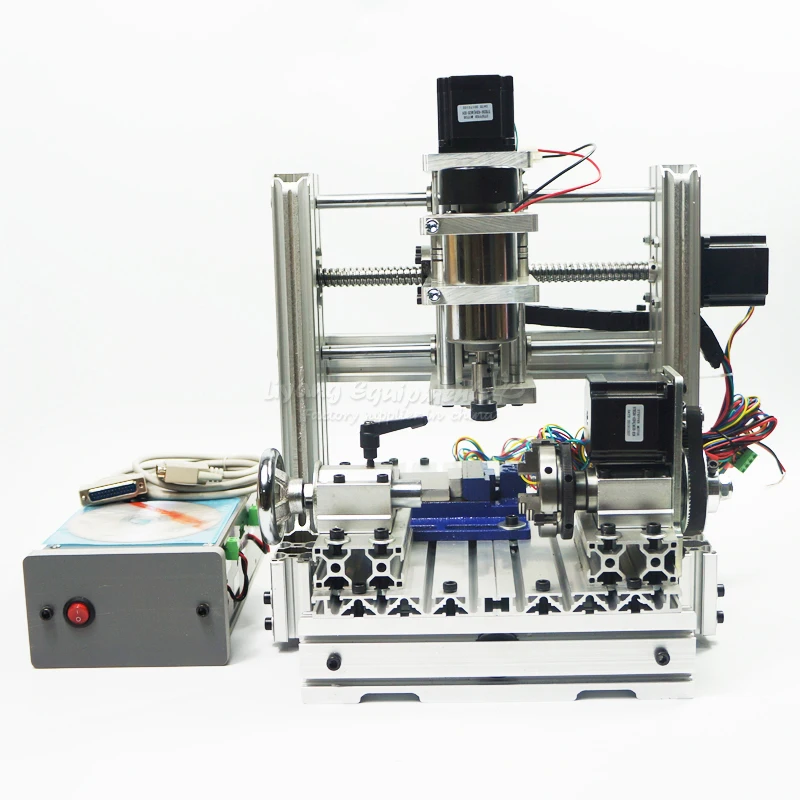

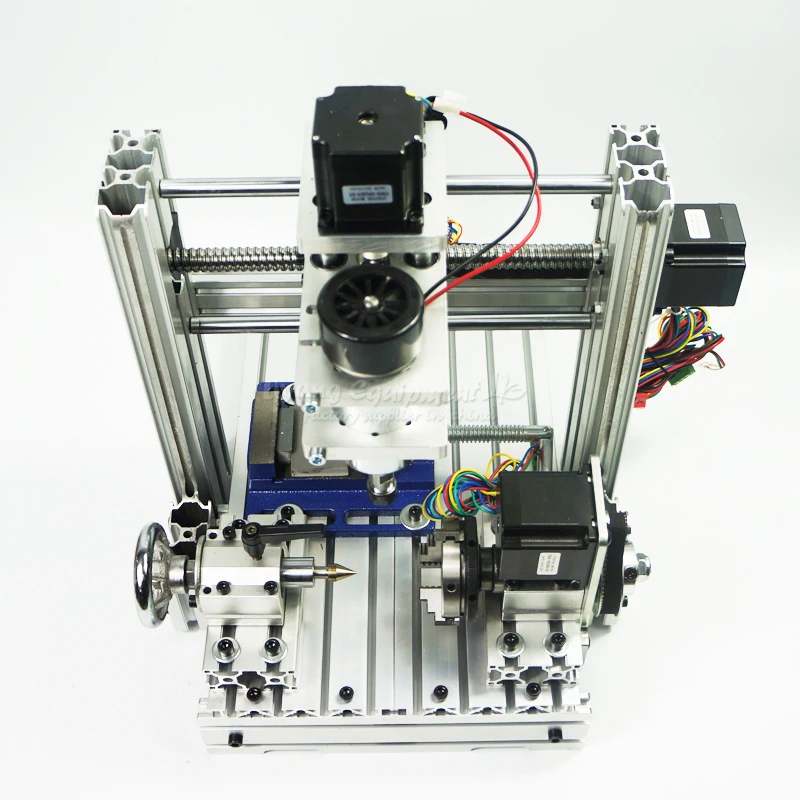

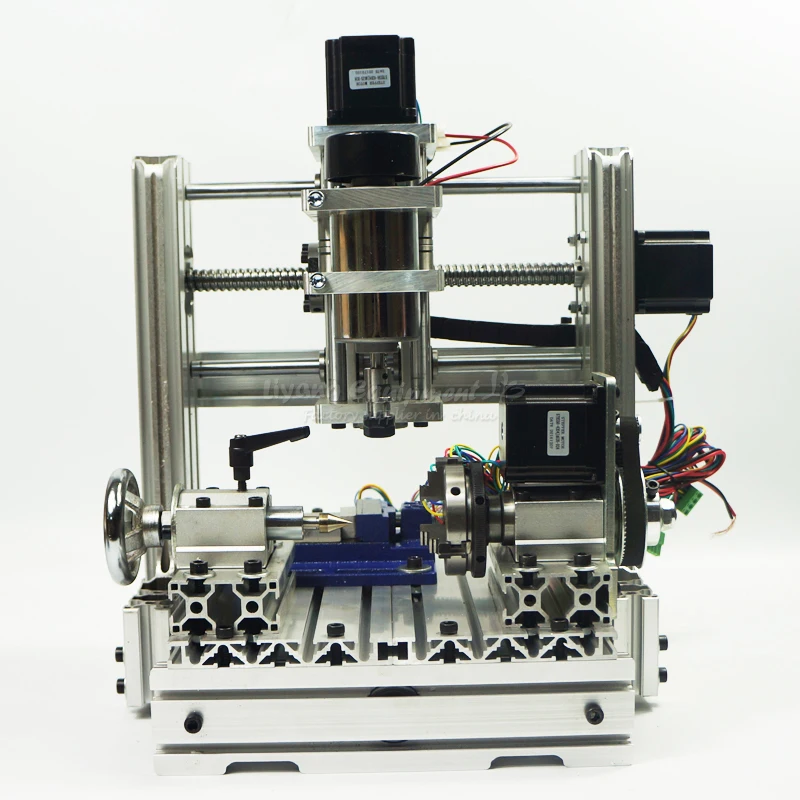

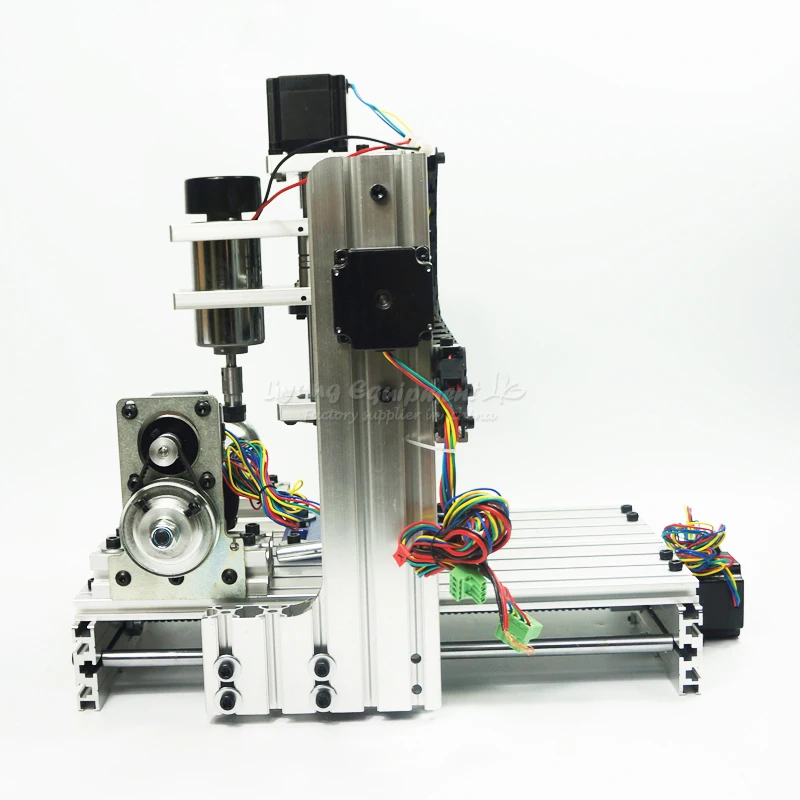

CNC 2520 4axis (3) CNC 2520 4axis (4) CNC 2520 4axis (5) CNC 2520 4axis (6) CNC 2520 4axis (7) CNC 2520 4axis (8) CNC 2520 4axis (9) CNC 2520 4axis (10)
