Купить 24v Precision Peristaltic Pump Stepper Motor Chemical Metering | Обустройство дома
Technical Parameter
| Model No. |
BJ-RZ1010-2D (single channel) BJ-RZ1010-2S (double channel) |
| Roller numbers |
2 rollers |
| Roller material |
ABS |
| Pump head material |
ABS+PC |
| Motor type |
42 step motor |
| Motor Speed |
0-500rpm |
| Flow rate |
0-339ml/min (single channel) 0-120ml/min (double channel, each channel 0-60ml/min) |
| Tubing |
ID0.64-3.0mm WT0.8-1.0mm OD≤5mm |
| Working temp. |
0-40℃ |
| Working humidity |
80% |
| Max DB |
65db |
| Weight |
493g |
Tubing Steps
BJ-RZ1010 Flow Rate Table
| Tube type |
Tube size (ID*WT: mm) |
BJ-RZ1010-2D Flow rate (ml/min) |
BJ-RZ1010-2S Flow rate (ml/min) |
|
Rubber tube |
0.64*0.8 |
0-18 |
0-36 |
| 0.76*0.8 |
0-26 |
0-52 |
|
| 0.89*0.8 |
0-32 |
0-64 |
|
| 1.02*0.8 |
0-40 |
0-80 |
|
| 1.14*0.8 |
0-60 |
0-120 |
|
| 1.30*0.8 |
0-68 |
N/A |
|
| 1.42*0.8 |
0-83 |
N/A |
|
| 1.52*0.8 |
0-99 |
N/A |
|
| 1.65*0.8 |
0-106 |
N/A |
|
| 1.85*0.8 |
0-144 |
N/A |
|
| 2.06*0.8 |
0-158 |
N/A |
|
| 2.29*0.8 |
0-195 |
N/A |
|
| 2.54*0.8 |
0-292 |
N/A |
|
| 2.79*0.8 |
0-339 |
N/A |
|
|
Silicon tube |
1*1 |
0-41 |
0-80 |
| 2*1 |
0-150 |
N/A |
Application Note:
1. These data are generated under room temperature without extra pressure, test media is water. Your results may vary depending on variables such as the solvent used, the material of tubing, temperature, pressure, humidity, voltage etc.
2. BJ-RZ1010 peristaltic pump is suitable for liquid viscosity like water or weak viscosity liquid.
3. BJ-RZ1010 peristaltic pump is suitable for corrosive or non-corrosive liquid when equipping different kinds of tubing, liquid only go through tubing, so tubing material is the main factor for corrosion problem.
4. 2 pieces straight connectors are necessary for pump tube on BJ-RZ1010, or tubing will get slide when working, we will standard equip 12.5cm rubber tube and 2 pieces straight connectors for each pump for your order, if you need more tubes and connectors for spare use, please order them in our shop.
5. BJ-RZ1010-2D need to install 1 pieces 12.5cm pump tube and 2 pieces straight connectors.
BJ-RZ1010-2S need to install 2 pieces 12.5cm pump tube and 2 pieces duplex fittings.

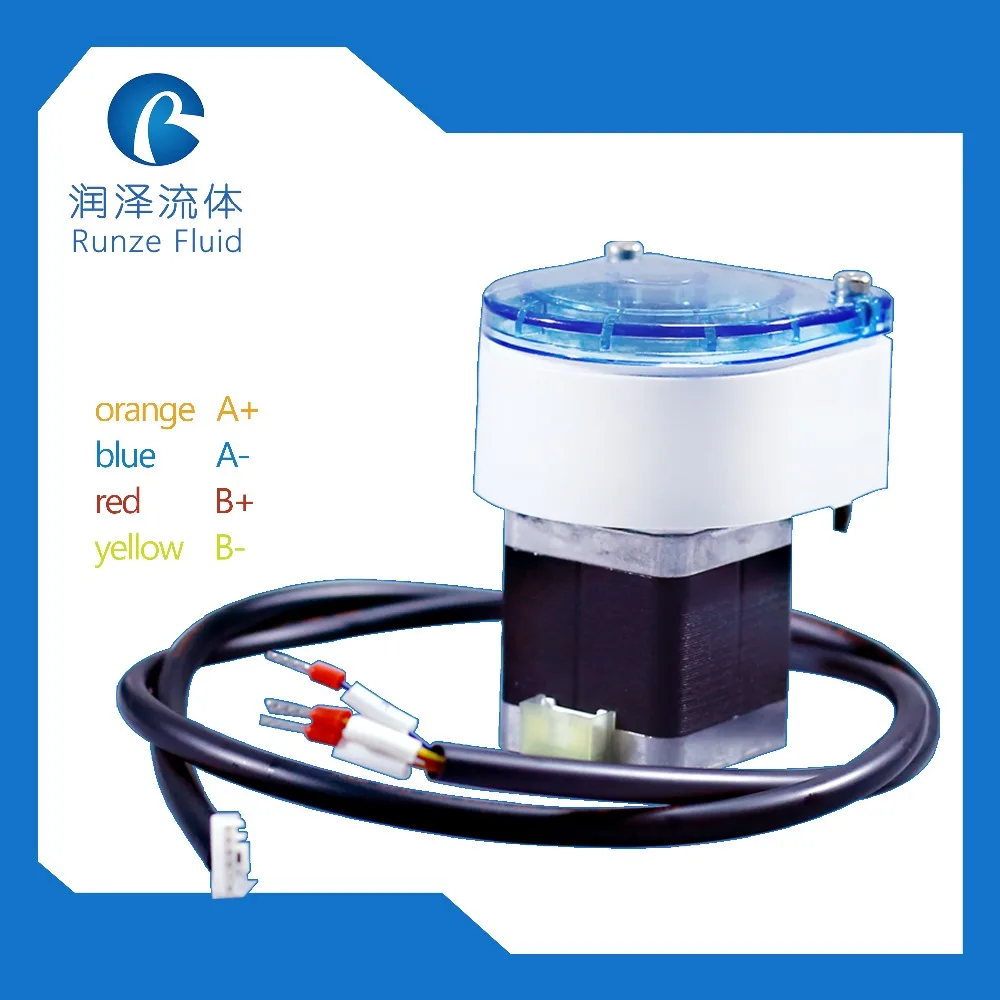

6. 1 piece stepper motor wireline will be standard equipped for each pump for your order.

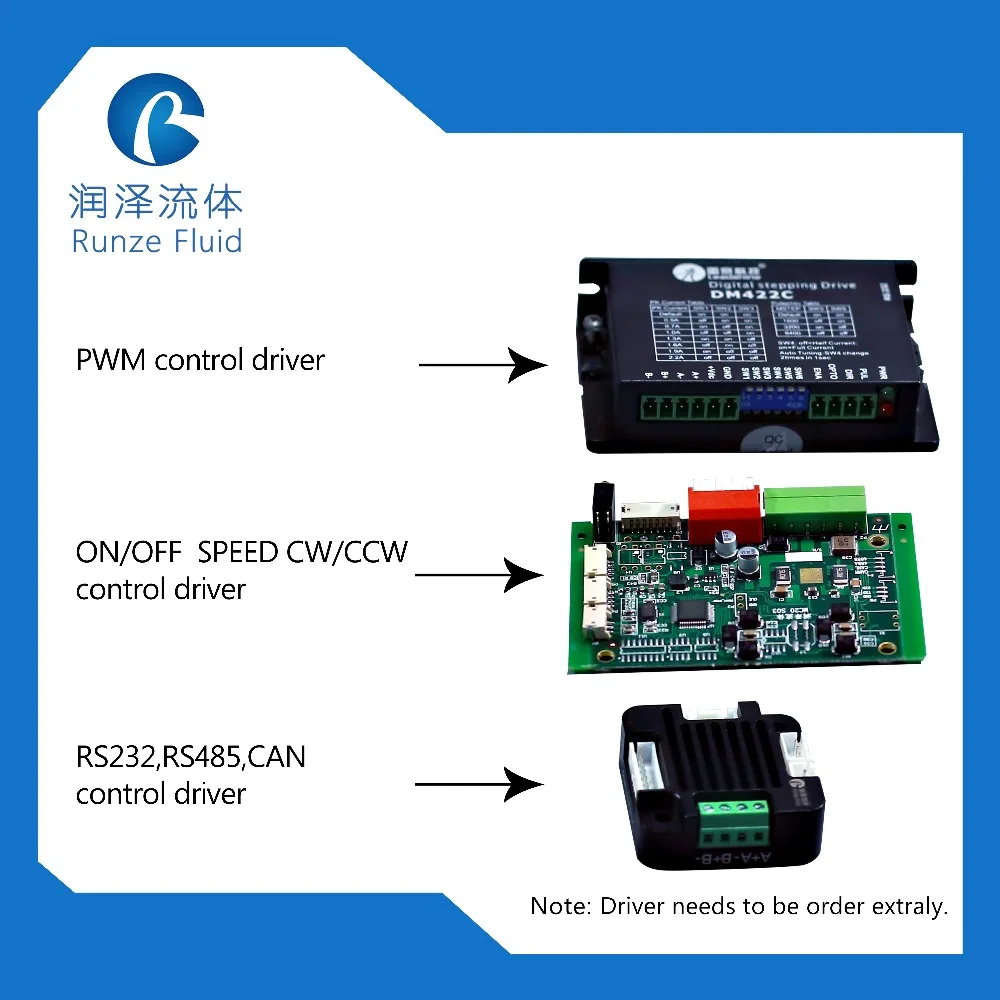

7. BJ-RZ1010 peristaltic pump can be controlled by ON/OFF SPEED CW/CCW control, PWM control, RS232/RS485/CAN communication control, you can find corresponding driver in our shop.
8. The stepper motor of BJ-RZ1010 peristaltic pump was MINEBEA imported from Japan with high reliability, if you need the manual of motor, please contact our customer service.

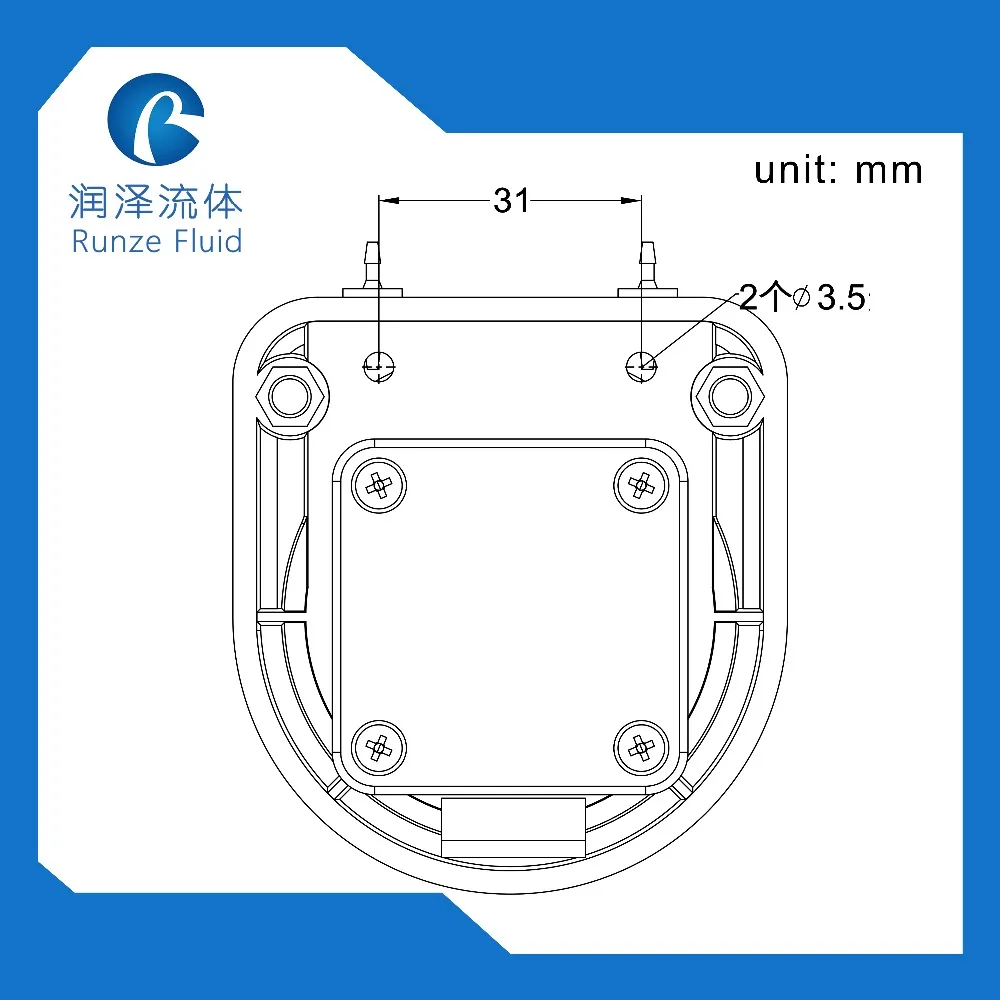

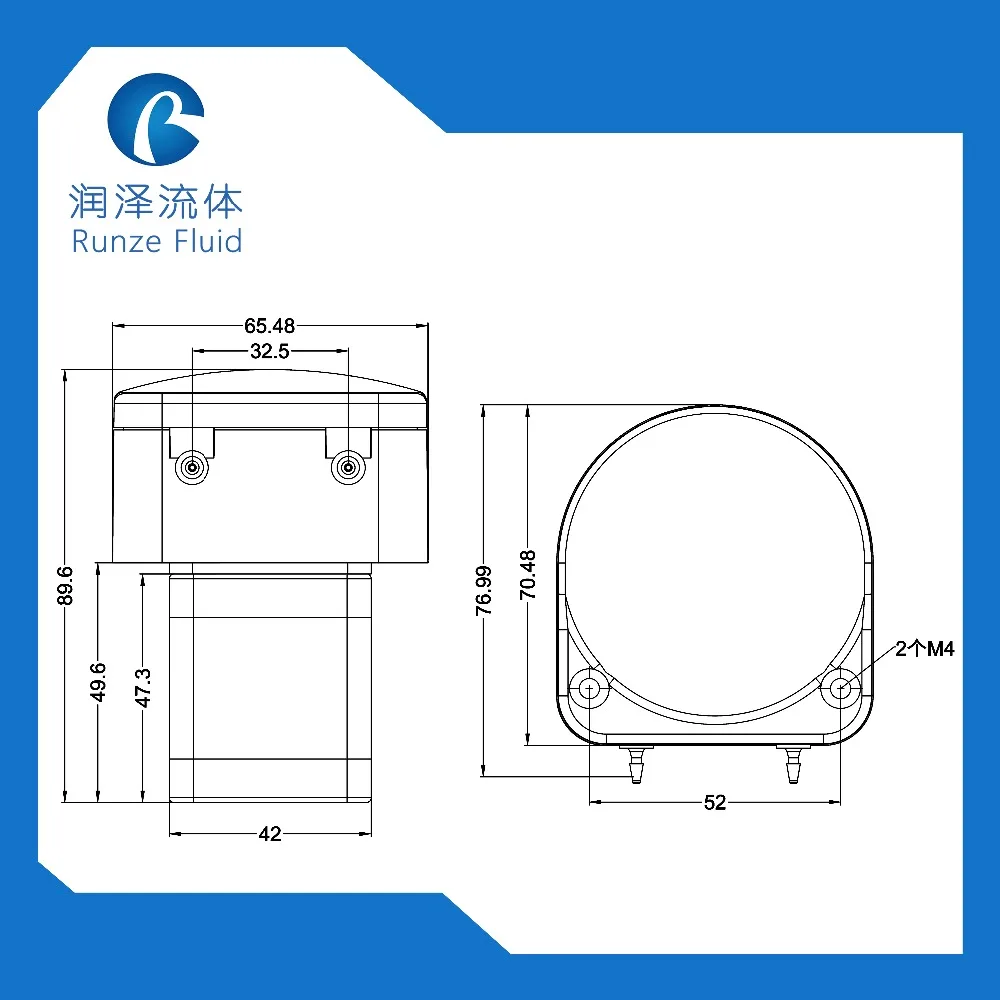

9. Dimension and installation sizes are within the 6 main showing pictures, please check them there.
Important Shopping Guidance:
1. Unit price is for 1pcs BJ-RZ1010 peristaltic pump
2. Each pump will be well packed by thick foam and outer carton.
3. Weight for 1pcs is set as 1.5 kg, because we need to ship by TNT, UPS or FedEx with 4-7working days to most countries, even you choose China post or Ali-express premium shipping, because BJ-RZ1010 was equipped step motor with magnetism, thus China post or Ali-express premium shipping are not available to open to it.
4. Shipping cost will consider not only gross weight after packing but also consider the package volume weight.
5. For customers from Russia, we usually ship by CDEK or PONY or SPSR line.
6. For customers from Ukraine and Kazakhstan, some shipping way is available while some is not, we will call you and leave you message to inform you to cancel the order when not available.
7. For customers from some countries such as Iran, Israel, South Africa etc. where shipping is not easy, we will try best to ship by the way you chosen, we will call you and leave you message to inform you to cancel the order when not available.
8. For customers from Brazil, Chile and Argentina, please leave us a remark or message with your tax number on your order which is a must and necessary requirement from shipping agent.
9. Please leave on the order with your 100% correct contact name, address, zip code, phone number and country code, or we can’t get contact with you when your order have problems.
10. Ali-express will charge us 8% - 10% commission charge, so please try not bargain because we only receive part of your order amount, if you need to place a bigger order, please contact us for better price.
11. If you need to order several products together, please add them to your shopping cart and forward them together but NOT pay it, we will help you combine shipping cost.
12. Any questions on your order, please leave us message, we will handle it for you as soon as possible, greatly appreciated if you give us feedbacks before open an issue.
13. Greatly appreciated if you leave us 5 star positive feedbacks once received your order, which will surely encourage us to do better in future cooperation.
