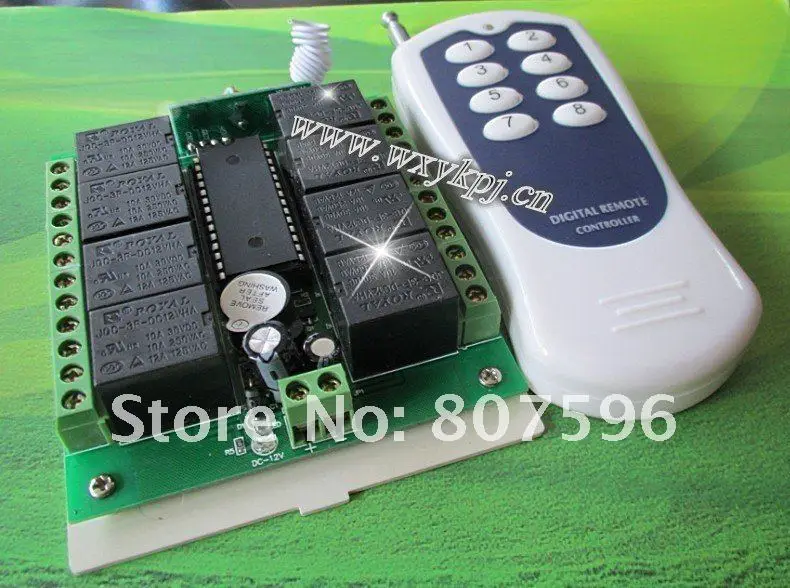

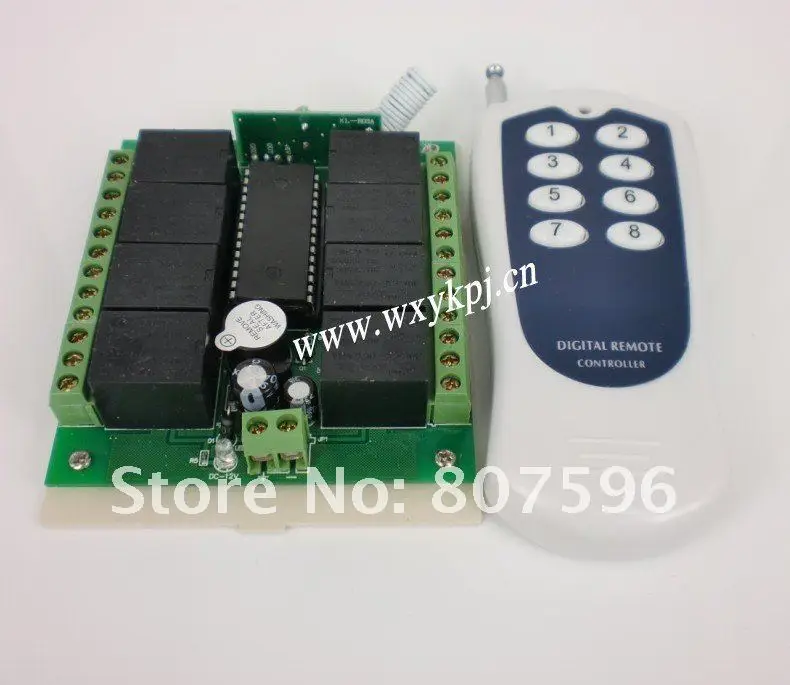

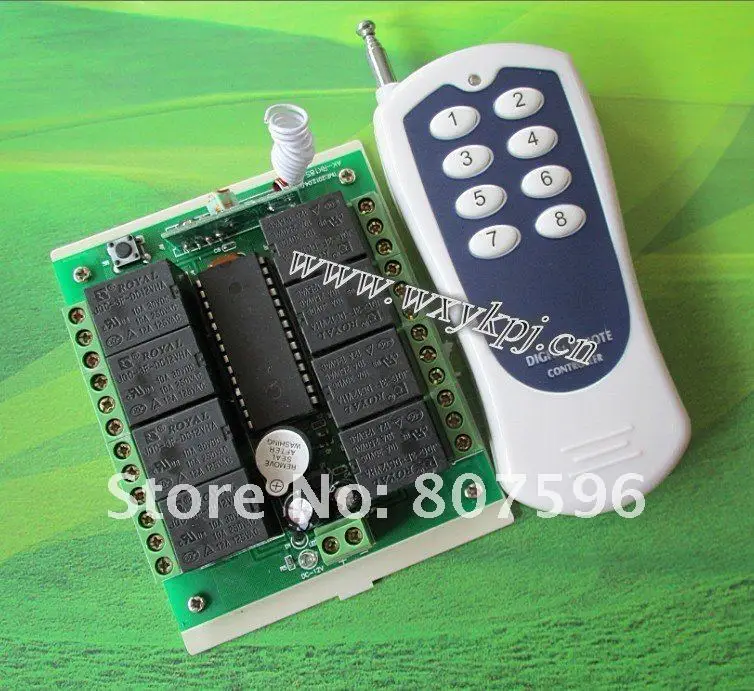

12V 10A 8 CH RF Wireless Remote Control Switch Transmitter&Receiver for Light/LED/Lamp Applicance Toggle Momentary Latched - купить

Купить 12V 10A 8 CH RF Wireless Remote Control Switch Transmitter&Receiver for Light/LED/Lamp Applicance Toggle Momentary Latched |

Main Function:

Control Lights, TV, Motors, Fans, Cameras, Video Signals, Audio Signals, Electric Doors/Locks/Windows/Curtains/

Cars or Other Appliances with voltage AC 110~240V or DC 0~28V.

You can turn on/off the receiver with transmitter (remote control) from any place, the wireless signal can pass through walls,

floors, and doors.
Reliable control: The transmitter (Encoding) and the receiver (Decoding) use an 8-bits code.

One/several transmitters can control one/several receivers.
If you use two or more receivers in same place, you can set them with different codes.
Transmitting Frequency: 315MHz/433MHz.

specification
..

1, working voltage: 12 v

2, static working current: <= 6 mA

3, working temperature: - 20 \'C to - + 70 \'C

4, receiving sensitivity: >= -105 DBM

5, working frequency: 315 MHZ/433 MHZ Opotional (please tell me what frequency do you need before ordering them)

6, output voltage: AC, DC optional

7, output current: <=10 A

8, size: 97 mm x 7 77 mm x 7 26 mm

Notice

Here is a set( transmitter and receiver),,no matter what frequency it is..315mhz or 433mhz,

we always make it work before shipping to you, ,just the frequency is different ,but they work both very good ,

so you do not worry ,we have our own company and factory, if you need any help..please feel free to tell me..Just I can..,

,,i always try my best to help you..looking forward to doing more business with you in future,,

Button 1~8 of the transmitter is corresponding to the relays 1~8 of the receiver.

press the learning the key on the receiver until 2 seconds - ,you will hear sound" BIBI" it said into the learning state

2, press the remote control function keys (keys 1-8) - you will hear "BI BI BI" sound.. it means success in learning. Valid signal is not received within 10 seconds automatically exit learning

A. jog/signal non-lock press the No.1 button to learn
B.self-lock---- press the No.3 button to learn (each channel is independent .they won\'t interfere with each other
C inter-lock -press the No.2 button to learn


D ,1-4-relay jog and 5-8 relay self-lock---- press No.4 button to learn

E ,1-4-relay jog, and 5-8-relay inter-lock---- press No.5 button to learn

F ,1-4 relay interlock and 5~8 relay selflock ---- press 6 button to learn

out put way

Jog---- press one button is ON . loosen your finger on the same button is OFF

Self -lock----- press one button for one time is ON .press the same button again is OFF .

Inter-lock-------press one button is ON , press another button is OFF

How to remove code?

Press the receiver module learning key about 8 seconds until BI BI BI BI BI BI continuous ringing six times, It means the stored information has been successfully cleared
