Zhiyun ZW-B02 Wireless Thumb Controller for Zhiyun Crane Crane-M Smooth-II Smooth 3 Smooth-Q Rider-M Gimbal Stabilizer - With PERGEAR Cleaning Cloth

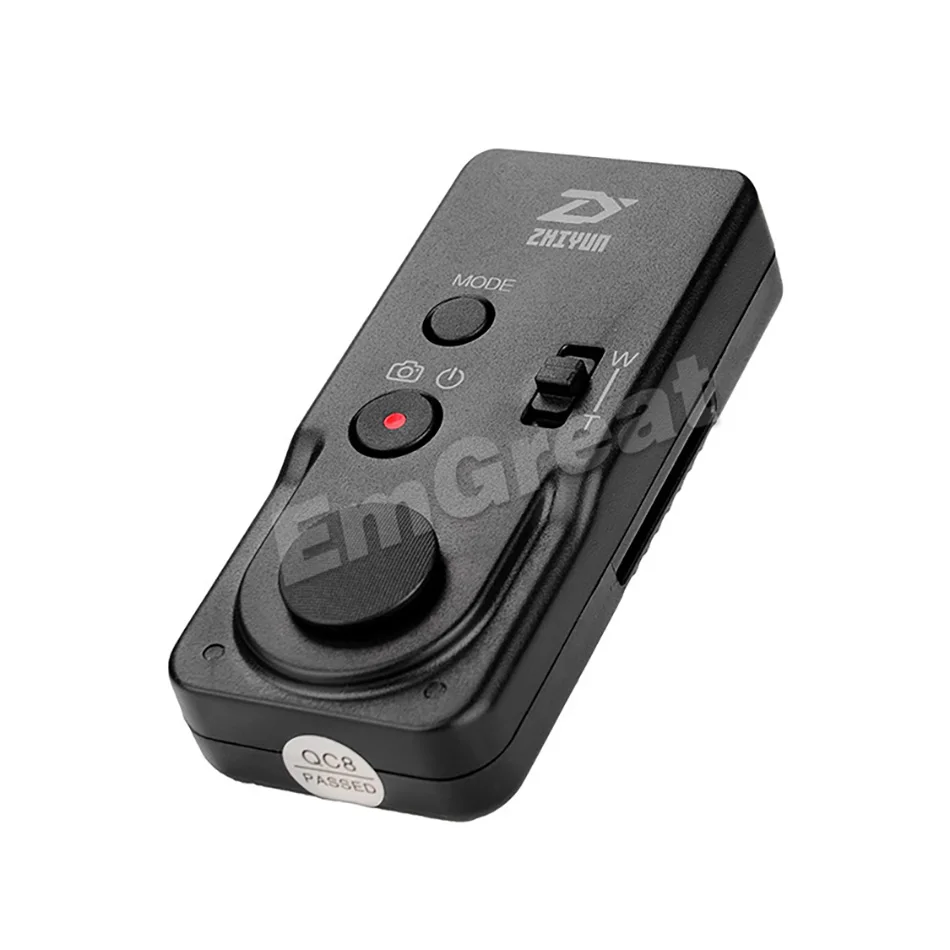

1. MODE Button: Switches Between Gimbal Control Modes.

2. Power/Shutter Button: Power On/Off the Controller by Pressing it for 1 to 2 sec. After the Gimbal is connected to the camera, under Camera Mode, Half-Press activates Focus, then Completely Press the button to take photos; Double Click the button Completely can switch between Record Function and Camera Function.

3. Power Button + Shifter Lever: Push the Shifter Lever in W direction simultaneously when powering up to enter Slave Mode. This allows firmware upgrade of the remote controller through mobile APP(Requires Bluetooth pairing with the smartphone using Zhiyun Assistant).

4. Power Button + MODE Button: Press the MODE Button simultaneously when powering up to opeate quick pairing with the nearest stabilizer.

5. Joystick: Control Camera's Movement. Shifter Lever: Allows Focusing Control of the Camera.

SPECIFICATIONS:


Charging Voltage: 5V
Charging Current: 100mA
Theoretical Work Time: ≥30hr
Built-in Polymer Lithium Battery Capacity: 150mAh
Emission and received current: 11.9mA
Operating Current: 4.2mA
Effective Control Distance: 10m/394Inch(Without Blockage)


Bluetooth Indicator


No Connection: Continuous flashing
Connected: Shines solid light
Power Level Indicator
90%-100%: Quick Flash for 4 times each second
75%-90%: Quick Flash for 3 times each second
55%-75%: Quick Flash for 2 times each second
30%-55%: Quick Flash once each second
0%-30%: Quick Flashing


Charging Indicator


Charging: RED Light
Charging Complete: GREE Light

PACKAGE CONTENTS:

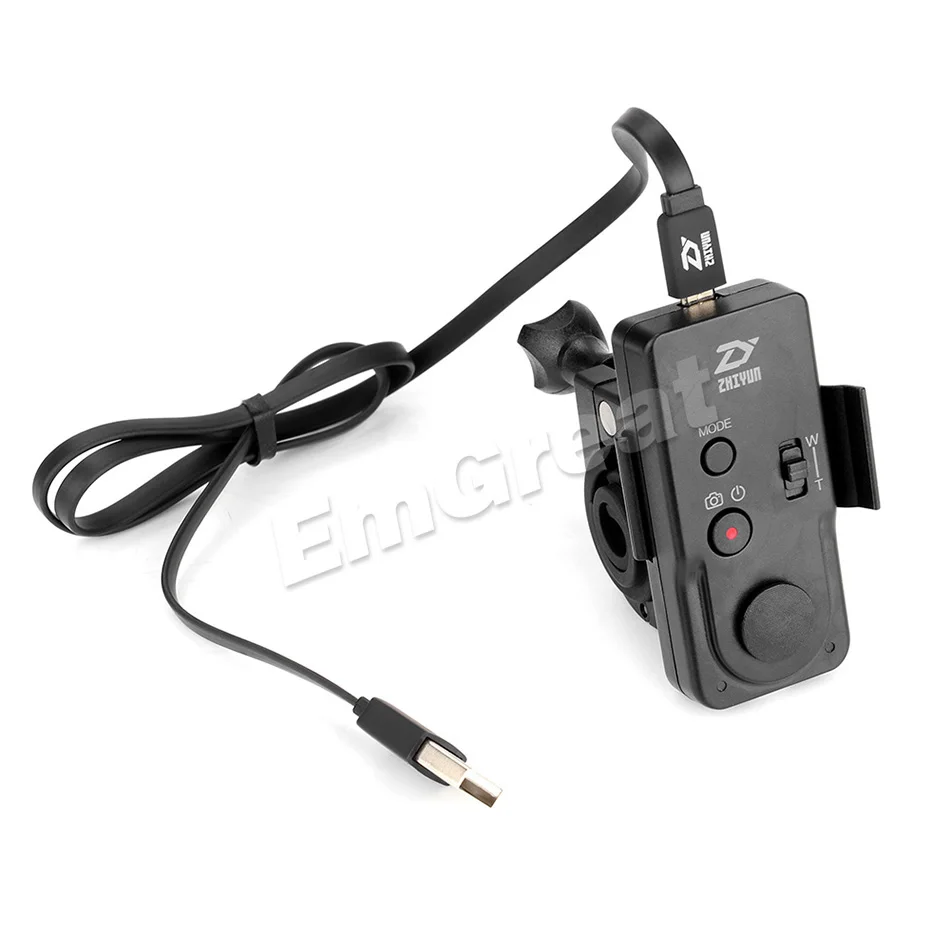

1 * Wireless Remote Controller
1 * Micro USB Cable

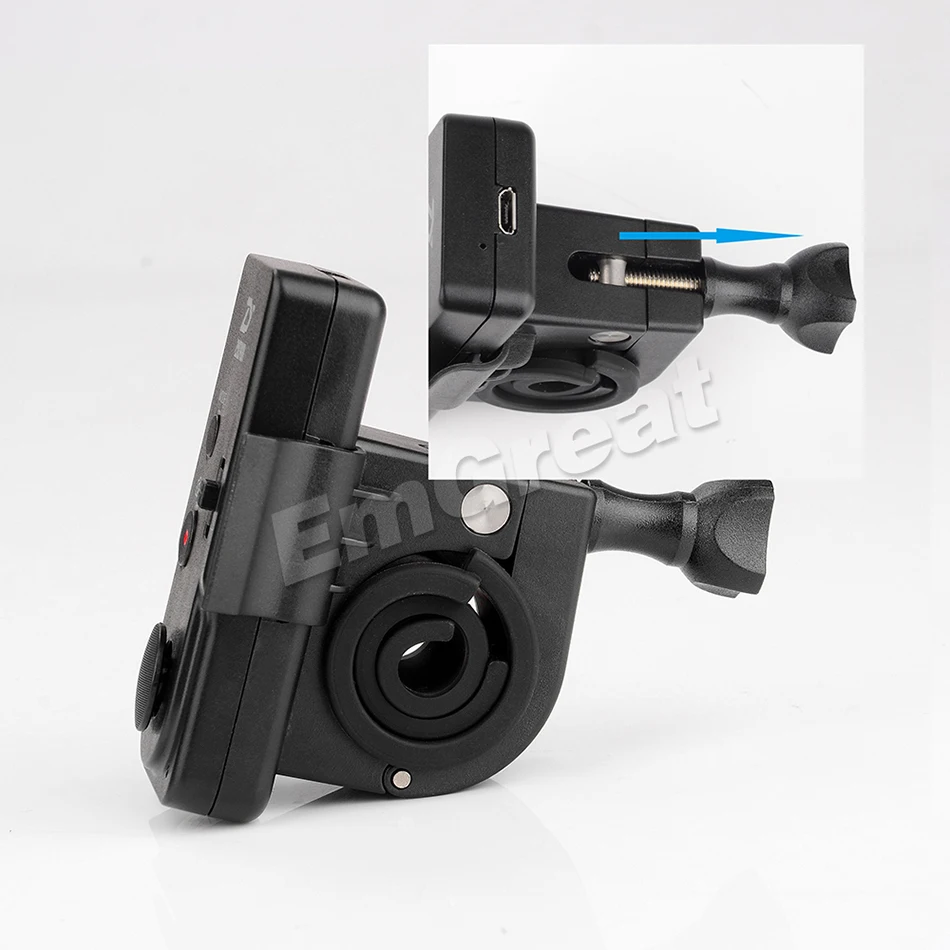

1 * Mounting Buckle
1 * PERGEAR Cleaning Cloth
