MEAN WELL RS-100-24 24V 4.5A meanwell RS-100 108W Single Output Switching Power Supply Обустройство дома - купить

Купить MEAN WELL RS-100-24 24V 4.5A meanwell RS-100 108W Single Output Switching Power Supply | Обустройство дома

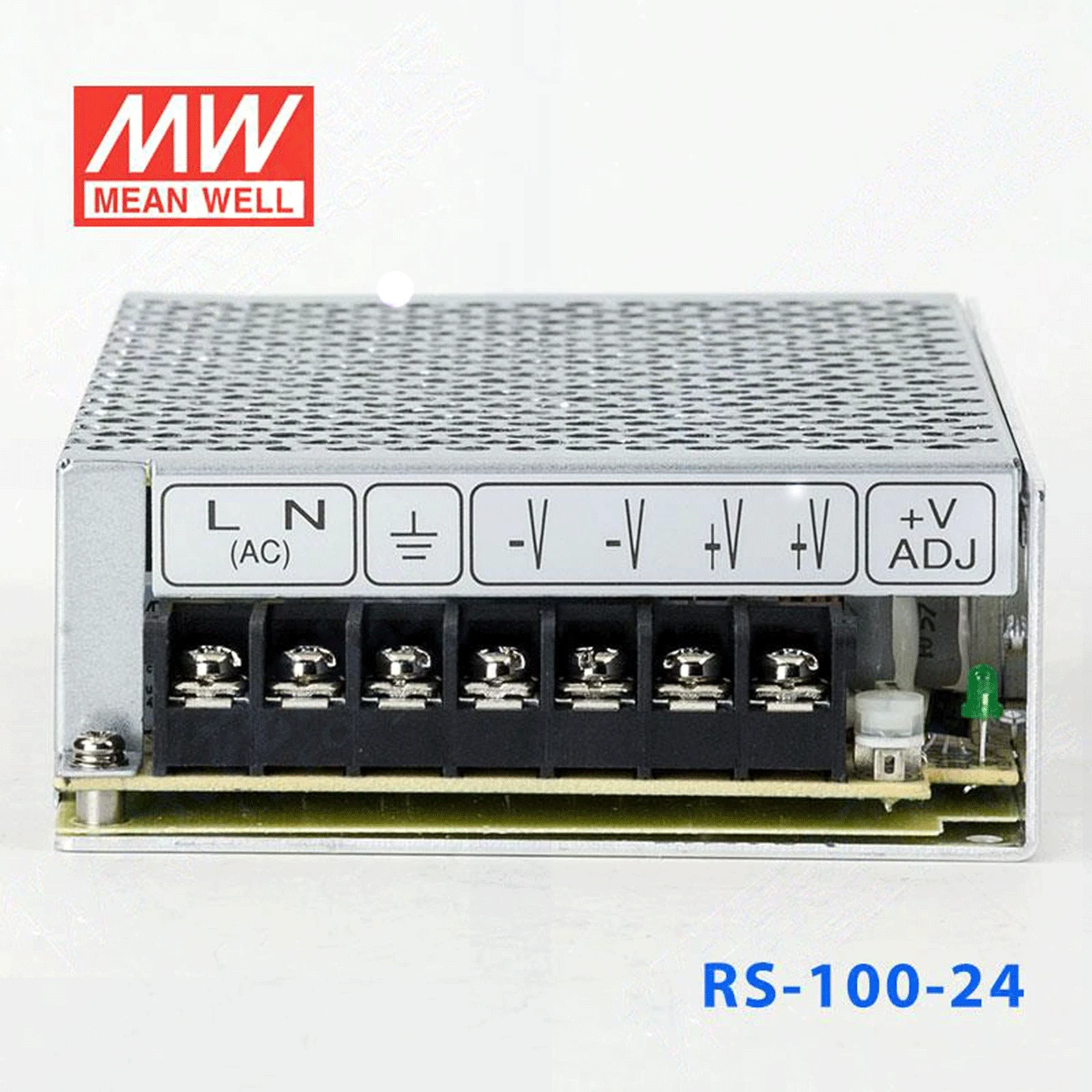

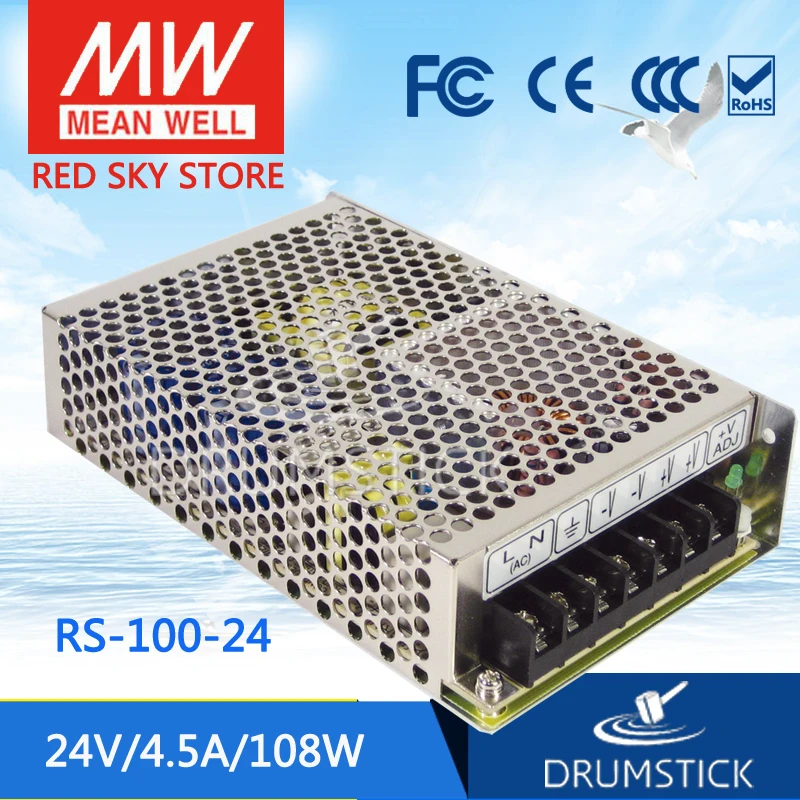

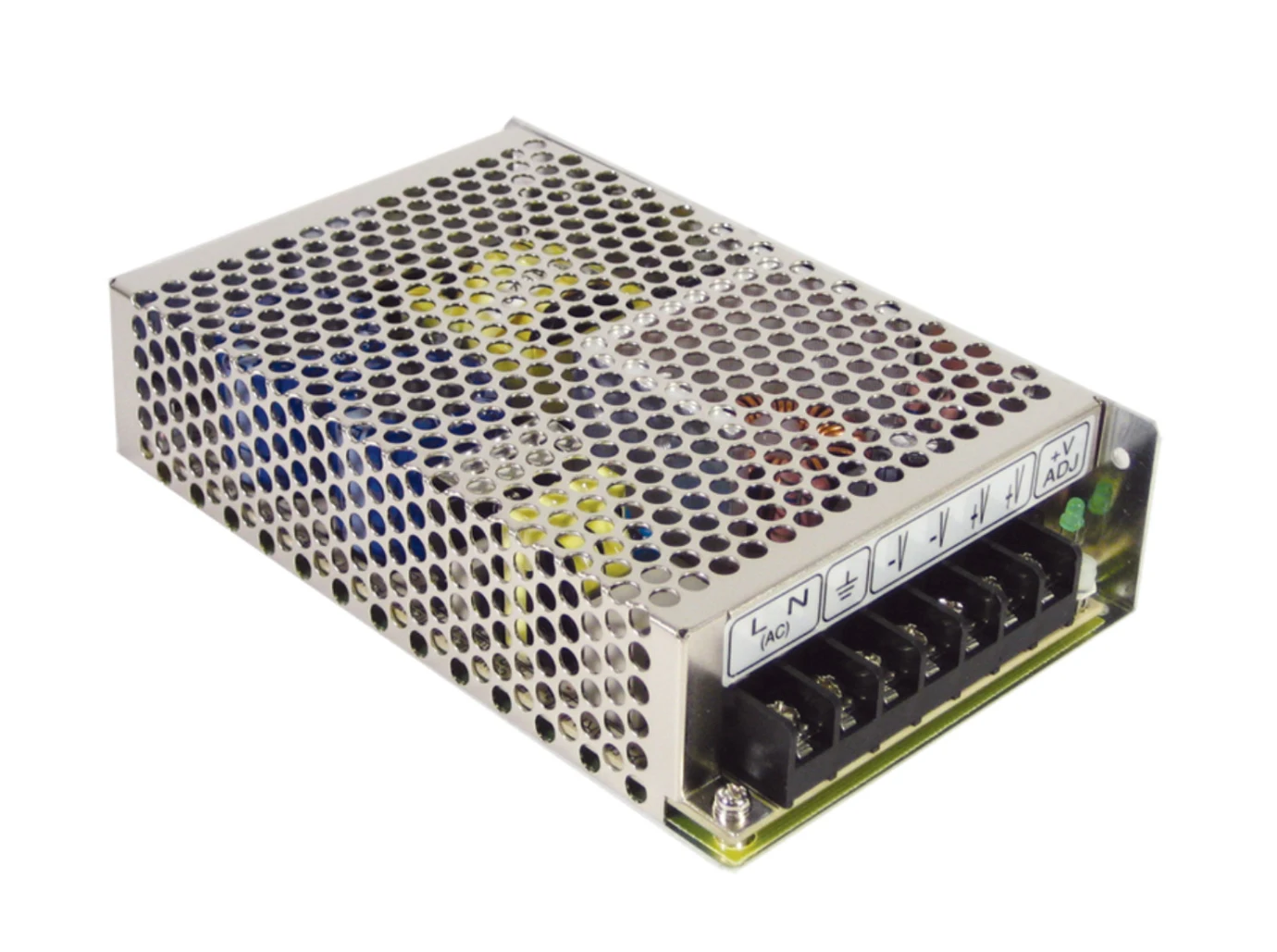

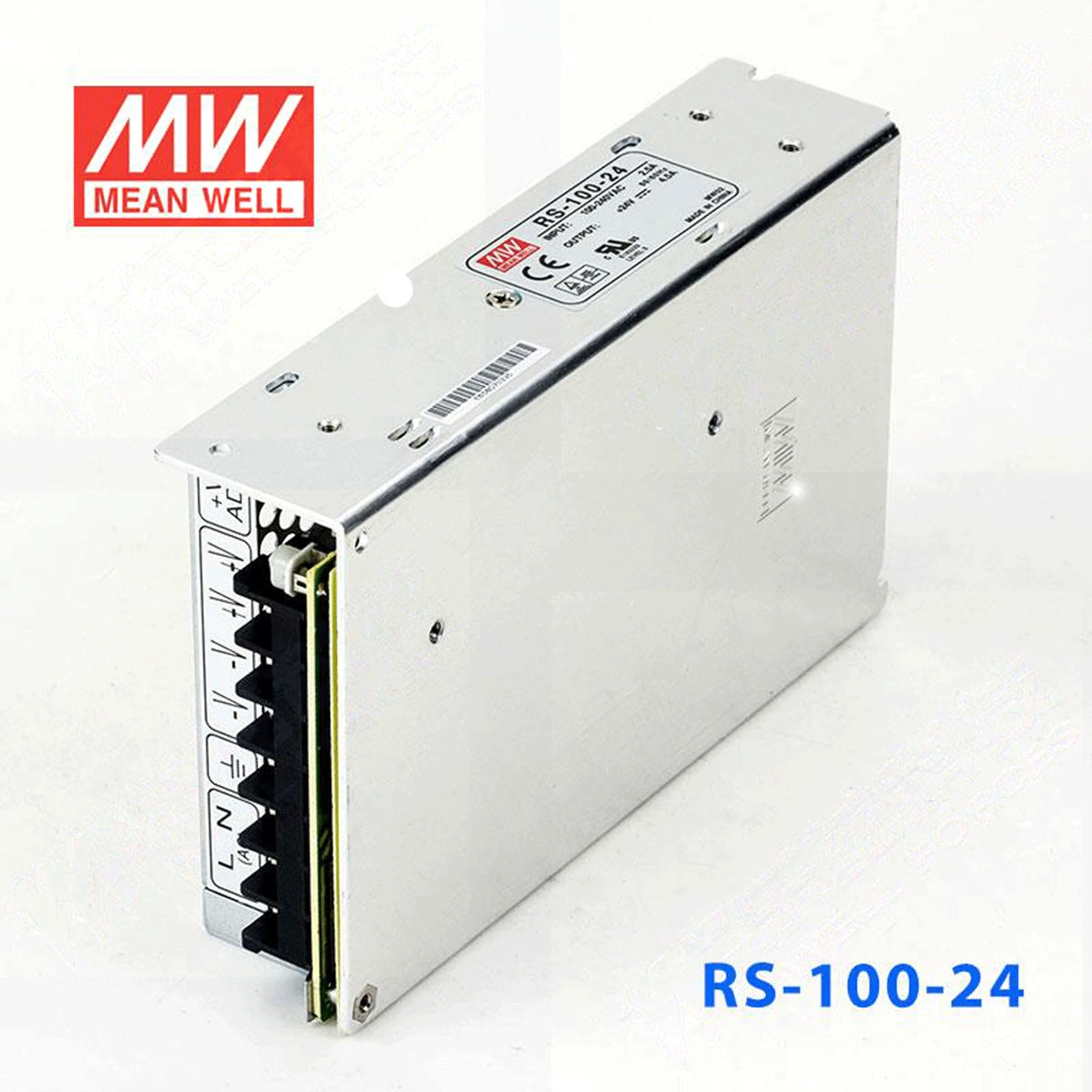

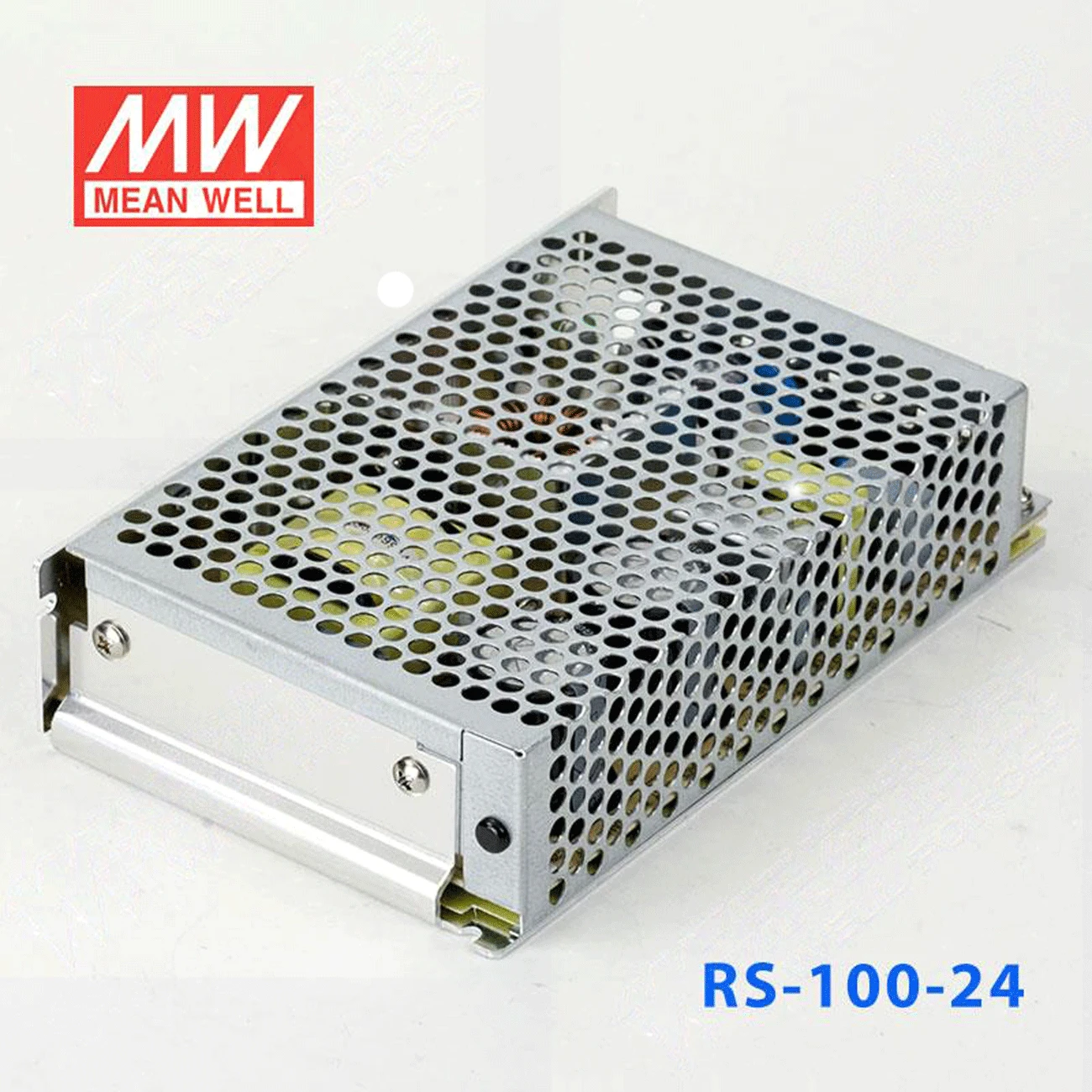

MEAN WELL original RS-100-24 24V 4.5A meanwell RS-100 24V 108W Single Output Switching Power Supply   AC to DC Power Supply Single Output 24 Volt 4.5 Amp 108 Watt

108W AC/DC ENCLOSED SWITCHING POWER SUPPLY

24Volts @ 4.5Amps

Specifications:



Size (L x W x H) (inches): 6.3 x 3.8 x 1.5 Ripple and Noise (mV p-p): 120 Load Regulation: 0.5% Line Regulation: 0.5% Input: 88-264VAC @ 47-63Hz 5G Vibration Able to withstand 300VAC surge input for 5 seconds Short-circuit/overload/overvoltage protection 3-year warranty Certifications: UL/CUL/TUV/CE/CB SpecificationValue

Primary Output Voltage (VDC)	24
Output Current (A)	4.5
Maximum Output Power (W)	108
Family	RS-100
Input Voltage (VAC)	88 to 264
Input Frequency	47 to 63
Maximum Input Current (A)	2.5
Output Connector Type	Screw Terminal Block
Number of Outputs	1
Product Type	AC to DC Power Supply
Agency Approvals	UL/CUL/TUV/CE/CB
Efficiency (%)	84
Minimum Isolation Voltage	3000V
Operating Temperature-Min (Cel)	-25
Operating Temperature-Max (Cel)	70
Length (inch)	6.3
Width (inch)	3.8
Height (inch)	1.5
Color	Silver
Type	Auto Switching
Style	Enclosed
Output Voltage (Channel 1)	24 VDC
Output Current (Channel 1)	4.5 A
