High Quality Gigabit PoE Injector 16 Port Network

Patch Panel for IP Camera

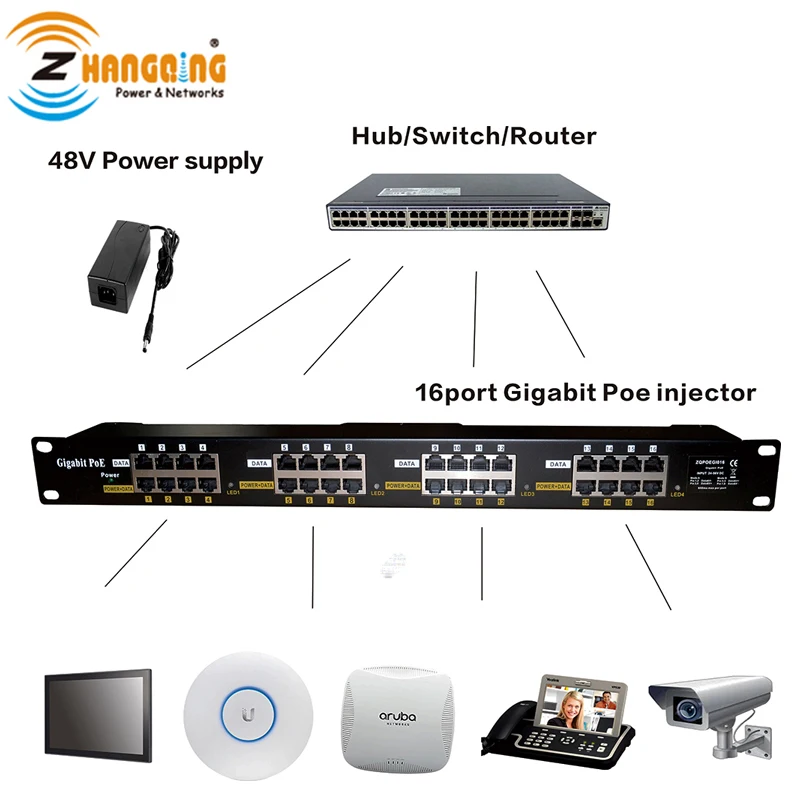

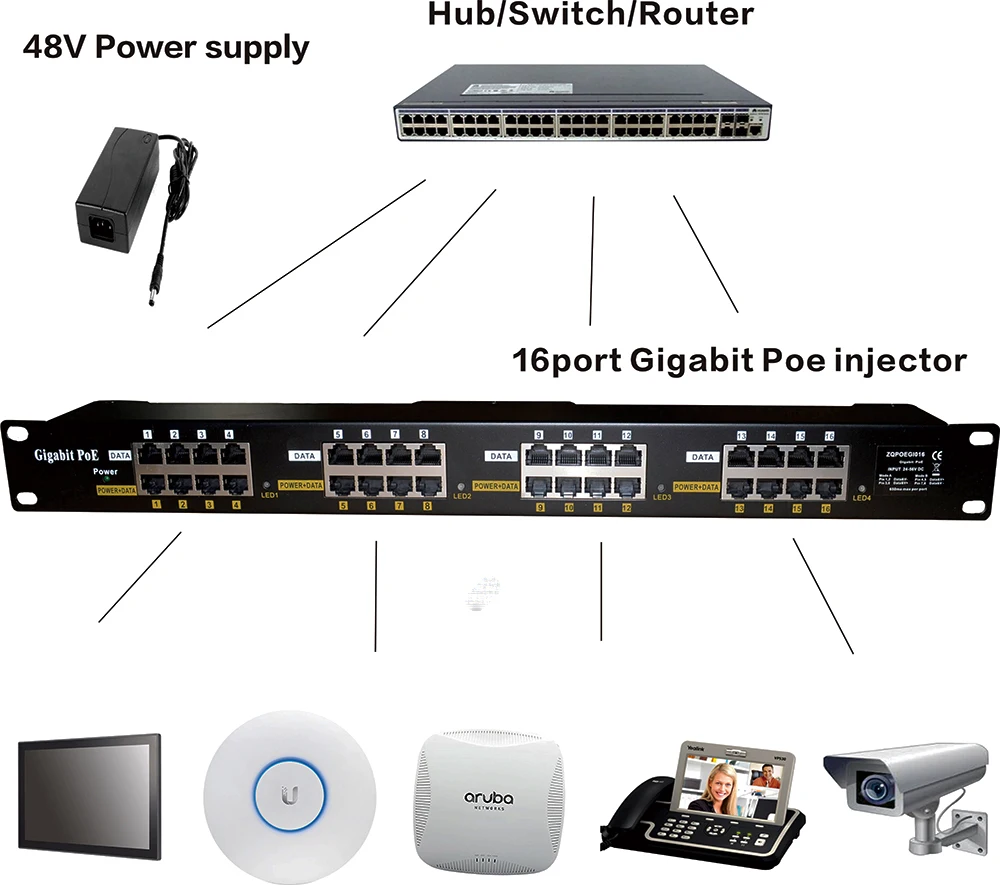

Power an IP camera, desktop phone, WiFi access point, or other low voltage devices through a network data cable using this Power over Ethernet (PoE) injector. The PoE Injector takes power from a DC power source (power supply sold separately) and adds it to your Ethernet data cable (Cat5, Cat5e, Cat6) to your device.

Save big on network upgrades and device installations Power over Ethernet delivers power 328 feet from the PoE Injector, eliminating the expense and hassle of installing AC power near your powered device. With this PoE Injector, you can add power to your data cable for a fraction of the cost of upgrading to a PoE capable network switch.

Passive PoE means versatility . A Passive PoE injector always delivers the same voltage as its power source. Pair this injector with a 48 volt DC power supply to power devices labeled “802.3af”, or you can use a 24 volt power supply with 24-volt passive PoE devices like Access Points from Mikrotik, Ubiquiti, and many more.

FEATURES

Use 10/100/1000M Ethernet

Flexible power(DC 18 - 57V)

For 1'U high standard rack mount

5 LED status indicators

Use with any Ethernet switch

650ma automatic resettable fuse on each port

Supports IEEE 802.3at or 802.3af devices

Ideal for IP cameras,VOIP phone,WiFi Access Points

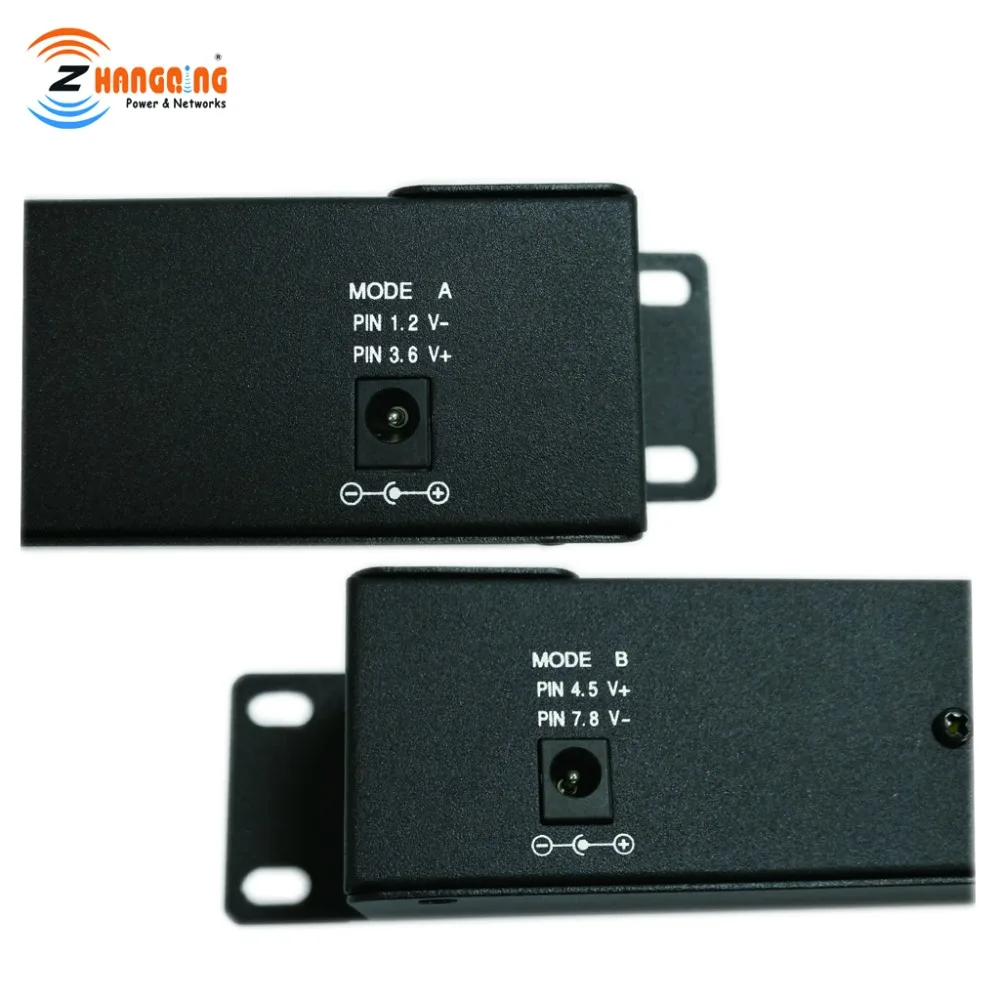

                       --Mode A operation-minus on pins1/2,plus on3/6(802.3af/at)

                       --Mode B operation-minus on pins7/8,plus on4/5(Mikrotik,UBNT)

OVERVIEW

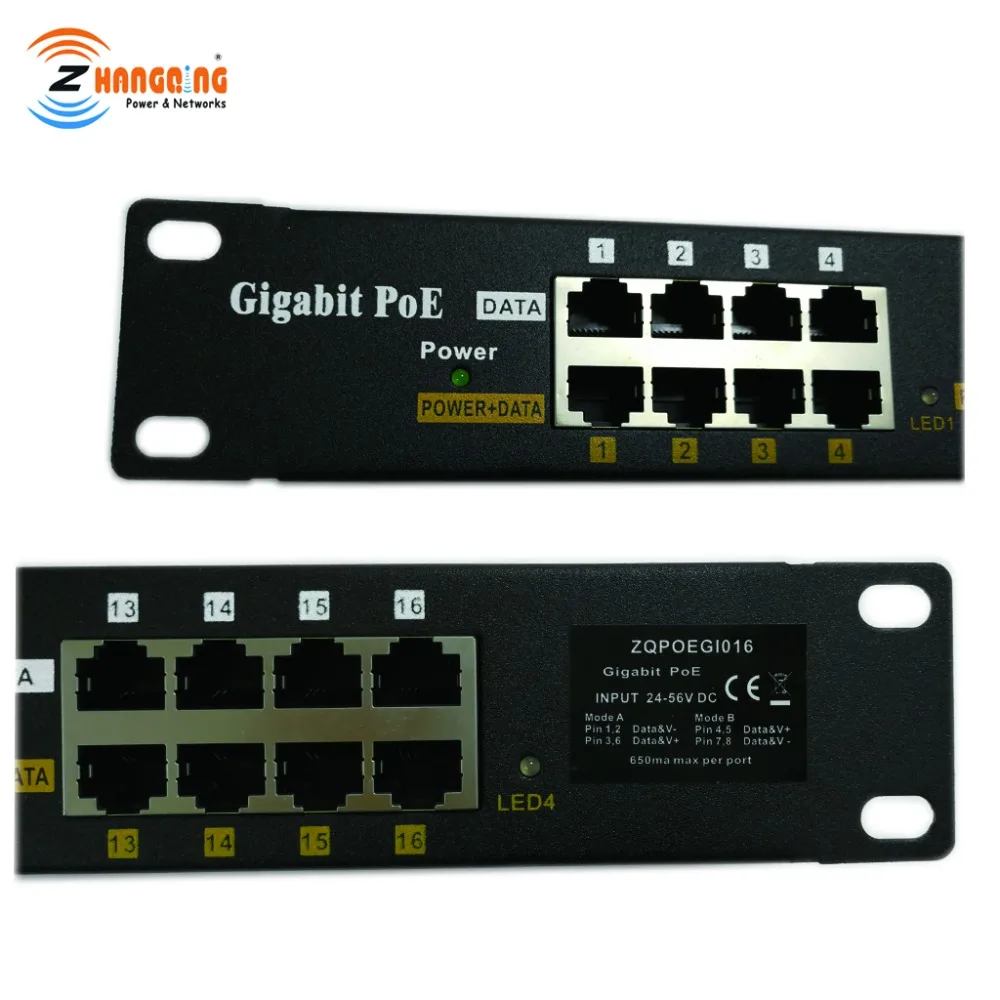

The 16 port gigabit PoE panel is used 10/100/1000M Ethernet,The upper Rj45 sockets is for “LAN/Switch/PC ”

1/2&3/6&4/5&7/8 are transmitting data.

This under RJ45(power+data) socket is to deliver data and power: Mode A-1/2&3/6 Mode B-4/5&7/8.Passive POE iscomposed of 12 set of Rj45 sockets and two 60V DC power jack.

Input power requests160W or more ac/dc power.Standard power connctor- 2.1mm x 5.5mm Each socket provides

protection against short overflow (current protection 650mA).

The sum total output power must be lower than the MAX input power of ac/dc power converter. If not, it is necessary to consider taking higher ac/dc power converter.

There commended formula for ac/dc power converter is 15W per RJ45 set (1 set = 2 x RJ45sockets).

For example, 16 x 15W = 240W for 16 port Passive PoE panel .The configuration size of panel is 1U (height),

19” (width) and 52mm (thickness), as isavailable to answer market demand and convenient to be installed directly.

LED Indicator

5 LED status indicators:

                                --Master power GREENLED
                                --For each group of 4 sockets
                                  1-4 socket of LED1 5-8 socket of LED2 9-12 socket of LED3 13-16 socket of LED4

Port current 0-20ma                        OFF                          OFF                        OFF                     OFF

Port current 0-400ma                     GREEN                     GREEN                   GREEN                 GREEN

Port current >400ma                           YELLOW                  YELLOW                 YELLOW              YELLOW

SPECIFICATIONS :

Picture Display
