UNICHCNC stainless steel metal laser cut machine/laser engraving machine

This machine type is professional cnc laser cutting metal machine, could cut stainless steel(0-2.5mm),carbon steel(0-3mm),Acrylic : 0-28 mm;Wood : 0-25 mm.also could cut and engrave other non-metal materials.

My skype is unichcnc6

My whatsapp is 008613583839573

Please contact me, Your inquiry will get my best reply



Parameters laser engraving machine

1)	Laser-type	Sealed Beijing Reci CO2 laser tube, water-cooling
2)	Laser tube of power	W6(130-160W) Beijing Reci laser tube, W8(160-180W), 280w/300w Yongli laser tube are optional
3)	Working area	1300*2500mm
4)	Max moving speed	0-60,000mm/min
5)	Max cutting speed	0-30,000mm/min
6)	Laser head	Best laser head which can be with follow up-down system special for metal cutting
7）	Location precision	less than 0.01mm
8)	Guide rail and transmission	Taiwan original Linear Square HIWAIN rails and Taiwan TBI ball screw
9)	Operating	temperature: 0-45 degrees Celsius
10)	Operating humidity	5- 95%
11)	Minimum shaping character	English 1.0 x 1.0mm, Chinese 2.0x2.0mm
12)	Graphic format supported	BMP, PLT, DST, DXF, and AI
13)	Driving system	Stepper big motor and leadshine driver
14)	Control system	Original new version Ruida 6332M
15)	Auxiliary equipments	Exhaust-fans, air-exhaust pipe, water chiller CW5000/5200
16)	Controlling software	RD control system.
17)	Compatible Software	TAJIMA , CorelDraw, AutoCAD, Photoshop
18)	Color separation	Yes

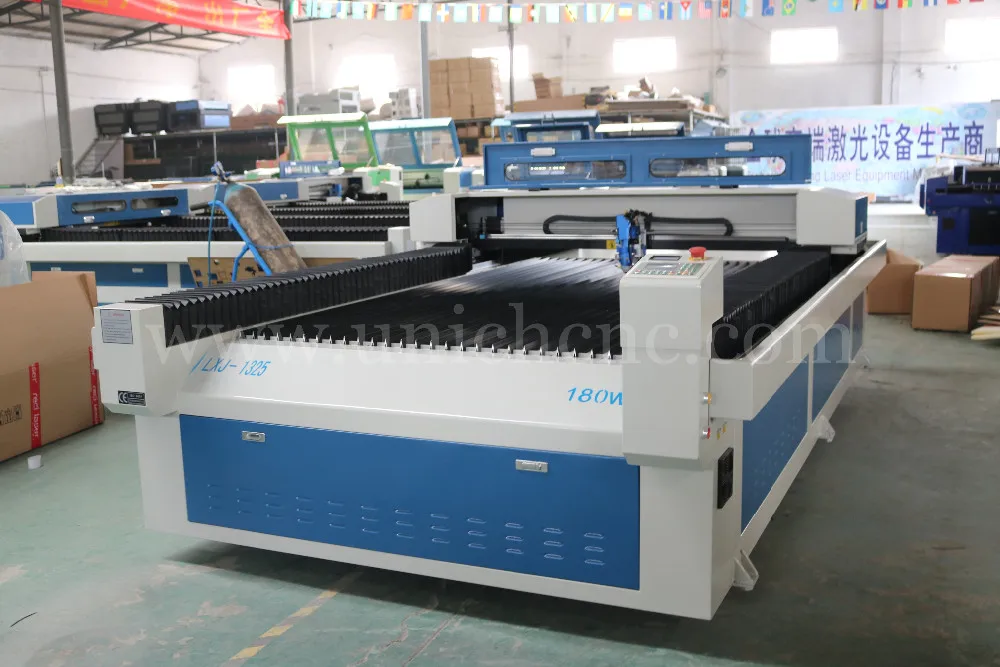

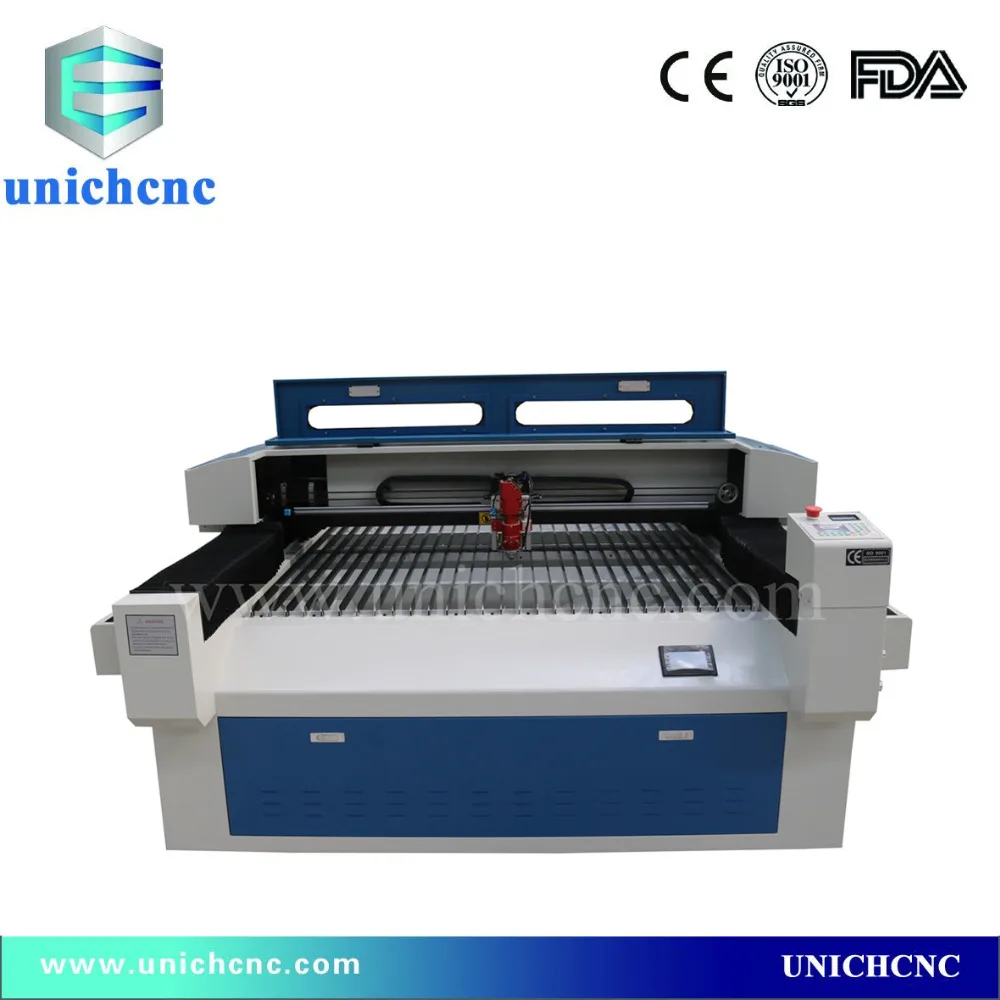

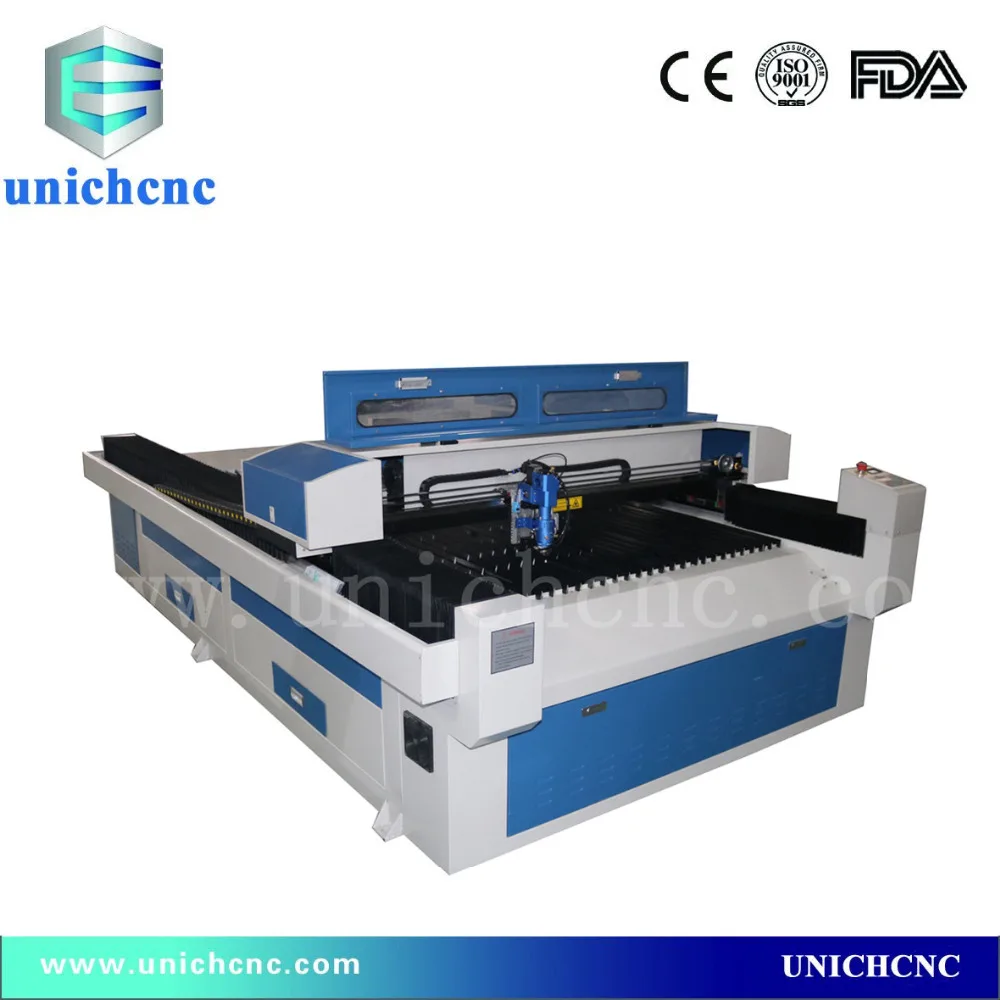

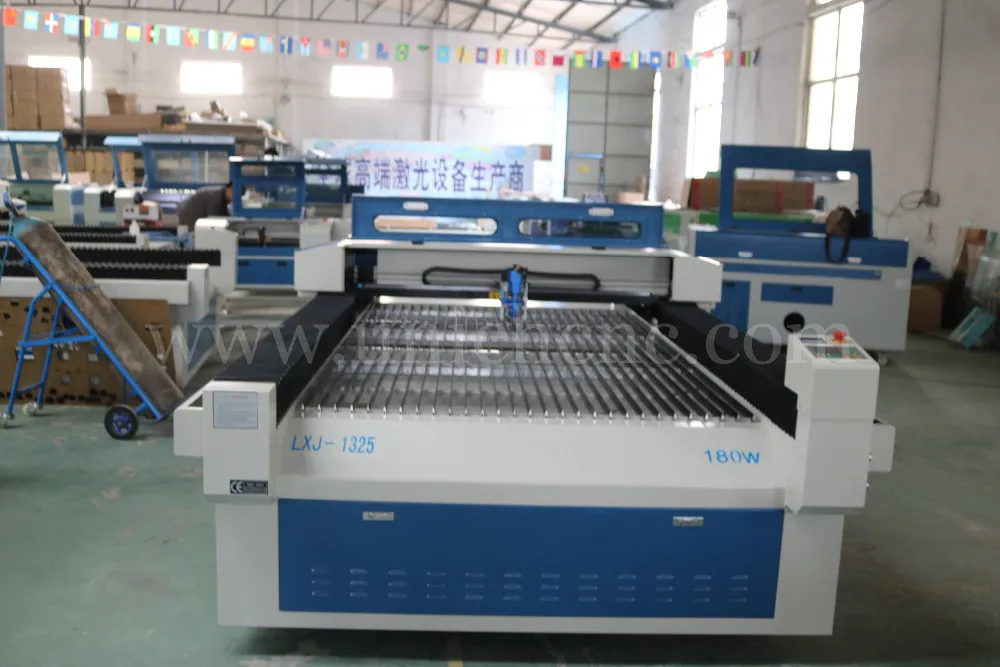

Machine pictures laser engraving machine

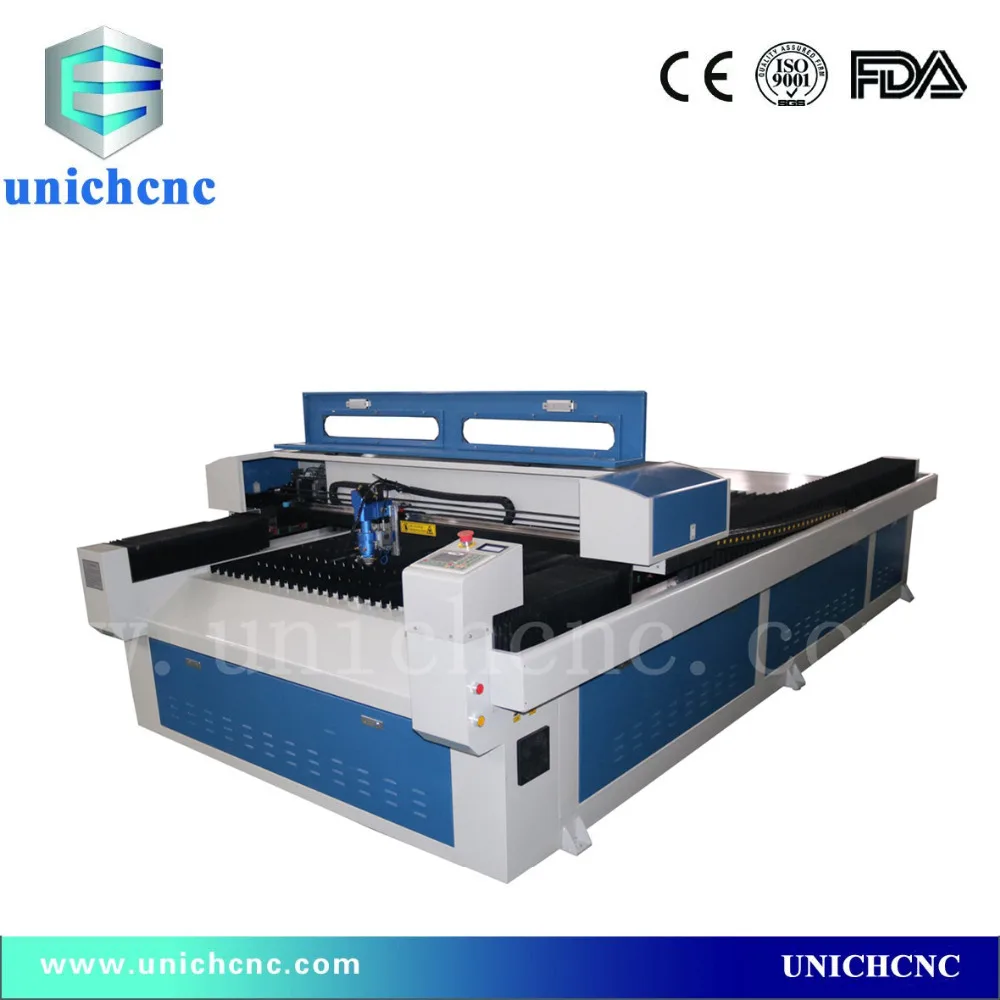

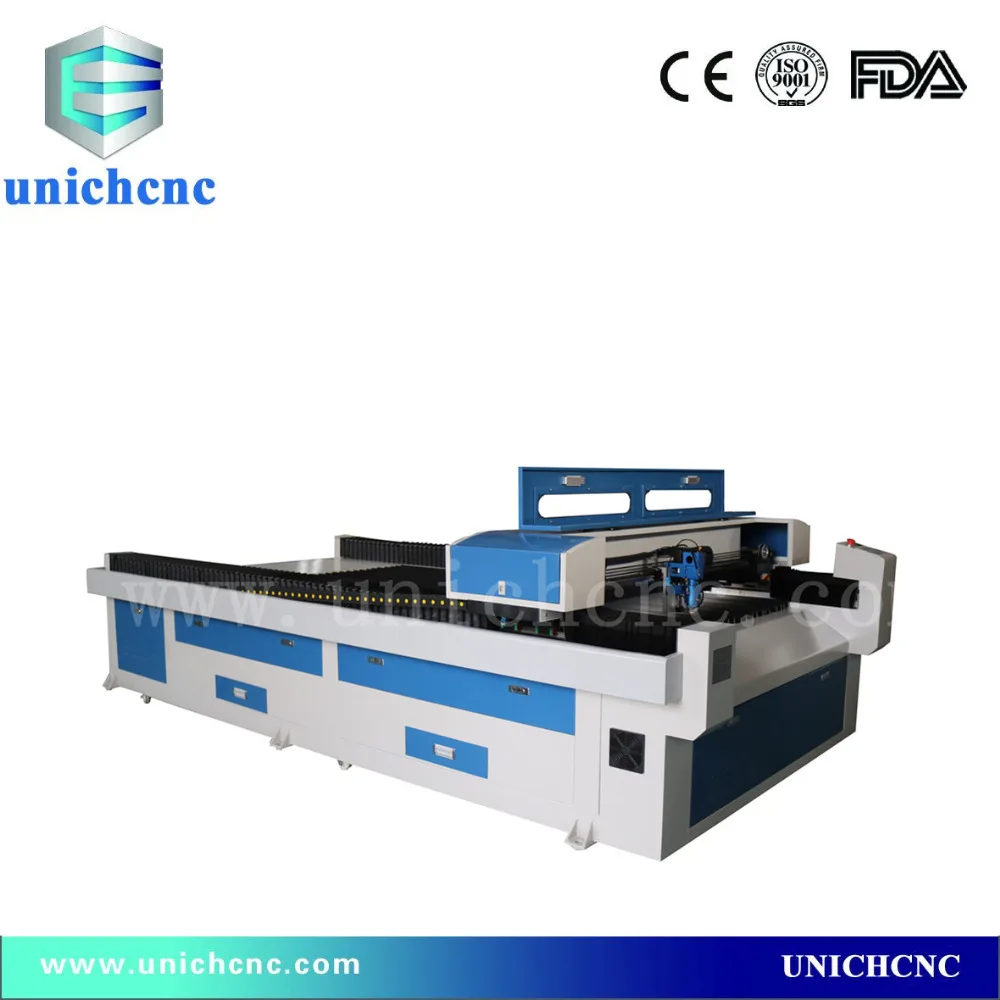

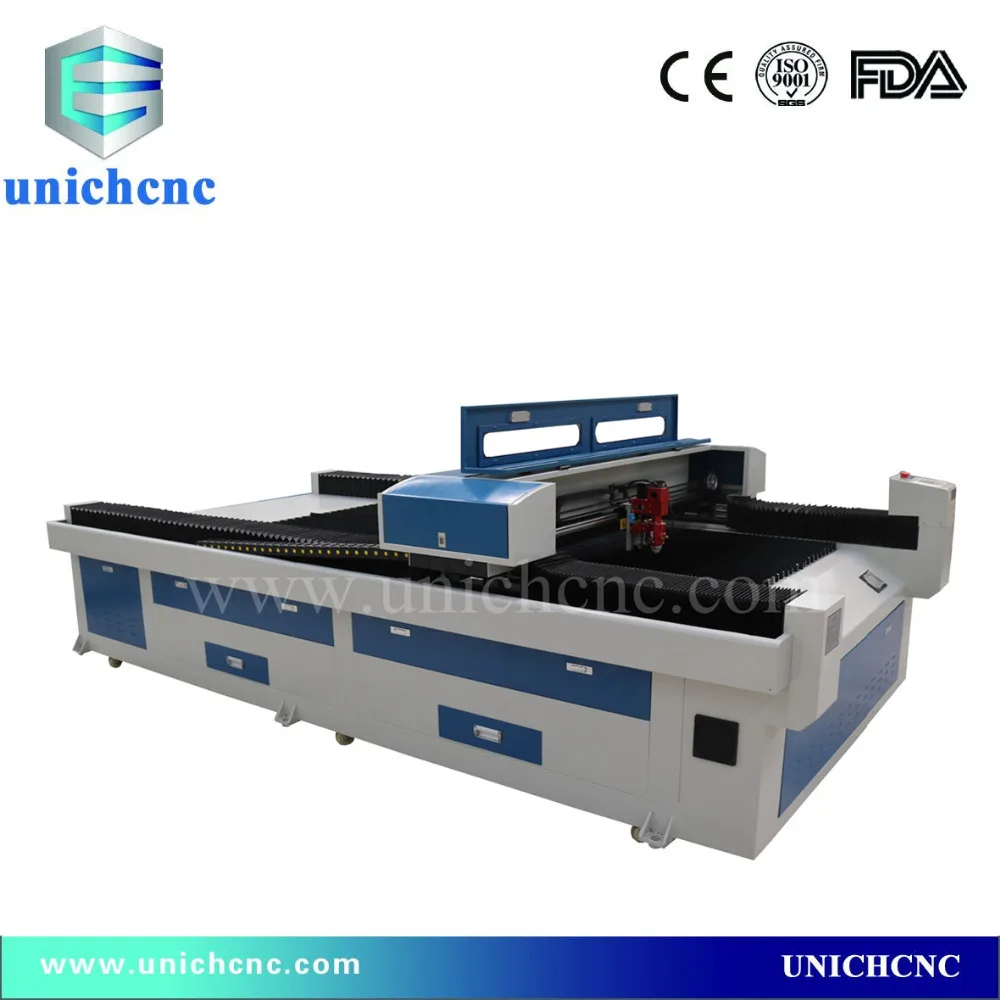

Other machine model:

Main features laser engraving machine 1, Industrial welding structure of the body, the high-precision gantry fine processing after the CNC low-temperature annealing treatment, long-term use, to ensure the strength and stability of the machine
2.  Blade working platform design, effectively reducing the workbench and workpiece material between the contact area, to ensure high quality cutting;
3, High efficiency Reci laser tube, gantry constant light mode, the output beam of high quality, can effectively improve the efficiency of the laser and ensure that the entire format can achieve the best cutting effect;
4, High strength, high stability of the mechanical structure design, CNC movement is very smooth, long-term operation without adjustment.
5.Z-axis follow-up system, cutting head according to the plate height follow-up, cutting point focal length of the same, to ensure that the cutting gap, so that slits smooth, smooth, to adapt to plane or curved plate cutting.
5, Gas control: the use of system control low, high pressure oxygen automatically switch, effectively save the rational use of oxygen to reduce waste. Can be manually adjusted separately low, high pressure oxygen is based on the thickness of the material, select the appropriate flow size.
6, The import of linear guide and belt drive, configuration slowdown structure, cutting more smooth. stable. High-power stepper motor, driving force is stronger.
7, Optional diversified configuration: red positioning, negative pressure adsorption, automatic lifting platform, rotating shaft and other equipment. Detailed parts
Applications laser engraving machine 1. Acrylic, Plexiglass , PVC Organic board , Double Color Plate
2. Fabric, Cloth, Jeans, Cotton, Wool felt
3.  Leather, Marten, Pig leather, Cow Leather, sheep leather
4.  Bamboo, Wood, veneer, Plywood, MDF,plastic
5.  Paper, cardboard, press board, Marble tile ceramic
6. 3mm stainless steel, carbon steel
7. Marble, granite, stone.
Metal such as carbon steel, stainless steel. Samples laser engraving machine Our Service Why you choose Jinan UNICH company:

1.Before-Sale:we will try to know your requests about what work you will do and help you choose the most suitable
machine specification & give you the best solution.
2.During Production: we will send photos of machines during production. so customers can know more details about
the procession of making their machines and give them suggestions.
3.After Shipping: we will give you the tracking information of the sea vessel so customers can know when it will arrive at your port and make enough preparation.
4.About Training: there are some manual and video about how to install & use machine , if you have any questions
you can contact me any time, then i arrange our professional technicians to help you by video, pictures, call or email.
5. Service In Life-Time: No matter how many years passed, you always can contact me, we can give you any technical support in the future life-time.
6. About Warranty: 2 years for the whole machine;6 months for equipments outfit, such as exhaust fan, air pump, ,mirrors, lens etc;10 months for high quality Reci laser tube ,3 months for ordinary laser tube.

Packing & Delivery Certifications FAQ

1.Please tell me your detailed requirements in the inquiry for the machine, such as:
What's the materials you are going to cut or engrave?
What's the maximum size for the materials? Includes the thinkness.
Do you have some special requirement?
2. After we know your exact needs, we will recommend you with the most suitable price and
competitve price.
3. After you confirm the specification of the machine and the price, the performa invoice will be sent to you.
4. We will produce the machine after deposit is wired.
5. The machine will be finished between 3-5 working days.
6. The machine will be delivered after the balance is paid.
