Orignal PUHUI T-937 2300W Lead-free Reflow Oven 220V Infrared IC Heater BGA SMD SMT T937 Reflow Solder Oven

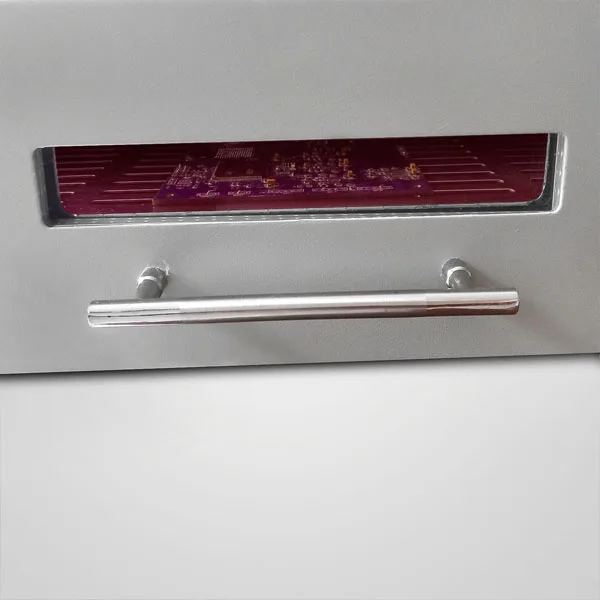

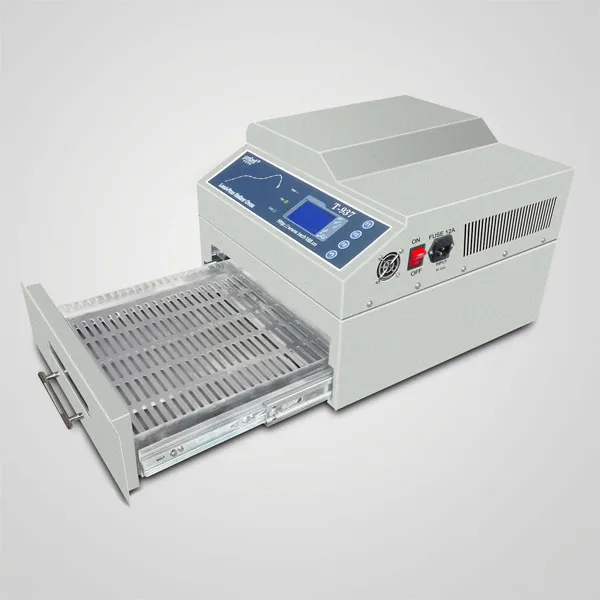

  Brief Instruction:   The LeadFREE Relow Oven T-937 is a micro processor controlled reflow-oven. It can be used for effectively soldering various SMD and BGA components. The whole soldering process can be completed automatically and it is very easy to use. This machine uses a powerful infrared emission and circulation of the hot air flow, so the temperature is being kept very accurate and evenly distributed. A windowed drawer is designed to hold the work-piece, and allows safe soldering techniques and the manipulation of SMD/BAG and other small electronic parts mounted on a PCB assembly. It may be used to automatically rework solder to correct bad solder joints, remove/replace bad components and complete small engineering models or prototypes.   Specification:   1. Soldering area: 306mmX322mm 2. Dimension: 404mmX372mmX280mm 3. N. Weight:15.5kg 4. Voltage/Frequency: AC220~230V/50~60Hz(Remark: this model does not have 110V input now) 5. Power rating: 2300W 6. Cycle time: 2~16 min 7. Temp rage: Room temp~350 degree Celsius    Operation: 1. Enter the software interface Press F1, will come to the independent operation interface 2. Select the wave Under the independent operation interface, press F2 to select wave, press F1 and F3 to select the wave you need, then press "return key" to independent operation interface. 3. Run the wave Under the independent operation interface, press F1, it will run the wave you selected. 4. Thermostatic timer function Under the independent operation interface, press F3, start the thermostatic timer function. Thermostatic timer function means the machine can keep thermostatic temp if you set time, once time over, the machine stop heating. Press F3 change "set temp"/"set time", press F1/F2 to adjust the numerical value, the time is--:--is untimed model, means the machine is keeping thermostatic heating, not stop automatically.  5. Change language Under the main interface, press F3 to change the language.   Attention:   1. If not use this machine for long time, please unplug the power line plug. 2. The machine should be connected to the exhaust passage within the outdoor ventilation or exhaust recovery, prevent solder paste volatiles poisoning. 3. This machine is with strict protective insulation materials, please don't open the machine casually   Packing List:   1 x T-937 Reflow Oven 1 x Power Line 1 x COM Communication Line 1 x Fuse 1 x  Instruction Manual
