MPPT Wind Solar Hybrid Charge Controller

2kw wind & 1.5kw solar -48v (with boost&buck function)











"If your wind turbine max output voltage less than 120VAC, then choose 120VAC option. If your wind turbine max output voltage between 120-240vac, then choose 120VAC option.







Functions & Features

Basic Functions

    ♦    Wind Turbine and Load Adaptive Impedance Matching, maximize energy utilization.

    There is internal resistance in Wind generators, batteries and loads. According to impedance matching principle, only when input impedance equals to output impedance, power utilization is maximal, get the maximum power.

    ♦   Protect wind generator from over-revolution speed, over-voltage and over-current

      Max revolution speed, max voltage and max current of wind generator could be set. Once the actual revolution speed, voltage or current over the set ones, PWM intelligent unloading will start automatically. That protect wind generator.

     ♦    Intelligent limiting of batteries max current

     Batteries maximum capacity could be set through this controller. According to the set maximum    capacity, controller could calculate the maximum charging current. Then batteries will be protected.

    ♦    function of manual brake

    ♦   Wind charging manual switch

    ♦   Solar charging manual switch

Optional Function

       Ø    USB function

       Ø    RS232 interface

       Ø    RS485 interface

       Ø    Anemometer function

  (Note: If you need the optional function, please contact me before you pay it, Thanks)

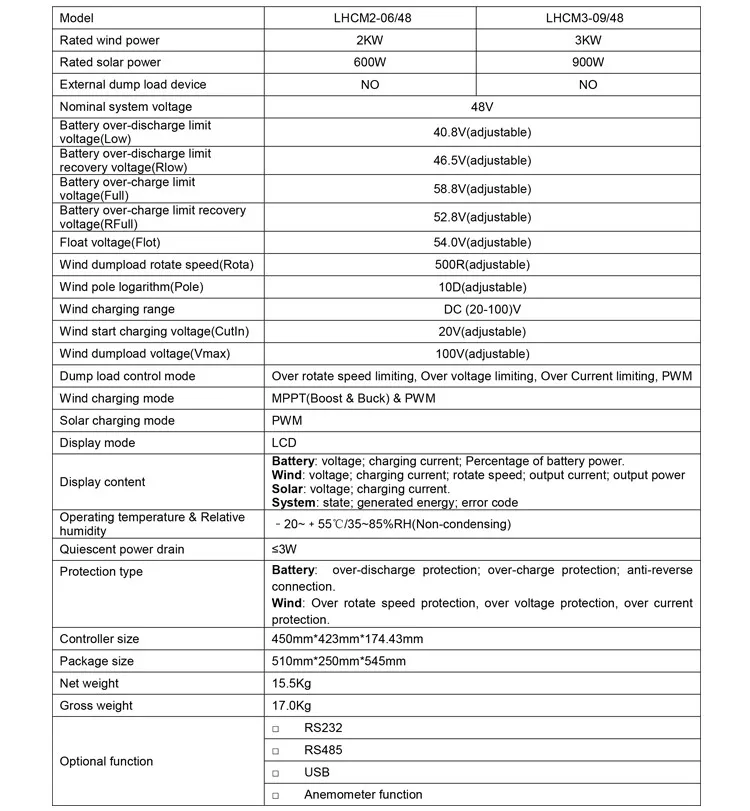

Parameters

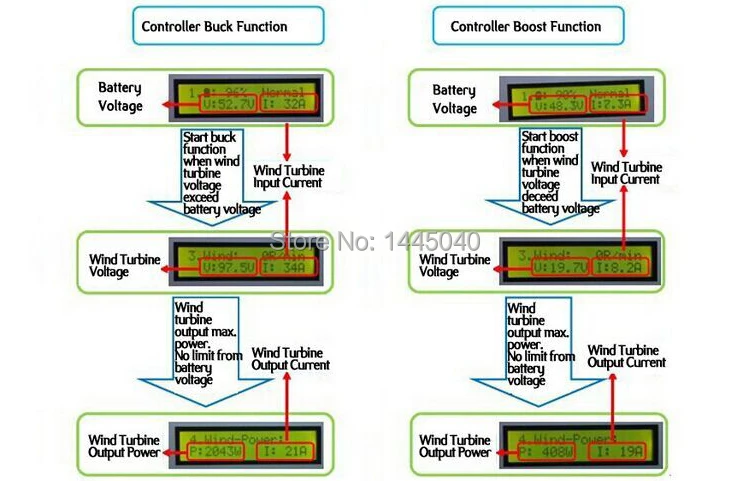

What is boost&buck function?

Once wind generator voltage is lower than battery voltage, controller starts boost module automatically. Wind generator voltage is increased to the charging voltage, and it is boost charging. When wind generator voltage is higher than battery voltage, in order to acquire max power, buck module of controller will be started, the generator is buck charging.

Loads lower the revolution speed of wind generator, when it is breeze. That decreases the output power of wind generator. Through max current tracking (MCT) and max power point tracking (MPPT), output of wind generator is stabilized at the max balance of wind energy utilization. Combine with boost and buck function, wind energy utilization is increased.











Software

The software is easy to operate need not to be installed. You can browse and set parameters on PC through the software. Users could ask the software from sellers.

 §   Browsing interface on PC:



    §   Contents displayed on browsing interface:

   Battery: voltage; charging current; power; power obtained; generated energy obtained.

   Solar: voltage; charging current; charging power; generated energy.

   Wind turbine: voltage; charging current; charging power; generated energy.

   Output load: voltage; current; power; output energy.

    §   Software using method could reference to the instruction of software compressed file.























Packaging & Shipping

 §  Carton box or plywood are regarded as package,this also can be customized.

 §  7-25 working days since payment receipt (based on actual quantity)

 §  By air or by sea.



















Our Services

 Why choose us:

                           High quality

                           Competitive price

                           Professional technical support group
                           Directly Manufacturer Fully Guarantee for 12 months



We are a professional manufacture specialized in solar controller, wind solar controller and inverter, all the components for off gird solar power system. Any OEM or ODM products will be welcomed anytime.
