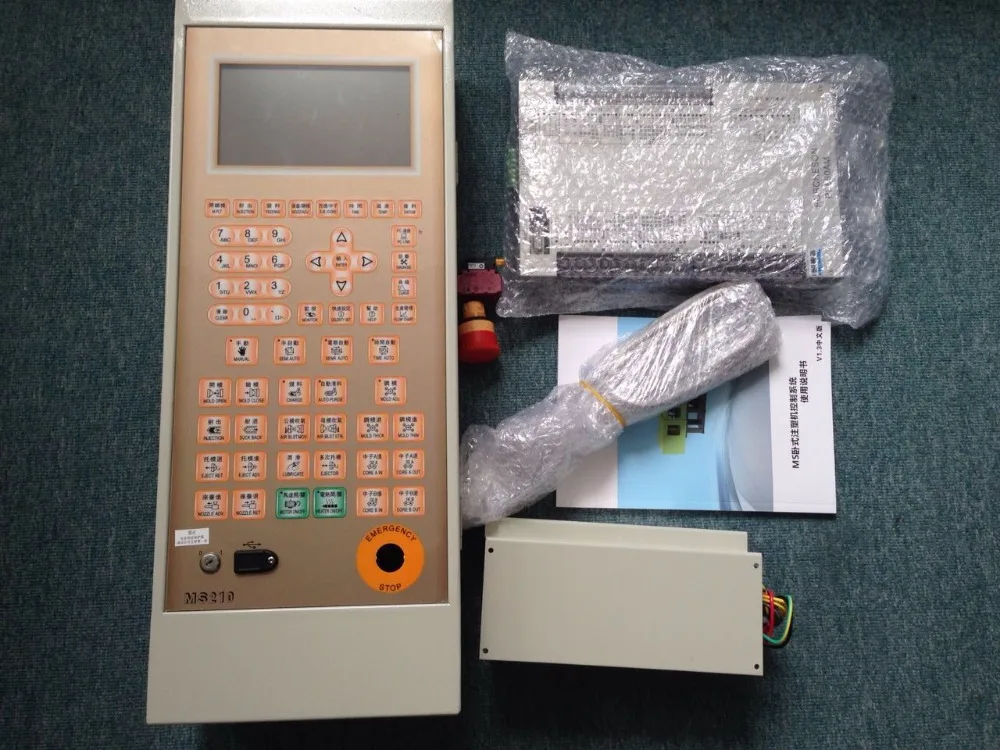

Porcheson PS860AM + MS210(7''TFT LCD Panel)  full set control system / controller / PLC  for Injection molding machine

System configuration:

Host computer( I/O board), Keyboard( operation panel) , Power supply, Motor Electic-heating board,Message cable, user manual

PS860AM I/O board                  27/28+10+3line electronic ruler+3line pressure sensors

 Keyboard : KC118                     800*480TFT  7''inch LED scree

                      TB118                       800*480TFT  7"inch LED screen

 Power supply: PW450              450W

 Cable: DB-15F                            1-8meter optional

 User manual:                              one set with system

 Guarantee Period: 1year

 PS860AM  main function:

1. Up to 6 layer of password setting to enhance data storage safety

 2. Multi-stroke control , position switch/3-path 16bit A/D electronic ruler input

 3. 3 path with 16 bit A/D pressure feedback inspect input, current 4-20 mA

 4. Multi-language selected, display dynamically in real time with 999 group SPC track record 5. PID (Proportion Integration Differentiation) self-learning temperature control, 7sections of temperature

 6. Injection mouth temperature controlled by open-loop & closed loop

 7. 999 groups mould data storage, mold description input can adopt Chinese/English with real-time operational help

 8. Real time dynamically observation on output values of pressure, speed and current, no need extra ammeters

 9. Multi security programs protected and internal security circuit controlled

 10. Failure of self-detection, alarm display and voice prompt function

 11. 3 path standard 16bit D/A ratio output with max current 3000 mA

 12. 2 path standard ratio output 0 ~ 10V D/A

 13. DC24V input 27 point /output 28 point, relay output 10 point

 14. With long-distance communication functions which enable to programmed and replace different software versions

 15. 512 working machines can be managed by one host computer which can count each computer's production status accurately and convenient to manage (optional)

 16. Could configure various universal keyboards or touch screen:7.0, 8.0, 10.2 inch TFT(optional)

 Operate environment:

Operate temperature: -10°C ~50°C

Storage temperature: -20°C~60°C

Relative humidity: 10%~95% (non condensation state)

Certificate: CE CCC
