Working video:

www.youtube.com/watch?v=OgxhMpkzvdA&list=PLYMhrdK38j9vNn-jcDfGYzXV_y7FTMIjD

With Convoyer Video:

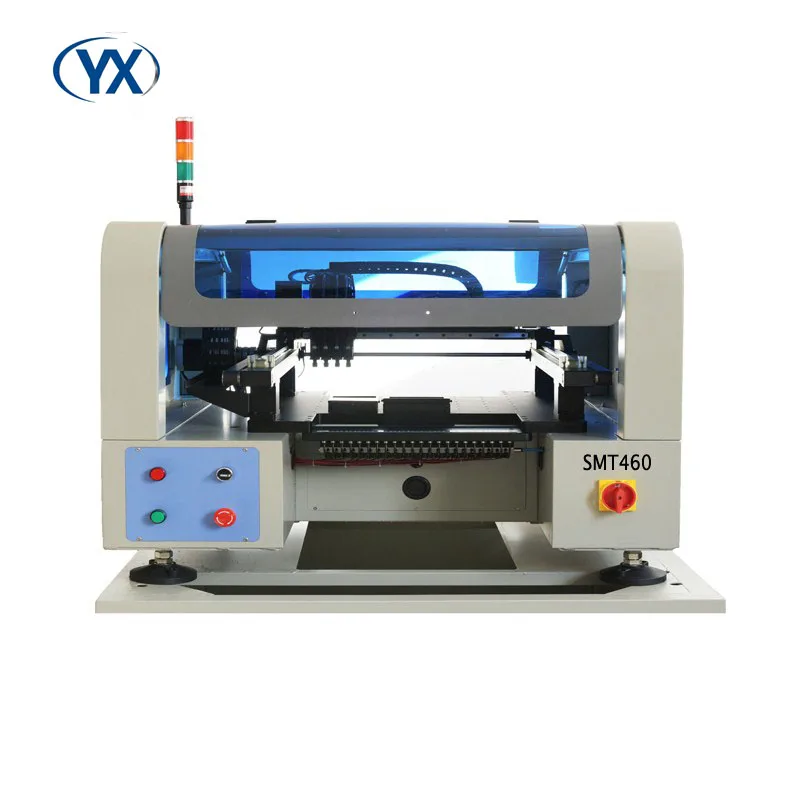

https://www.youtube.com/watch?v=_kfP1a6_wNE&feature=youtu.be Product Description     Desktop SMT Pick and Place Machine,SMT460,0402,0805,0603,5050, BGA Led Mounter







Maximum circuit board area:	505*412 mm
Maximum movement range of X and Y axes:	509*619 mm
Maximum movement range of Z axis:	20 mm
Maximum mounting rate:	9,000 PCS/hour
Average mounting rate:	7,000 PCS/hour
Positioning accuracy:	0.01 mm
Buffering range of suction nozzle:	5 mm
Power supply:	220V/110V, 50 Hz
Compressed air:	0.5-0.7 Mpa
Maximum power:	350 W
Belt-type feeder:	8, 12, 16, 24 mm
Visual display:	17 inches color HD display
Product weight:	265KG/400KG
Range of application:	adaptive 0402, 0603, 0805, 1206, diode,triode, SOT, etc
maximum chip size:	40*40 mm
minimum pin spacing:	0.5 mm
Quantity of feeders:	44 PCS
Service motor:	Panasonic servo motor
Weight	265
Dimension:	1035*990*694mm



 1.Datails

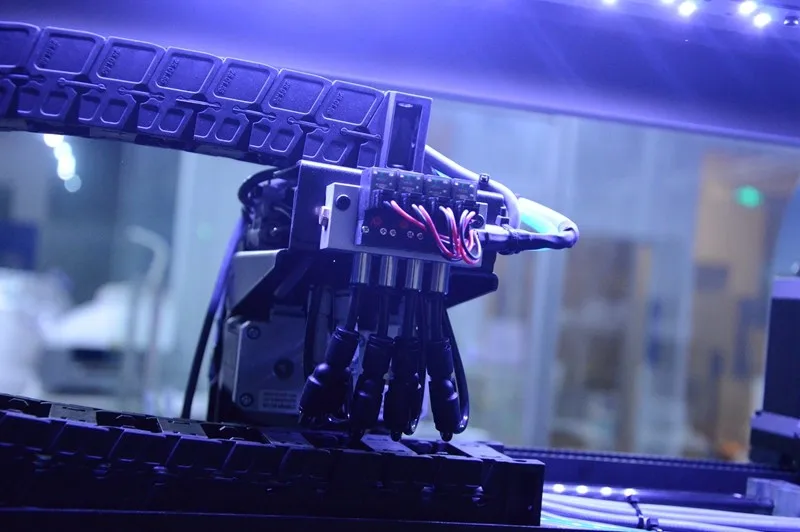

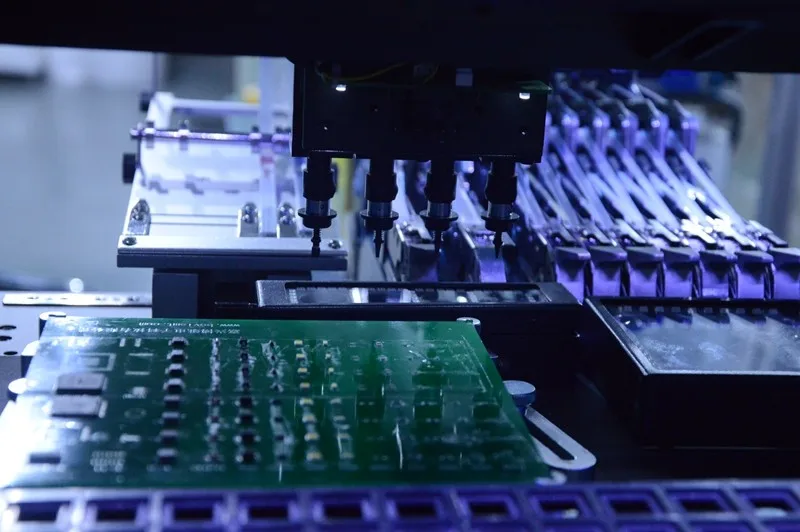

2.High Precise JUKI Universal Nozzle+4 Placement Head

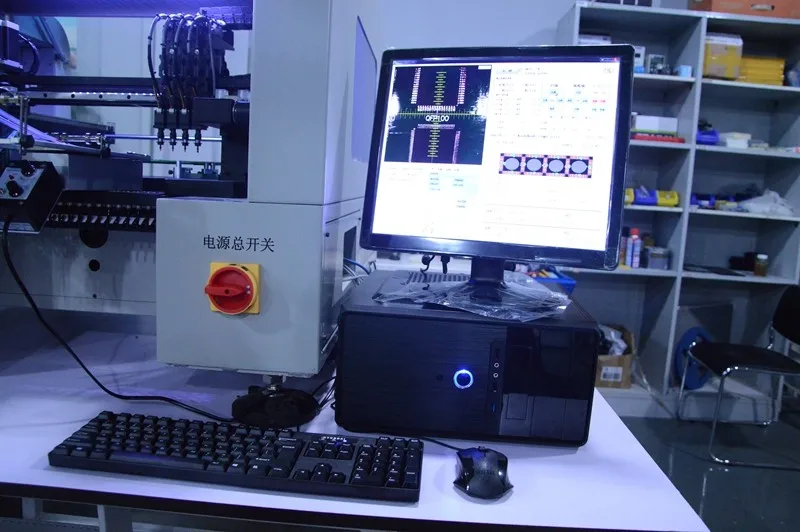

4.Come with Computer + Monitor + Keyboard and Mouse

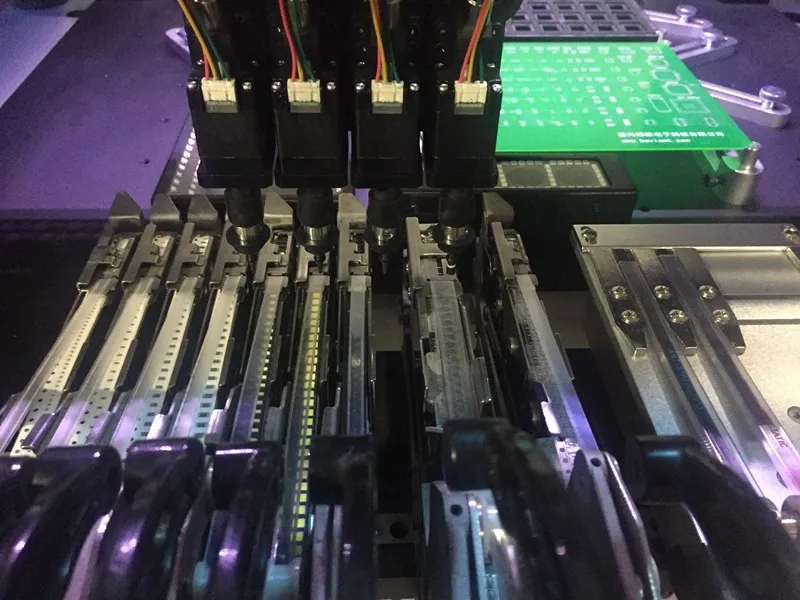

5.44 Feeders (Support Tube +IC Tray)



6.Support a Group of IC Trays(Random combination of six different chips)



7.Support Feeders With Pallet Chips



8.Imported Mute Solenoid Valve

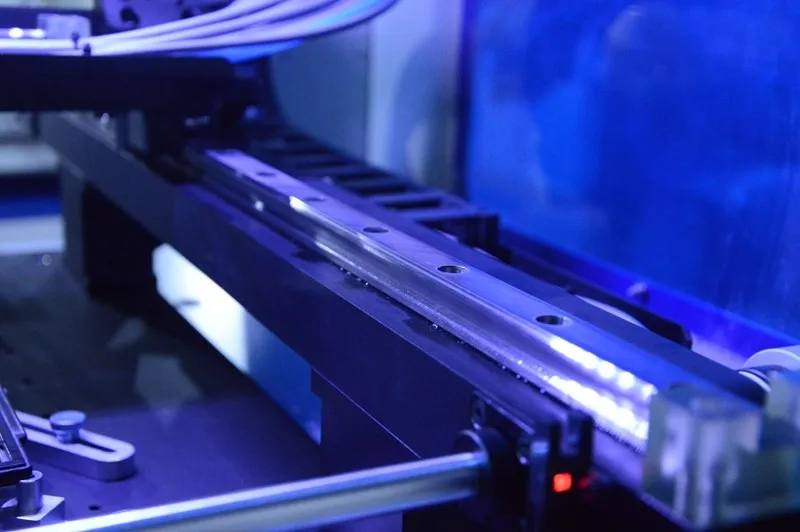

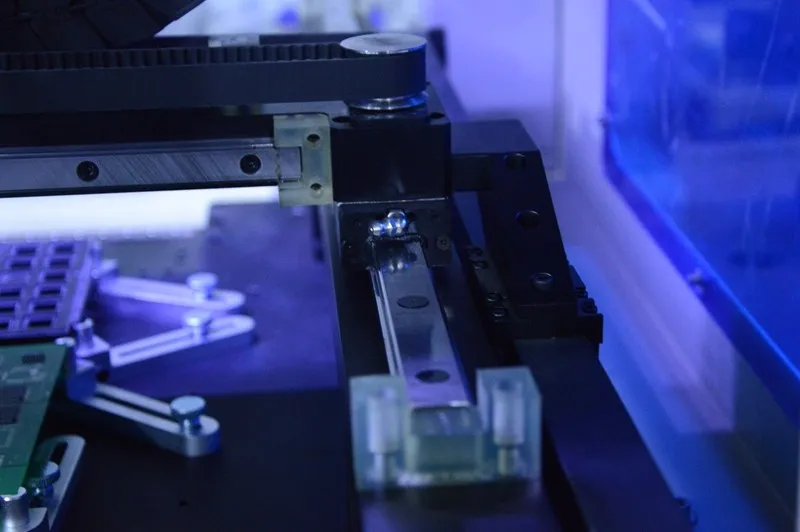

9.Precise Silver Linear Guide







10.Package
