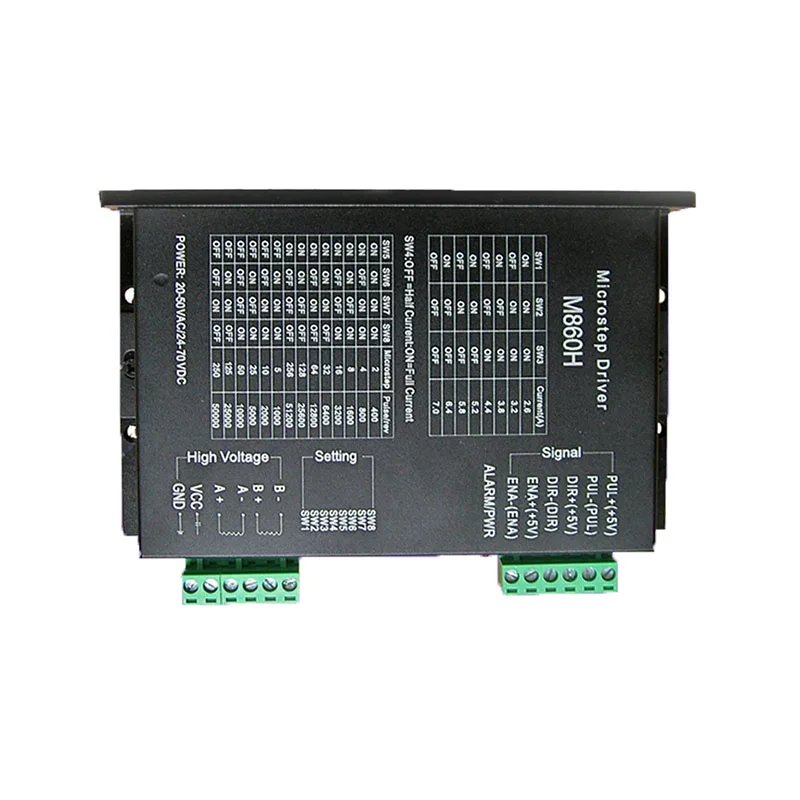

256 Subdivision Stepper Motor Driver AC / DC Universal M860H 7A Two Phase Hybrid For CNC Обустройство дома - купить

Купить 256 Subdivision Stepper Motor Driver AC / DC Universal M860H 7A Two Phase Hybrid For CNC | Обустройство дома







Package Includes:

1 x stepper motor driver

Features:

1. drive integrated over-voltage over-current protection; 2. Input signal is optically isolated; 3. 20KHz chopping frequency; 4. Bipolar constant current chopping mode; 5. AC and DC power supply 20-50VAC24-70VDC; 6. Maximum drive current 7A / phase; 7. Output current DIP switch adjustable; 8. TTL is input signal compatible, and can accept differential signal input; 9. automatically enter the semi-flow mode at rest, reduce the drive and motor heat; 10. High subdivision: 2,4,8,16,32,64,128,256,5,10,25,50,125,250; 11. high reliability: power devices leave enough margin, the factory after rigorous testing. 12. Application:   86,57 series 7A the following (including 7A) two-phase four-wire, six-wire, eight-wire stepper motor.
