Dear Friend,Welcom to our store,good luck for you !

1.    All the product in our shop with good quality with QC Checked Before We ship it, and normally in stock .Mix order is welcomed in our shop.

2.    Order above $300 For Most of the country (Western Europ,Asia,North America), we will ship By DHL or Fedex EMS for free.(Some remote Area not included)

3.    Wholesale Consumer Pls contact us For More Details before you make payment, We will reply and help u within 24 hours.



BEFORE BUY, please check your local frequency first. This model is work for 900MHz and 2100MHz. If frequency doesn't match, it can not works. Thanks!

 Selling Point:

1.GSM900MHZ+2100MHZ dual band repeater ,amplify double signal

2.Dual band,2G+3G SIGNAL EXTEND

3.1000sqare meter coverage without barrier

4.62db high gain     20dbm output power

5.Easy to install.

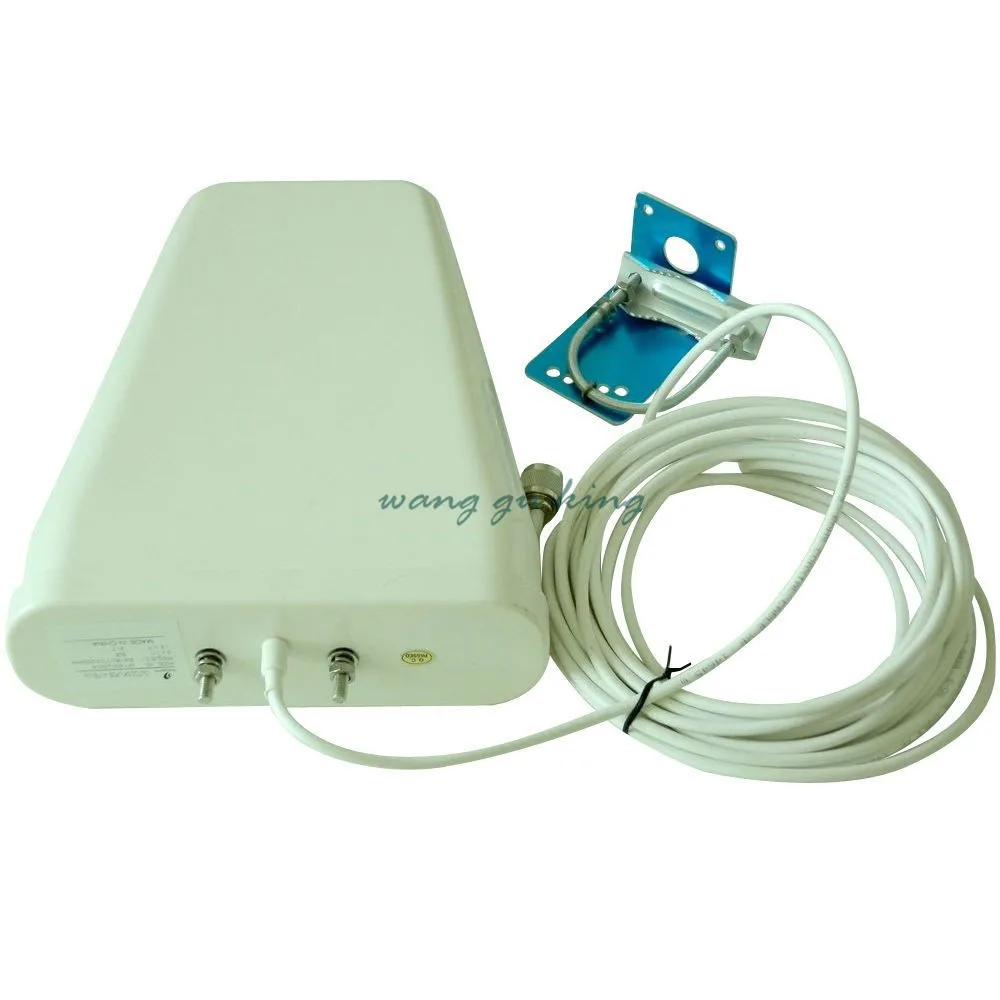

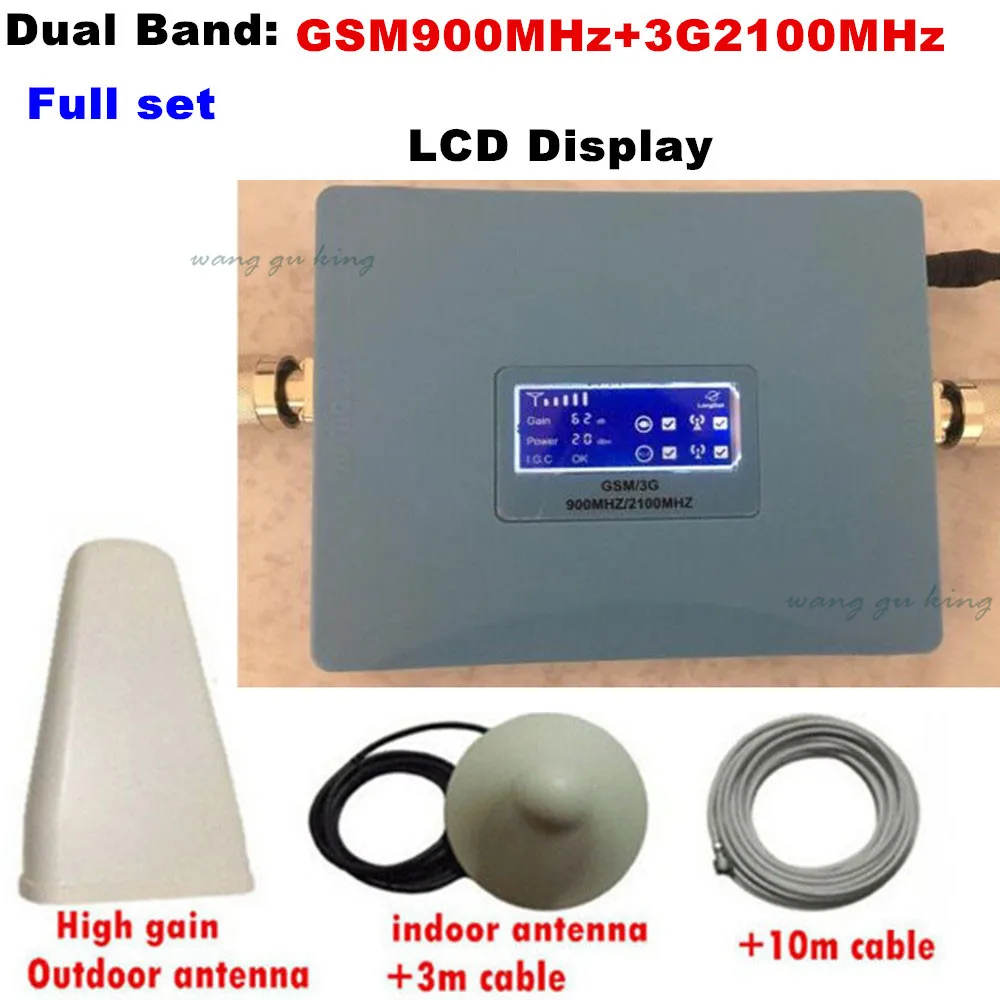

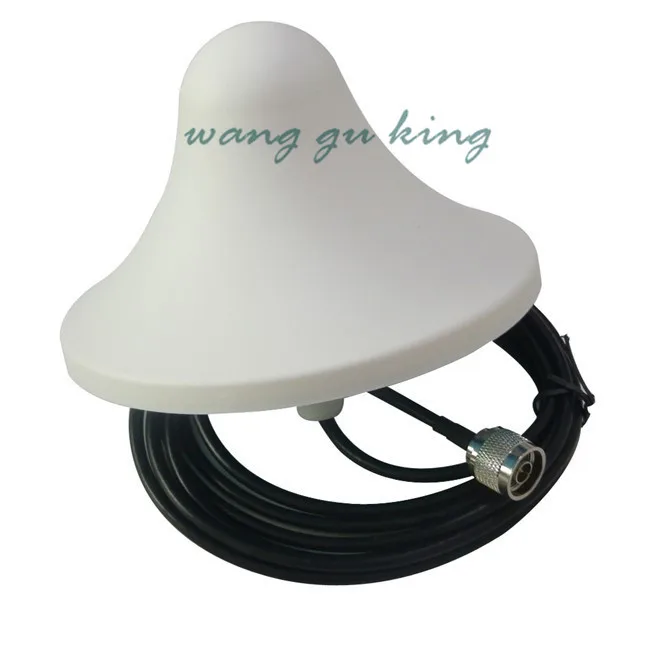

6.Whole set with outdoor antenna,indoor antenna with 3m cable +outdoor antenna with 10m cable

7.This is a complete product, you do not need to buy any accessories. After installation you can use it.

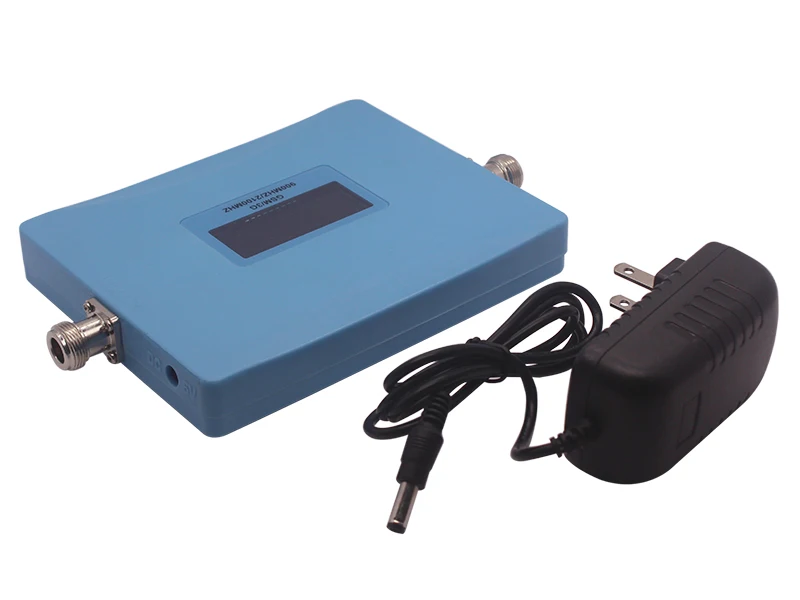

GSM  + 3G Dual Band Mobile Phone Signal Booster

Cell phone signal amplifier (also referred to as signal booster or direct signal amplifying station) is designed to solve cell phone signal blind. In some location such as remote area from base station, high-rise, basement, location behind by building, underground civil air defense projects, subway stations, elevator and many other places, cell phone can not be used due to receiving signals fail. This cell phone signal amplifier is aimed to solve the problems.it could also improve indoor electromagnetism environments. Protract cellular battery life and reduce radiation of cellphones. A mobile phone repeater is ideal for house ,home,office use.
Introduction to mobile phone signal repeater
Enhance mobile phone signal strength. Improve communication quality. Reduce cellphone radiation. Protract cellular battery life. Economic building life. Easy installation.
Display device (for reference)
The external power supply detecting normal display ----OK. Internal power supply detecting normal display ----OK. MMIC circuit detects normal display ----OK. -50dbm signal input and detection to achieve full displayed----OK.
Features:
High gain ,easy installation and operation. Full-duplex,singal-port design,build-in power supply. Use ALC technology ,adjust extent automatically. LED light working &signal condition indicators. Big linear power,control intermodulation & scatteration stably. Dependability stand by GB6993-86 standard. Compatibility of electromagnetism according with ETS300 609-4.
Technique Specifications:
Item	Specification
	Up Link	Donw Link
Frequency Range	890MHz  ~ 915MHz 1920MHz  ~ 1990MHz	935MHz  ~ 960MHz 2110MHz  ~ 2180MHz
Power	-70 ~ -40dBm/FA (1.23MHz)
Gain	60±3 Db	62±3 Db
Max Output Power	+20dBm / ±3dBmTotal Power	+20dBm / ±3dBmTotal Power
Ripple in band	less than 5db
Power Supply	AC 110/220V (used AC/DC Adapter 12V dc)
Seclusion	>70dB
Compact Design	Indoor Use
Item Diemension	240 x 180 x 20mm
Connect Mode	N connector
Ambient temperature	-10°C~60°C
LCD display function	can display signal strongness which it receives from outdoor antenna , the signal bar will be full black if the signal is received very good.
Signal coverage area :
1.Support Maximum coverage area is 1000 square meters.( Depend on the area condition) 2.One indoor antenna only use for about 200 square meters. (in open space).    If want to make all use of 1000 square meters which the host supports,    need to add more indoor antennas (about8-10) and power divider / splitter.

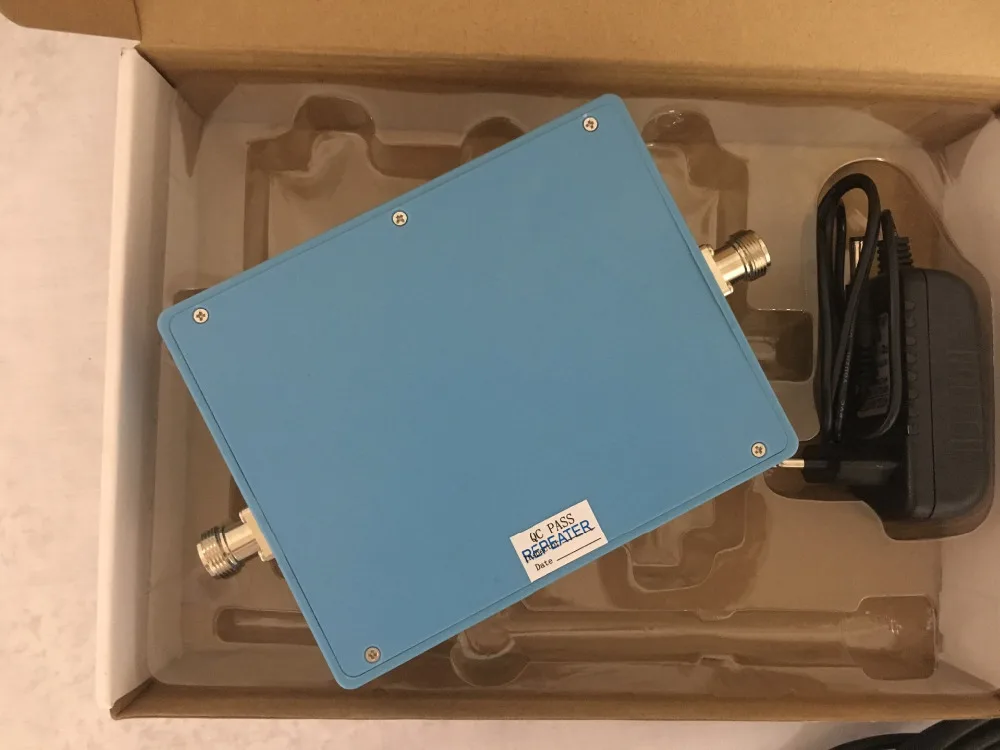

Package included:
1 x GSM  & 3G Dual Band Signal Booster. 1 x Power EU adapter(If you need other type of power adapter plugs, please leave a message, thank you!) 1 x Manual 1 x outdoor antenna 1 x10 Meters Ultra Low-loss Cable for connecting outdoor Antenna 1 x indoor antenna with 3 Meters Ultra Low-loss Cable Cable has black and white, quality is the same .color is random send, If you have a request, please leave a message, thank you!

To use this product to enlarge your signal, the outdoor signal shall be as good as possible . The product will not work good if our outdoor signal is not good or bad .



How Booster/Repeater Works?

Repeaters are designed to fulfill the idea of one and main principle: to fill the areas with

the weak or bad signal and to amplify these low signals in order to provide you with the

communication suitable for you.

The repeater makes the signal stronger in places with poor signal coverage such as:

1) Underground areas: basements, parking lots, tunnels;

2) Other places where cellular signal is shielded by metal or concrete walls:

offices, supermarkets, cinemas, hotels;

3) Places distant from the BTS like private houses.

Steps that describe the work of Repeater.

1) The outside antenna receives the signal from the nearest mobile base station.

2) The outside antenna sends the received signal through the coax cable to

the installed Repeater.

3) The Repeater accepts the low signal and improves it.

4) The improved signal goes to the inside antenna through the connection coax cable.

5) The inside antenna send the improved good signal to your mobile phone.

Installation Approaches:

1) Fix up outdoor antenna reception on housetop

or outside the window and point it to the signal tower.

2) Connect outdoor antenna to “BTS” port in repeater machine through cable.

3) Connect indoor antenna(s) to “MOBILE’ port in repeater machine through cable also.

4) Plug power adaptor into AC power socket and finish installation.

Technique Supporting:

1) If still no signal receipt after activated repeater,

please check if outdoor antenna point to signal tower

or elsewhere have strong signal and check if strength achieve -50DBM.

2) If can not call out, please adjust the direction of outdoor antenna.

3) If strength is not steady, please check if outdoor & indoor antennas are too close.

  Please ensure the outdoor and indoor antennas have distance of 10 meters at least,

  with a wall between and not in a same horizontal line.

Note :
Please check your outdoor signal condition before placing the bid.
if sometimes the signal is full,sometimes no signal again in your mobile,
or you couldn't call out when the signal is full,
it couldn't be used any booster in your environment.
Cell phone signal amplifier is impossible to ensure all environments are 100% effective,
because the SIGNAL is very complex, especially in the city,
no one can guarantee 100% available ,in some areas the signal is not necessarily,
some of the signal is reflected signals, even the signal display very well,
but the quality is poor, and have encountered a lot of environment can not be solved
with any booster.
The product will not work good if your outdoor signal is not good or bad .
We will not bear any responsibility of your outdoor antenna is not good .
