1212 Advertisement Engraving Cnc Router for Wood PVC MDF Aluminum Инструменты - купить

Купить 1212 Advertisement Engraving Cnc Router for Wood PVC MDF Aluminum | Инструменты

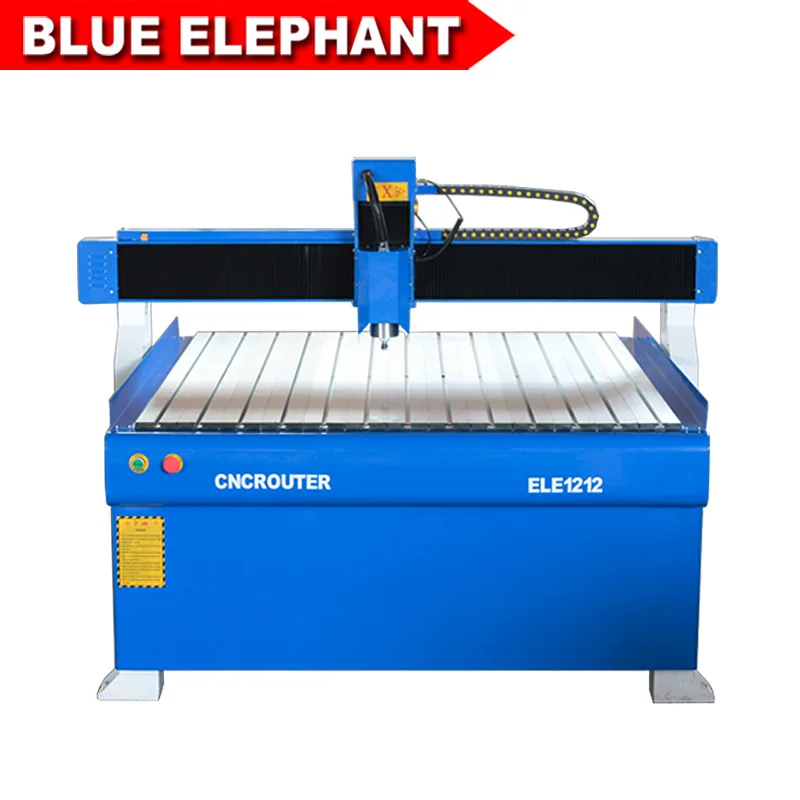

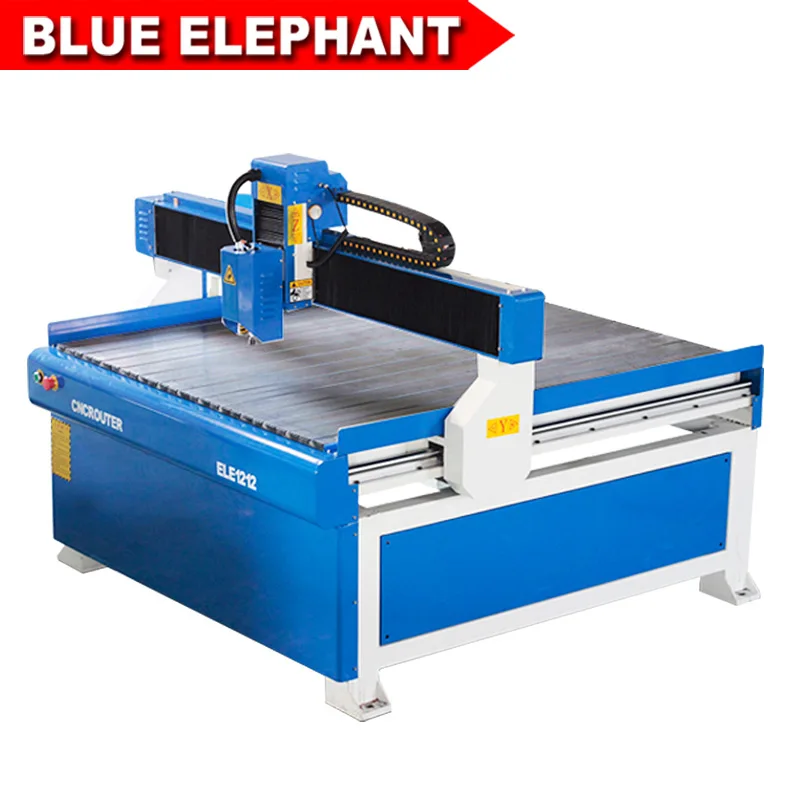

1212 Advertisement Engraving Cnc Router for Wood PVC MDF Aluminum Engraving





  Attention Please!!

This product is EXW price, all BLUE ELEPHANT products can be custom­-made to suit your requirements. If you want to know the exact FOB, CIF and CFR prices, please send us your arrival port, our sales will send you the latest and most favorable shipping costs. Moreover, now this product is in good promotion.

Welcome to contact us immediately to get the best discount price!!! Thank you.



1. Features of 1212 cnc router:

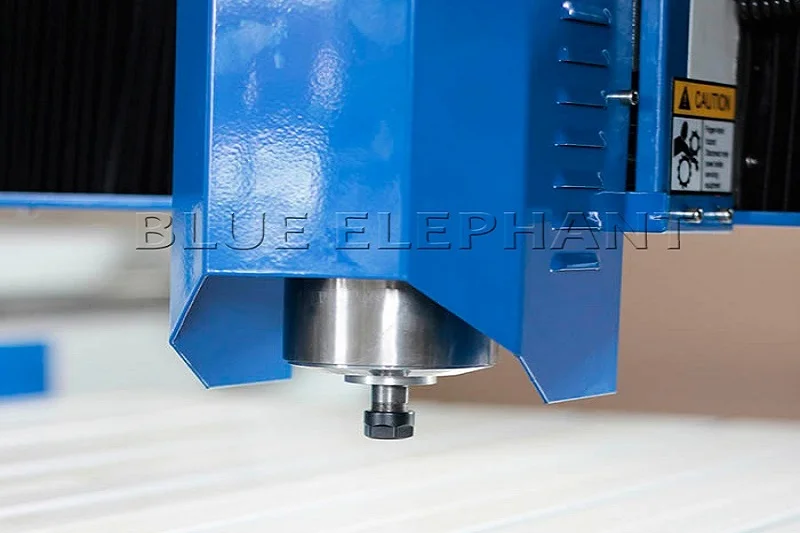

1.5kw Changsheng water cooling spindle,China top brand Changsheng

Mach 3 controller with USB interface

with Dust-proof hood to protect spindle

1.5kw Fuling inverter,China best brand,well know for stable performance

Stepper motor and driver

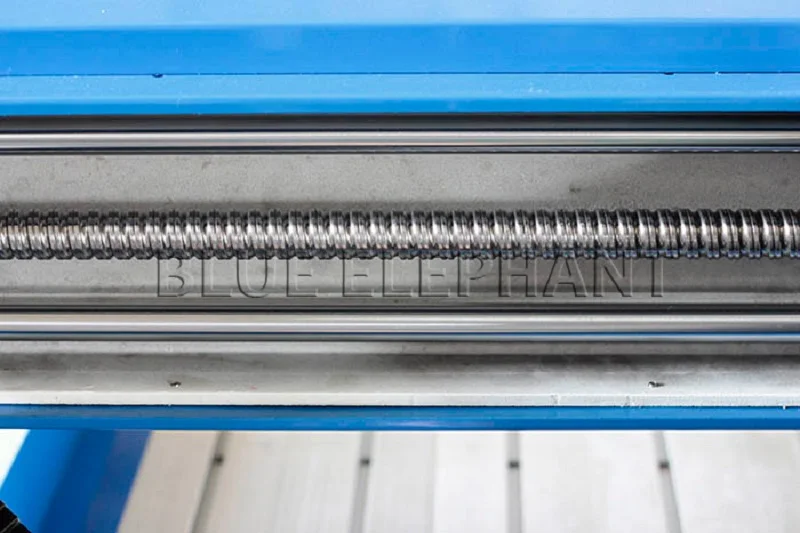

Round orbit,Original Taiwan TBI ball screw transmission for x,y,z axis

Tool sensor calibration to help find working home position

T-slot working table





2. Parameters:



Description	Parameters
Model	ELE1212
Working area	1200*1200*160mm
Spindle	1.5KW water cooling spindle
Spindle rotating speed	24000RPM
Motor	Stepper
Inverter	1.5 kw FULING brand
Control system	Mach 3
X,Y,Z	Ball screw imported from Taiwan
Table surface	T-slot working table
Frame structure	Cast aluminum structure
Positioning accuracy	±0.02/300mm
Repositioning accuracy	±0.01mm
Max. engraving speed	6,000mm/min
Max. motion speed	8,000mm/min
Tools diameter	ER20
Dictate format	G code,U00,mmg,plt/HPGL/NC
Compatible software	Type3,Ucancam,ArtCAM
Support software	Windows98/2000/XP
Working supply	AC220V, 1 phase,50/60HZ(110V for option)
Guarantee	One year
option	vacuum table, dust collector, rotary device, mist sprayer, flume
Application	Furniture, wood craft, decorative products, signs, building models, metal, embossed pictures.
Technical support	24 Hours technical support by email or calling User friendly English manual and Video CD for machine operation and maintain

PS:All the working area and specifications can be customized according to your requests.





3. Application:

Mini cnc router has a wide range of application, such as advertising field, seal field, packing field, pane making field, decorating field, art and craft field, architecture model field, souvenir field, badge field, electric circuitry field and carpentry field. it is used to engrave on Acrylic sheet, abs double color sheet, PVC foam sheet, wooden sheet, scagliola, PCB, granite, stone, steel and soft metal etc.





4. Packaging Improving:



Three layers---

-The innermost layer is EPE pearl cotton film package;  -The middle layer is wrapping up with environmental protection material ;  -And the outermost layer is winding up with PE stretch film.  They're very environmentally friendly. If you need a wooden box, we will make a wooden box outside the machine.

5. Warranty (Our service):

A.Guarantee 12 months for the whole machine.  Within 12 months under normal use and maintenance, if something is wrong with machine, you will get spare part for free; Out of 12 months, you will get spare part at cost price. You will also get technical support and service all the lifetime.   B.Technical support 1.Technical support by phone, video chat, email or skype around the clock 2.Friendly English version manual and operation video CD disk 3.Engineer available to service machinery overseas   C.After sales services Normal machine is properly adjusted before dispatch. You will be able to use the machines immediately. You will be able to get free training advice towards our machine in our factory.  You will also get free suggestion and consulting, technical support and service by email/fax/tel and lifetime technical support     6. Customer feedback:   Many many customers in the world are using our machine, good feedback pictures below for your reference.         8. About us:

Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine. We have our R & D department, Quality control department, and after sale & service department. We had got CE and ISO9001 certification always offer best quality machine
