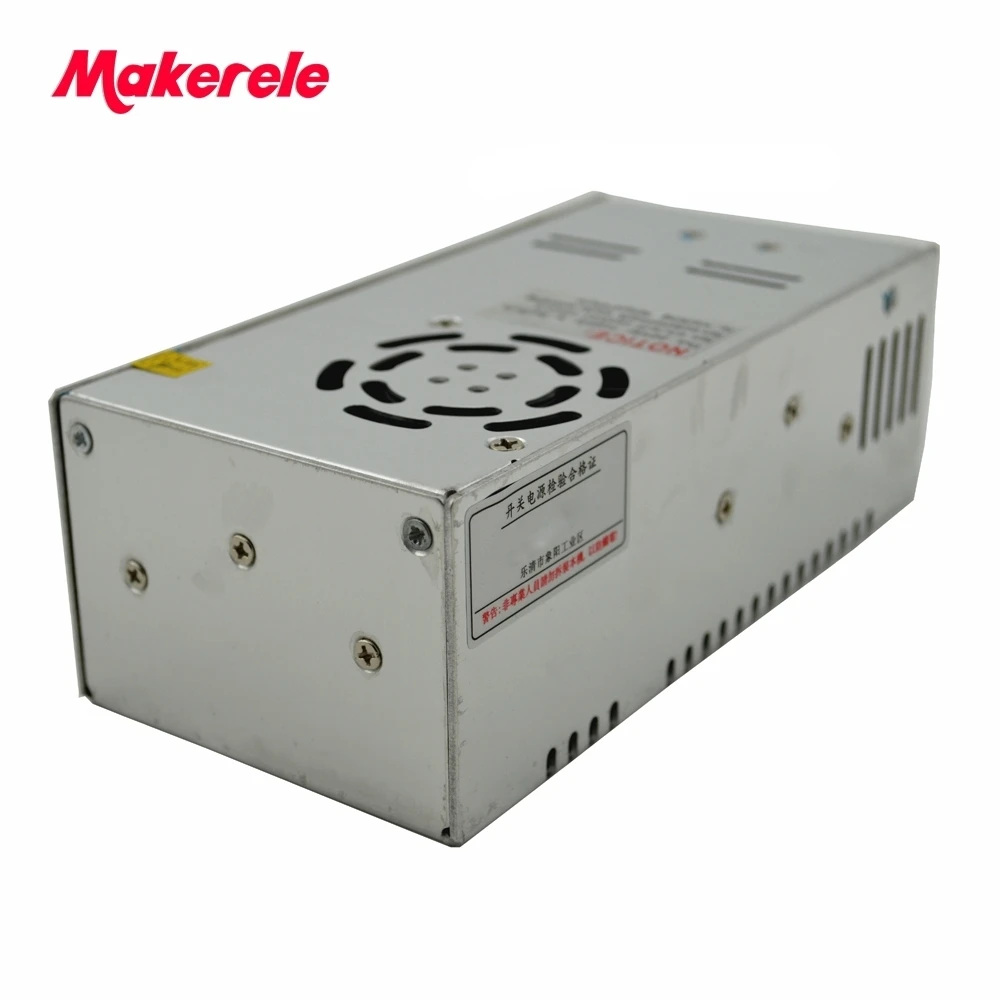

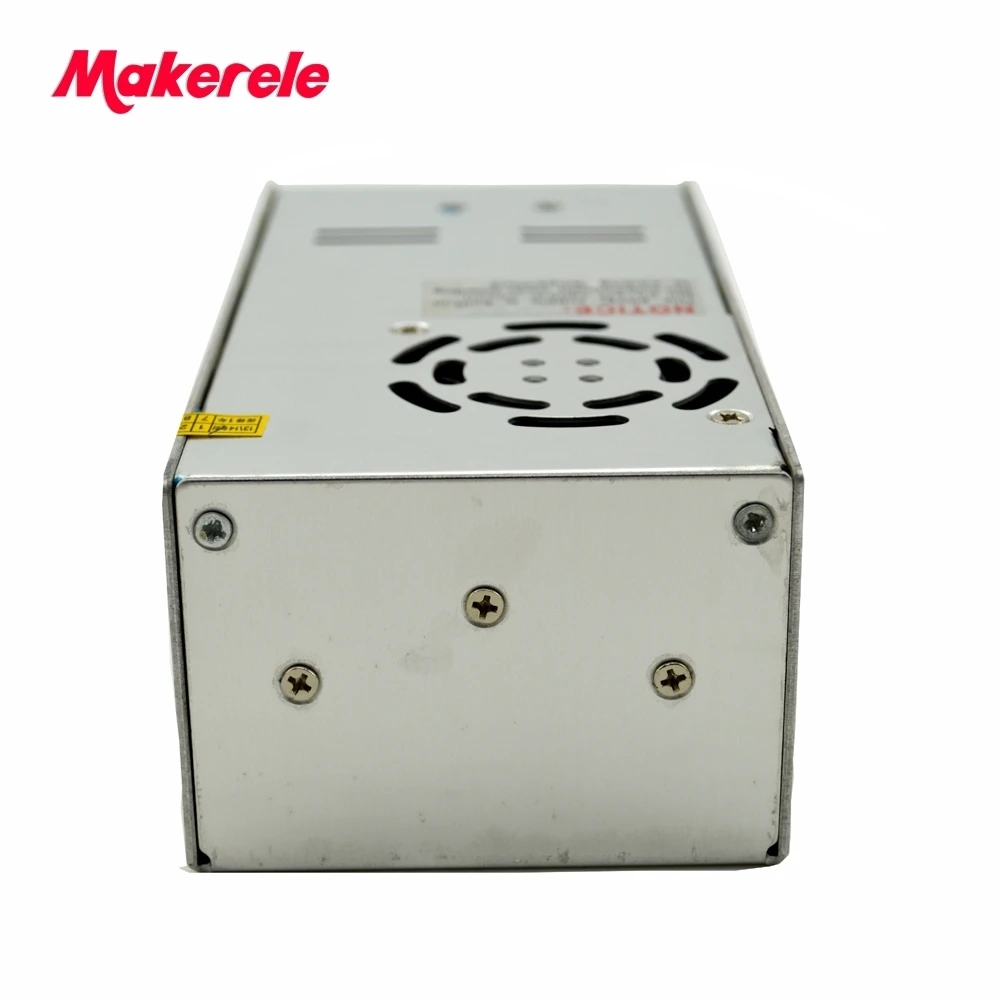

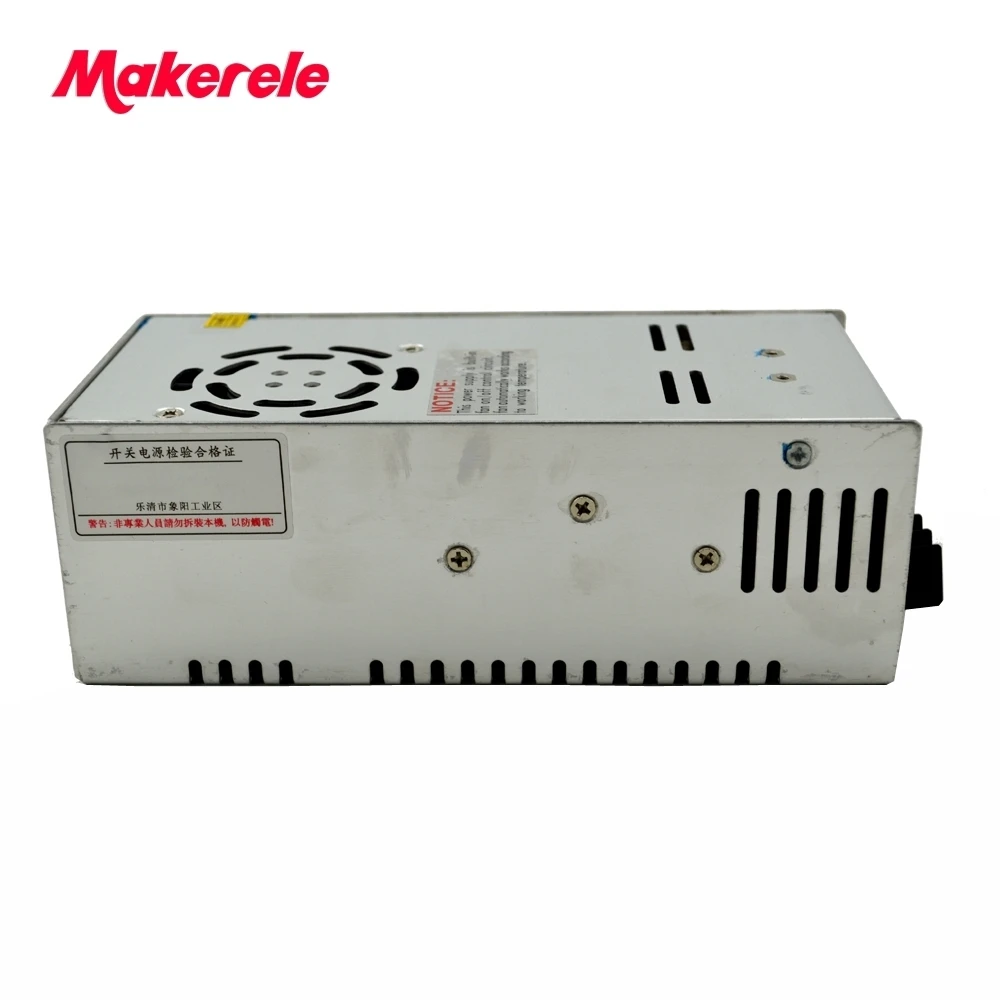

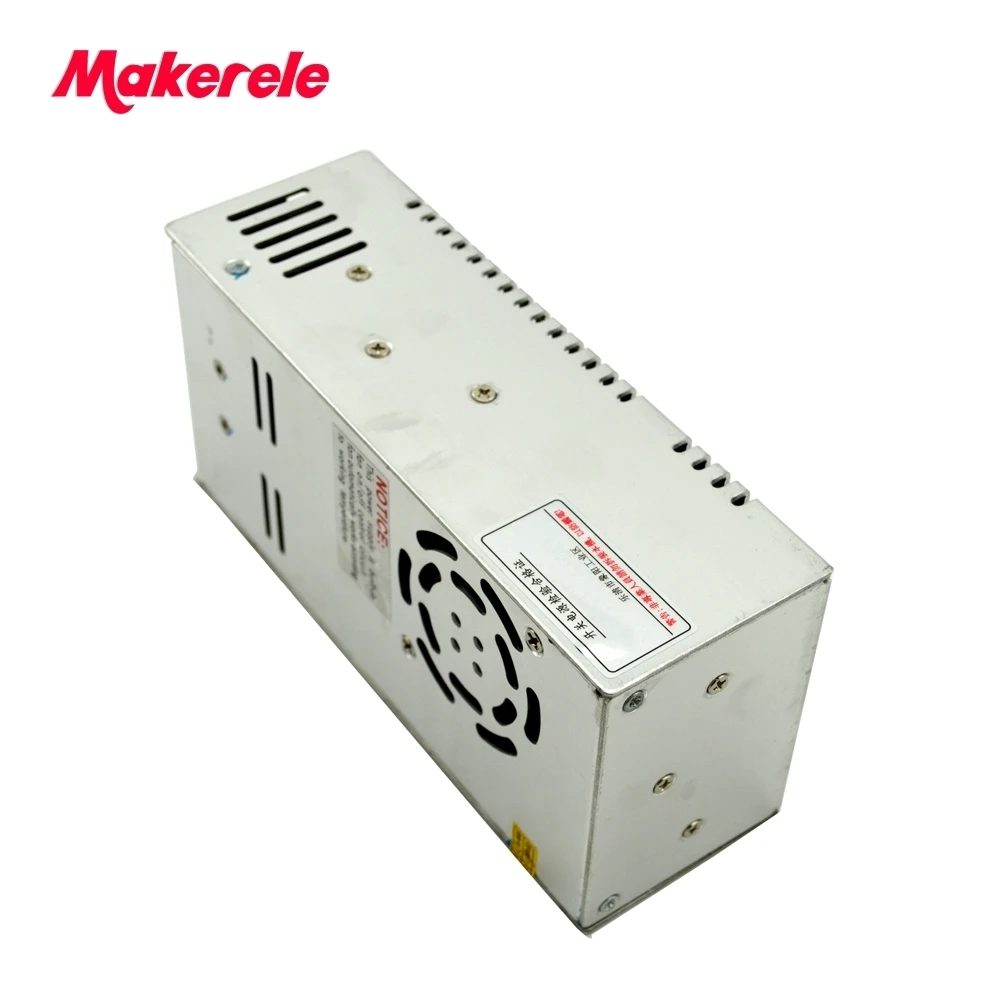

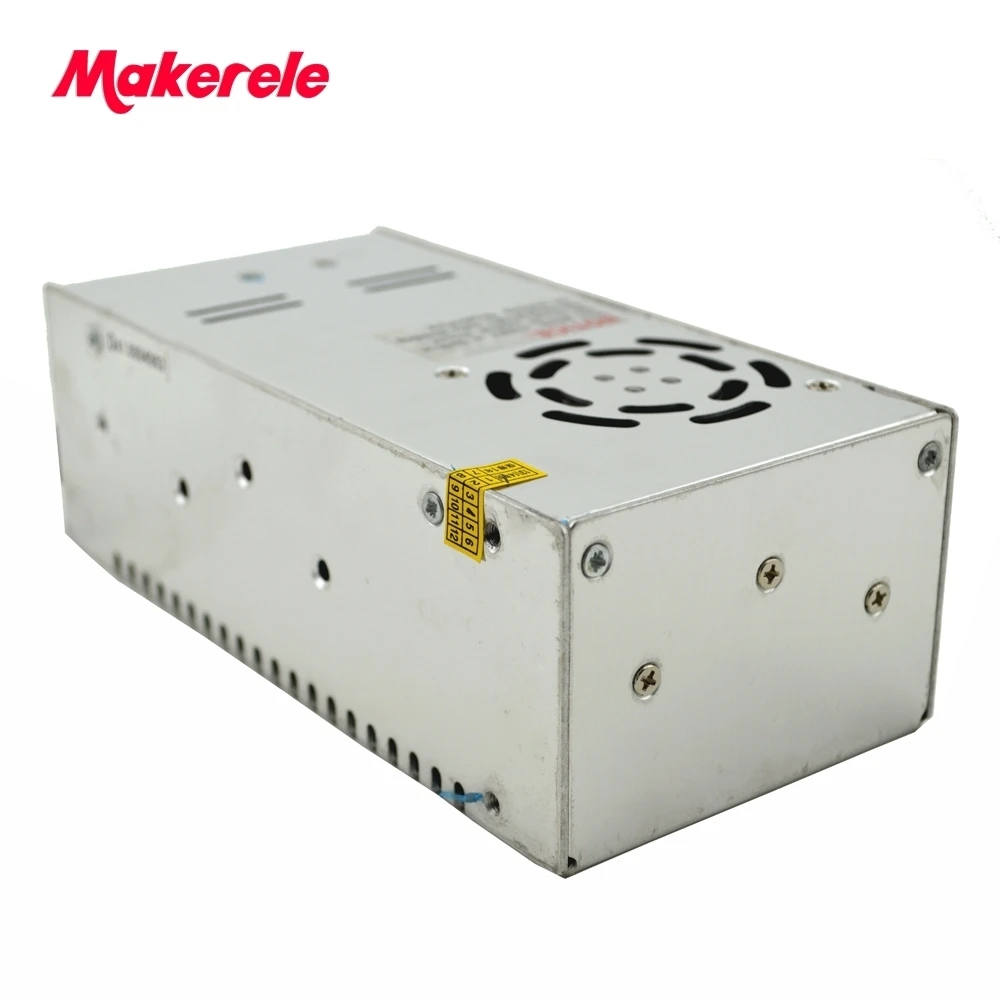

High reliable universal input range hot sale customized LED light strip power suply 30v 240w ac to dc Switch Power Supply power suply power 30vswitch - купить

Купить High reliable universal input range hot sale customized LED light strip power suply 30v 240w ac to dc Switch Power Supply|power suply|power 30vswitch

Notice:

Please make sure the input voltage, output voltage and current in item specs when placing orders. Or we\'ll arrange the one as the item specs says.

Product Description

Model S-240-5 S-240-7.5 S-240-12 S-240-15 S-240-24 S-240-30 S-240-48



DC output voltage 5V 7.5V 12V 15V 24V 30V 48V



Output voltage range 2% 2% 1% 1% 1% 1% 1%



Rated output current 43A 30A 20A 16A 10A 8A 5A



Output current ranqe 0-43A 0-40A 0-20A 0-16A 0-10A 0-8A 0-5A



Wave and noise 75mVp-p 75mVp-p 75mVp-p 75mVp-p 75mVp-p 75mVp-p 75mVp-p



Inlet stability 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5%



Load stability 1% 1% 0.5% 0.5% 0.5% 0.5% 0.5%



DC output power 215W 225W 240W 240W 240W 240W 240W



Efficiency 80% 80% 84% 84% 87% 85% 87%



Adjustable range

for DC voltage 4.75~5.5V 6-9V 10.8~13.2V 13.5~16.5V 21.6~26.4V 27-33V 21.6~26.4V



INPUT

AC input voltage range 170~264VAC 47~63Hz,248~370VDC

Input current 4.2A/115V 2.2A/230V

AC Inrush current Cold-start current 30A/115V 60A/230V

Leakage current <0.5mA/240VAC

PROTECTION

Overload proctection 105%-150% Tvee:oulsina hiccup shutdown Reset: auto recoverv

Over-voltage protection 120%-140%

ENVIRONMENT

Working temperature and humidi -10C~+60C,20%~90%RH

Store temperature and humidity -20C~+85C,10%~95%RH

Temperature coefficient 0.03%/C(0~50C)

Setup, rise, hold up time 200ms,100ms,20ms

Vibration 10~500Hz, 2G 10min,/1 cycle. Pariod for 60min,Each axes

SAFETY

Withstand voltage Input and output internal:1.5KvAC,Input and enclosure:l.5KvAC,Output and enclosure:0.5KvA

Isolation resistance input and output internahlnput and enclosure,Output and enclosure:500VDC/100M

STANDARD

Safety standards Meet UL 1012 requirement(Not apply for the mark)

EMC standards Meet FCC PART15 J Conduction class A

OTHERS

Weight:1.21Kgs

Packing:12pcs/15.32kg/box. According to your order,we can provide different cartons for you.

Product Size:

  Packaging & Shipping

1. Item will be shipped within 5-7 business days. 2. Delivery Time: ----Via Air: Generally 1-3 working days ----Via Express: Generally 3-7 working days. ----Via China Post Air Mail: Generally 15-25 working days ----Via Sea: According to the order. 3.If you have not received your shipment within 30 days from payment,Please contact with us,We will track the shipment and get back to you as soon as possible with a reply.   Our Services

MingWei switching power supply factory is a set design, development, production in one of the high-tech professional manufacturers, the region is the first company to introduce Taiwan manufacturer of switch power supply technology, building in May 2001.

Custom Product Design OEM/ODM Profession in export service from Maker Electric High quality Product, Affordable Price   FAQ

Notes on choosing a switching power supply?

To increase the reliability of the S.P.S., we suggest users choose a unit that has a rating of 30% more power than actual need. For example, if the system needs a 100W source, we suggest that users choose a S.P.S. with 130W of output power or more. By doing this, you can effectively boost the reliability of the S.P.S. in your system.Make sure that the model qualifies for the safety standards and EMC regulations you need.

    What are switching power supplies?   Switching power supplies input a commercial AC power supply (such as 110 VAC or 220 VAC), uses a high-speed semiconductor switching process to convert the input to high-frequency electric power, and yields a direct current (such as 24 VDC). What about production process of switching power supply?
