Bluetooth модуль с FM-радио и TF-картой поддерживающий U диск управляемый по ИК-сигналу F6888V1.1 - купить

Купить Модуль Bluetooth BK3254 4.1 Стерео аудио FM-радио / TF-карта U диск ИК-дистанционное управление F6888V1.1 Многофункциональный

Description:

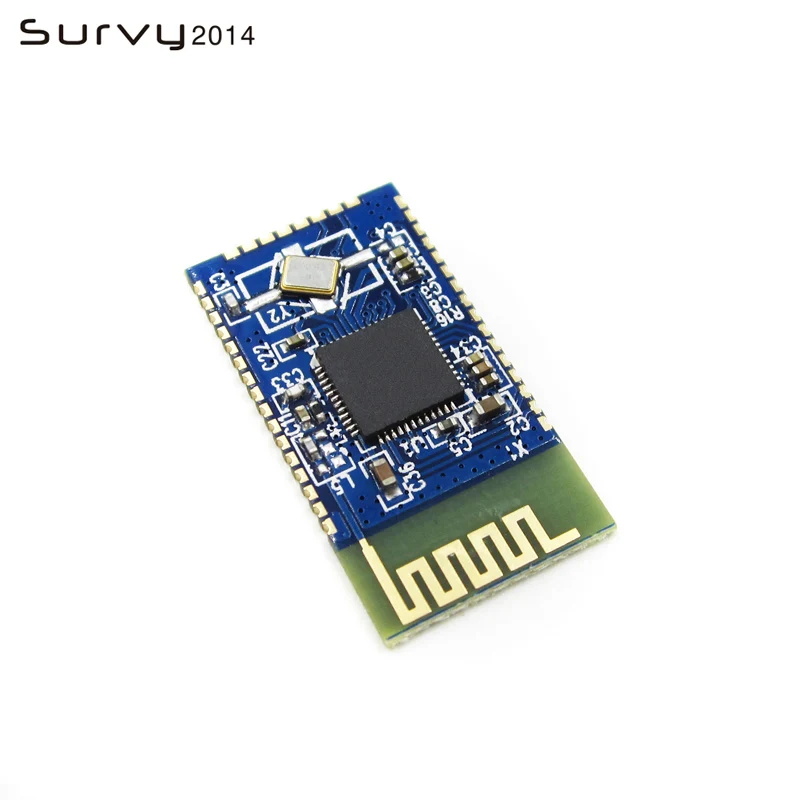

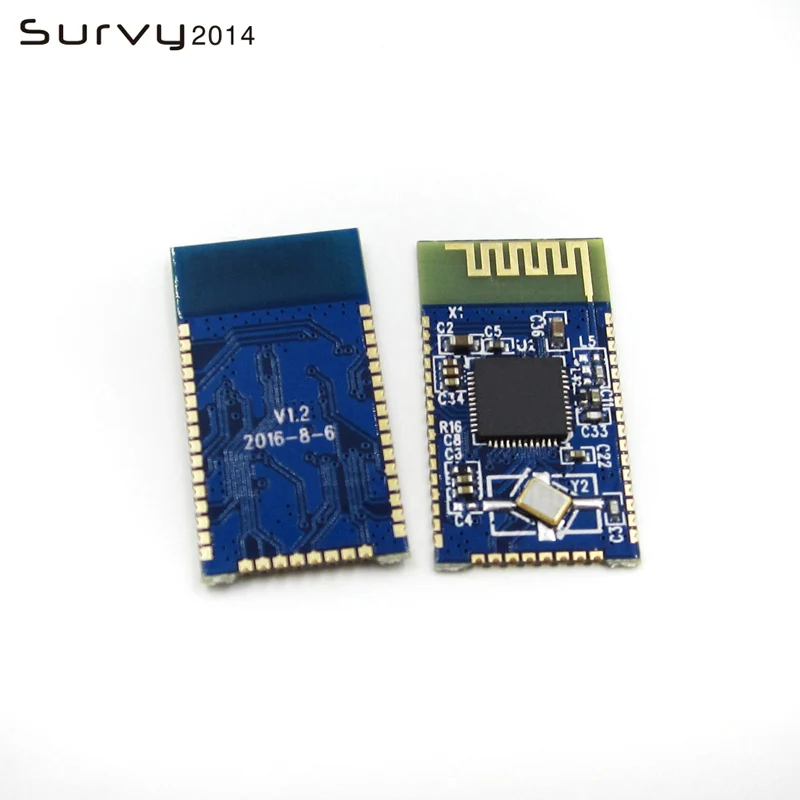

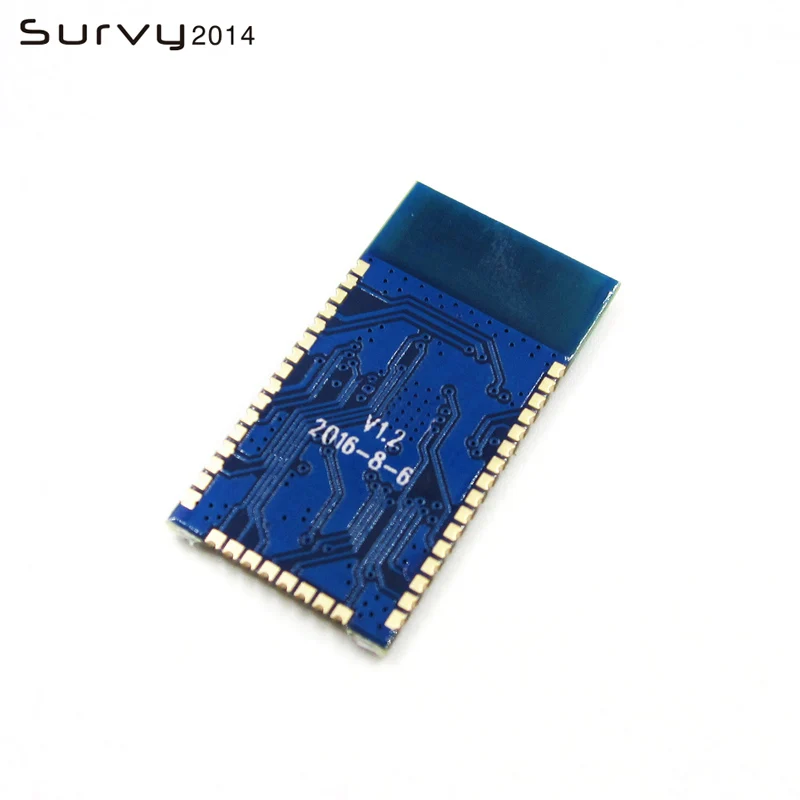

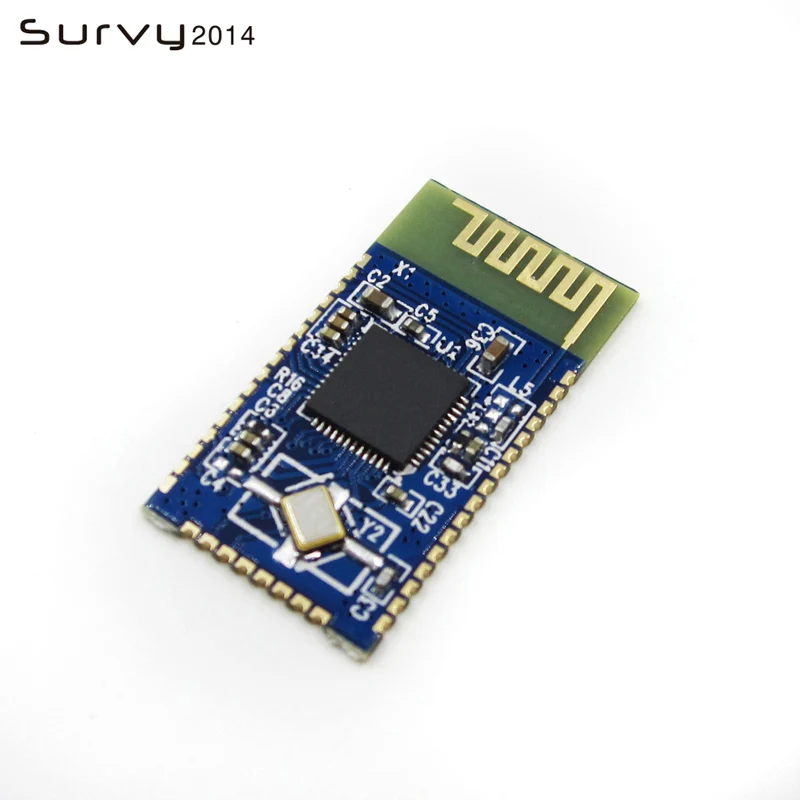

F-6888 Bluetooth module is my company's independent development of intelligent wireless audio data transmission products. This is a low cost and cost effective stereo wireless transmission solution. The module is BEKEN BK3254 chip QFN48 package design. F-6888 Bluetooth module with no drive mode, customers only need to connect the module to the application of products, you can achieve music wireless transmission, enjoy the fun of wireless music, support for simple data transfer. Support for intelligent voice prompts and digital functions; integrated TF card playback; integrated mobile U disk playback; support internal LINE-IN; support for internal FM radio.
The module is mainly used for short distance music transmission, can easily and notebook computers, mobile phones, PDA and other digital products connected to achieve wireless music transmission.
In the case of
Bluetooth audio
Bluetooth stereo headset
Hands-free phone
Bluetooth wireless transmission of audio
In the case of
The main parameters:
Model: F-6888V1.1
Bluetooth Specifications: Bluetooth V4.1
Operating voltage: DC 3.3 ~ 4.2v
Support Bluetooth protocol: HFPV1.5, A2DPV1.2, AVRCPV1.5, HSP1.2
Operating current: <= 45mA
Standby current: <500uA
Temperature range: - 40 to 80 degrees Celsius
Wireless tracsmission range: longer than 10 meters
Transmission power: 2.4dbm level
Sensitivity: 0.1% BER> - 80 dBm
Frequency range: 2.402GHz ~ 2.480GHz
External interface: I2C, SPIAND UART interface
Audio signal to noise ratio:> = 75 dB
Sound effects: SBC decoding

Package Included:
1 x BK3254 Bluetooth Module 4.1
