1、The 50-kilowatt three-phase generator set has leading speed control performance: the application of independent electronic control calibration technology, combined with variable electronic valve technology, provides fast transient response.

2、Diesel generator set is safe and reliable: Yuchai unit has the advantages of compact structure, small size, large power reserve,stable operation, good speed regulation performance, high reliability and so on. It is suitable for industrial and mining enterprises, post and telecommunications, shopping malls, hotels, government schools, high-rise buildings and other places as conventional power supply or standby emergency power supply.

3、Huaquan diesel generator sets have low operating costs: the lowest gas consumption brings the greatest benefit.

4、Closed water circulation cooling: improve equipment heat transfer efficiency and reduce equipment material investment cost.

5、It has strong adaptability. It is equipped with a radiator water tank and a belt-driven cooling fan that are suitable for the environment at 40 ℃ -50 ℃. It can dissipate heat in time to ensure the normal operation of the unit.

  Genearal

  Unit model:

  HQ50GF

  Steady state voltage adjustment rate (%):

  ≤± 1

  Output power:

  50KW

  Voltage fluctuation rate (%):

  ≤ ± 0.5

  Power factor:

  COSΦ = 0.8 (lagging)

  Transient voltage adjustment rate (%):

  ＋20 ～－15

  Output voltage:

  400V / 230V

  Voltage stabilization time (s):

  ≤1

  Output current:

  90A

  Steady state frequency adjustment rate (%):

  ≤ ± 1

  Rated frequency:

  50Hz

  Frequency fluctuation rate (%):

  ≤ ± 0.5

  Rated speed:

  1500rpm

  Transient frequency adjustment rate (%):

  + 10 ~ -7

  Fuel grade:

  (standard) 0 # light diesel (normal temperature)

  Frequency stabilization time (S):

  ≤3

  Dimensions:

  1900×780×1200（L×W×H mm）

  Fuel consumption (100% load):

  205g/kW·h

  Start mode:

  950kg

  Acoustic noise (LP7m):

  95dB（A）

  Technical parameters of diesel engine

  Brand/origin：

  Yuchai

  Cooling method:

  Closed water-cooling

  Model:

  YC4D85Z-D20

  Oil supply method:

  direct injection

  Number of cylinders / Dare to mention structure:

  4 / L Type

  Speed regulation method:

  Mechanical

  Bore stroke:

  108×115 mm

  Intake method:

  Natural inhalation

  Compression ratio:

  17.5：1

  Overload capacity:

  110%

  Weight：

  DC 12V Electric start

  Speed:

  1500rpm

  Technical parameters of generator

  Brand：

  Huaquan Brushless Generator

  Protection level：

  IP22

  Model：

  HQF-50

  Wiring mode：

  Three-phase four-wire, Y-connection

  Rated power:

  50kW

  Adjustment method:

  AVR (Automatic Voltage Regulator)

  Rated voltage:

  400V / 230V

  Output frequency:

  50Hz

  Insulation class:

  H class

  Output factor:

  COSΦ = 0.8 (lag)

  Genset standard features

  Ø Direct injection internal combustion engine(Diesel)；

  Ø AC synchronous generator（Single Bearing）；

  Ø Water Radiator design for 40-45℃ Ambient belt-driven fans and guards；

  Ø Generation output air switch、Standard control panel；

  Ø Steel common base with shock absorber；

  Ø Dry-type air filter fuel filter，oil filter、starting motor、Self-charging alternator；

  Ø starter battery and connecting cables；

  Ø Industrial 9dB muffler and accessories；

  Ø The engine and alternator’s original technical papers,manuals and testing reports ship with GenSet；

  Optional accessories（Extra charged）

  Ø Engine oil、diesel、water jacket、Anti-condensation heater

  Ø Battery floating charger

  Ø Self-protection unit/self-starting control panel

  Ø Tree-remote control panel

  Ø ATS AUTO-loaded transferring screen

  Ø Daily fuel tank、Integral fuel tank

  Ø Waterproof type(Cabinet)

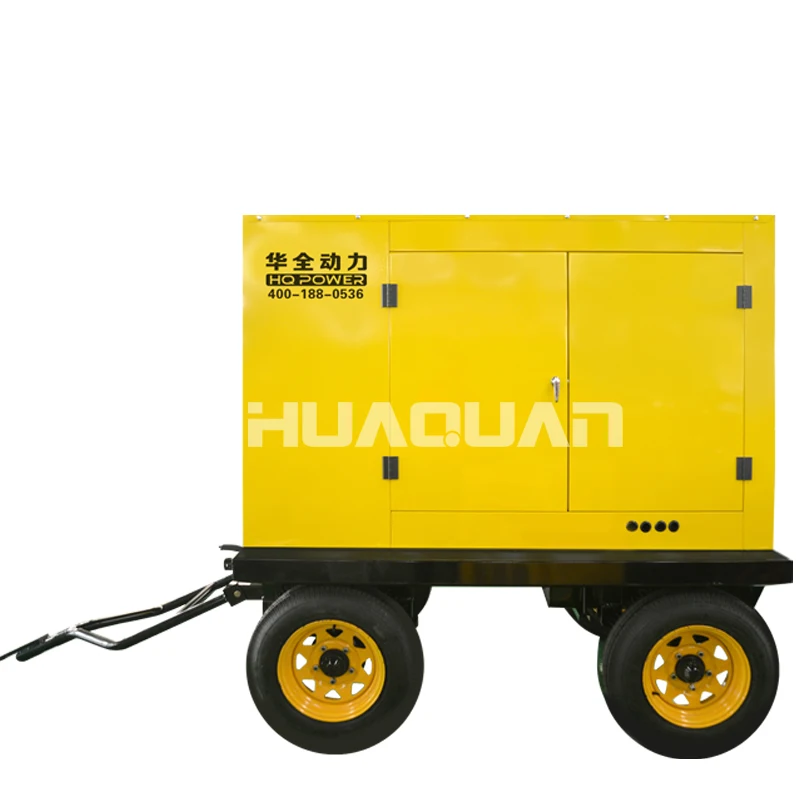

  Ø Mobile trailer(Drip proof)

  Ø Mobile trailer(Silent type)
