Купить 3Axis Stepper Motor Kit 425oz.in Nema34+Motor Driver+Power Supply+5Axis Breakout Board+Cable CNC Router | Обустройство дома
3Axis Stepper Motor Kit 425oz.in Nema34 3Nm+Motor Driver+Power Supply+5Axis Breakout Board+Cable CNC Router Kit

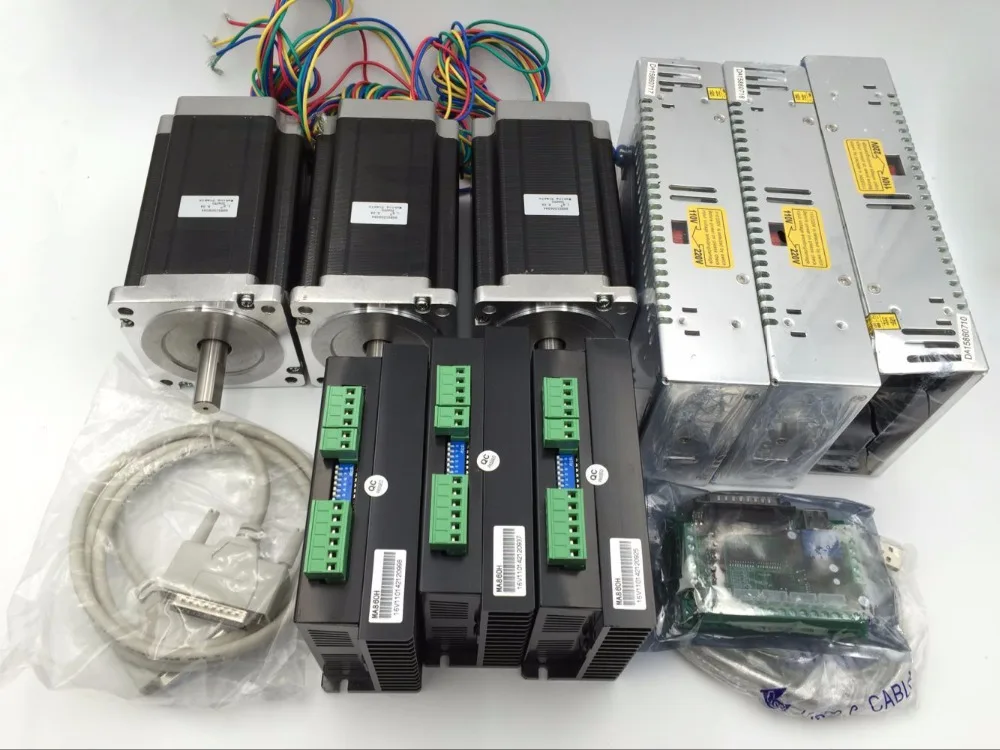

1. Package Included :
3 x Nema34 stepper motor 3 x Stepper Driver 3 x Power Supply 1 x 5Axis Breakout Board 1 x USB Cable 1 x DB25 Parallel Cable2. Motor Technical Parameters

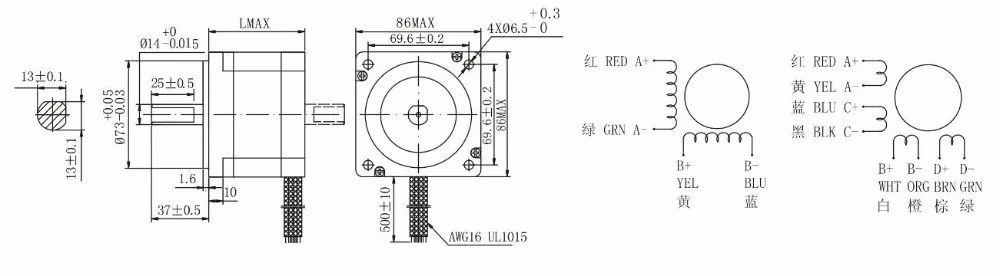

| Model | 3Axis 86HS6640A4 |
| Step Angle | 1.8 Degree |
| Shaft Diameter | 14mm |
| Shaft length | 37mm |
| Rated Current | 4A |
| Phase Resistance | 0.4 ohms |
| Phase Inductance | 1.0mH |
| Holding Torque | 3NM |
| Detent Torque | 0.055NM |
| Rotor Inertia | 0.85 g.cm2 |
| Motor Length | 66mm |
| Lead wire(No.) | 4 |
| Step Angle Accuracy | ±5%(full step, no load) |
| Resistance Accuracy | ±10% |
| Inductance Accuracy | ±20% |
| Temperature Rise | 80 Degrees Celsius Max |
| Ambient Temperature | -20°C-+50°C |
| Insulation Resistance | 100MΩ Min.500V DC |
| Dielectric Strength | 500V AC for one minute |
| Warranty | One year |
3. Drive Technical Parameters
| Model | MA860H |
| Type | 2Ph 256 Micro-step Driver |
|
Advantage | High performance, low price Automatic half flow function The highest dynamic 256microstep Photoelectric isolation signal input Motor noise optimization function Bipolar constant current chopping mode Chopper frequency up to 100 KHZ Exquisite shape, ease of installation |
| Item | Min | Typical | Max | Unit |
| Power supply | 24 | - | 110 | VDC |
| 18 |
| 80 | VAC | |
| Average output current | 2 | 2.5 | 7.8 | A |
| Logic input current | 6 | 15 | 30 | mA |
| Impulse response frequency | - | - | 100 | KHZ |
| Pulse low level | 5 | - | 1 | μS |
4. Power supply
| Model | S-400-60 |
| Input | 115V 6.5A 200-240VAC 4A 50/60Hz |
| Output | 60VDC 6.6A |
5. 5 axis CNC Breakout Board
| Mach3 Software | Win XP |
|
System
| High performance, cost-effective |
| Maximum support 5-axis stepper motor driver controllers | |
| Compatible with MACH3, Linux CNC (EMC2) etc. parallel-control CNC software | |
| USB power supply and peripherals powered phase are separated to protect computer security | |
| All the signals are opto-isolated which can protect your computer security | |
| 5-input interface to define the Limit, Emergence-Stop, Cutter alignment etc | |
| Wide input voltage range: 12-24V, and with anti-reverse function | |
| One relay output control interface, accessed by the spindle motor or the air pump, water pump, etc | |
| Output 0-10V analog voltage for inverter to control the spindle speed |
6. System
