Product Details

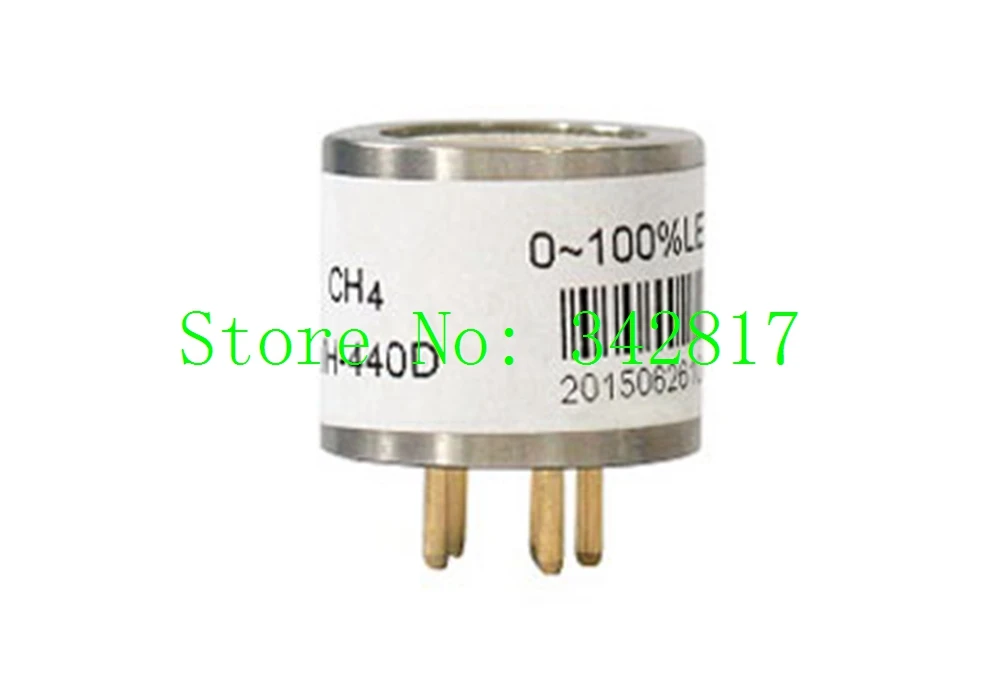

MH-440DInfrared sensorIs a universal, intelligent, micro-sensor, the sensor using non-dispersive infrared (NDIR) principle of the presence of CH4 in the air to detect, with good selectivity, oxygen-free dependence, stable performance, long life. Built-in temperature sensor, can be temperature compensation. TheInfrared sensorEasy to use, with a complete gas detection, analog voltage signal output and serial communication function; can be directly used to replace the catalytic combustion components, widely used in the presence of flammable, explosive gas of various occasions.





Sensor characteristics



High sensitivity, high resolution, low power consumption, fast response time

Provide UART, analog voltage and other output methods

Temperature compensation, excellent linear output

Excellent stability, long service life

Anti-water vapor interference, not poisoning

Can directly replace the catalytic combustion principle sensor



main application



TheInfrared sensorCan be widely used in HVAC and indoor air quality monitoring, industrial process and safety protection monitoring, agricultural and animal husbandry production process monitoring.



Technical indicators



Product number	MH-440D
Detection of gas	Methane
Operating Voltage	3.6 ~ 5 V DC
Average current	<85 ma=""/>
Interface level	3.0 V
Measuring range	0 ~ 10% Vol range optional (see Table 2)
output signal	UART
	0.4 ~ 2 V
Warm up time	3 min
Response time	T90
Operating temperature	-20 to 60 ° C
Working humidity	0 ~ 95% RH (no condensation)
Dimensions	Φ20 × 21.4mm
weight	35g
life	> 5 years
Protection class	IP54

Table II:

Gas name	Molecular formula	Range	Resolution	Remarks
Methane	CH4	0 to 5% Vol	0.05% Vol	Temperature compensation
Methane	CH4	0 ~ 10% Vol	0.1% Vol	Temperature compensation

Note: Product parameters are subject to change without notice
