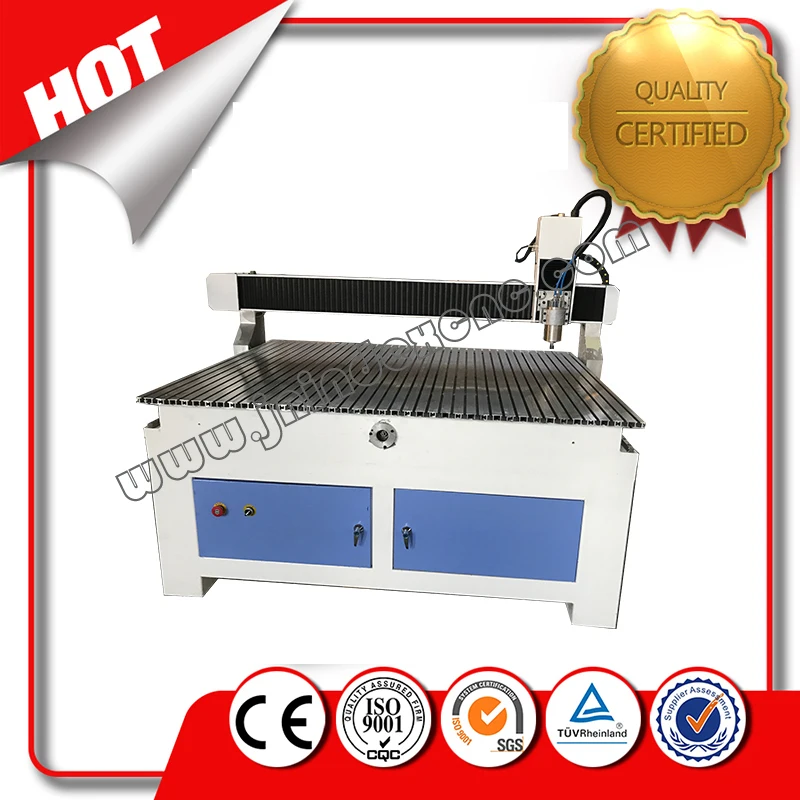

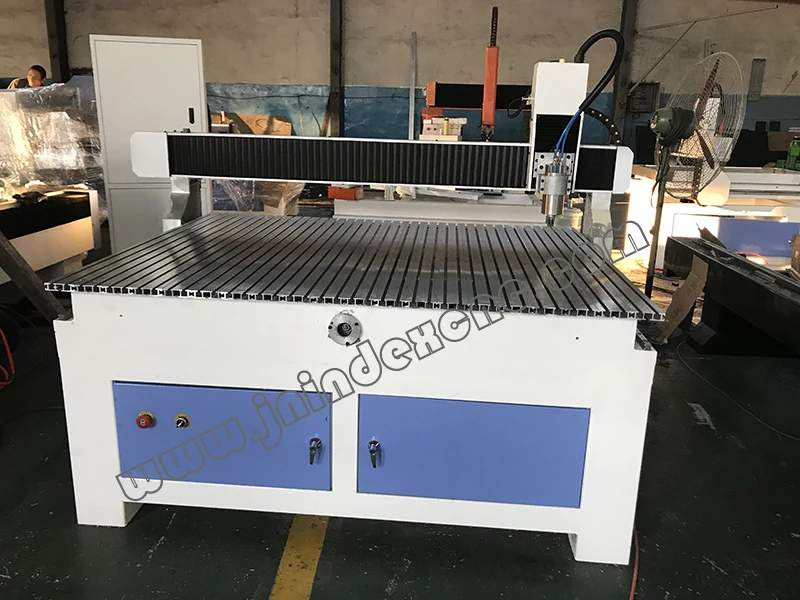

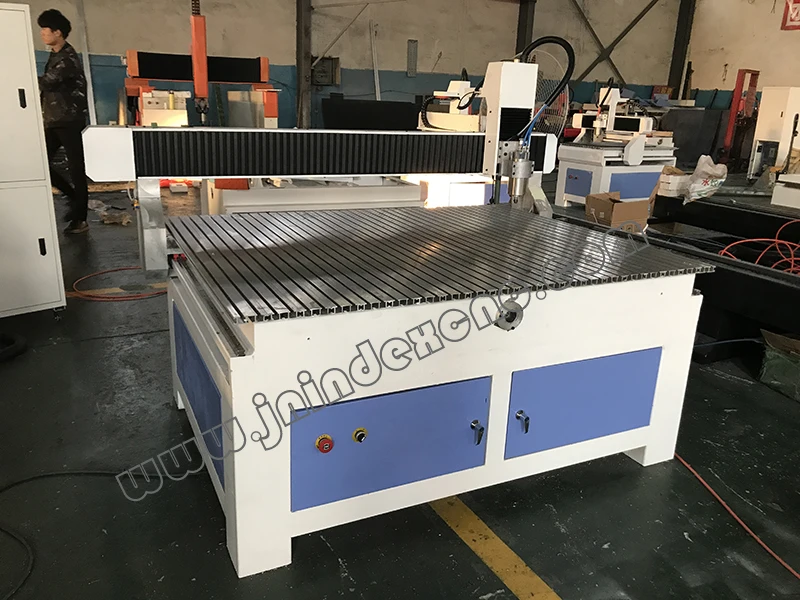

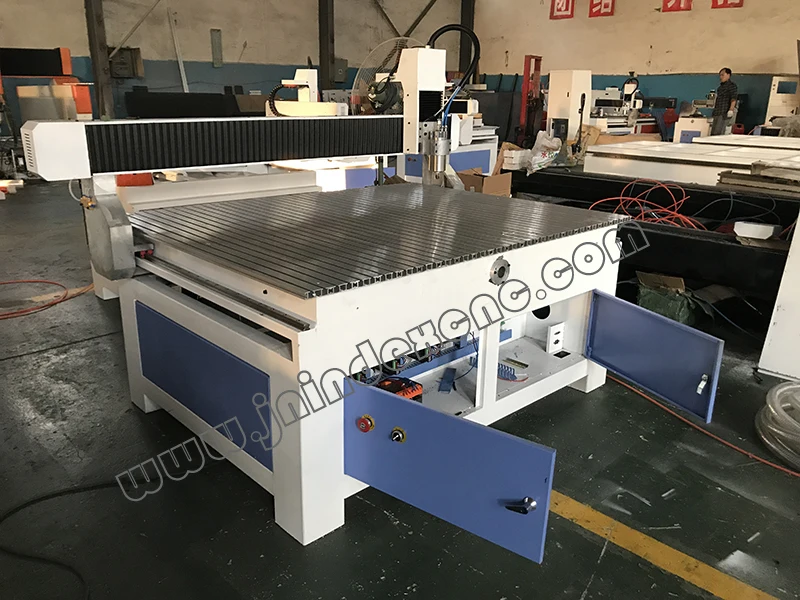

1224 cnc router, 1200*2400mm cnc router





Technicial Parameter

Item	cnc router 1224
X,Y,Z Working Area	1200*2400*120mm(can be customized)
Table Size	1200*2400mm
X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
X,Y,Z Re-positioning Accuracy	±0.03mm
Table Surface	Aluminum/Vacuum and T-slot Combined (Option: T-slot Table)
Frame	Welded Structure
X, Y Structure	3 axis ball screw, Taiwan CSK Rail Linear
Z Structure	Taiwan Hiwin Rail Linear Bearings
Max. Rapid Travel Rate	50000mm/min
Max. Working Speed	25000mm/min

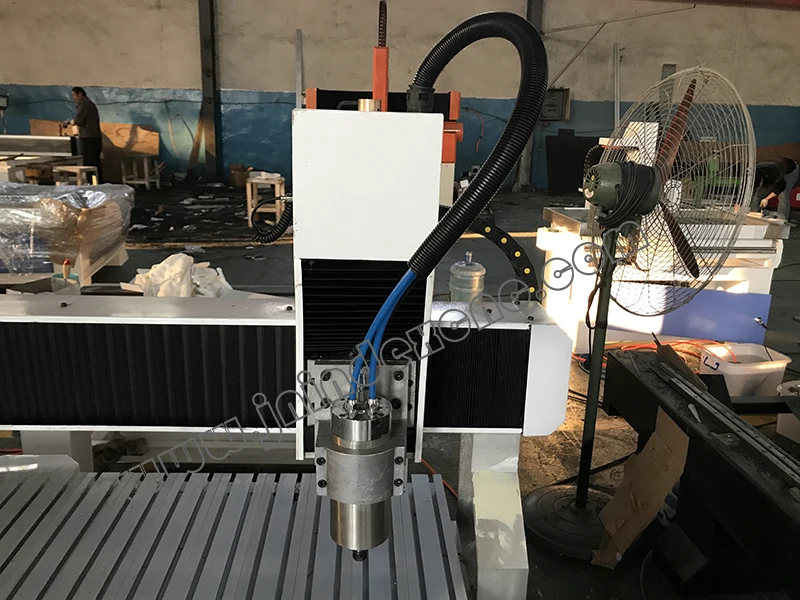

Spindle Power	1.5 kw
Spindle Speed	0-24000RPM
Drive Motors	Stepper/Servo motor and drive( Japan YASKAWA/Panasonic)
Working Voltage	AC380V/50/60Hz,3PH (Option: 220V))
Command Language	G code
Operating System	Original NC studio/DSP/MARCH3 controller system
Collect	ER11
X,Y Reporsition	<0.03mm
Software Compatibility	Type3/Artcam/ Software (Option: UcancameV9 Software)
Dust collector	2.2/3 KW (single bag/double bags)



Main Parts for cnc router 1224



1. Whole machine is welded with seamless steel structure, with aging treatment.

2.Adopt Taiwan HIWIN high precision linear orbit. X Y Z axis adopts Germany and Taiwan ball screw,with high precision and long life time.

3. Well compatibility: CAD/CAM designing software e.g. Type 3/ Artcam/ Castmate/ Wentai etc.

4. The function of re-carving after break point and power failure. Has the function of forecasting process time.

5.Can choose updated DSP / Mach 3 or Original Nc Studio control system.

6.  We provide the DSP operating instruction in English, a set of cutters, software, necessary tools and accessories for free.

7. Can process wood,stone,acrylic,copper,PVC,MDF,PCB……







Application for cnc router 1224



1.Furniture: wooden door and furniture, windows, tables and chairs,cabinets and panels, 3D wave plate,MDF,computer desk,musical instruments,etc.
2.Advertising: billboard, logo,sign,3D characters cutting,acrylic cutting,LED/neon channel,literal-hole cut,light-box mold,stamp,mound,etc.
3. Board processing: insulation, plastic chemical components, PCB, car body, bowling track, ABS, PP, PE, etc.
4. Decoration: Acrylic, PVC, MDF, glass, plastic and soft metals such as copper and aluminum.

Packaging and shipping:

Packaging : 1.Outside package:Standard marine export plywood cases

                        2.Inner package:Stretch film and plastic film for humidity

Shipping:  Maritime transport,air transport,land transport and the logistics transport

FAQ:

Q1: Are you factory or trading company?

We are manufacturer of cnc routers with 14 years experiences, have three workshops and over 18,000 square meters,180 employees

 (including 55 technical personnel), more than 60 sets processing equipments.

Q2: How can I get the best machine ?

Just tell me your requirements on the machine, we will provide the best suitable product for you.

Aslo, we have desinger team to meet any of your requirements.

Q3: This is the first time I use this kind of machine, is it easy to operate?

The Operation Manual will be send to you with the machine, it's in details, if you still confused,

we can provide training or  specialized teaching video for you.

Q4: If the machine has problem in my place, how could I do?

We offer remote assistance in 24 hours, ensure that solve your problem in time. or change

damage parts for free during warranty.
