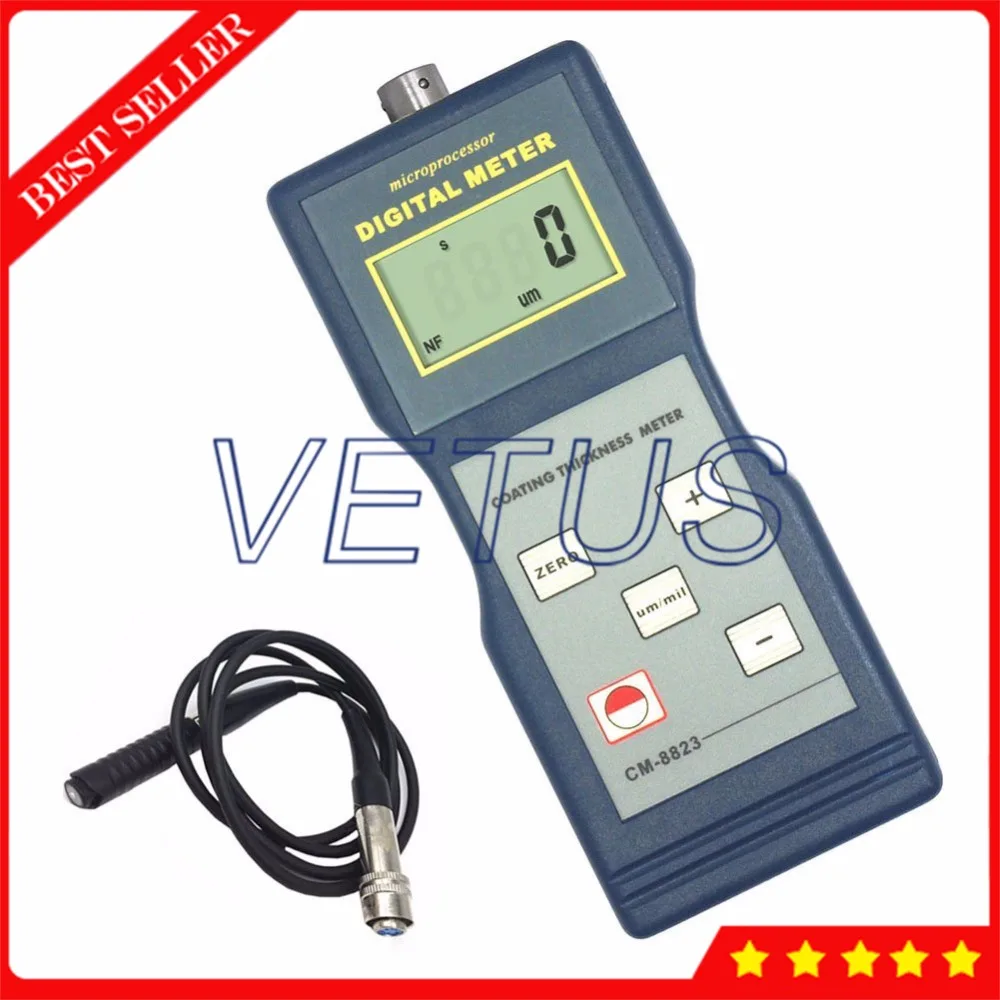

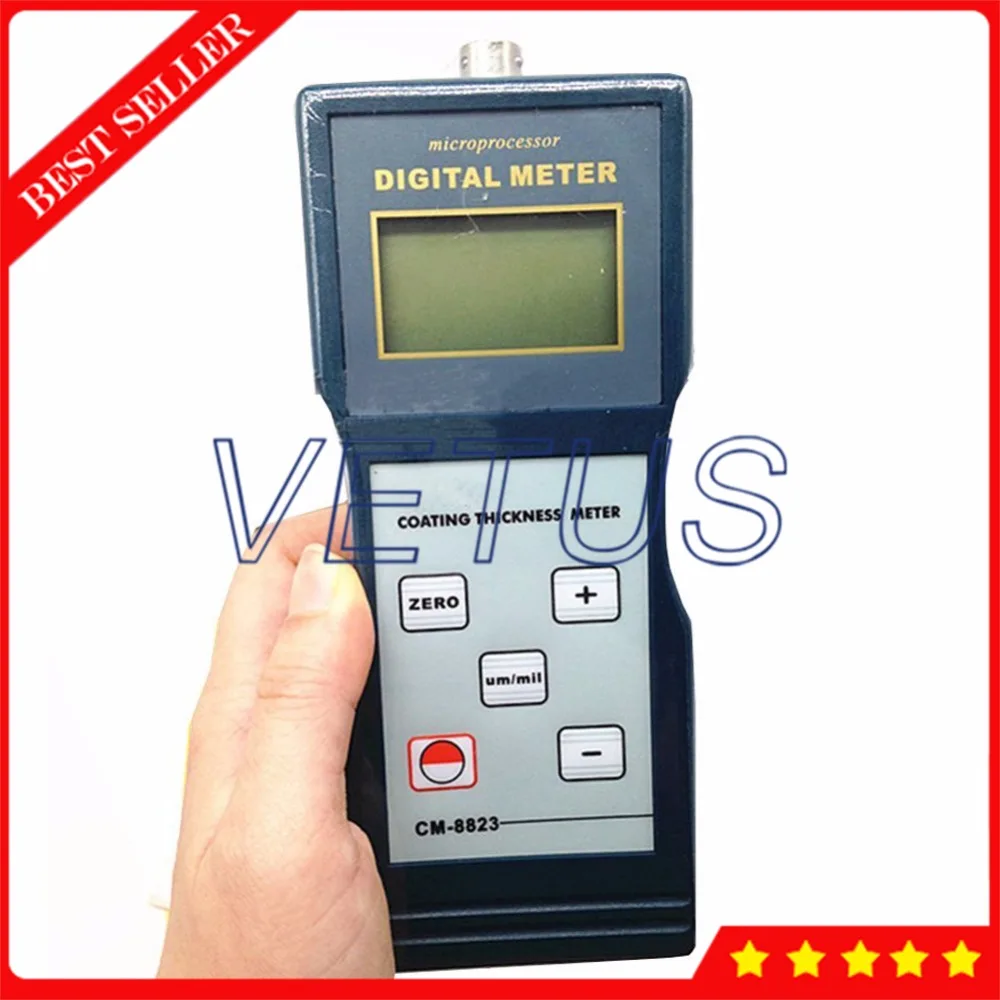

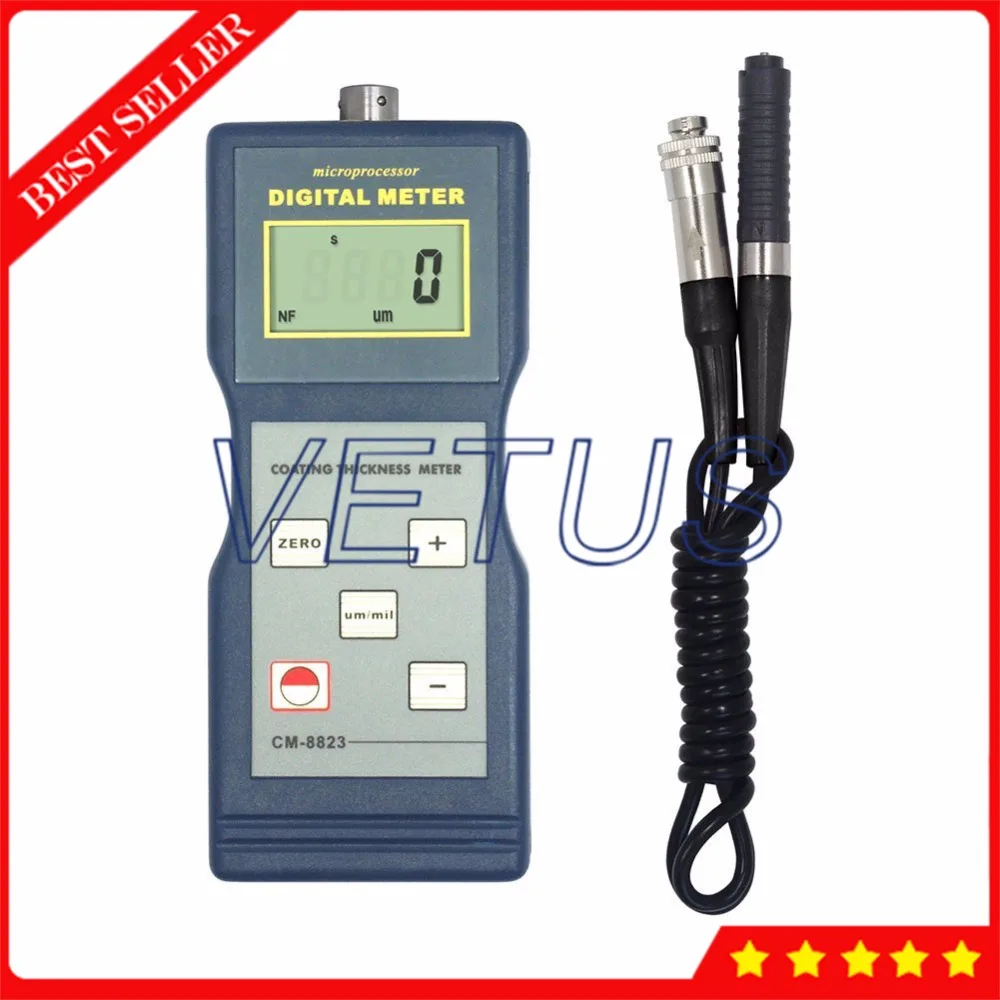

NF Type Paint Coating Thickness Gauge with CM-8823 varnish enamel plastic thickness measurement meter Eddy Current Principle

Introduction: The N probes measure the thickness of non-conductive coatings on non-magnetic metals.   Features * Measuring Principle: eddy current (N) * Two measurement mode: Single and Continuous（Notice：Continuous mode is convenient to measure the coating thickness of curved objects and tiny objects.） * Metric/imperial system selectable. * Manual or automatic shut down. * Automatic memory of calibration value,and automatic recognize the substrate. * Operation process have buzzing reminder,while no buzzing in continuous mode.

Principles
Principles	Applications	Examples
NF Type	Measure the thickness of non-conductive coatings on non-magnetic metals	Anodizing, varnish, paint, enamel, plastic coatings, powder, etc. Applied to aluminum, brass, non-magnetic stainless steel, etc
Eddy Current
(Aluminium Base)



Specification
Principle	NF Type Eddy Current
Range	0~1000µm/0~40mil
Resolution	0.1µm/1µm
Accuracy	±1~3%n or ±2.5µm
Min.Radius Workpiece	F Type:convex 1.5mm/concave 25mm
	NF Type:convex 3mm/concave 50mm
Min.Measuring Area	6mm
Min.Sample Thickness	0.3mm
Metric/Imperial	Convertible
Battery Indicator	Low Battery Indicator
Automatic Power Off	√
Operating Conditions	Temperature:0~50ºC
	Humidity:<80%RH
Power Supply	4x1.5V AA (UM-3)Battery(not included)
Dimensions	161x69x32mm
Weight	210g(Not Including Batteries)
