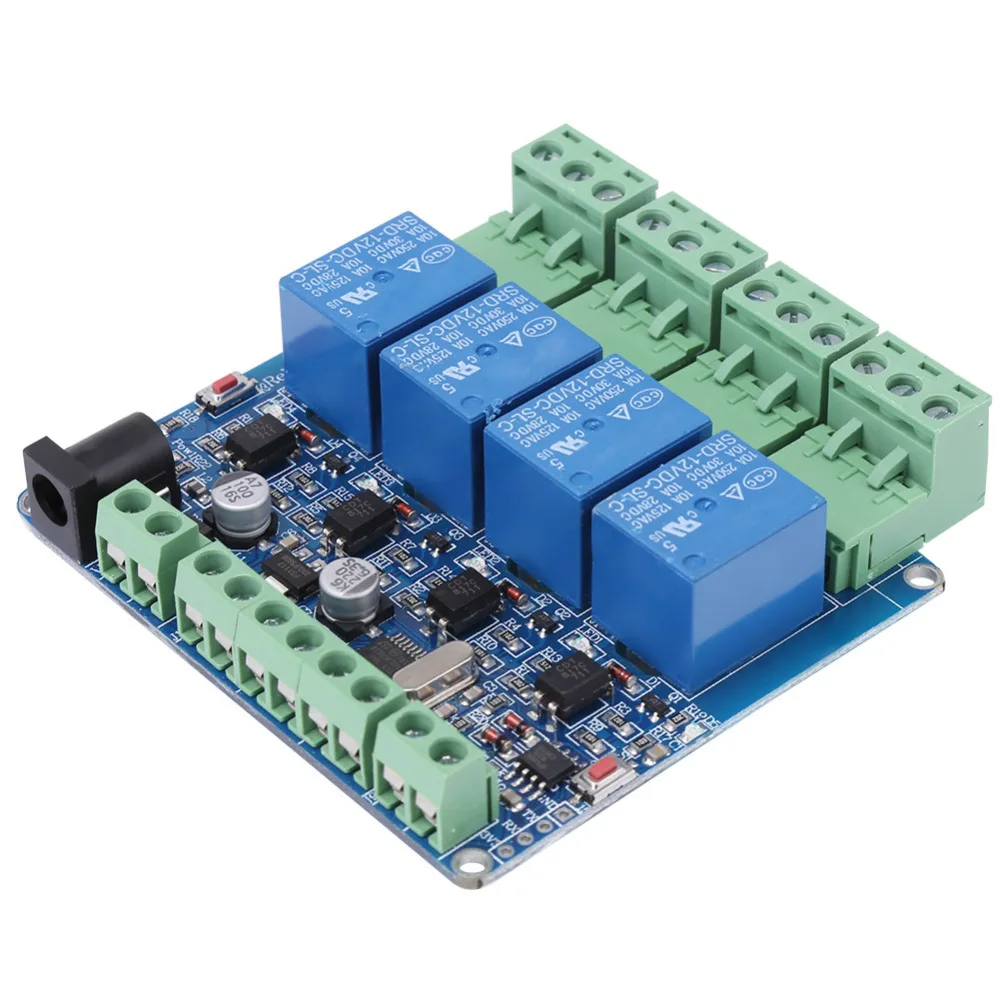

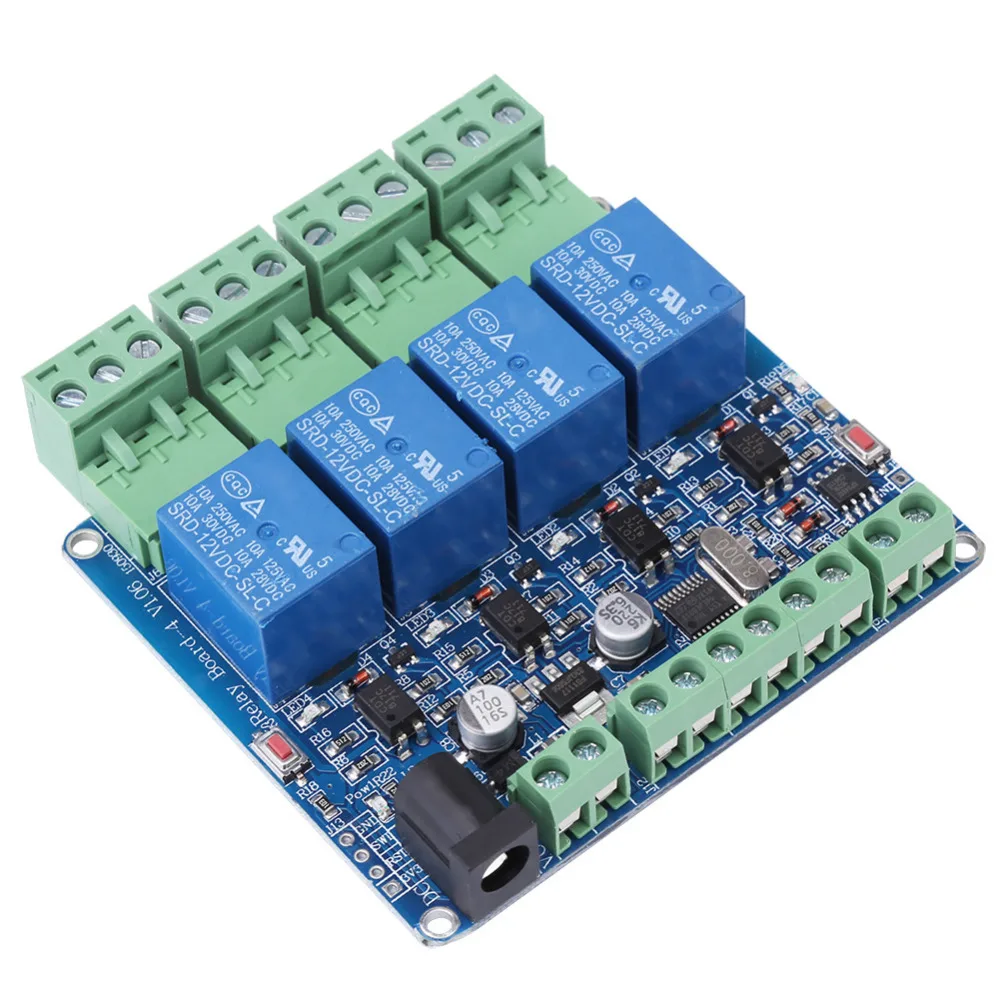

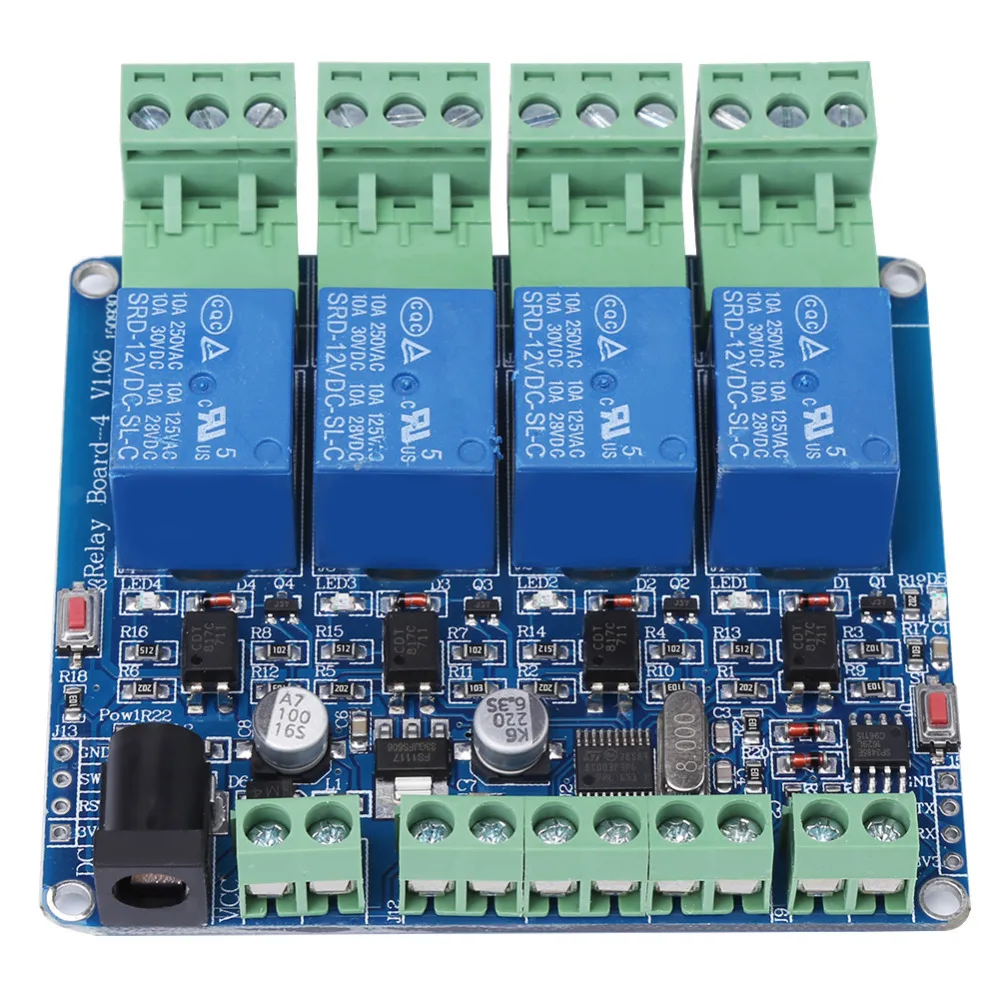

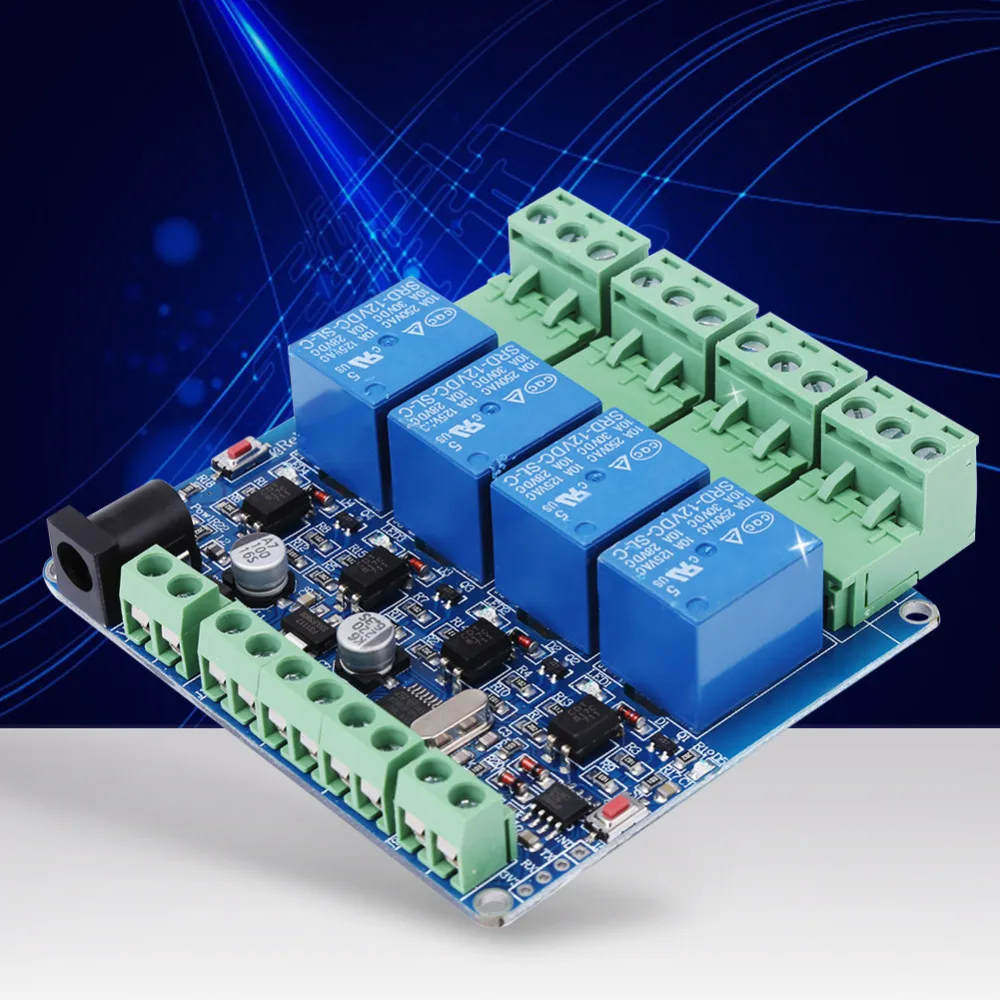

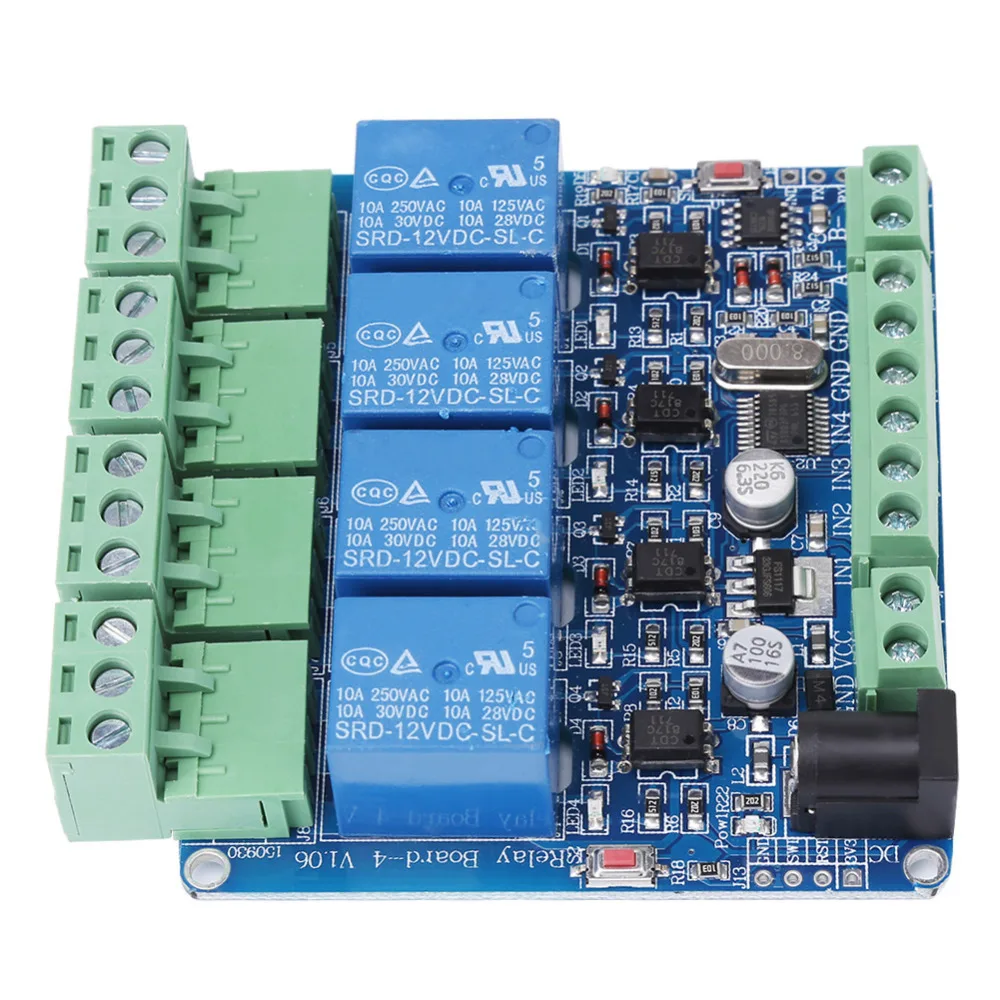

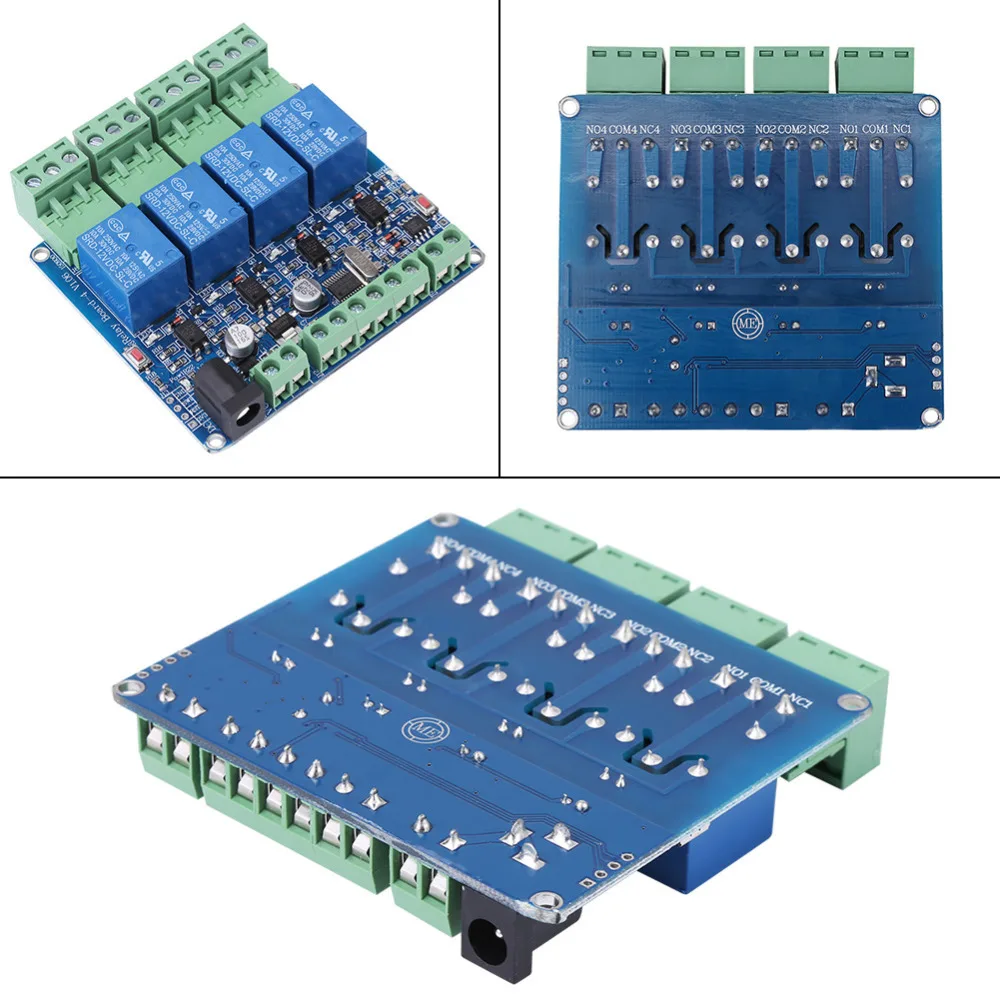

DC 12V 4 Channel Relay Module STM8S103F3 Relay Board Microcontroller RS485 Communication Relay Module



Features:

4 channel relay output (a normally open, normally closed). 4 channel optical coupling isolation. 4 relay closed the LED light. Circular DC interface, and DC terminal interface. Convenient power connection (12 v power supply voltage). 4 channel input interface. A power indicator light. A user LED light.
Specifications:
LED light: Yes
Power supply voltage: 12V
Channel: 4
Baud rate: 9600
Microcontroller: STM8S103F3
Communication interface: RS485
Reset button: Yes

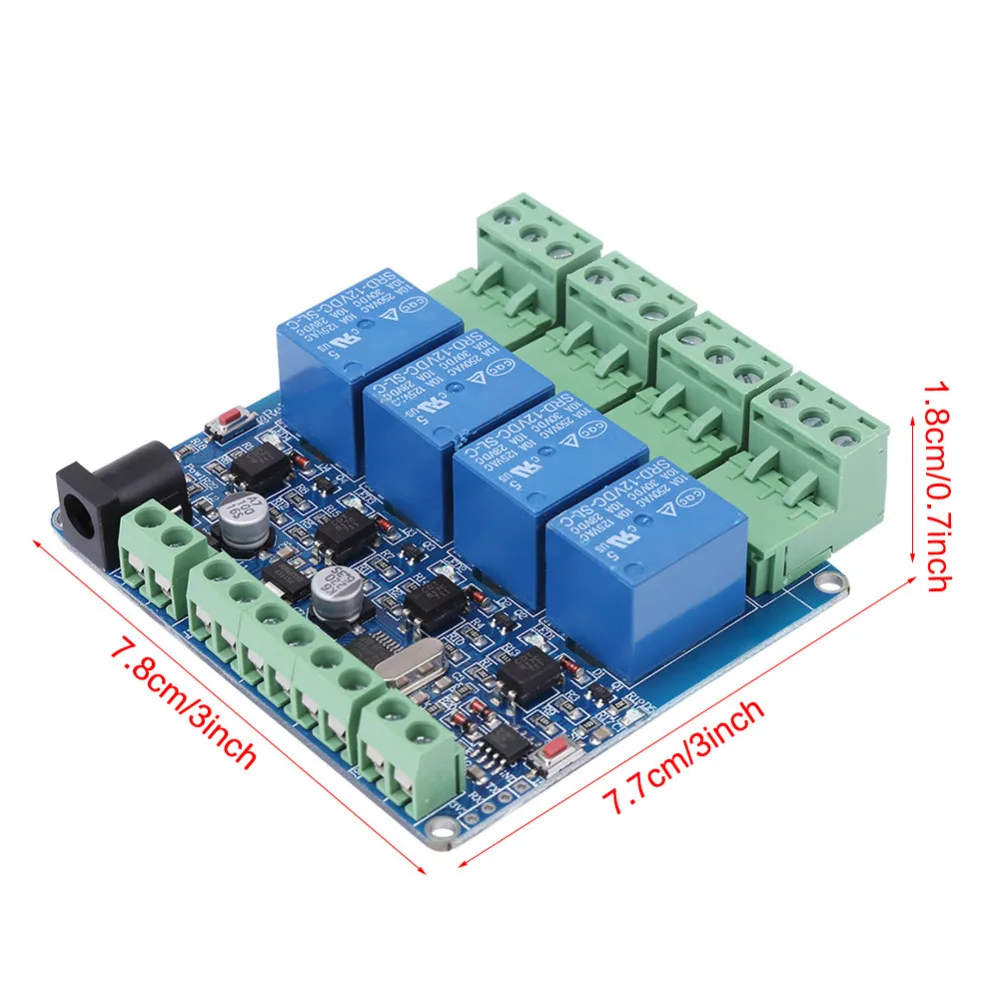

Size: Approx. 7.8 x 7.7 x 1.8cm /  3 x 3 x 0.7inch
Quantity: 1pc
Weight: 85g

Serial assistant operation instructions:
Below are the test instructions for device number 1:
No. 1 relay close:
01 06 00 01 01 00 d9 9a

No. 1 relay open:
01 06 00 01 01 01 18 5a

No. 2 relay close:
01 06 00 01 02 00 d9 6a

No. 1 relay open:
01 06 00 01 02 01 18 aa

No. 3 relay close:
01 06 00 01 03 00 d8 fa

No. 1 relay open:
01 06 00 01 03 01 19 3a

No. 4 relay close:
01 06 00 01 04 00 da ca

No. 1 relay open:
01 06 00 01 04 01 1b 0a

All put out:
01 06 00 01 00 00 d8 0a

All light:
01 06 00 01 ff ff d9 ba

Reference:
Data download address: http://pan.baidu.com/s/1mgzKs3I(The data is in Chinese)

Package Included:
1 x 4 Channel Relay Module
