Регулятор скорости постоянного тока PWM 20A 10-60V 12V 24V 36V 48V с переключением напряжения - купить

Купить PWM DC Motor Speed Regulator 20A 10-60V 12V 24V 36V 48V Controller Voltage Switch Module |

Brand NameVBESTLIFEModel NumberDC Motor Speed Controller OriginMainland ChinaCertificationNONEMotor TypeAC MotorMeasurement unitpiece/piecesEach pack11 594,54 ₽-43%1 594,54 ₽-43%909,17 ₽909,17 ₽there are seller's couponsAdd to CartBuy now909,17 ₽loaderDescription

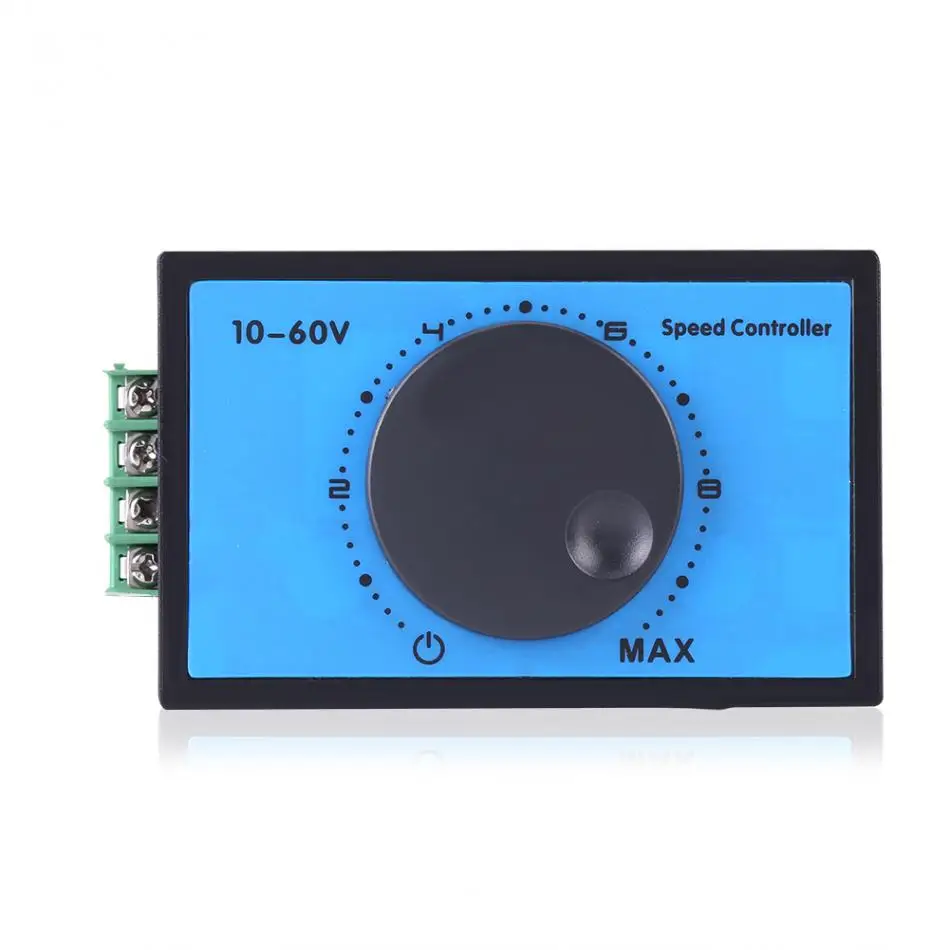

PWM DC Motor Speed Regulator 20A 10-60V 12V 24V 36V 48V Motor Speed Controller Voltage Regulator Switch Module

Feature:

Soft start can solve the damage caused by instantaneous high current to speed controller. Blocking protection(20A current limited) can limit the high current produced by the blocking of the motor. Panel switch control makes it more easy to control the speed. Ultra-high power control. The maximum current is 20A. It is recommended not to exceed it. With low voltage and stall/over-current protection.
Specification:
Input voltage: DC 10-60V (The specific voltage must be the same as the rated voltage of the motor)
Output voltage: Linear output under load
Current: 0-20A (Limited value 20A)
Regulating type: regulating current
Regulating method: potentiometer(270° linear)
Regulating speed range: 0-100%
Control frequency: 15KHZ
Knob: 10K(with switch)

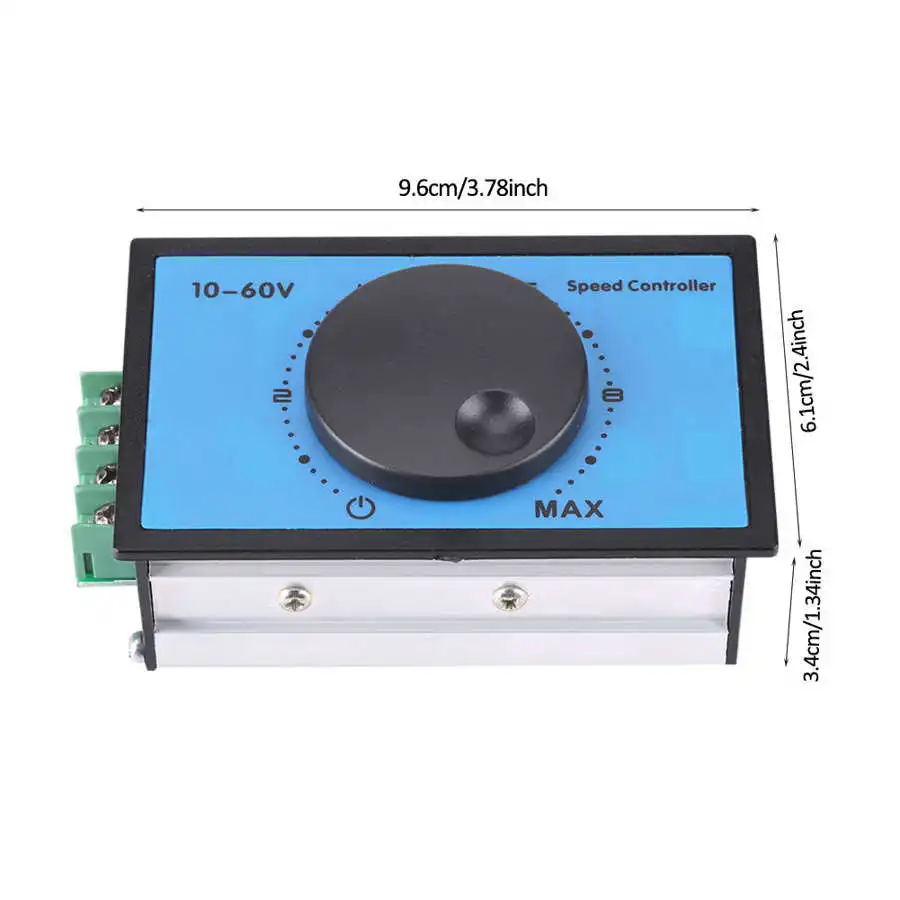

Size: Approx. 9.6 x 6.1 x 3.4cm / 3.78 x 2.4 x 1.34inch
Weight: 107g



Package Included:
1 x DC Motor Speed Controller



Note:
The input terminal must be divided into positive and negative input. The input voltage must be the same as the rated voltage of the motor(within DC 10-60V). Can not input AC 220V, or it will burn up the module directly. Blocking protection is not a power cut, it is current value of 20A. Please allow 1-3cm differences due to manual measurement. Thank you for your kindly understanding.
