ZSVEDIO CCTV монитор IP камера Wi Fi Wifi наружная система сигнализации Водонепроницаемый - купить

Купить ZSVEDIO CCTV монитор IP камера Wi Fi Wifi наружная система сигнализации Водонепроницаемый

Video Links on Youtube:

01 How to connect camera to PC/Smartphone/Browser ?

https://youtu.be/tTMFaTyKu3c

02 How to use NVR Kits?

https://youtu.be/BV56P-KBCq4

03 Search and revise IP address

https://youtu.be/VbjyjHEeFko

04 WIFI setting

https://youtu.be/xFGq6GWJ18o

0401 When connecting camera to a PC directly:

https://youtu.be/li-Rm0fa4Ys

0402 When wifi and wired gateway are different on PC:

https://youtu.be/VyaPRGUZBSY

05 Time setting:

https://youtu.be/8355bVyKISo

06 Video setting:

https://youtu.be/YjH_tTeveks
07 Audio setting:

https://youtu.be/tP0FTr3Cyzg

08 Recording setting:

https://youtu.be/-1LdUY_EtLs

09 To find UID and IE11 compatible setting:

https://youtu.be/VAqbmsTnElY

10 Motion detection and Alarm setting :

https://youtu.be/jxEoI3TXXHM

11 AP Mode Wifi setting :

https://youtu.be/AW5XM-z4V3E

12 Wireless Camera System Introduction:

https://youtu.be/Otlzg6llZ2M

13 Camhi Setting:

https://youtu.be/le_k18l86og

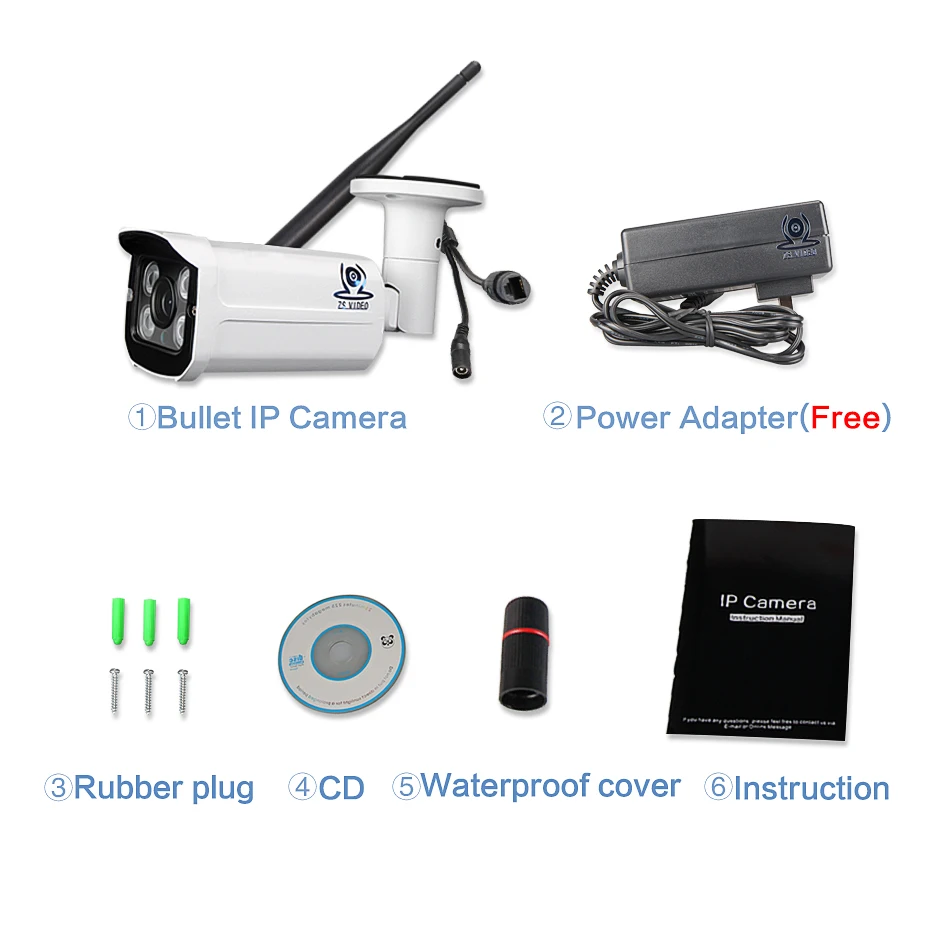

Bullet IP Camera*1

Power Adapter ( Free gift ! )*1

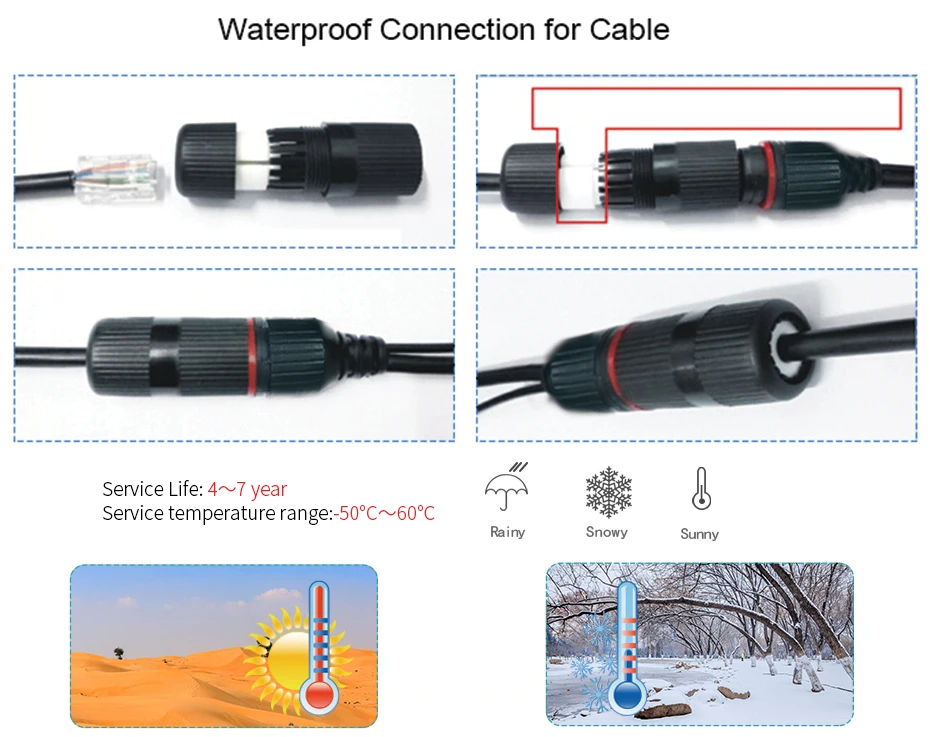

Rubber plug*3

CD*1

Waterproof*1

Instruction*1

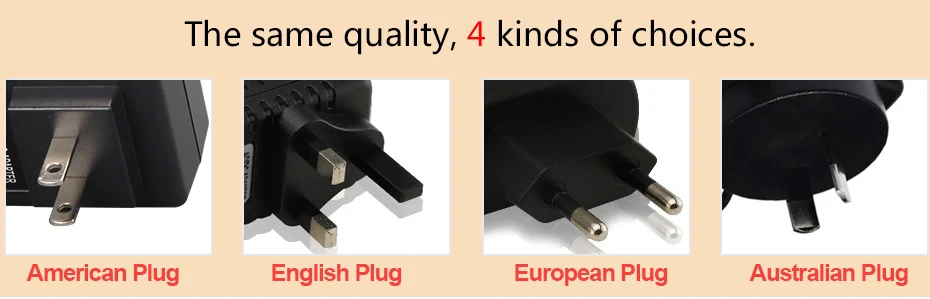

​Notice: Include Power Adapter US/EU/AU/UK, depend on your order of choose, or leave a message to us!

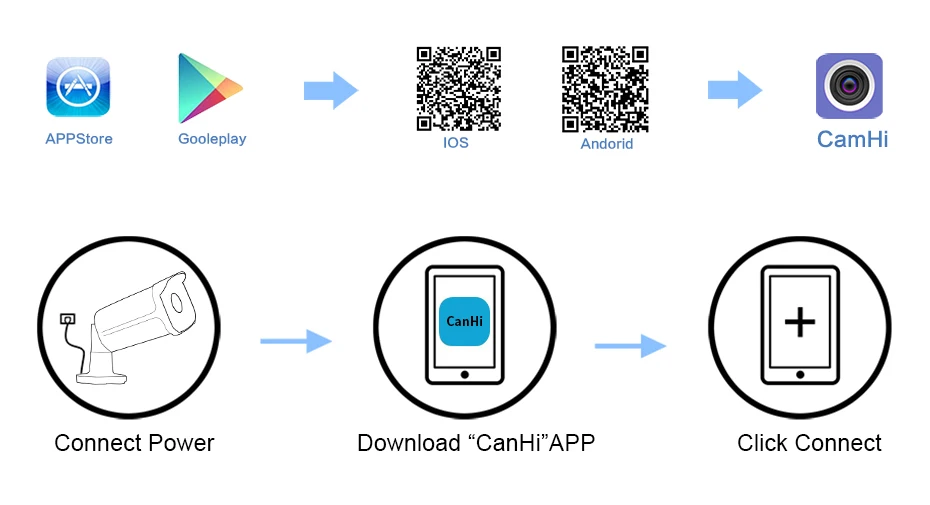

Fast and easy setup. View your camera online Within minutes. With the P2P Server Technology, no complicated port mapping or DDNS setting needed. Simply scan, connect, Then Enjoy Live Video. If you Changed Wifi. Just delete device on app and add device under the new wifi.

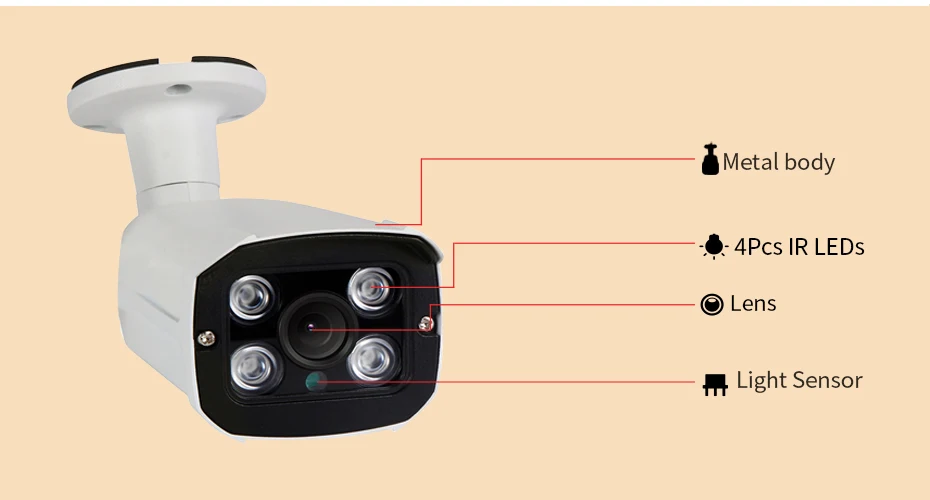

Built-in IR-CUT core module,better surveillance effect,no color cast and no image distortion. Enhance color purity of  the day,and night vision effect.

Infrared night vision. Infrared LED with sensors see in total darkness. When ambient light drops below a certain point, a device within the camera switch from color to black and white and turns on the LED.

H.264 Compression. By adopting the advanced H.264 video compression, the bandwidth efficiency and transmission speed are greatly increased.

Motion-Activated Email Alarm. In attempt to make you stay alarmed of all unexpected movements in your house. Motion detection works perfectly with email alert function making sure you are always the first one to get informed when things happen.

High-definition. This camera is capable of generating stunning 720P/960P/1080P video beautifully to present pristine color and smooth on-screen movements, the screen is still clear.  You can see the video you want to see anytime, anywhere.

Remote Viewing, Anytime, from Anywhere. No matter where you are, you can remotely access the camera to see live streaming and stay connected. Remotely view the camera via: Free CamHi App on your mobile device, By your computer, web browsers (IE, Google Chrome, Microsoft Edge, Safari, Firefox, etc.).

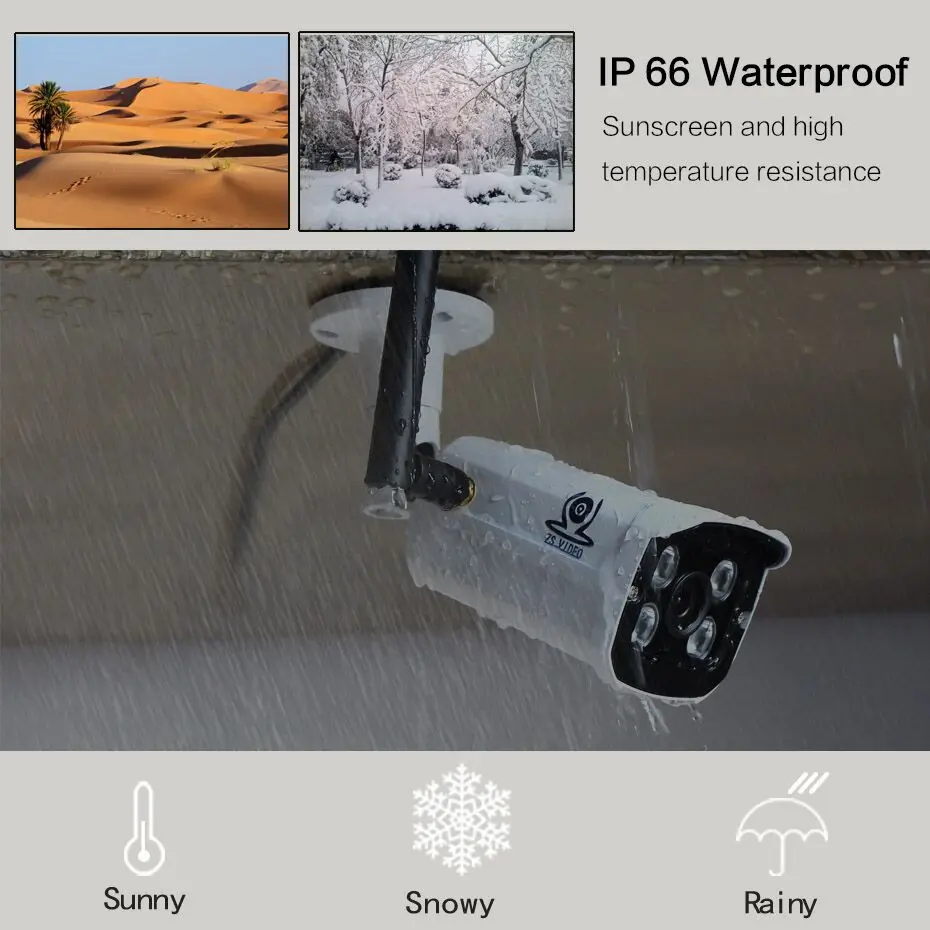

IP66 class waterproof. For a variety of weather and hot and cold temperatures,IP66 waterproof for indoor and outdoor use.

Enjoy sharing with others. Supports multiple users watching, This camera supports almost 4 users watching the video at the same time.

Multi-platforms watching. Easily access to Monitoring interface via cellphone,tablet or computer.

Can be used in a variety of scenes. Home/office/Classroom/Clothing store/Look at pets/Factory...

Camera		720P	960P	1080P
	Processor	HI 3518E + OV9732	HI 3518C + Aptina AR0130	HI 3518E
	Image sensor	1/4" 1.0 MP CMOS	1/3" 1.3 MP CMOS	1/3" 2.0 MP CMOS

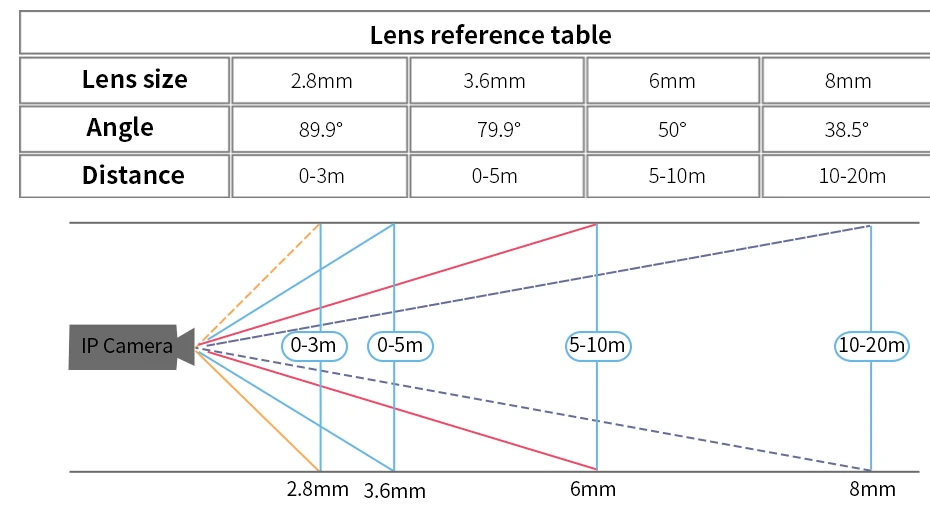

	Lens	2.8mm 3.6mm(default) 6mm 8mm
	IR Distance	25 meters	20 meters	12 meters
	Power Consumption	DC 12V 2A	DC 12V 2A	DC 12V 2A
	Working Temperature	-20℃~+55℃
	Working Humidity	<95%

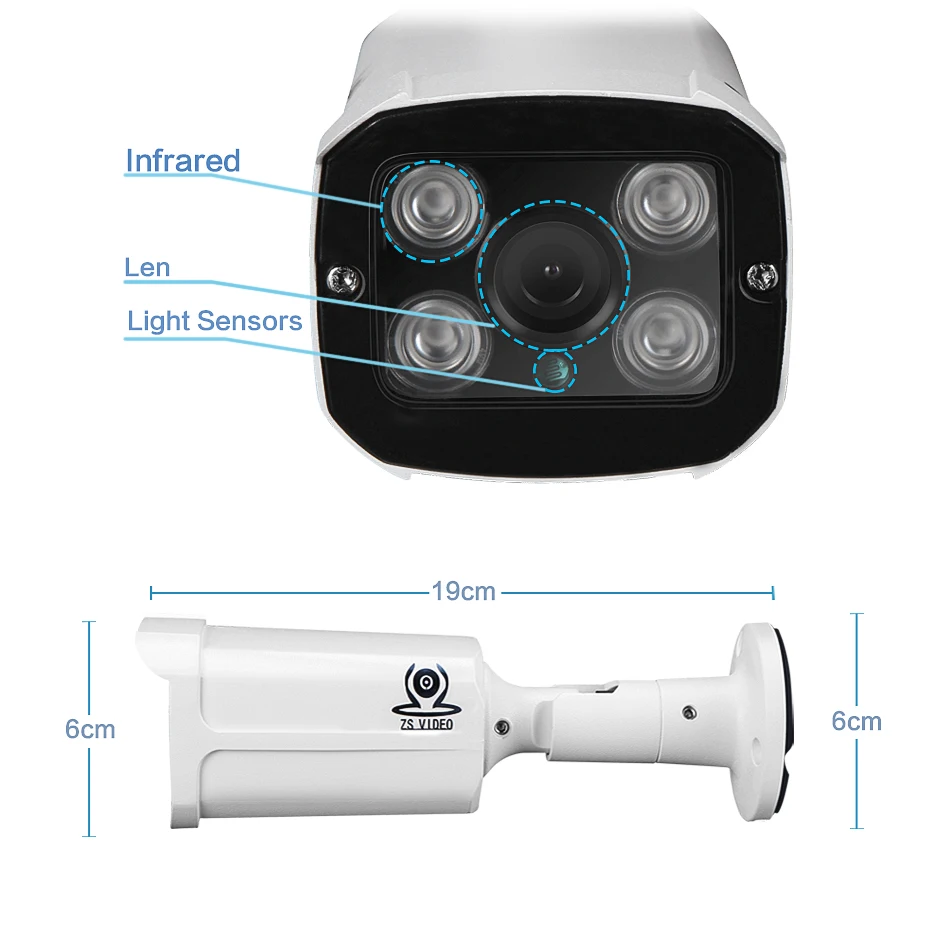

	Weight	0.5KG
Video	Video Codec	H.264 main profile and baseline

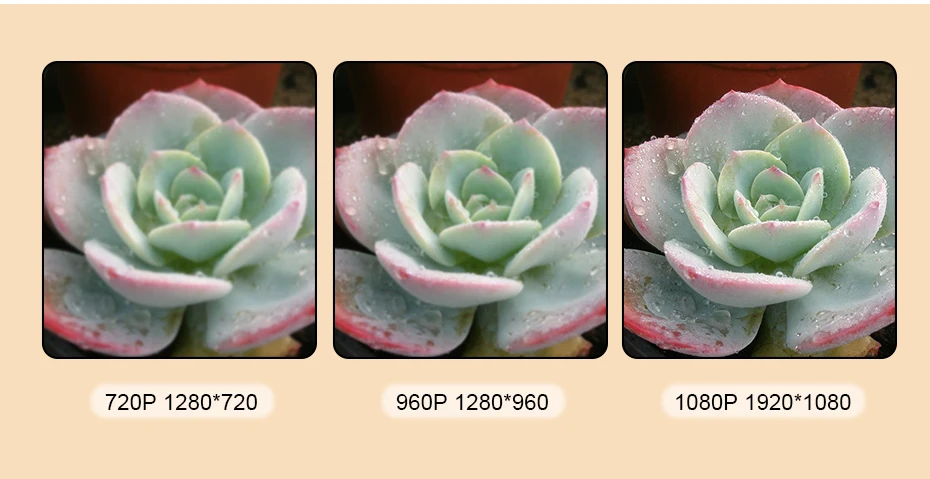

	Video Resolution	720P	960P	1080P
		First stream:1280x720	First stream:1280x960	First stream:1920x1080
		Second stream:640x352	Second stream:640x480	Second stream:640x352
			Three stream:320x240	Third stream:320x176
	Frame Rate	20fps	25fps	20fps
	Video Compression	32Kbits/s ~ 6Mbits/s	32Kbits/s ~ 6Mbits/s	32Kbits/s ~ 6Mbits/s
	Min. Lux	0.1Lux
Audio (Optional)	Audio input	1 ch Line/Mic
	Audio output	1 ch Line out
	Audio Codec	G.726/G.711
Network	Interface	RJ45, DC Power
	Network Protocol	TCP/IP, HTTP, TCP, ICMP, UDP,  ARP, IGMP, SMTP, FTP, DHCP, DNS,   DDNS, NTP, UPNP, RTSP, ect.
	Access Protocol	ONVIF 2.1, i13, P2
Alarm	Motion detection	4 respective regions at most
	Alarm linkage	Send alarm pictures by E-mail or upload to FTP server
	Snapshot	Supports regularly capturing images to FTP server
Safety	User management	Provides three levels of rights management (admin, user, guest). Supports modify login user name and password

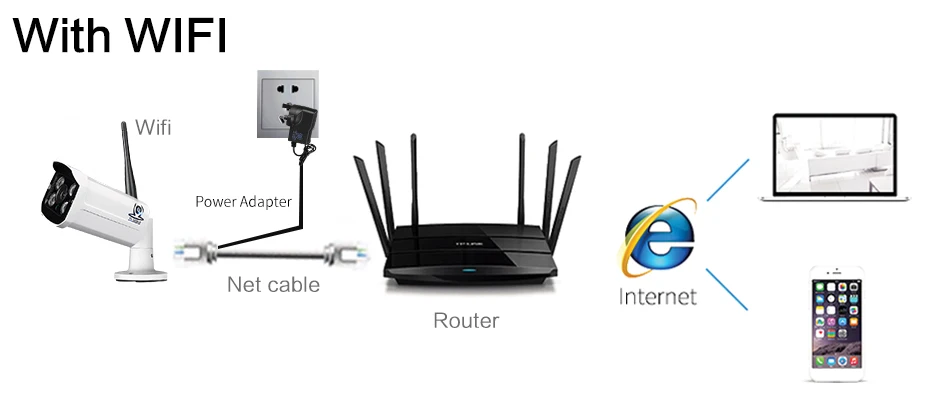

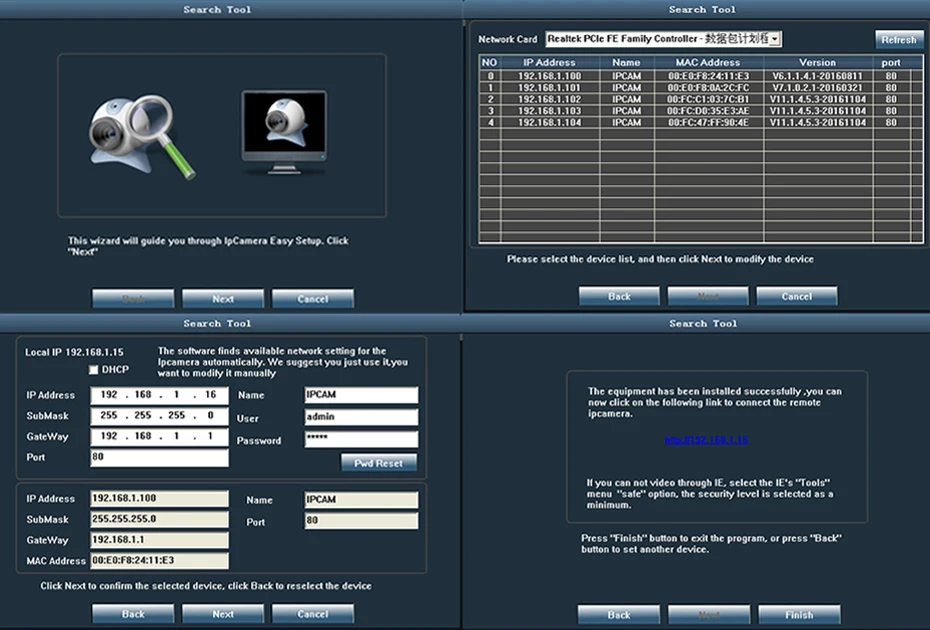

Step 1: How to find camera's IP address and change it ?

1. For the first time, suggest connect the camera directly to your PC via a network cable.

2. Install the "SeachTool" to find the camera's IP address.

3.Change the device IP and gateway. Note Keep the gateway consistent with your local.

4. If you want to use a fixed IP address for the camera, please do not choose "DPCP".

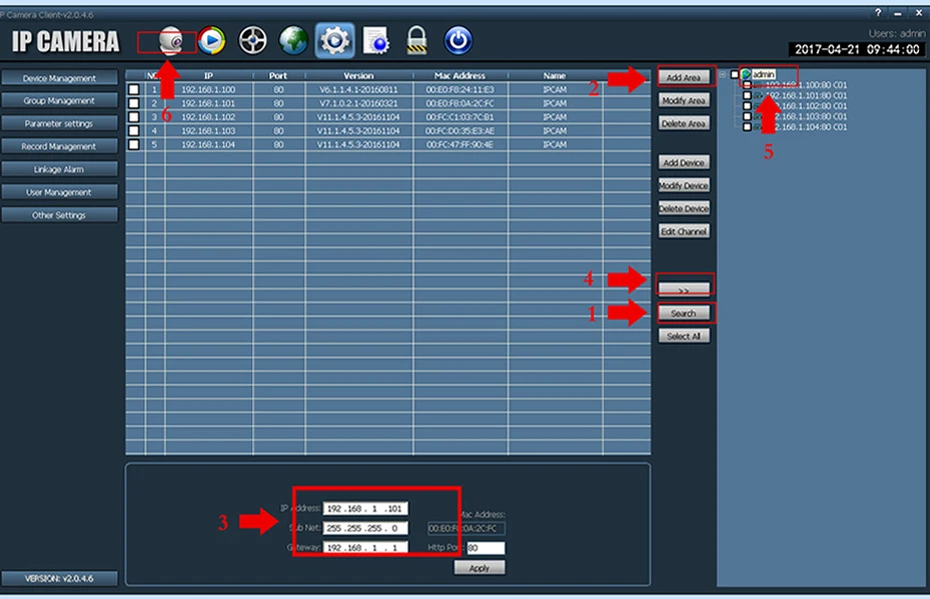

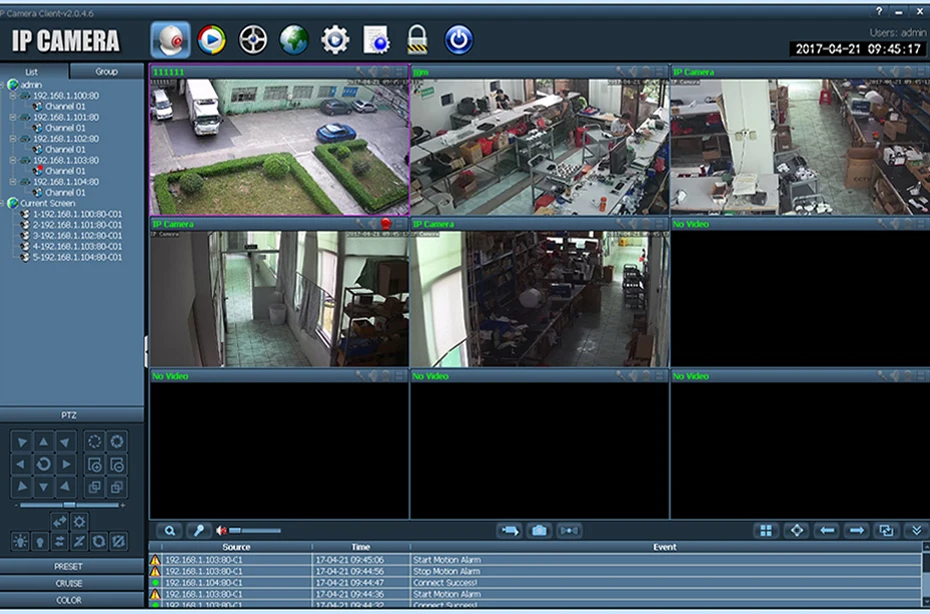

Step 2-a : How to use PC client software view?

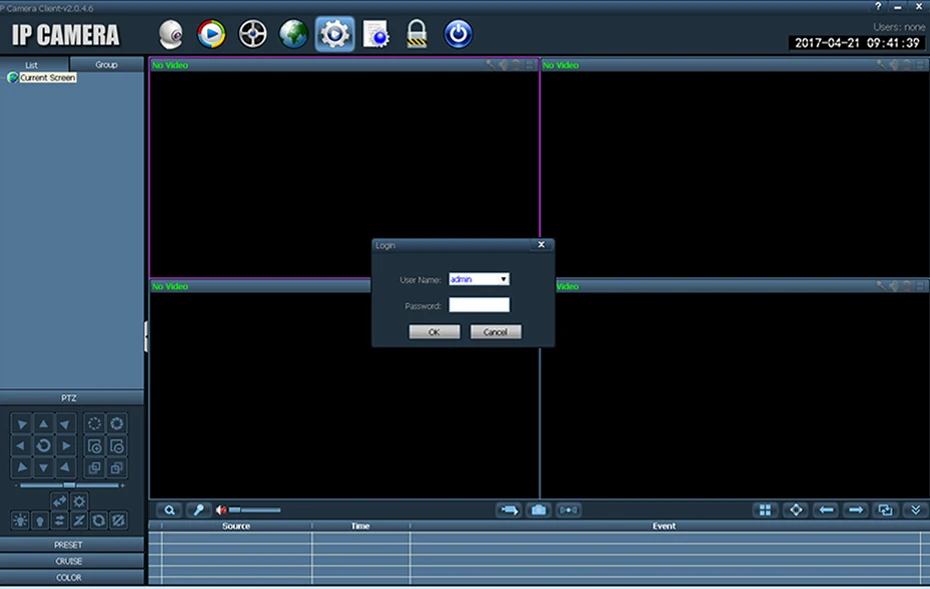

1. PC client use name: admin, the initial password is empty.

2. 1) Search for device IP.

    2) Add area.

    3) Changa the device IP to what you need.

    4) Move the device to the new area.

    5) Select the device.

    6) Click the "Camera" icon to view it.

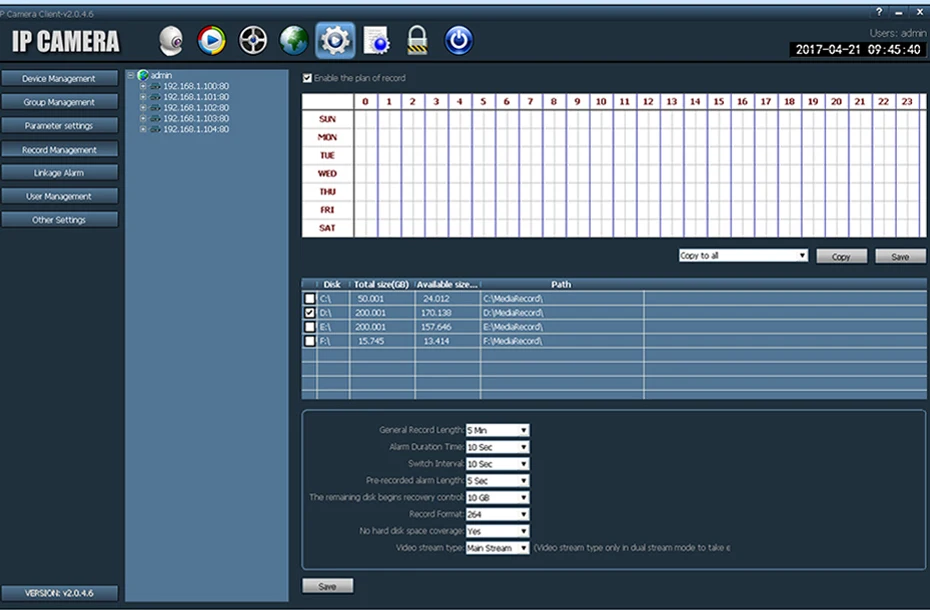

3. Set to save the video to PC when you have no NVR.

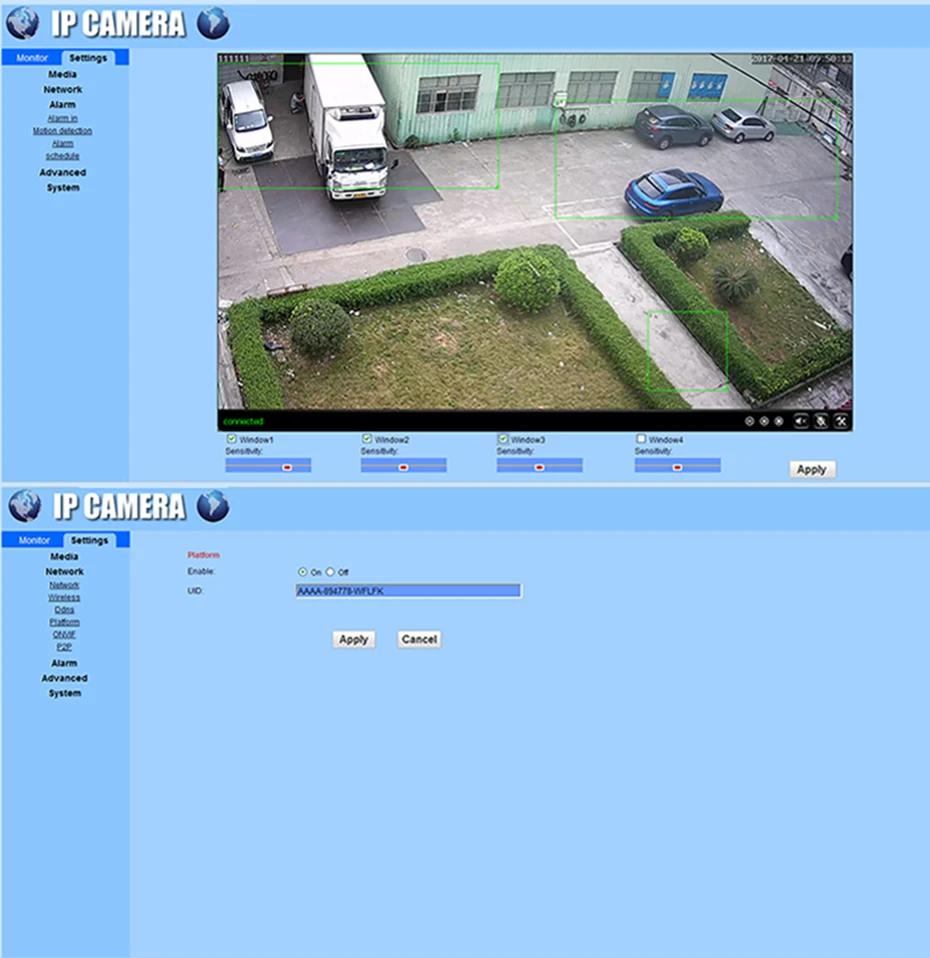

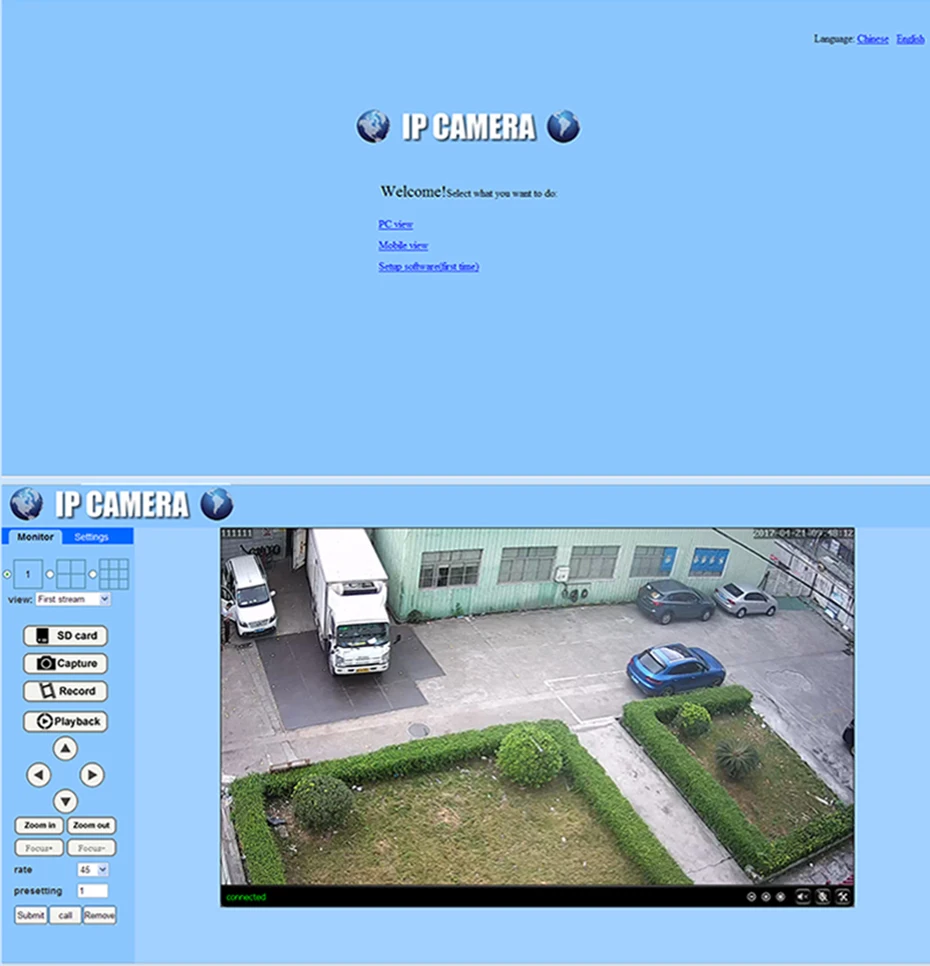

Step 2-b : Browser view and set

1. Browser input device IP. Recommended use IE 11 ( Compatibility View Mode ).

2. Both the user name and password are: admin. Languages are Chinese and English.

3. Free to adjust the four motion detection area or full screen.

4. Note: Set the alarm. Must set the motion detection area forst.

5. Click "P2P" to get UID. UID is very important for remote access.

1. Connect camera to power supply and antenna. But NOT the network cable.

    Camera will stay in AP mode by default.

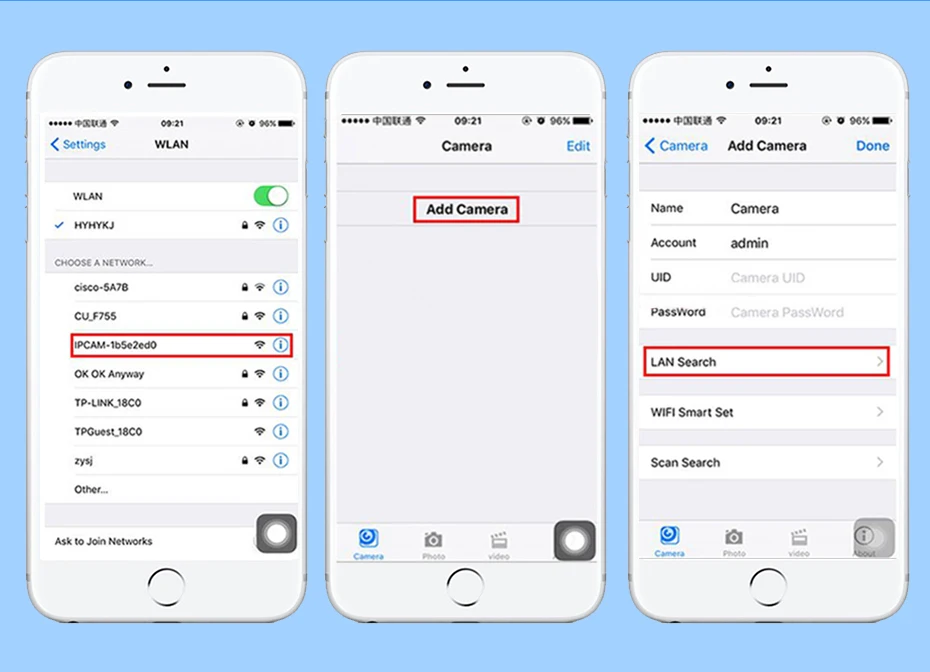

2. Go to wifi setting in the Phone. Search for wifi signals.

3. Choose the wifi "IPCAM-00xxxxxx". 00xxxxxx is the last 8 digits for MAC address.

    Now the phone is connected to the camera and they've formed a lacal network.

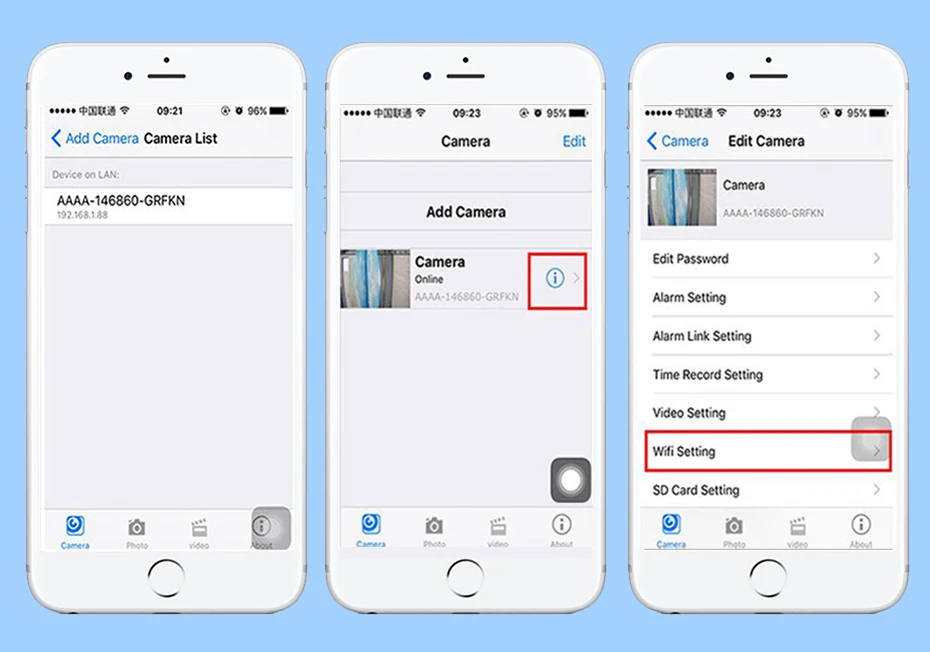

4. Open the APP--CamHi.

5. Click "Add Camera"--"LAN search".

6. Choose a camera on the search list to add it. Enter its name and password ( admin by default ).

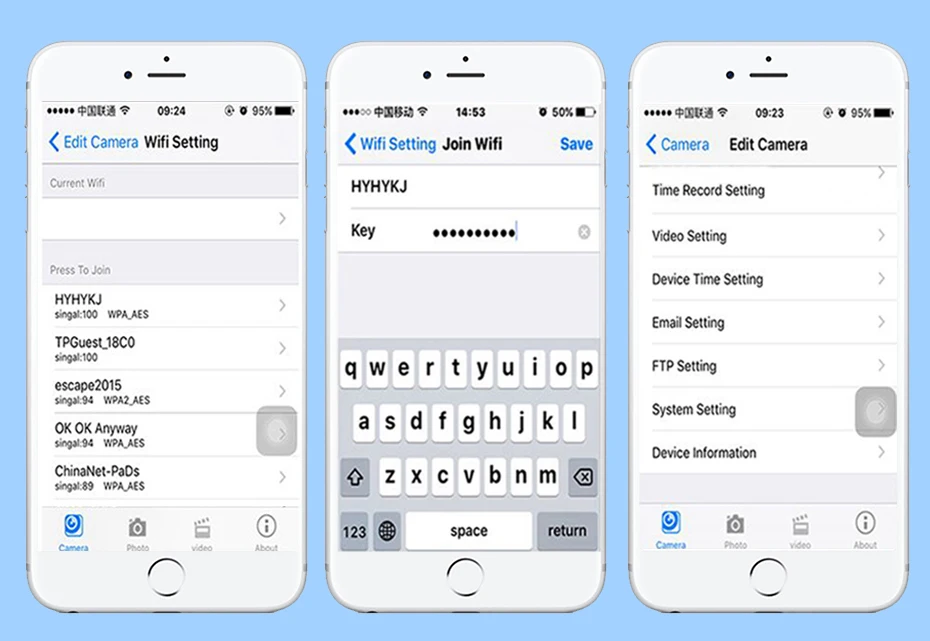

7. After camera is online, click " ! " button. And select " Wifi setting ".

8. Choose the SSID of wifi router, and enter password for the wifi signal.

Now camera is connected to the wifi router.

You can revise camera parameters and playback from the phone.
