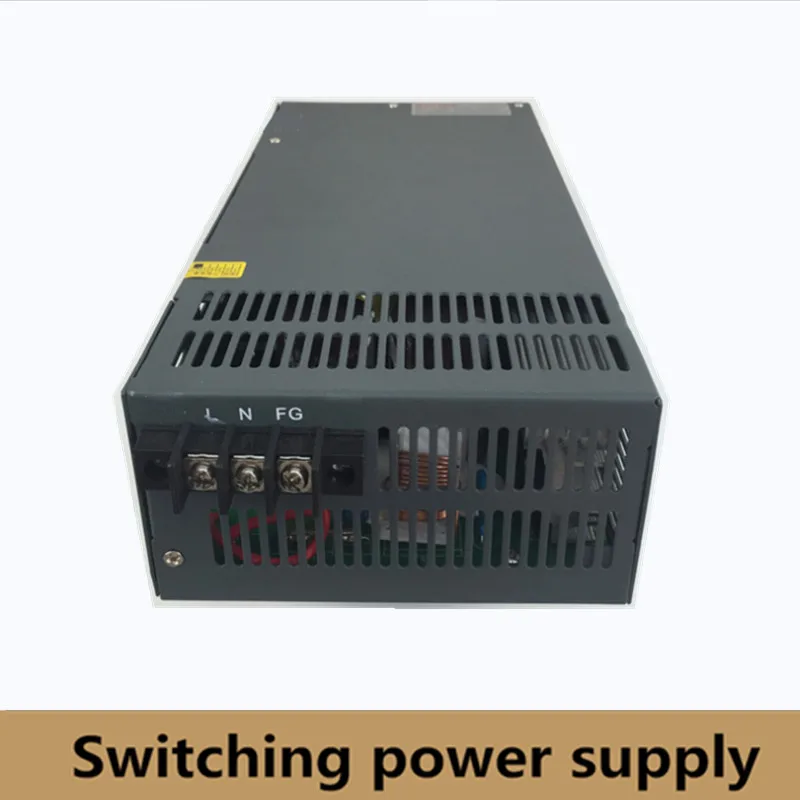

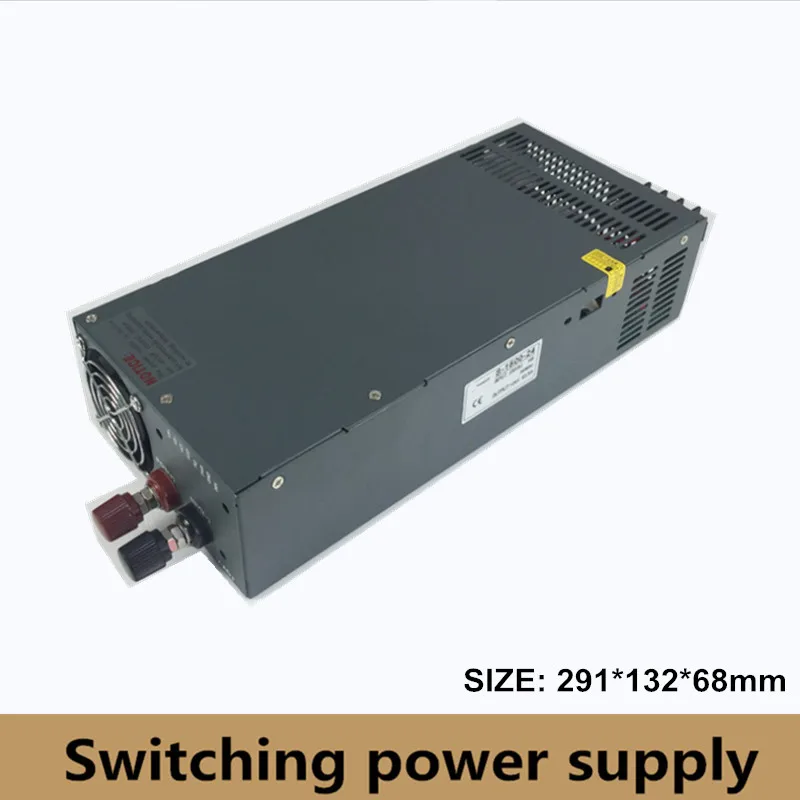

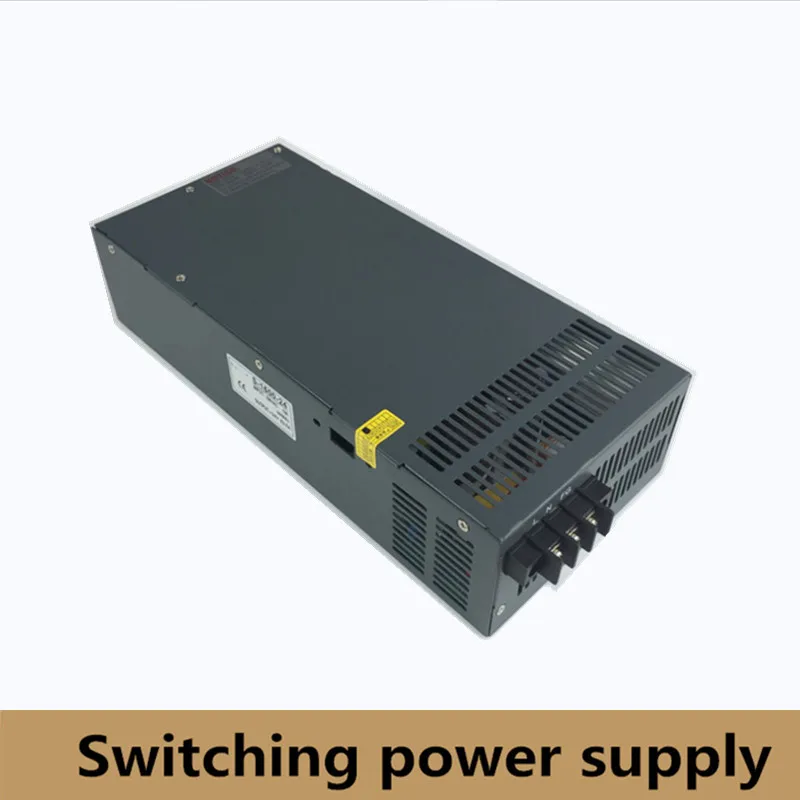

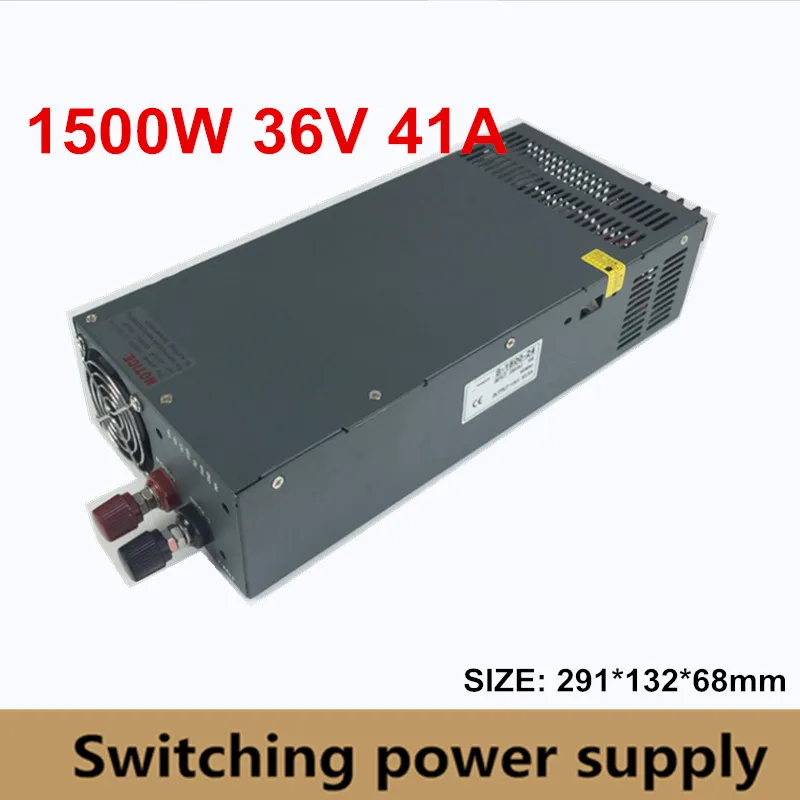

Switching Switch Power Supply DC 36V 41A 1500W Voltage Transformer 110V 220V AC DC36V SMPS For LED Strip Display Light CNC CCTV - купить

S-1500-12

S-1500-13.5

S-1500-15

S-1500-24

S-1500-27

S-1500-36

DC Output voltage(V)

12

13.5

15

24

27

36

Output voltage range

±1%

±1%

±1%

±1%

±1%

±1%

Rated output current(A)

125

110

100

62.5

55

41

Output current range(A)

0~125

0~110

0~100

0~62.5

0~55

0~41

Wave and noise(mVp-p)

200

200

200

200

200

200

Inlet stability(%)

±0.5

±0.5

±0.5

±0.5

±0.5

±0.5

Load stability(%)

±0.5

±0.5

±0.5

±0.5

±0.5

±0.5

DC output power(W)

1500

1500

1500

1500

1500

1500

Efficiency(%)

84

84

85

85.5

86.5

87

Adjustable range for DC voltage

10~13.2V

12~15V

13.5~18V

20~26.4V

24~30V

31~42V

AC input voltage range

190~240VAC 47~63Hz  ( 220Vac or 110vac, when you make order please choose it.)

Input current

7A/230V

AC Inrush current

50A/230V

Leakage current

<3.5mA/240VAC

Overload protection

105%-150% Type:pulsing hiccup shutdown  Reset:auto recovery

Over-voltage protection

13.8~16.2v

15.5~18.2v

18~21v

27.6~32.4v

31~36.5v

42V~47V

High-temperature protection

≥70°C Cut off output(0~50°C)

Temperature coefficient

±0.03%/°C(0~50°C)

Setup, rise, hold up time

1.5s, 50ms, 20ms

Vibration

10~500Hz, 2G 10min,/1 cycle. Period for 60min,Each axes

Withstand voltage

I/P-O/P:1.5KVAC  I/P-FG:1.5KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC

Working temperature and humidity

-10°C~+60°C,10%~95%RH

Store temperature and humidity

-20°C~+85°C,10%~95%RH
