 Please note ：If you don't understand the product set， please go to the following product video links.https:/store/product/Individual-learning-code-DC9V-12V-24V-10A-2CH-RF-Wireless-Remote-Control-Receiver-White-Waterproof-Transmitter/138910_32852456027.html?spm=2114.12010608.0.0.20fb59f6o41xUE

Note: the 2CH remote control switch is separate learning code,The relay is controlled by the independent learning button,2CH remote control switch can set two different working modes at the same time.If A remote is the AB key, you can set the A key to the jog mode,The B key can set up the self-locking mode, which is easy to operate and more flexible.

Application scope:

It is mainly used in luminaire, LED control, electric door, window, lifting equipment, brake way, lift, industrial control and security industry.

Product features:

This product is a universal intelligent controller, two way independent learning each other, flexible in composite applications, with the most available in the market of wireless remote control, remote control can be used manually, / modification and convenient operation, including fixed code (2262, 2260, 2264, 2260, M1E, M5E, etc.), learning (1527, 2240, 6 p20b, p20d, etc.), rolling code (HCS301 HCS300 HCS200, HCS201, HCS100, HCS101, etc.) and some custom remote control (CAME, NICE Flro, etc.) can meet the different needs of customers and their own random matching remote control.

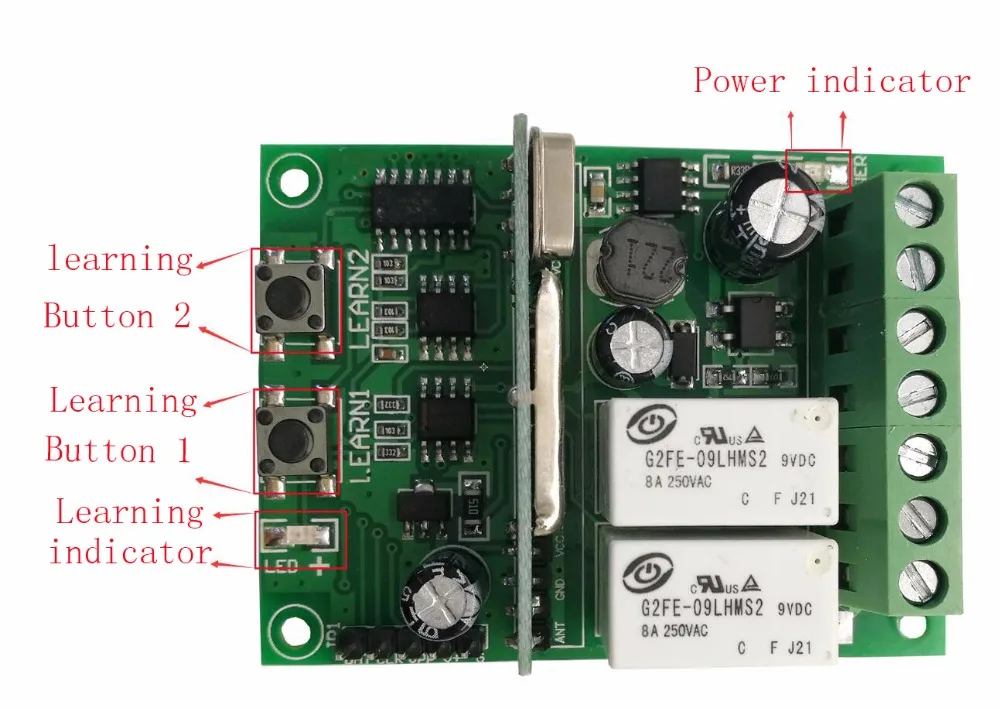

Methods and steps of learning and cleaning code:

Press on controller button, wait for the LED lights up after loosening learning key, the controller into the learning state (LED) out at this time, and then press the remote control button, need to control the controller when the controller of LED lights flash 5 times out, says it has learning success.The learning keypad 1 in the controller corresponds to relay 1, and the learning button 2 corresponds to relay 2, and the control mode is all clicked.

If the remote control is lost, want to make the remote control completely invalid, should press the learning button 1 or learn the key 2 (over 5S), when the LED lights go out, the controller will automatically clear the contents in the memory.To re-use it, you just need to learn it again.

Main technical parameters:

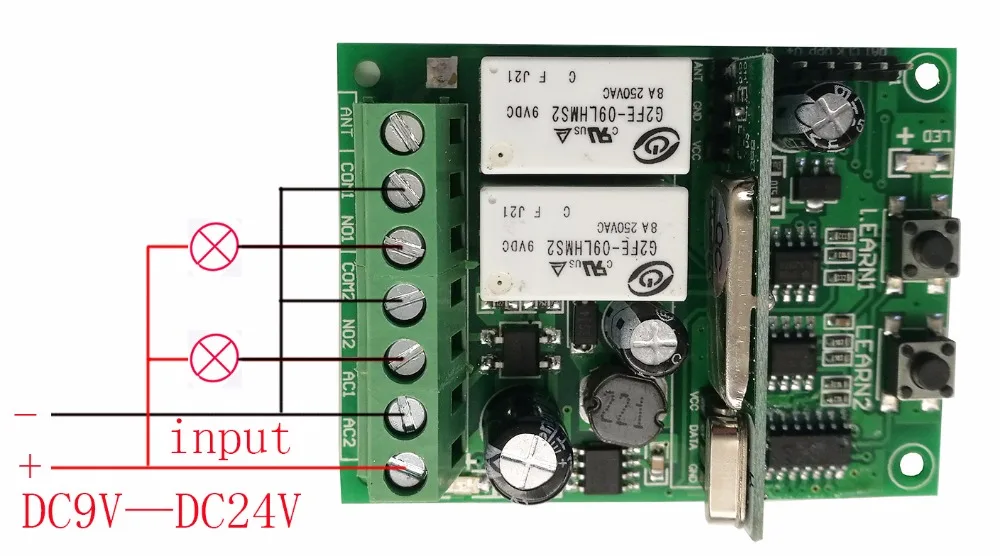

1. Working voltage: DC9V -- DC24V.

2. Static working current: ≤7mA

3, working temperature: - 40 ℃ to + 80 ℃

4. Receiving sensitivity: ≥-112dBm

5. Working frequency: 315MHz/ 433MHz (optional)

6. Contact current: ≤3A

7.Code :Learning code .(jog/Non-Latched .self-lock /Self Latched )

8.PCB Size: 62.5mm*46.5mm*17.5mm

Clearing the code :

Push the learning button on the receivers for 8 times , the codes will be cleaned .

After clearning the code, all the remote control cannot work any more.

Learning the code :(momentary)

Push the learning key on the receiver once time , it comes into momentary setting mode .

Wait for a moment , the LED will be off , it comes into learning state .

Push the remote button , LED indicator on the receiver board will flash then come off .

After 3 seconds, the LED indicator will be on again , learning successfully .

Learning the code : ( Toggle )

Push the learning key on the receiver twice time , it comes into toggle setting mode

Wait for a moment , the LED will be off , it comes into learning state .

Push the remote button,LED indicator on the receiver board will flash then come off.

After 3 seconds , the LED indicator will be on again , learning successfully .

 Note:  433mhz and 315 mhz are available ,315mhz will be sent out if there is no demand on frequency

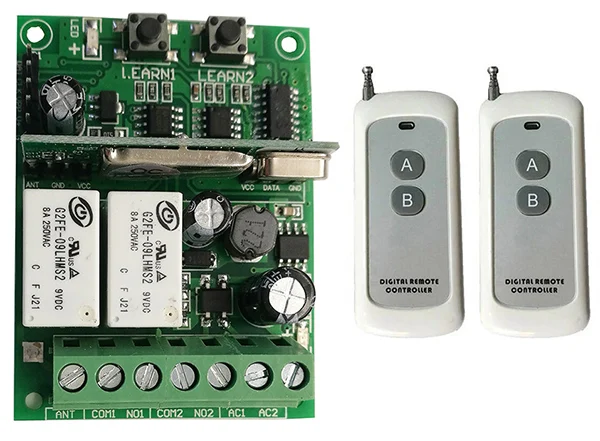

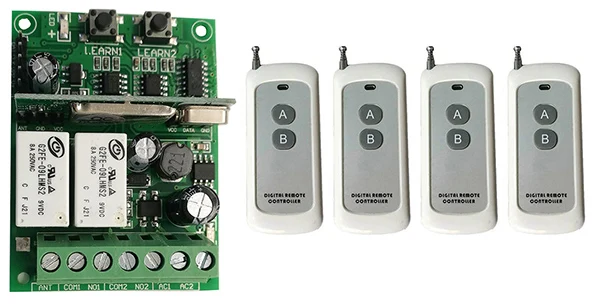

pacote inclued:

A:

1 x Receiver
