Купить 1000W Gid Tie Inverter AC output wind turbine generator with LCD&Dump Load resistor 22-60V/45-90V MPPT Pure Sine Wave | Обустройство
1000W wind power grid tie inverter with LCD& dump load Resistor ,22-60V/45-90V DC to 110V or 220V AC MPPT Pure Sine Wave Grid Tie Power Inverters withbuilt-in rectifier for AC wind turbine generator grid tie system
This unit is the second generation wind power grid tie inverter,completely new design,new structure,the new design enables the inverter working more stable,much better output waveform,much better PF value,higher efficiency etc.
This WAL type is integrate rectifier inside the inverter,it can directly connect to the three phase wind turbine,no need to connect AC to DC controller between the wind turbine and the inverter.Currently,we provide two type DC voltage range,22-60vdc,for 24V three phase wind turbine,and 45-90vdc for 48v three phase wind turbine.
Specification:
| Input Data |
|
| Input Voltage Range |
22-60vdc/45-90vdc (test point is at the output of the inside rectifier) |
| Max input DC voltage |
60V/90V |
| Peak power tracking voltage |
25-60V/50-90V |
| Output Data |
|
| Max output power |
1000W |
| Nominal Voltage |
110vac/230vac |
| Nominal Voltage Range |
95-140v/185-265v |
| Frequency Range |
47.5-51.5 for 50hz,59.3-60.5 for 60hz |
| Power Factor |
>0.95 |
| Output Waveform |
Pure sine wave |
| Characteristic Data |
|
| MPPT Efficiency |
99% |
| Over current protection |
yes |
| Over temperature protection |
yes |
| Reverse polarity protection |
yes |
| Anti-island protection |
yes |
| Stackable |
Just for AC output |
| Operating temperature range |
-20 0C ~ +50 0C |
| Inverter inside temperature |
-20 0C ~ +85 0C |
| Current THD |
<5% |
| Voltage THD |
<5% |
| Standard |
UL1741,IEEE1547,VDE4105(No certificate) |
| Cooling |
Fans |
| Peak Inverter Efficiency |
>92% |
| Warranty |
2 years |

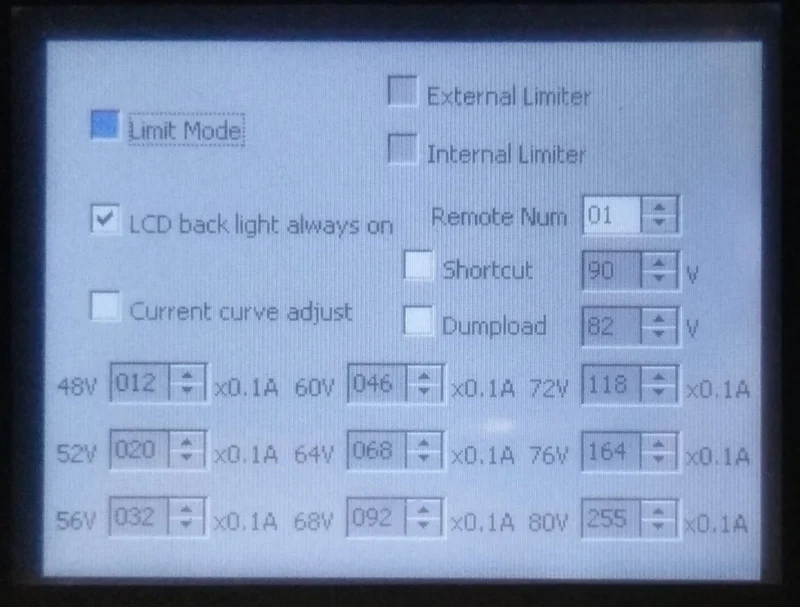

Inverter LCD Display :

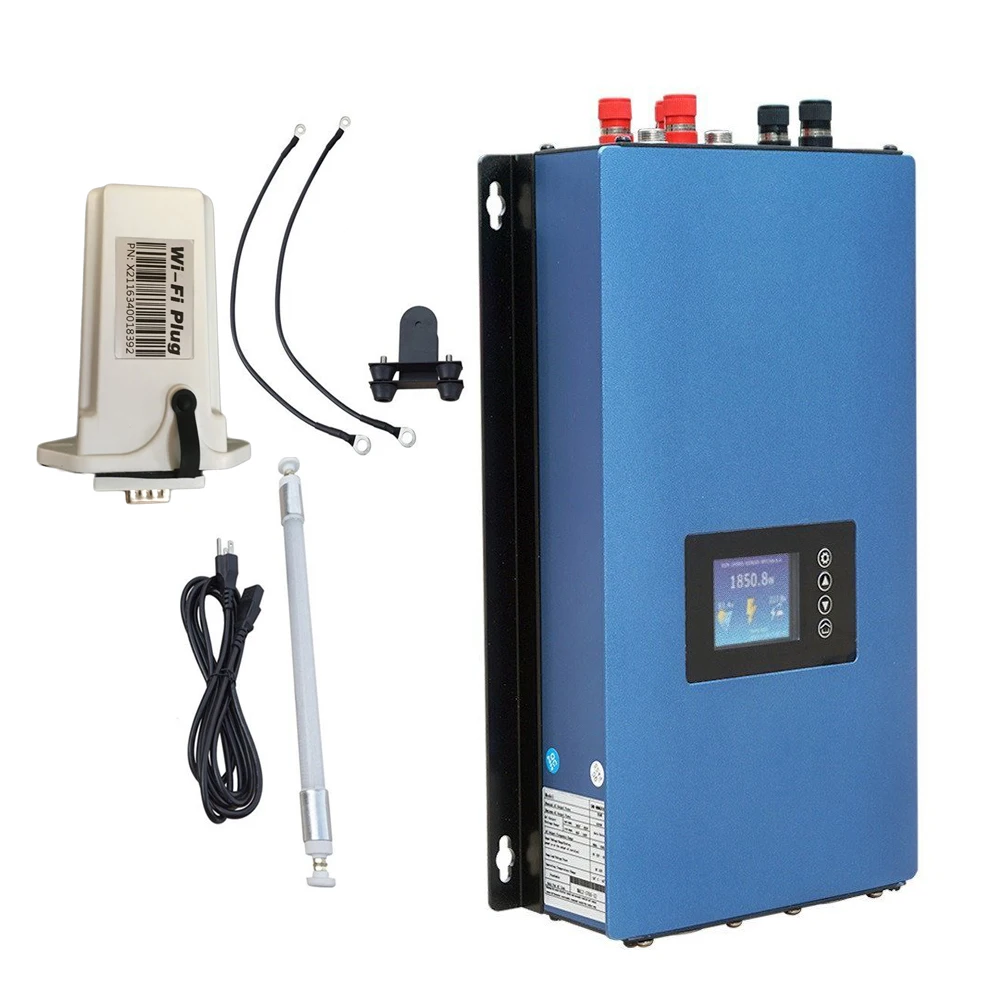

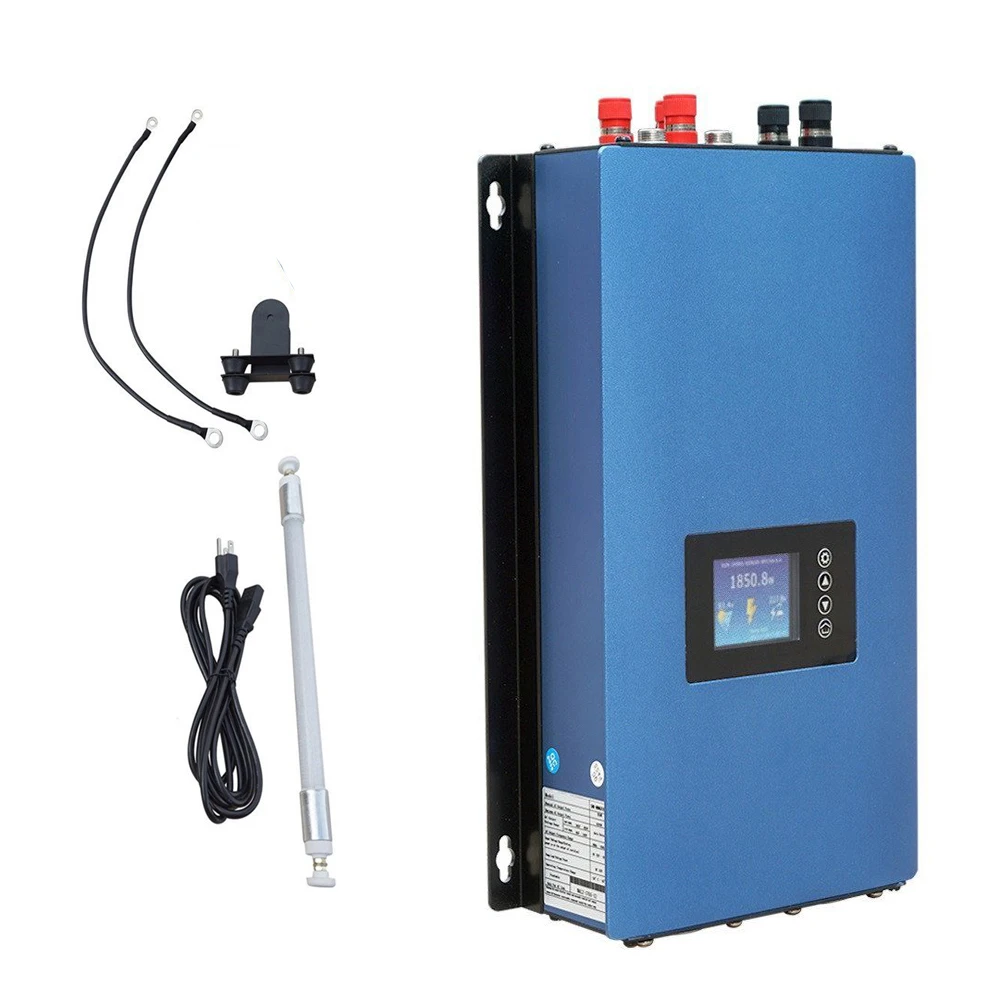

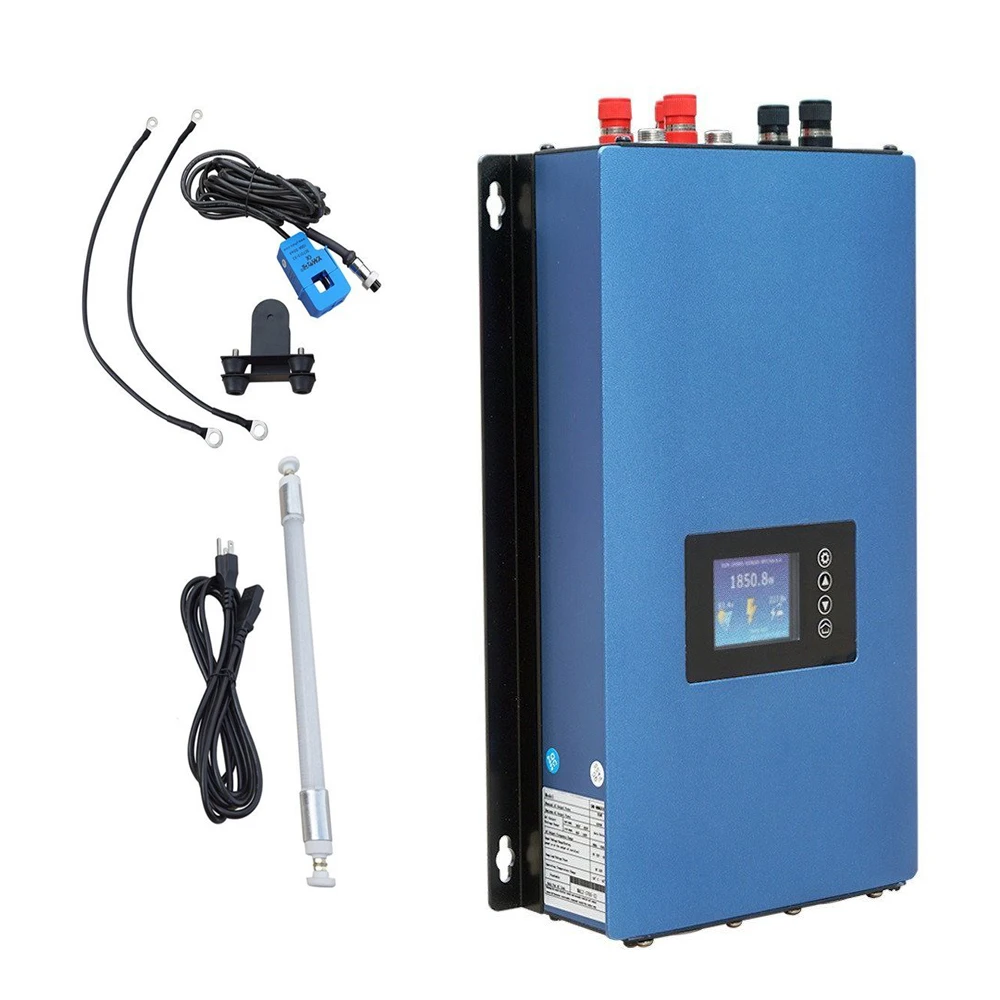

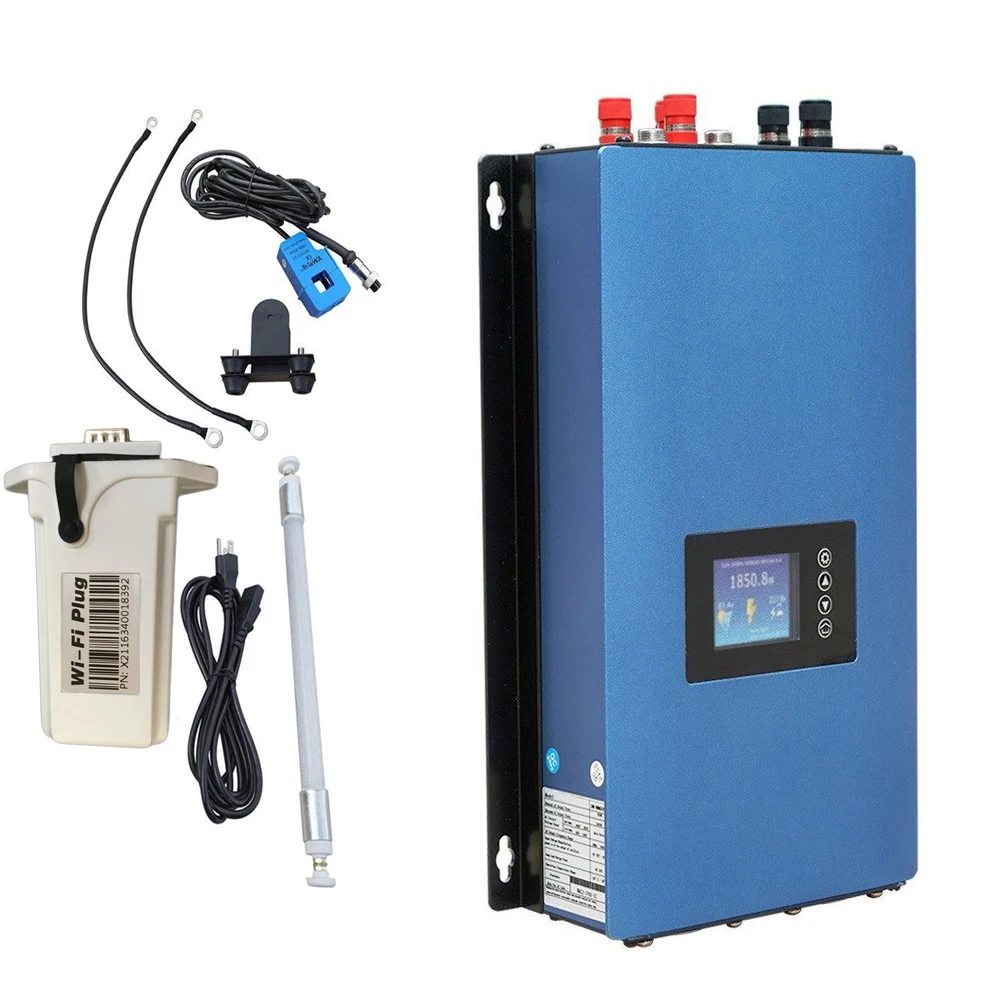

Packing included:
1x1000W grid tie inverter
1xEnglish Manual;
1xDump Load Resistor;
1xClamp Sensor(optional)
!xWIFI Plug(optional)
