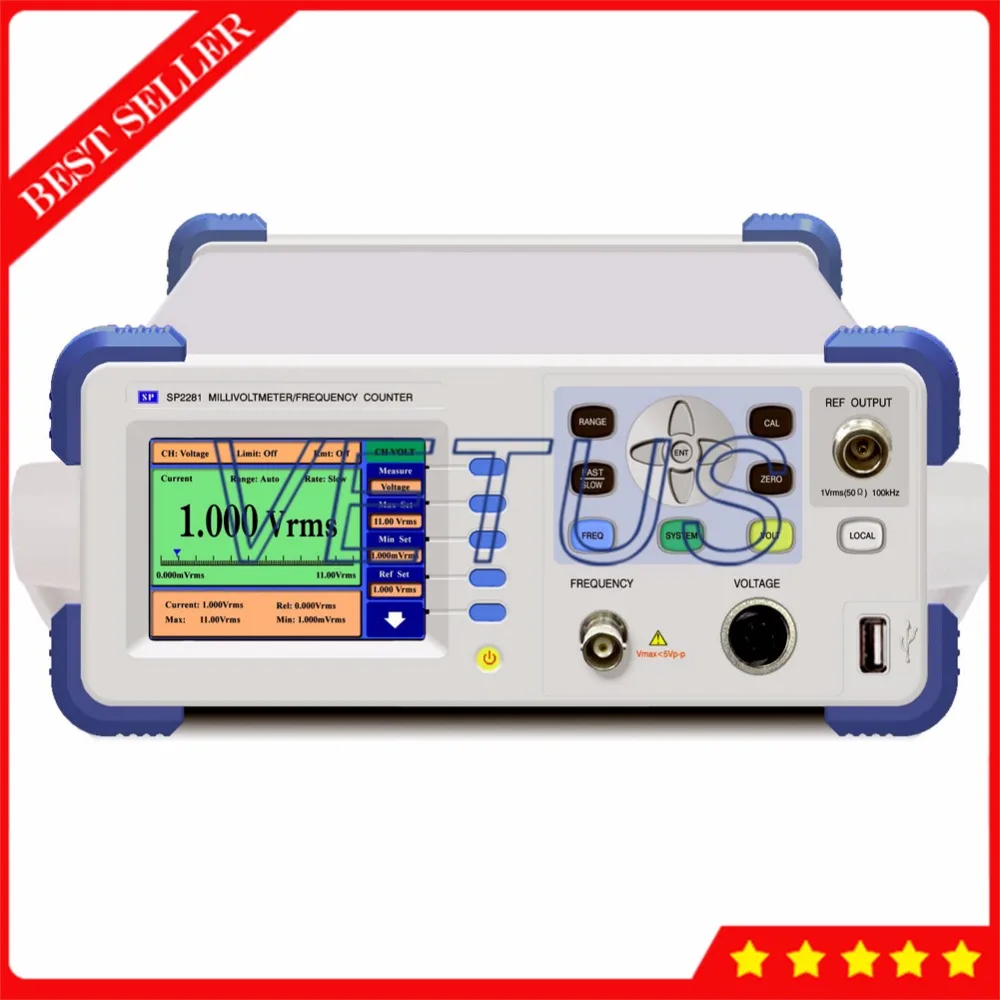

SP2281-I Digital 1.2GHz RF Probe Millivoltmeter 9kHz~1200MHz Voltage frequency meter counter with 1mVrms~10Vrms voltmeter

Product Details：   SP2281 is a CPU-controlled ultra-high frequency digital Millivoltmeter / frequency meter, capable of measuring the frequency range from 9 MHz to 2000 kHz sinusoidal voltage and frequency to 3000 MHz for the indicator. Measurement of voltage range of 1 mV to 10V, measured level of -47 to 33 dBm. For the purchase of a frequency meter. High brightness VFD display. Instruments range of automatic and manual range feature. Can automatically zero, the level of output. With RS232 interface (optional GBIB Interface) with remote control function.     Feature：               Controlled by advanced MCU,some advantages such as, high resolution, high precision and high reliablility.  QVGA, using numerical keys  Produced by SMT, new_type metal box  MTBF：> 20000h   RS-232 Interface, (Option GPIB Interface、USB Interface)      Note:The Frequency Counter is optional, if you need 1.5G Frequency Counter, you need to extra pay 80 dollars, if you need 3G Frequency Counter, you need to extra pay 220 dollars .

Specification
Frequency Range of Voltage to be measured	1.2GHz RF Probe：9kHz~1200MHz
Voltage Measurement Range	1mVrms~10Vrms 50Ω
Level Measurement Range	-47dBm~+33dBm，50Ω
Voltage Ranging	4mVrms/40mVrms/400mVrms/4Vrms/10Vrms
Level Ranging	-40/-20/0/+20/+40dBm
Coaxial Detector	Frequency Range		2GHz Coaxial Detector(SP2281-III)				3GHz Coaxial Detector(SP2281-III)
Frequency Response Error:	Ranging		2.25V~10mVrms		10mV~2mVrms		2.25V~10Vrms		10mV~2mVrms
			(+20dBm~-27dBm)		(-27dBm~-41dBm)		(+20dBm~-27dBm)		(-27dBm~-41dBm)
	100kHz~100MHz		±2%		±3%		±2%		±3%
	10kHz~200MHz		±3%		±4%		±3%		±4%
	200MHz~600MHz		±5%		±7%		±5%		±7%
	600MHz~1000MHz		±8%		±9%		±7%		±9%
	1000MHz~1500MHz		±12%		±13%		±12%		±13%
	1500MHz~2000MHz		±15%		±16%		±16%		±17%
	2000MHz~2500MHz		─		─		±15%		±16%
	2500MHz~3000MHz		─		─		±17%		±18%
Surface SW Coefficient of 10V Coaxial Deteetor	Frequency Range					SW Coefficient
	10kHz~200MHz					≤1.03
	200MHz~500MHz					≤1.04
	500MHz~1000MHz					≤1.15
	1000MHz~1600MHz					≤1.25
	1600MHz~2000MHz					≤1.35
	2000MHz~3000MHz					≤1.40
Reference Output	Output Voltage：1VRMS
	Output Frequency：≈100kHz
	Output Impedance：50Ω
Frequency Counter (Configurable)	Frequency Range：10kHz~1GHz/2.5GHz/3GHz
	Input Characteristics	Minimum Input Voltage：50mV		Maximum Input Voltage：5V				Time base：10MHz Stability 5×10-6
Size	255mm×370mm×100mm
Weigth	3.5kg
