1. Consignee

  Please use a Full Name as the consignee, or cargo can't reach to you. Especially in Russian Federation. Thanks for understand.   All products were checked well before delivering, please placing order without concern.     2. Delivery   Usually we send out your order in 2-6 days after payment. we promise to refund or resend if you don't get parcel, but pls give also patience of waiting the parcel during the delivery date, for the parcel still on the way to you.   Any problem pls just contact us first.

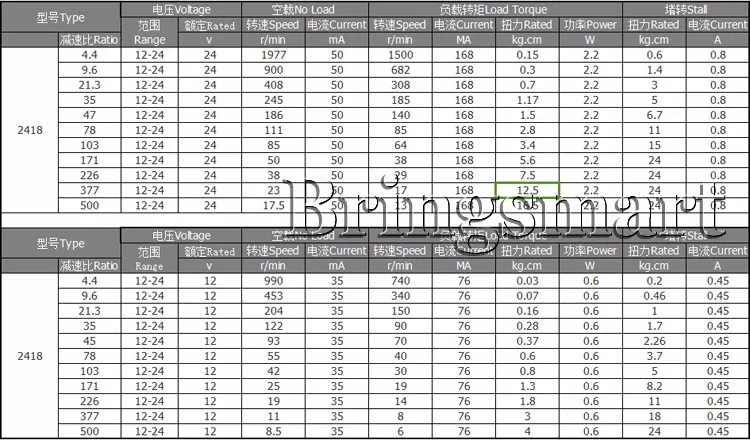

Pls leave message of Voltage and no load speed which you want, we have to shipping 55rpm 12v by default.

Thanks for your understand!





PIN:

1.PWM Speed (Input 1 ~ 50kHz PWM signal, the duty cycle can be adjusted by adjusting the motor speed)

2. Power negative

3. Reversible (when float CCW, short to ground CW)

4. Feedback (n = 60 * F / P), F: output frequency feedback, P: Motor poles: 6 pairs

5. The power supply positive

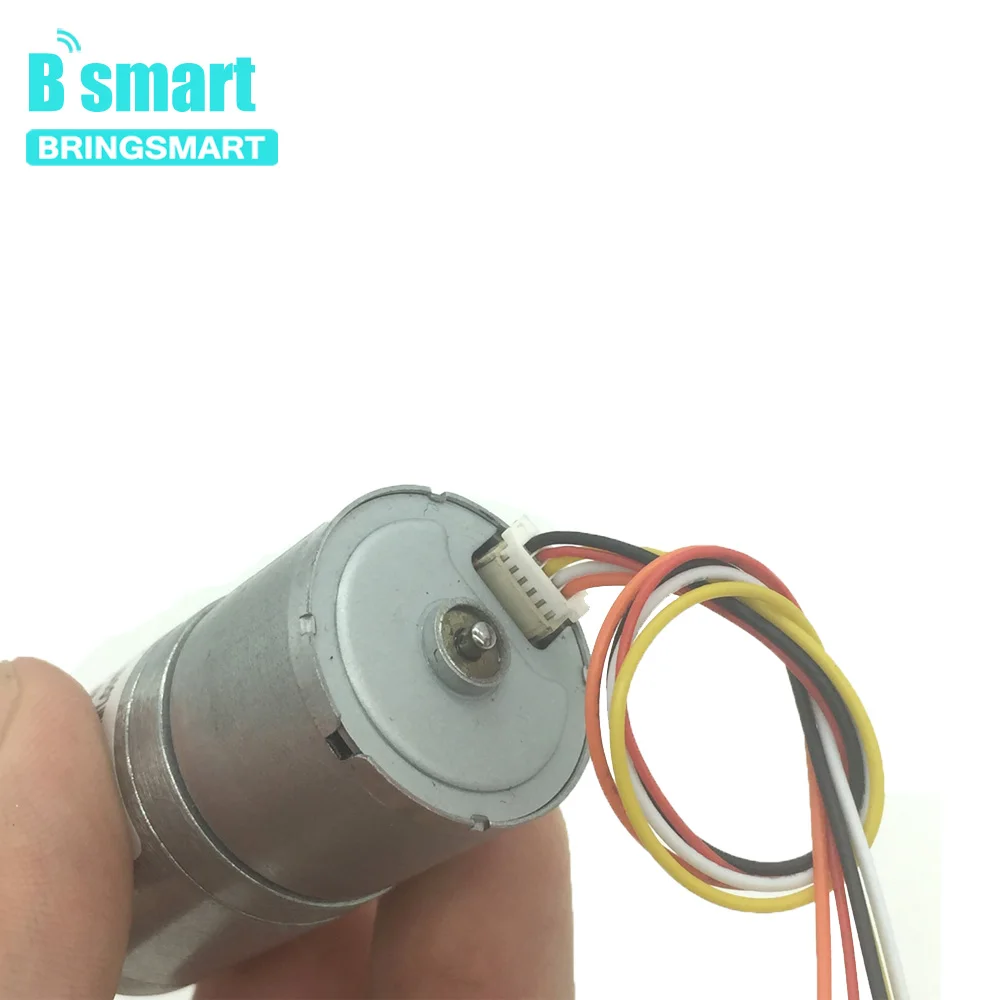

Wiring Method:

Black line & White line: power supply negative -

Red line: power supply positive +

White Line: Line Disconnect Brakes immediately.

Orange Line: CW / CCW commutation line, the orange line to the black line change turned.

Yellow Line: FG output signal line Hall signal

White line: PWM pulse width speed line can be connected to 0-5V PWM converter
