12V Unversal Motorcycle Car Oil scale meter LED Fuel level Gauge Indicator Инструменты - купить

Купить 12V Unversal Motorcycle Car Oil scale meter LED Fuel level Gauge Indicator | Инструменты

Description
Working voltage: DC 12V

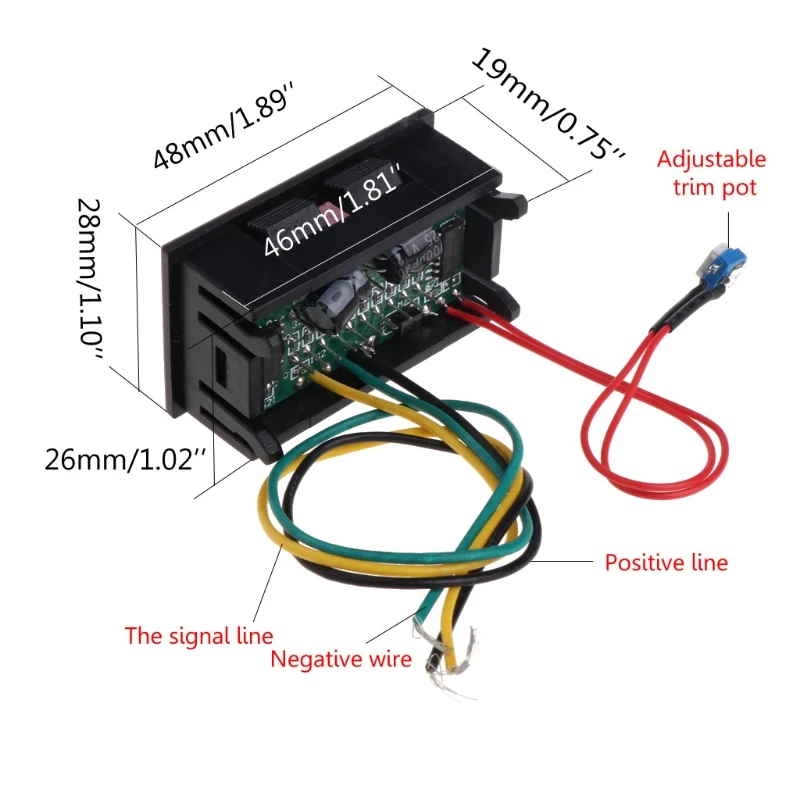

connect cable:
Black: + 12V positive
Green: -12V negative
Yellow: sensor singnal input

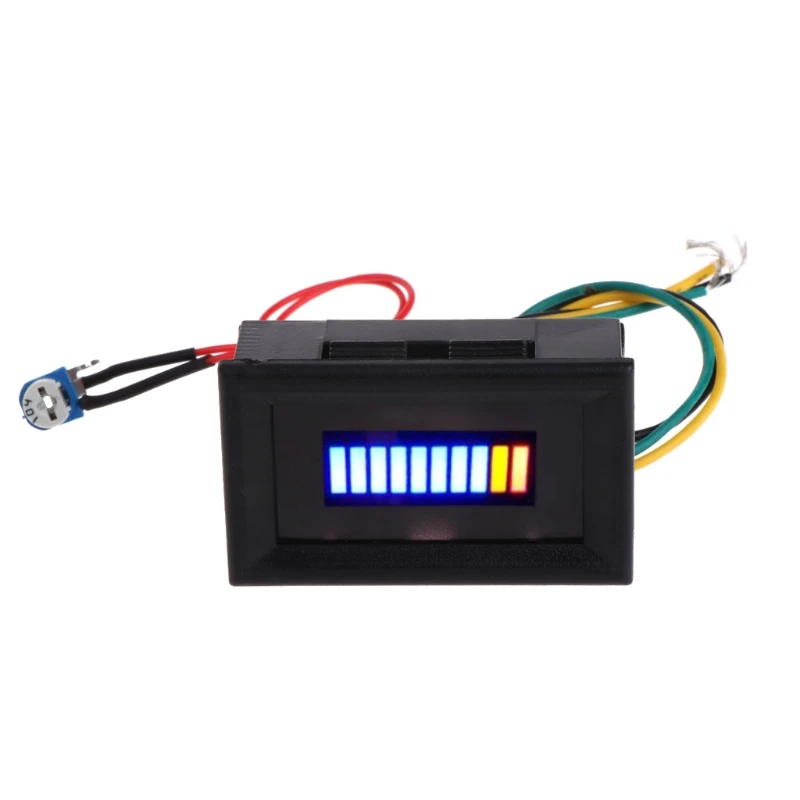

LED display :one Red ,one Yellow ,eight blue
Dimensions: 48x28x19mm(LxWxH)
Cutting Size: 46×26mm

this meter have adjustable potentiometer , it can't the same time use with original car oil scale
Fill Up the Tank, adjust the potentiometer until the led meter all bright , and until don't have any oil in tank adjust the meter led all crush out .

Red light is power supply Indicator light ,the yellow Turn off mean no oil , 5-6 is bright together the other one by one bright

Must cooperate with oil sensor (float).Cannot be used together with the original oil scale.

Package include :
1pcs 12V Unversal Motorcycle Car Oil scale meter LED Oil Fuel level Gauge Indicator
