BAUER OMEGA XD Hot Air And IR 2 In 1 BGA Rework Station Bauer Special BGA Soldering Machine

Introduction

Unique 3 zones halogen heating pipe technology exchangeable IR HR heads BAUER OMEGA XD universal bga rework station 220V.

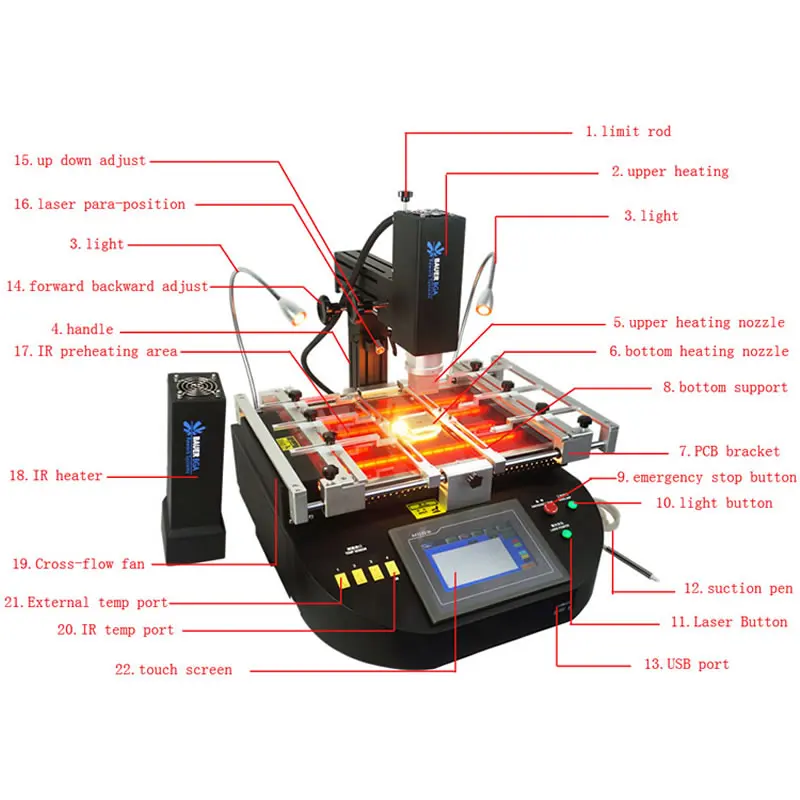

BAUER OMEGA XD (4)

Technical Parameters

Basic Parameters
Heating	IR and HR
Dimension	L550mmx W550mmx H500mm
Weight	45kg
Total weight	About 70 kg, vary with the differen need of the users
Electrical Parameters
Power	220V AC
Upper Heating	IR and HR
Size of upper (IR)	80*80mm

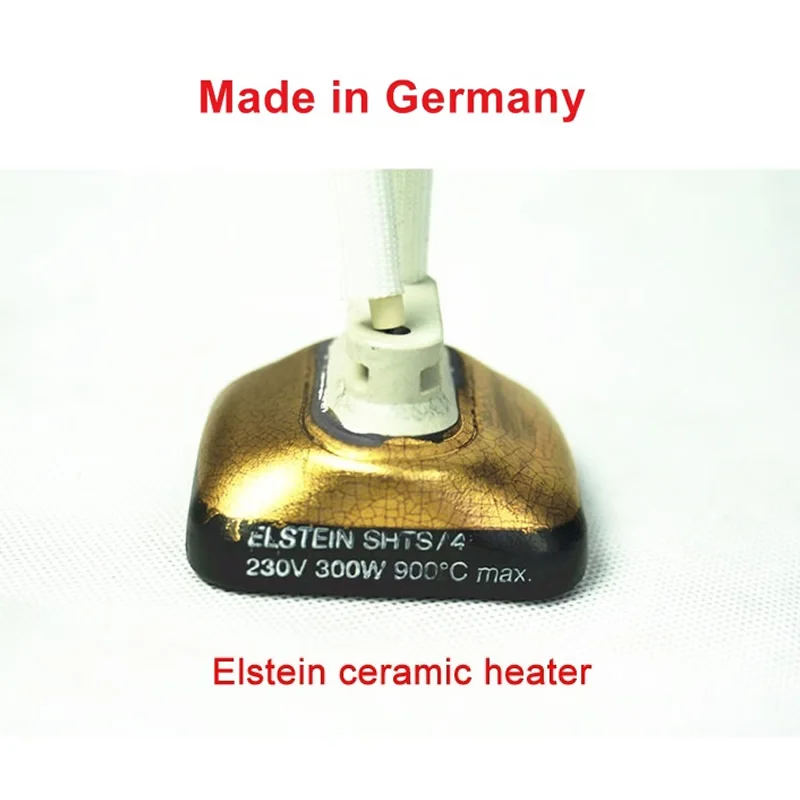

Consumption of upper (IR)	300W (ELSTEIN heating plate)
Nozzle of upper(HR)	4 pcs: 15x15, 31x31, 38x38, 45x45mm
Consumption of upper (HR)	800W
Bottom Heating	HR
Nozzle of bottom(HR)	1 pcs 58x58mm
Consumption of bottom (HR)	800W

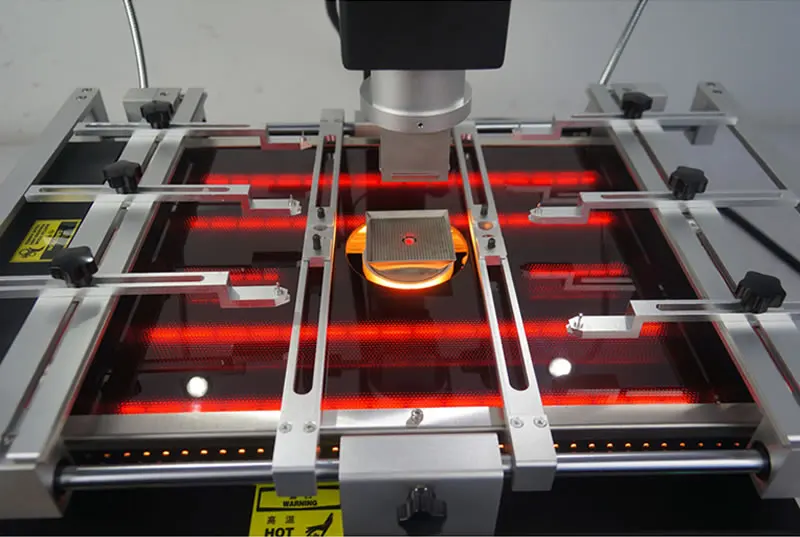

Bottom Preheat	IR
Consumption of preheat (IR)	4600W
General power	5.5KW

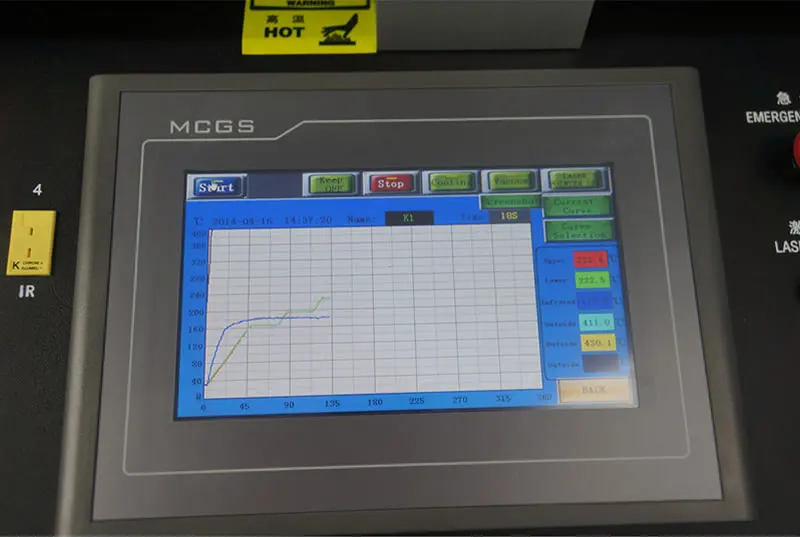

Temperature Control
Control mode of Upper	Independent temperature control, high-precision closed-loop control, precision ± 0.5%, Alarm
Control mode of Bottom	Independent temperature control, high-precision closed-loop control, precision ± 0.5%, NO Alarm
Rework Function
SMD	Suit for welding, remove or repair packaged devices such as BGA,PBGA,CSP,multi-layer substrates, EMI metallic shield product and solder/lead free Rework welding
Size of applicable chips	≤80mm x80 mm

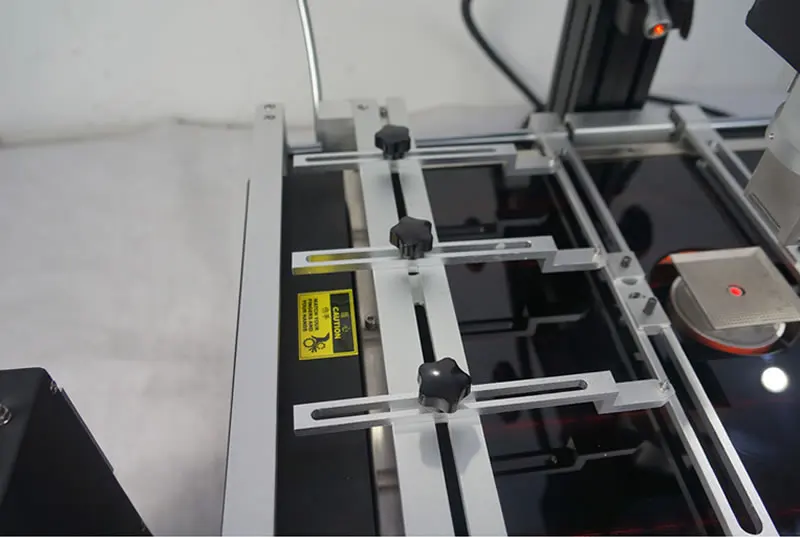

Size of applicable PCB	≤450mm x350mm

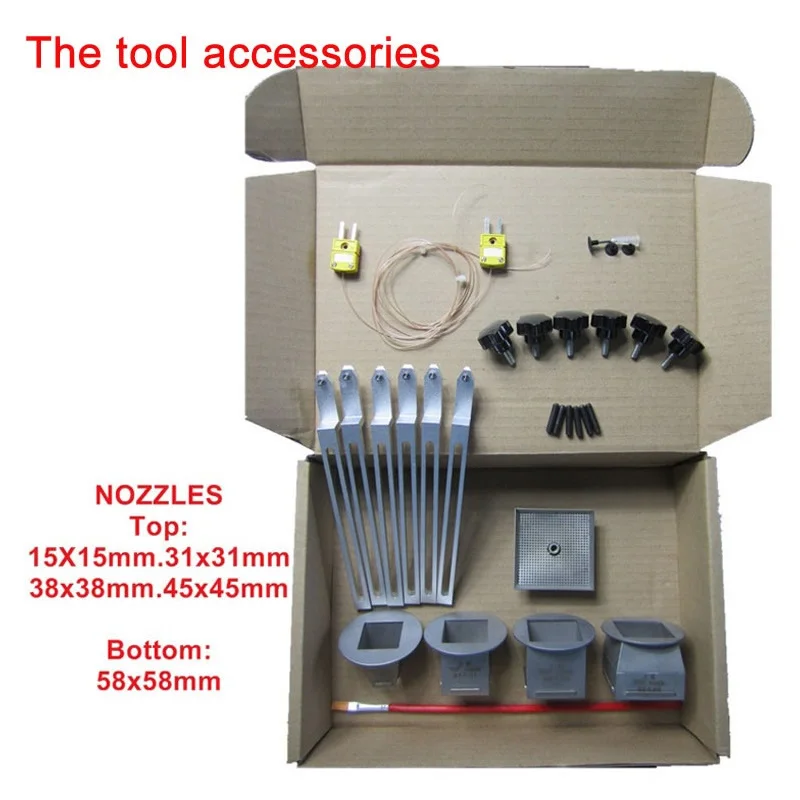

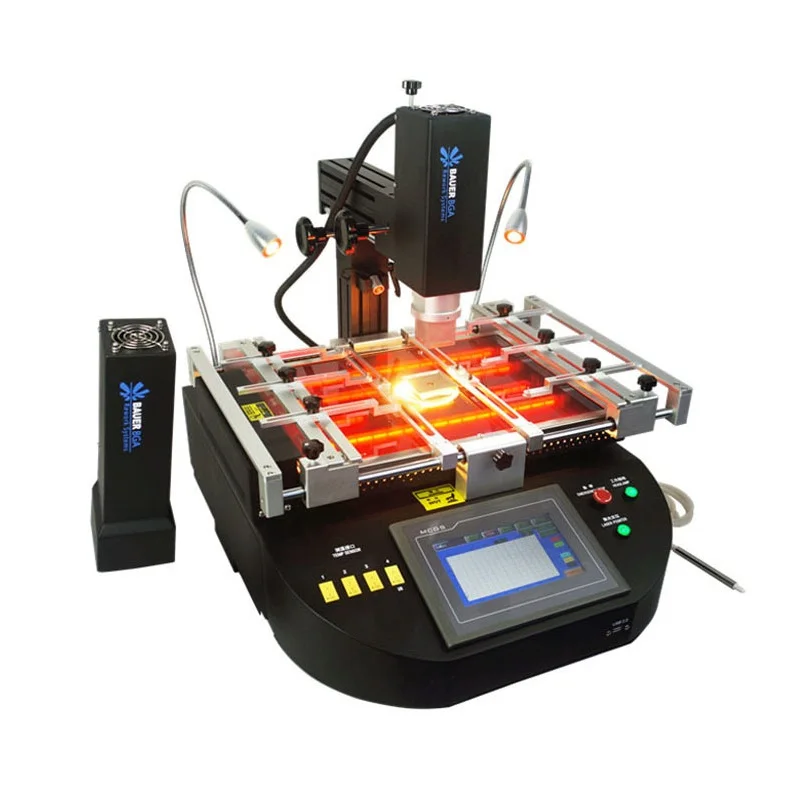

Packing list 1× bga rework station (with IR Top and Hot air Top) 2× pcb bottom support 6× pcb jig (with screw) 5x nozzles (4 pcs for top 1 pcs for bottom) 2× k-type Omega thermocouple 1× brush 1× CD of manual and software (if not get, may be lost in customs, please contact us) Item pictures BAUER OMEGA XD (1)
