Factory Off Sale Handheld Oscilloscope Scopemeter ET521S 50M 10Hz-156kHz Function Signal Generator LCD Scope Meter(English Language)



Features:

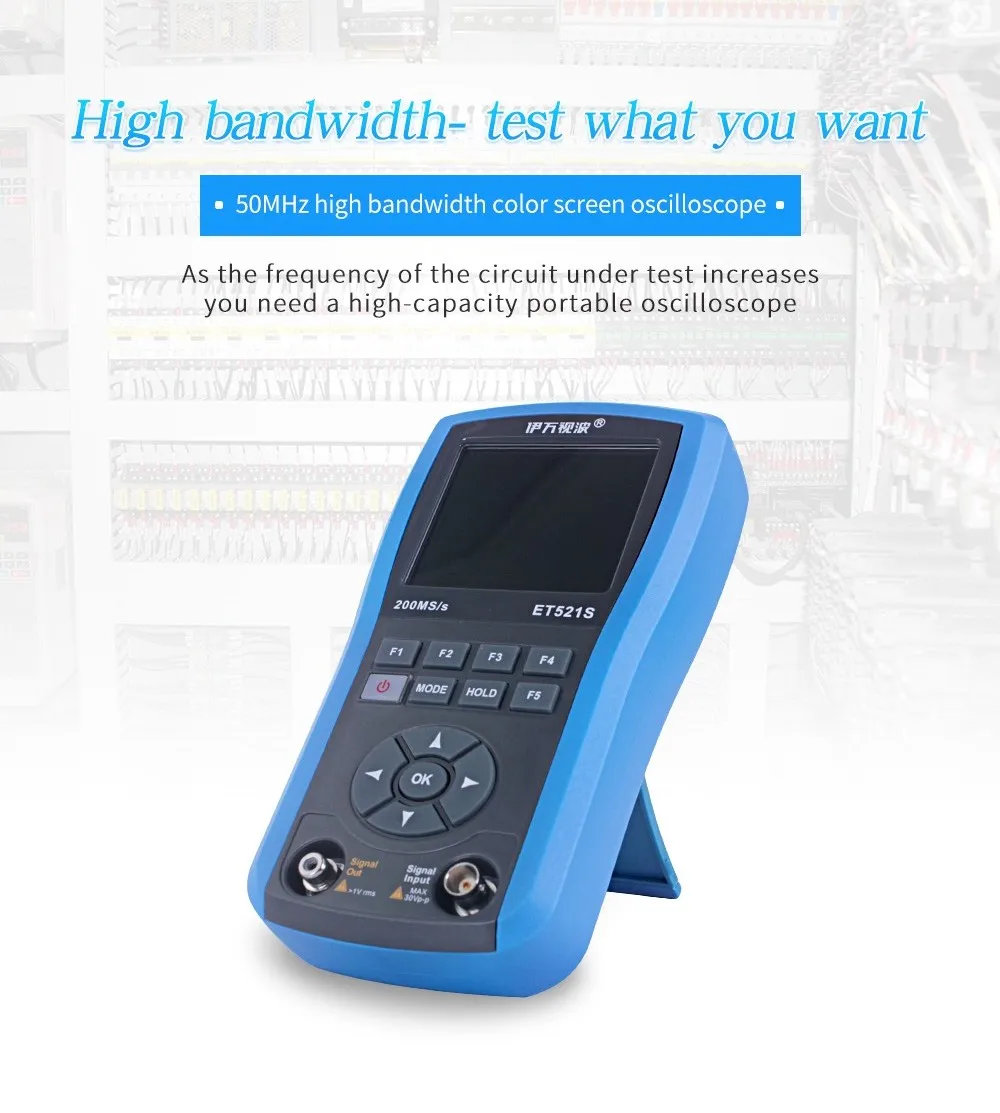

50MHz digital storage oscilloscope (DSO)

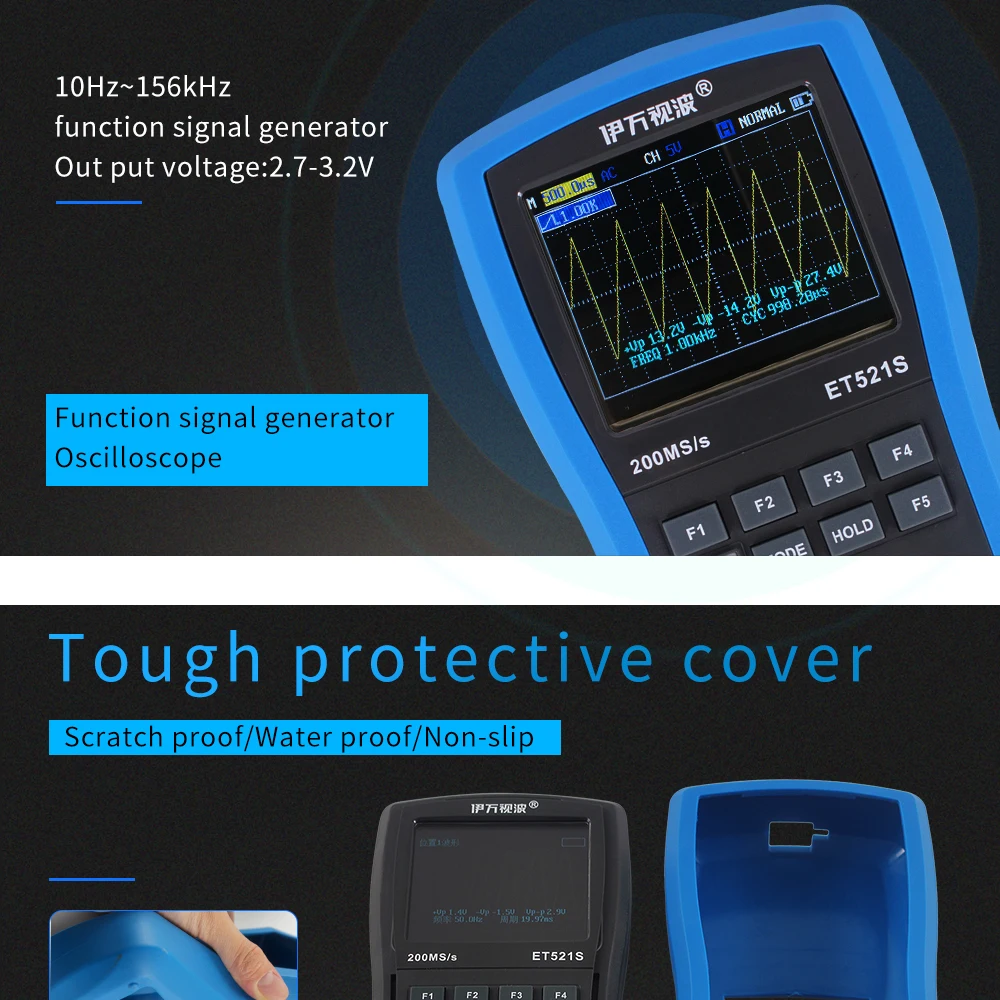

10Hz~156kHz function signal generator (DDS)

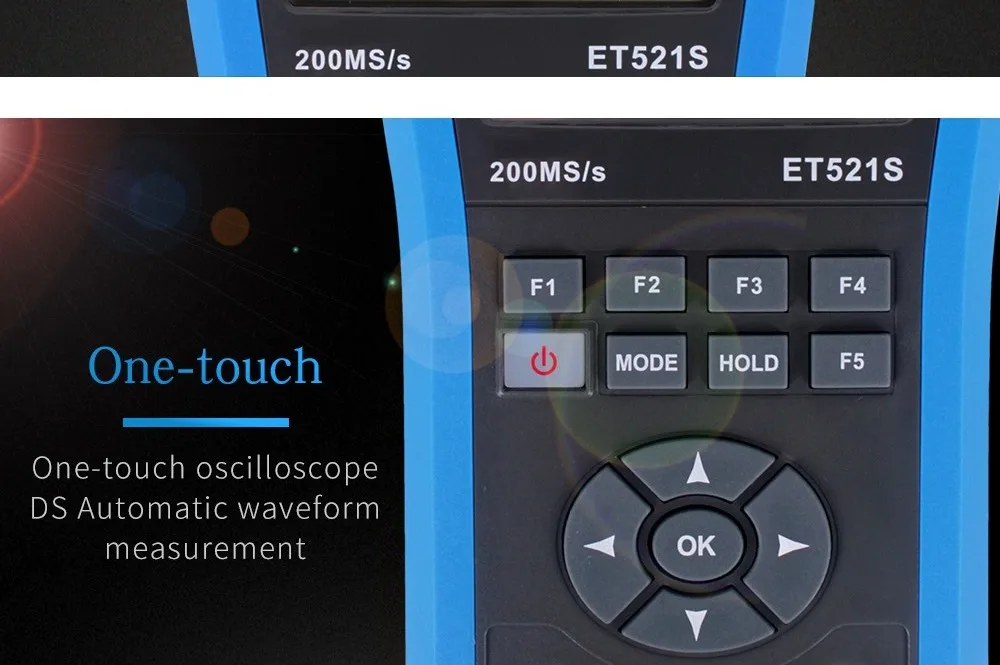

Automatic display of measured waveforms and automatic zero adjusting

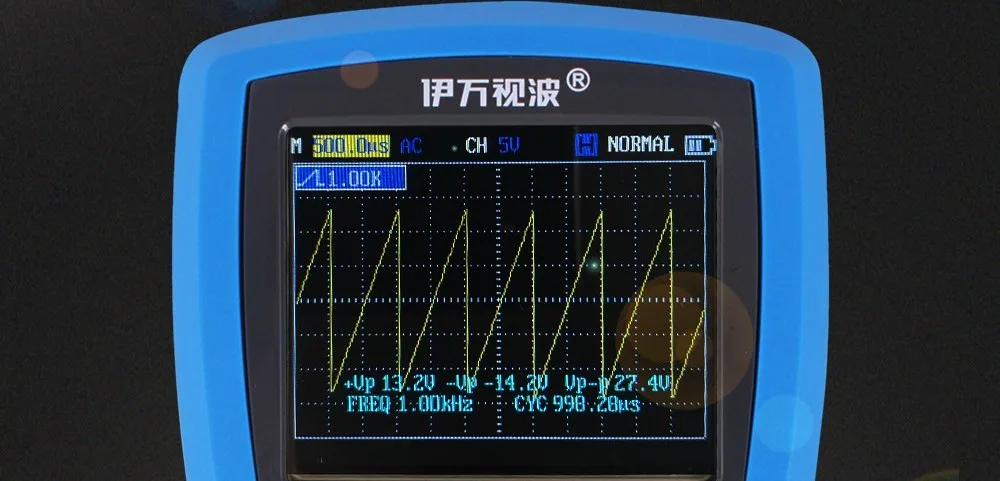

Digital readout of Vp-p, +Vp,-Vp, f, T, dV and dt

Memory/readout of up to 40 DSO waveforms

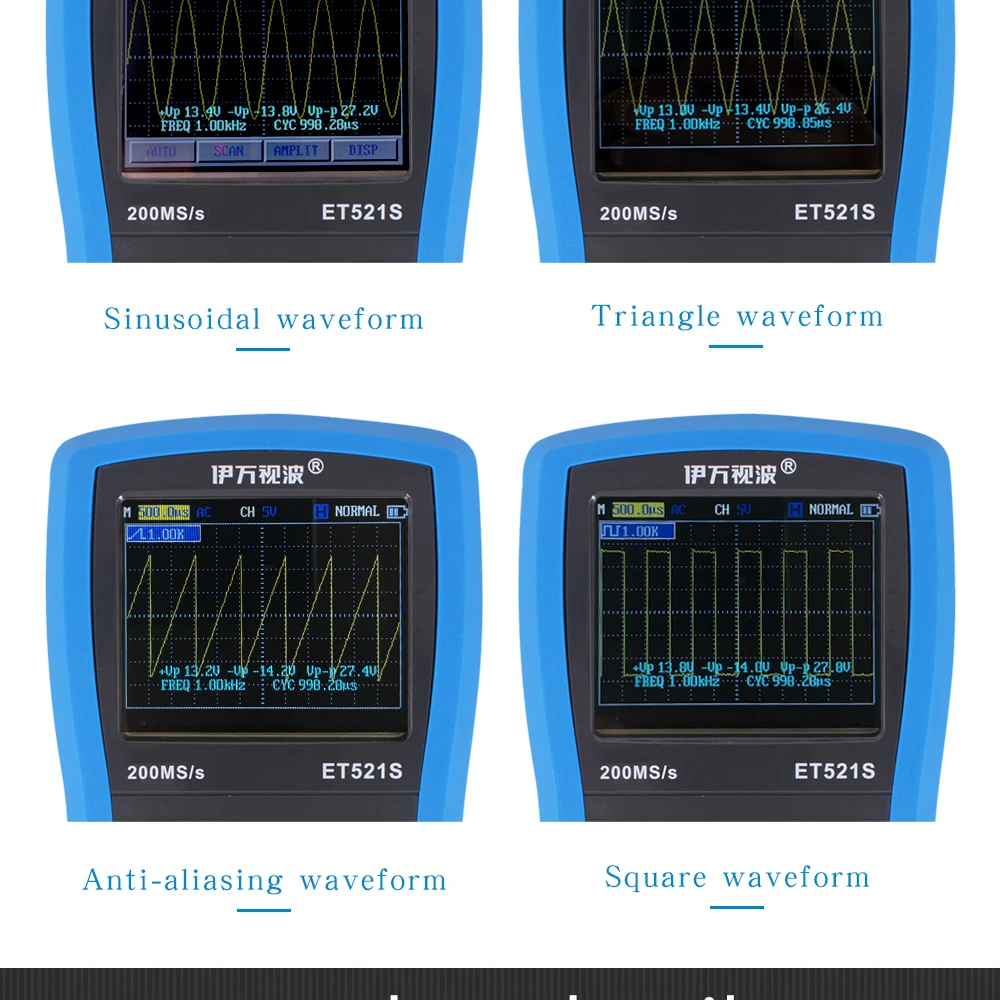

Generate sine wave, triangular wave, sawtooth wave and square wave signals

Use internal 200μS/400μS to test square waves, facilitate the detection of HOT type inter-turn faults ringing signal

Auto shutdown/Keep working

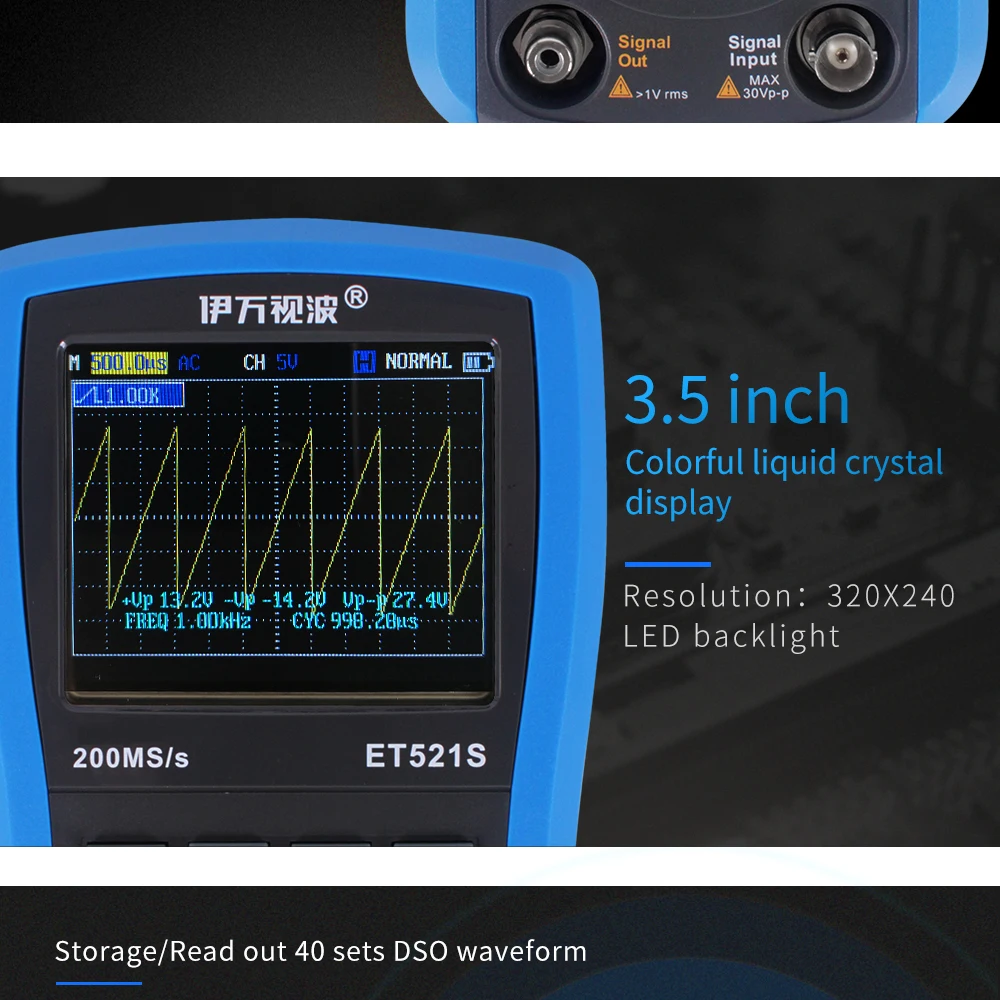

320X240 3.5-inch color LCD display with LED backlight

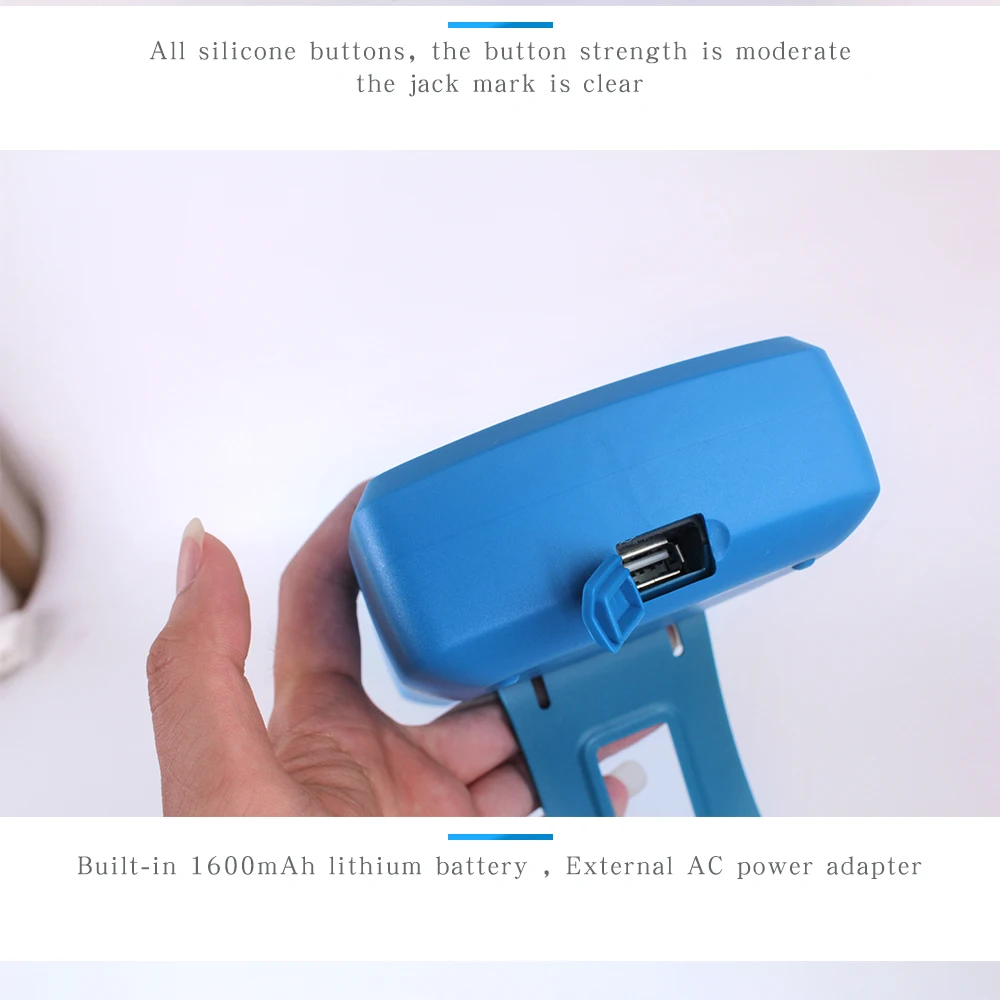

Built-in 2300mAh lithium rechargeable battery pack and equipped with AC power supply adapter for external power source

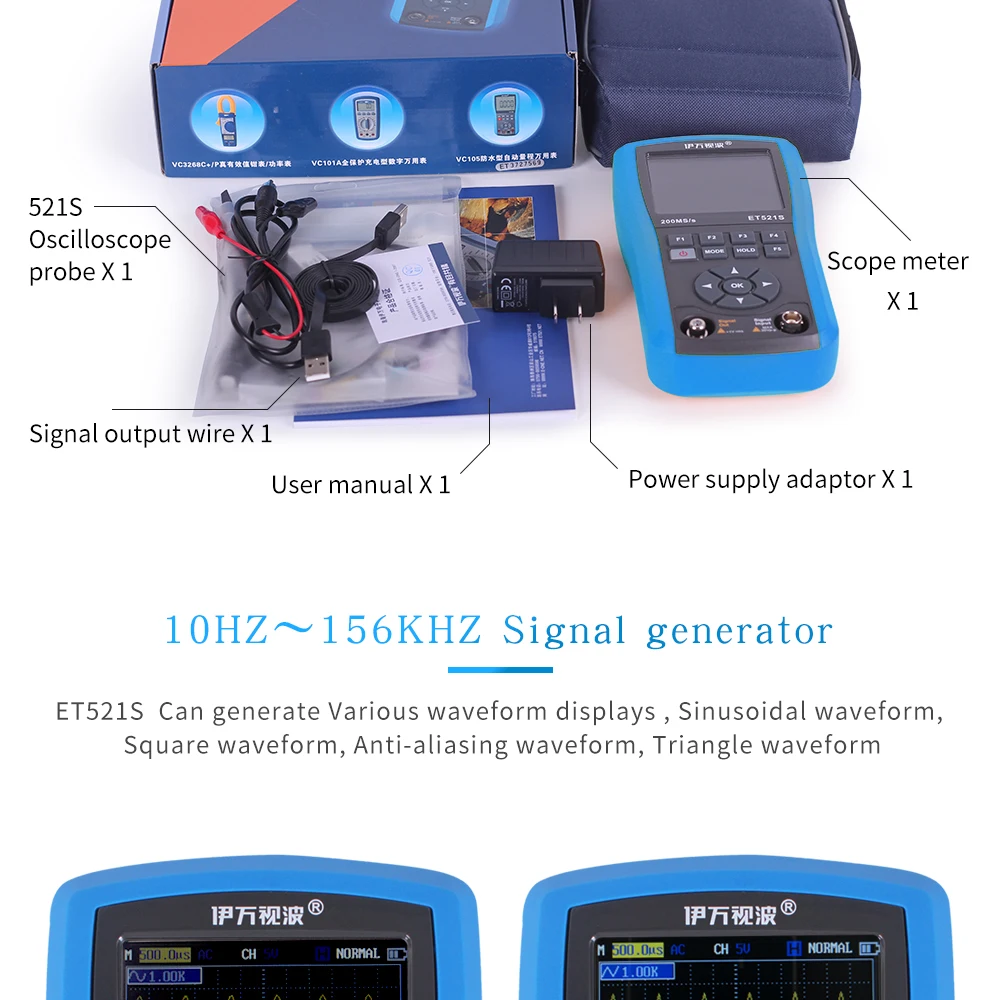

What's in the package:

1 X Oscilloscoope

1 X Power adapter

1 X Testing leads

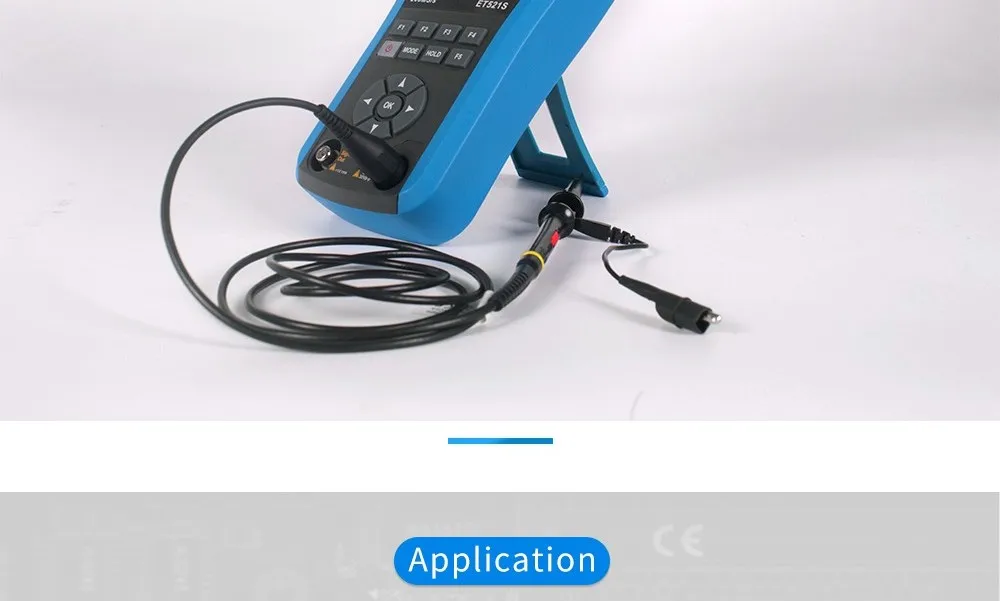

1 X Scope probe

1 X Set of accessories

1 X Tool bag

1 X User manual

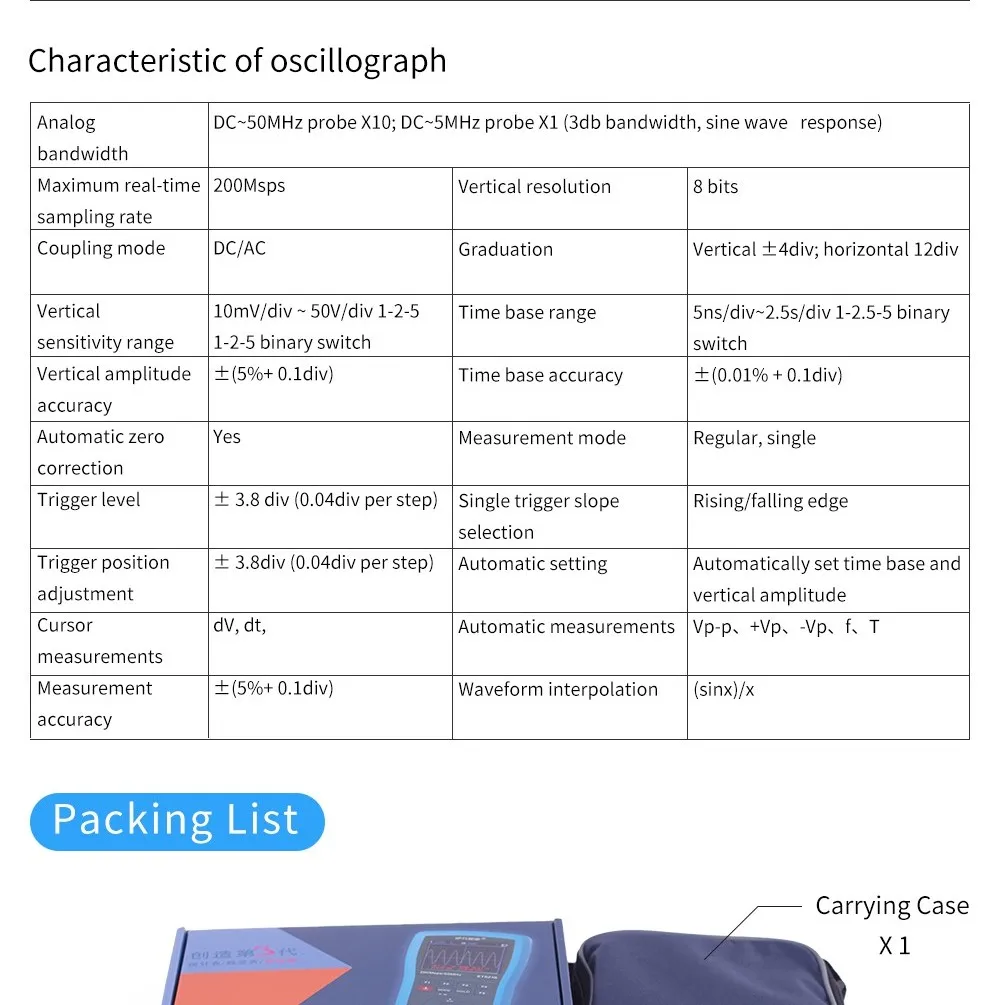

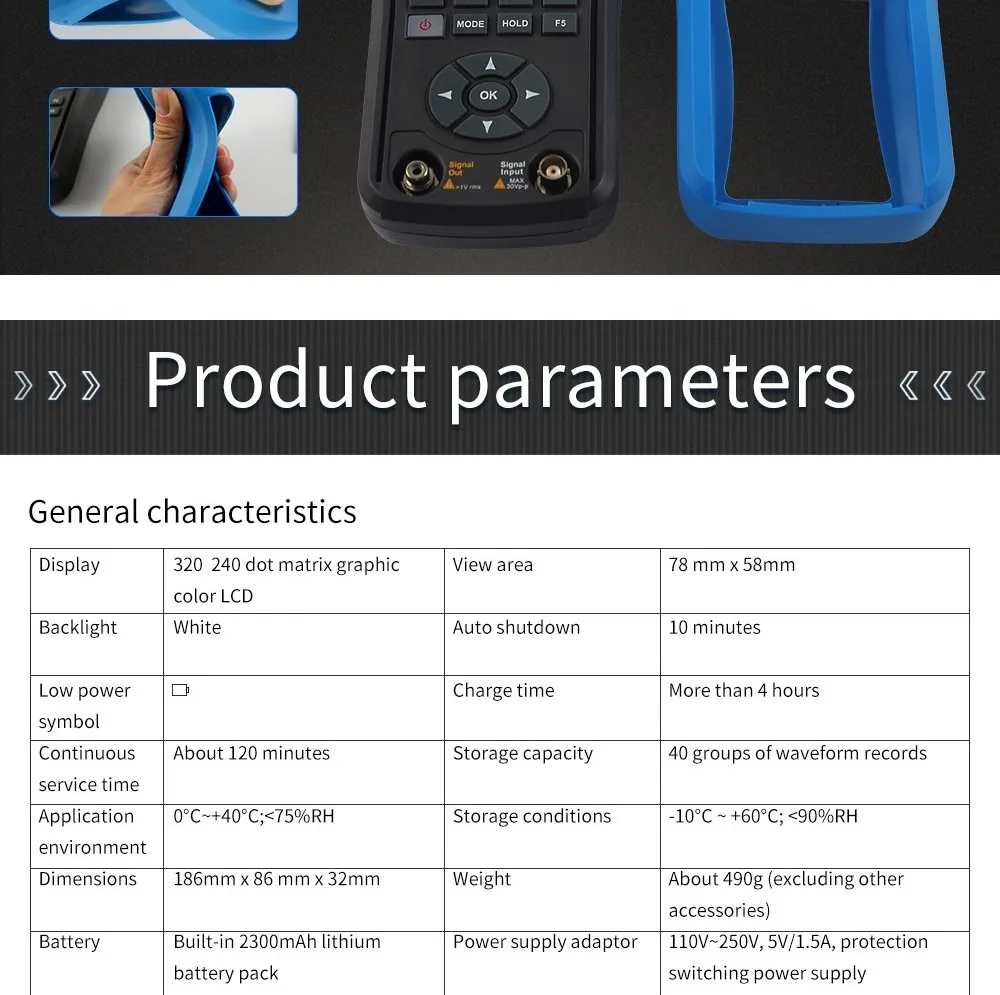

Specification:

Analog   bandwidth	DC~50MHz probe X10; DC~5MHz probe X1 (3db bandwidth, sine wave   response)
Maximum real-time sampling rate	200Msps	Vertical resolution	8 bits
Coupling mode	DC/AC	Graduation	Vertical ±4div; horizontal 12div
Vertical sensitivity range	10mV/div ~ 50V/div 1-2-5 10mV/div~50V/div 1-2-5 binary switch	Time base range	5ns/div~2.5s/div 1-2.5-5 binary switch
Vertical amplitude accuracy	±(5% + 0.1div)	Time base accuracy	±(0.01% + 0.1div)
Automatic zero correction	Yes	Measurement mode	Regular, single
Trigger level	±3.8div (0.04div per step)	Single trigger slope selection	Rising/falling edge
Trigger position adjustment	±3.8div (0.04div per step)	Automatic setting	Automatically set time base and vertical amplitude
Cursor measurements	dV, dt,	Automatic measurements	Vp-p, +Vp, -Vp, f, T
Automatic measurement accuracy	±(5% + 0.1div)	Waveform interpolation	(sinx)/x

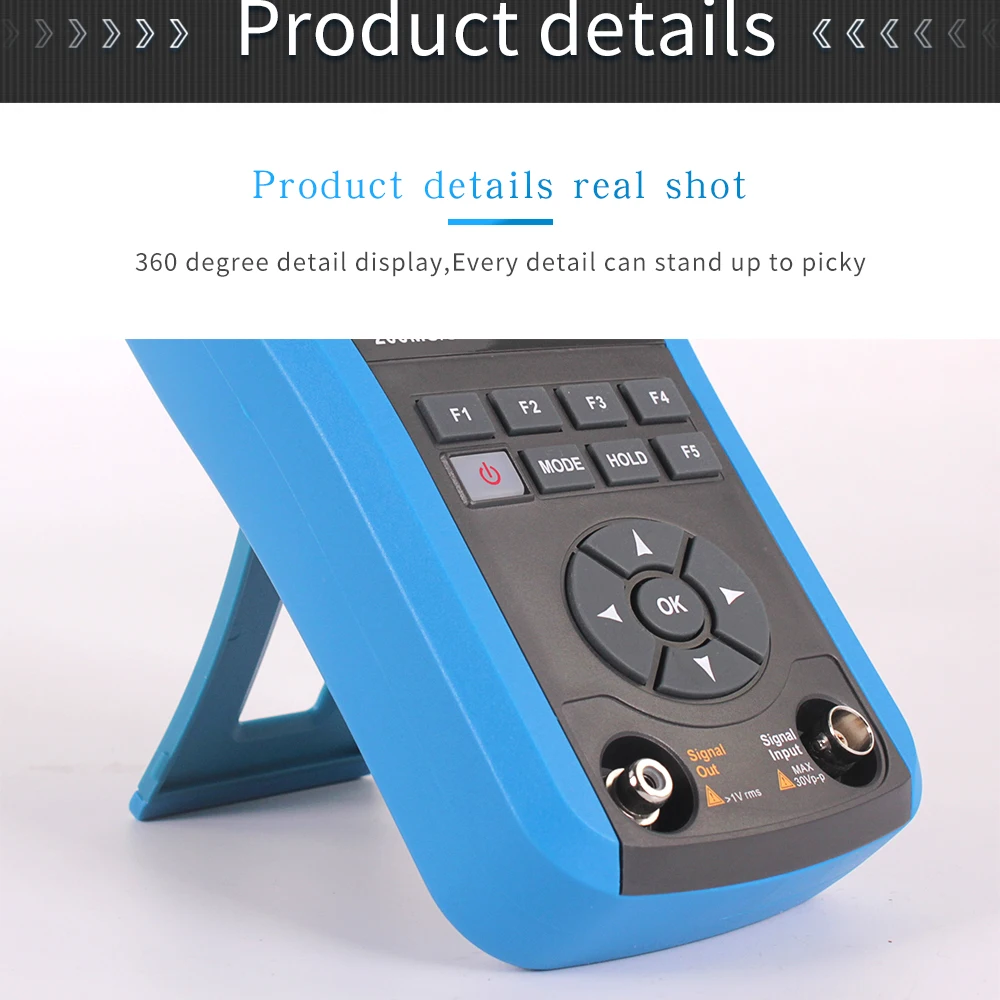

Product show:
