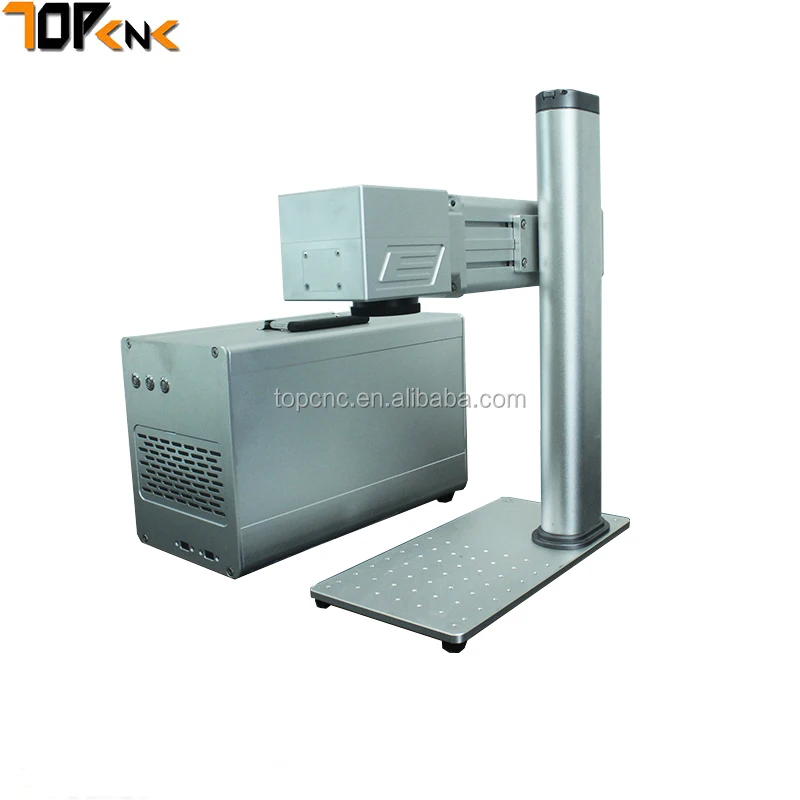

 Factory 20W portable mini fiber laser marking machine

Product Description
Fiber laser marking machine Application
This machine is suitable for Glass, Metal, Paper, Plastic etc.

It is widely used in fields that have high requirement on depth, smoothness and fine, such as clock and watch, mould, bitmap marking, etc. And used in industries like electric component, gift, communication equipment, electric appliance, construction material, package of food and medicine, PVC materials, IC integrate circuit, communication equipment, craftwork, polymethacrylate, semiconductor etc.

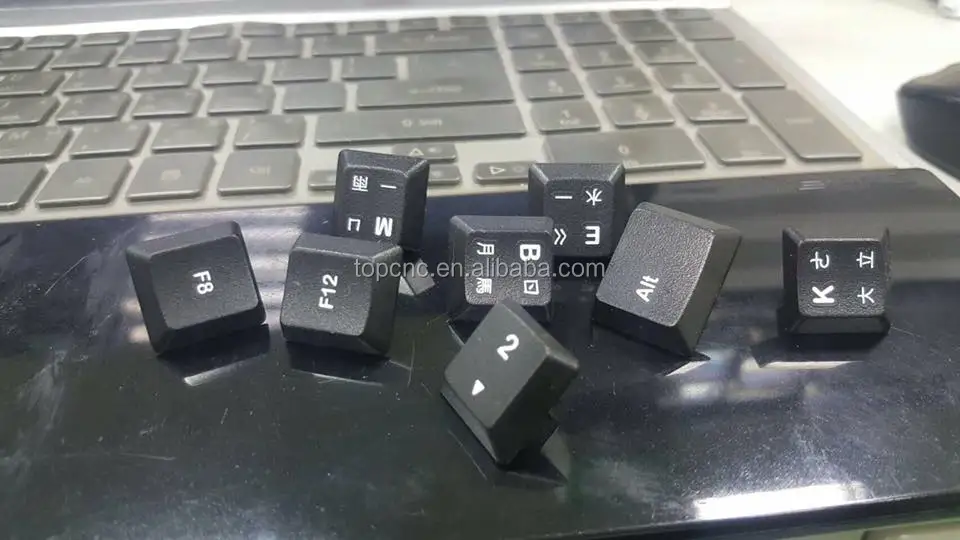

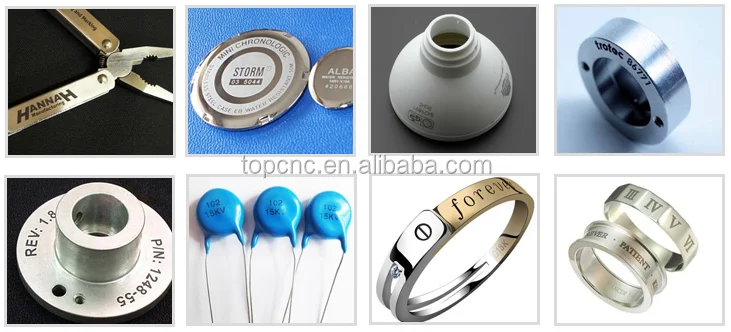

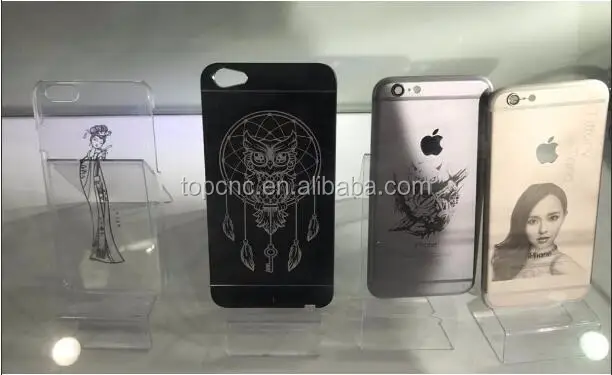

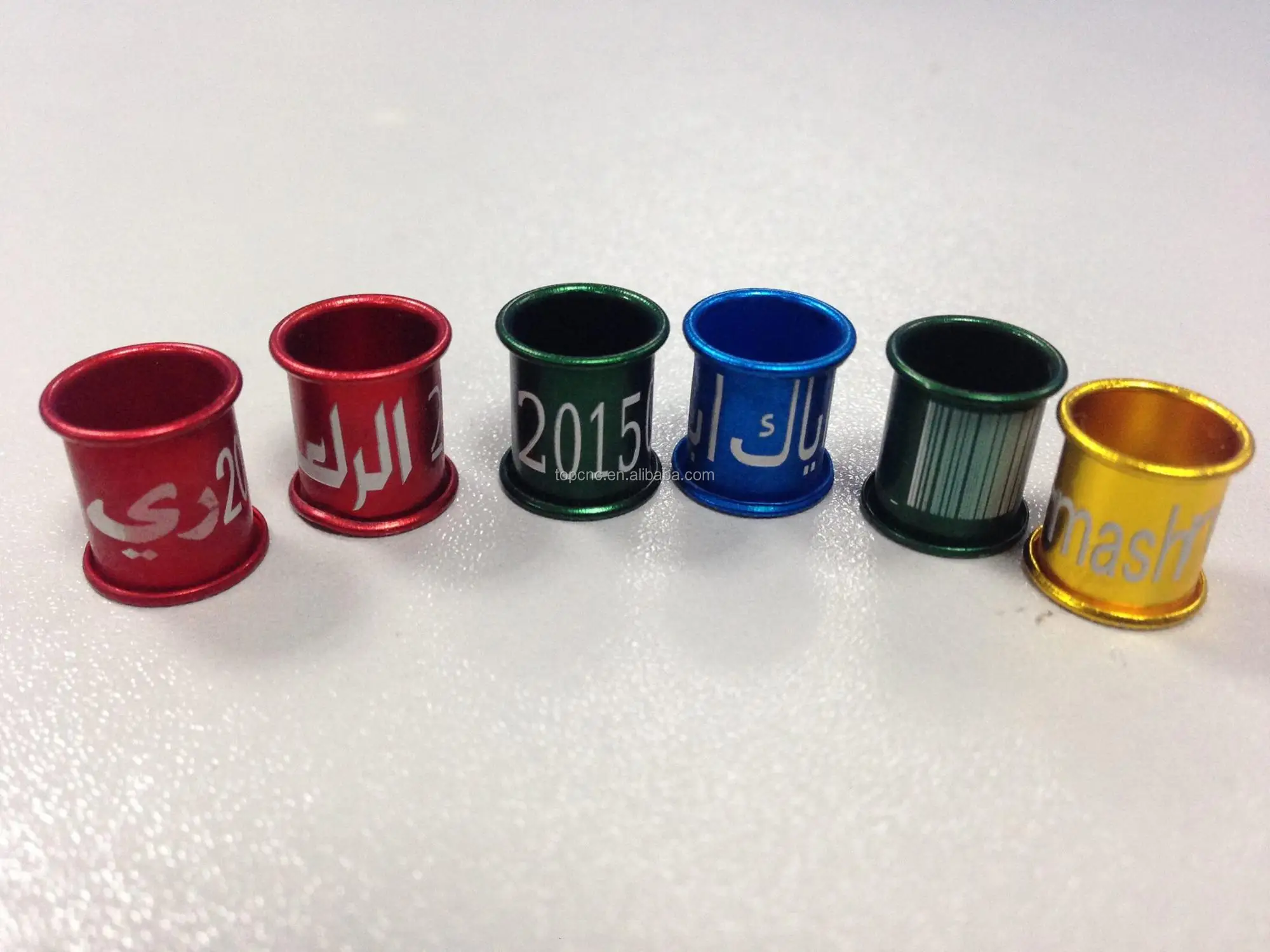

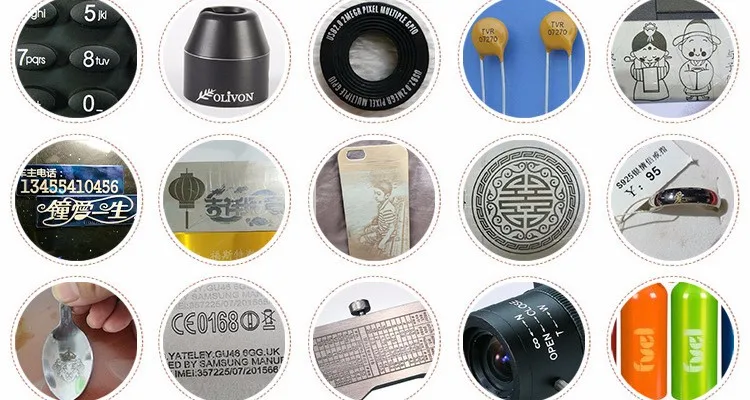

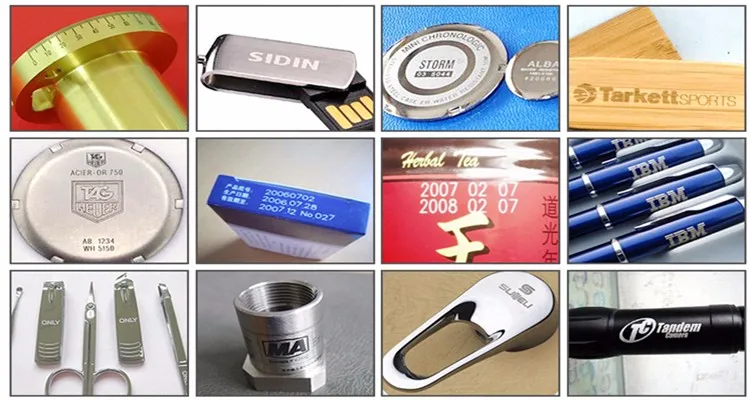

Fiber laser marking machine Samples

fiber marking machinefiber marking machinefiber marking machine

fiber marking machine

Fiber laser marking machine Features
1. Portable type laser marker with small body size, very easy to carry. It’s suitable for using on marking on light and small pieces of materials. You can adjust the up-down worktable according to the different thickness of materials.
2. High quality laser path suitable for delicate marking. Reach to the limit of diffraction.
3. High pulse repeating rate and stable power bring high speed laser marking. Unit pulse power surge is lower than 1%. Easy control laser dot size, thickness and shape.
4. High speed 2-3 times over than traditional diode pumped marking machine.
5. Long lifetime. Ultra-low power consumption of 0.5kw. Efficiency conversion reaches to over 30 %.
6. Suitable for various fiber laser generators, make color-marking on stainless steel .

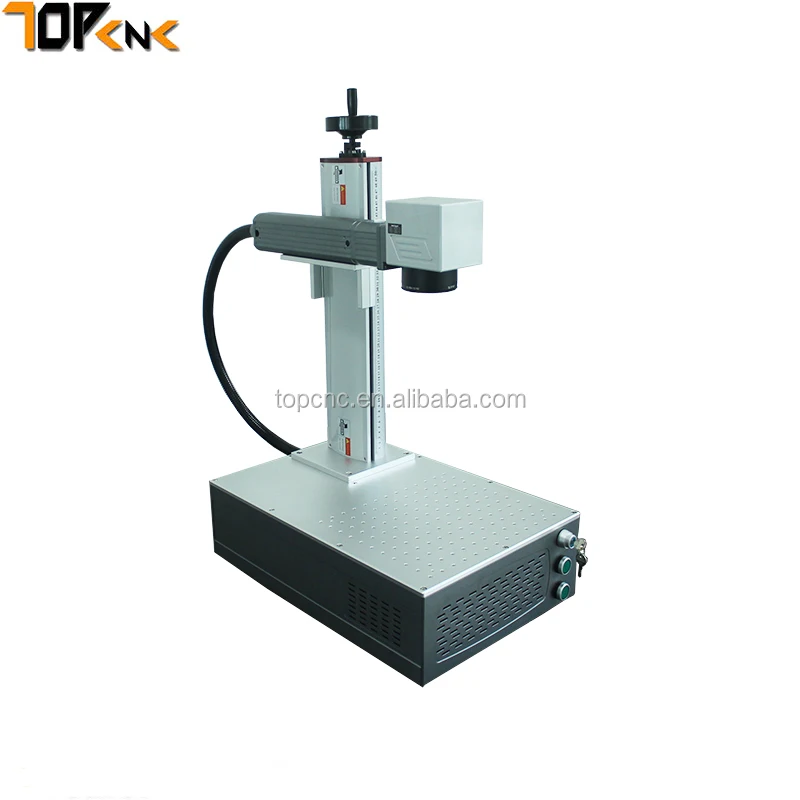

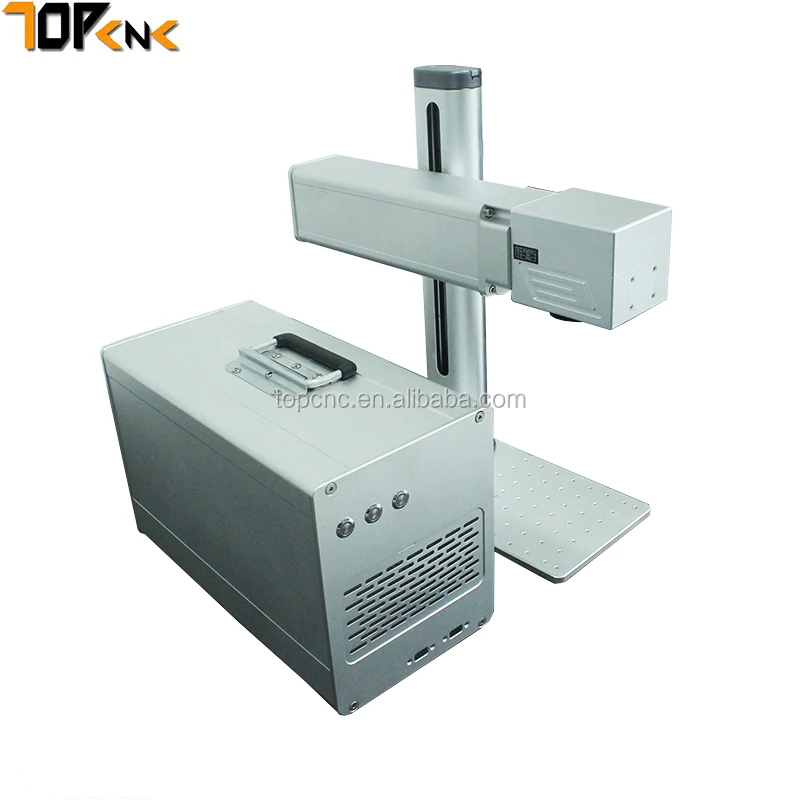

Detailed Images

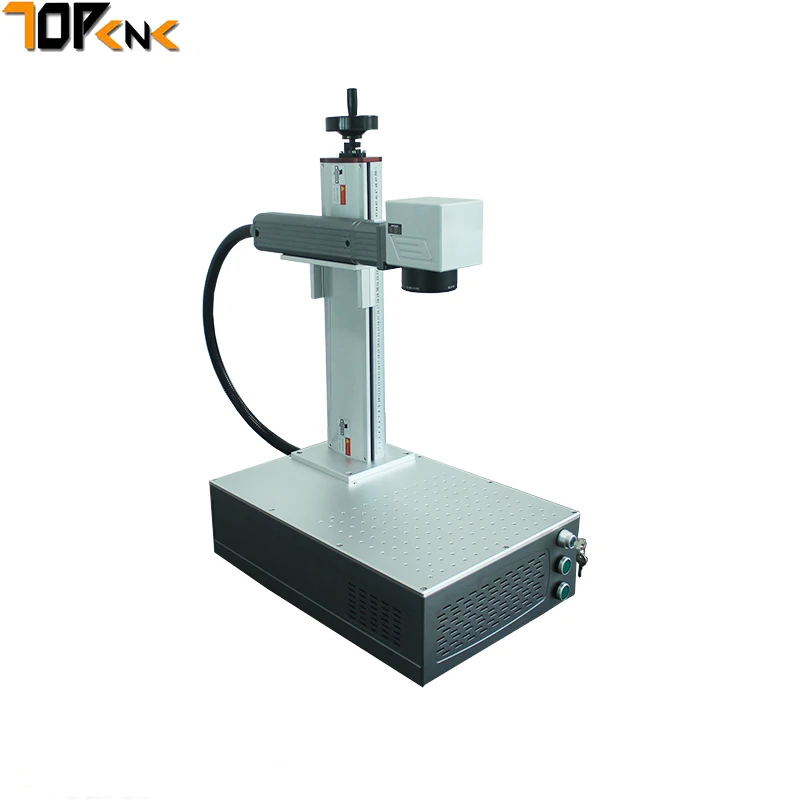

Fiber laser marking machine  Pictures
Fiber laser marking machine Fiber laser marking machine Fiber laser marking machine
Technology
Fiber laser marking machine Parameters

         Type specification

TPF-20W

Laser mode

Base mold fiber mode

Wave length of laser

1.064μm

Laser repetition frequency

20kHz~100kHz

Laser power

20W (30W/50W optional)

Marking scope

110*110mm(200*200mm/300*300mm optional)

Laser sources

Raycus or Max

Laser Head

Galvo Head

The minimum focus facula diameter

20μm

Minimal character

0.01mm

Marking speed

≤7000mm/s

Repeated accuracy

0.0025mm

Cooling ways

Force-air Cooling

Power supply

220V/ 50Hz/2kVA

Net weight

35KG

Process Material

All kinds of metal and part of Non-metal Materials

Support format

PLT, BMP, DXF, JPG, TIF, AI etc

Package

Standard for export

Configuration

Coaxial red light position system

Up & down worktable

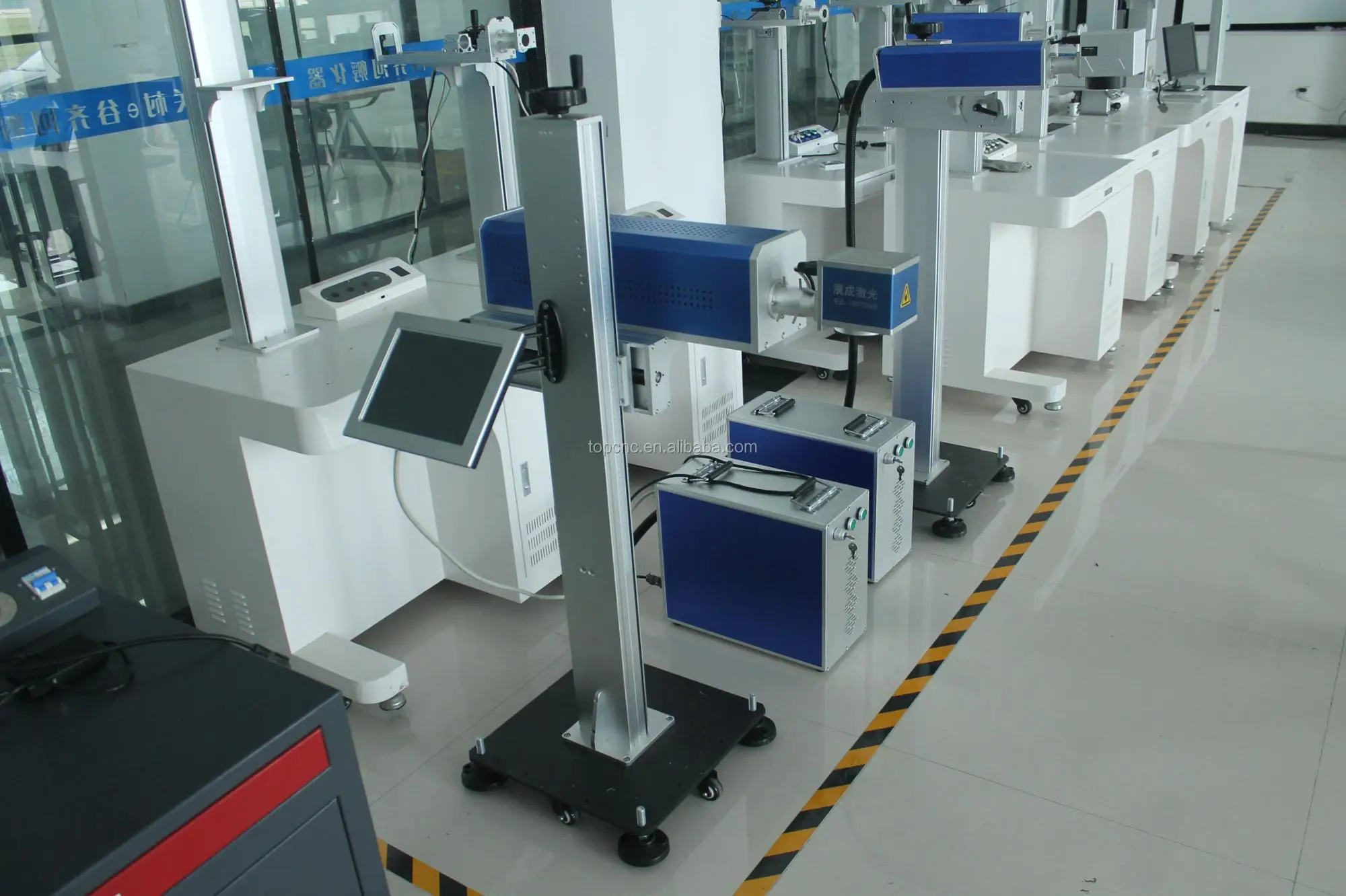

Company Information
Fiber laser marking machine Company

Fiber laser marking machine

Fiber laser marking machine

Packaging & Shipping
Fiber laser marking machine packaging
