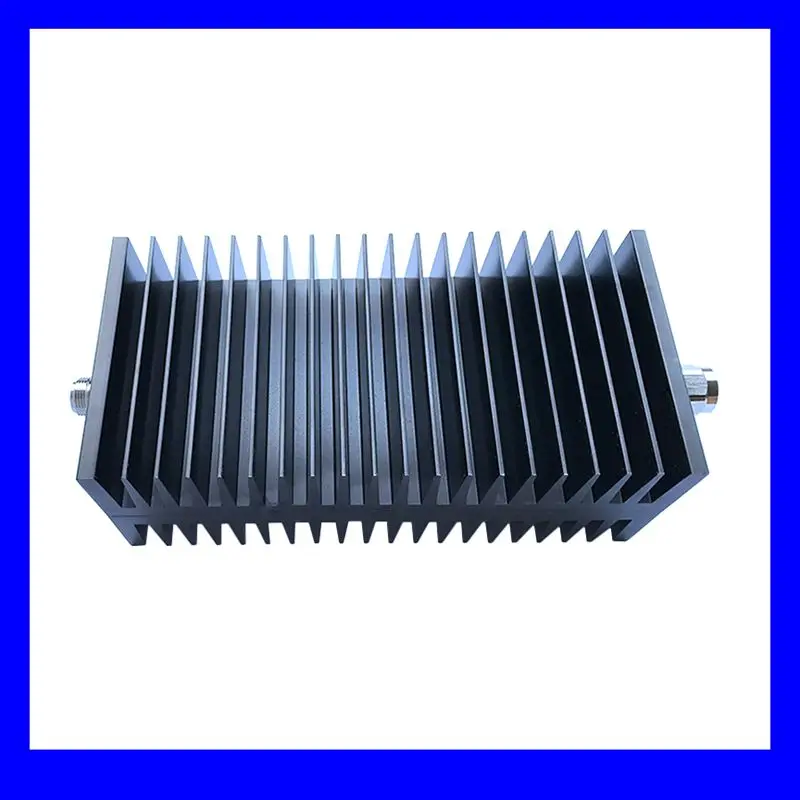

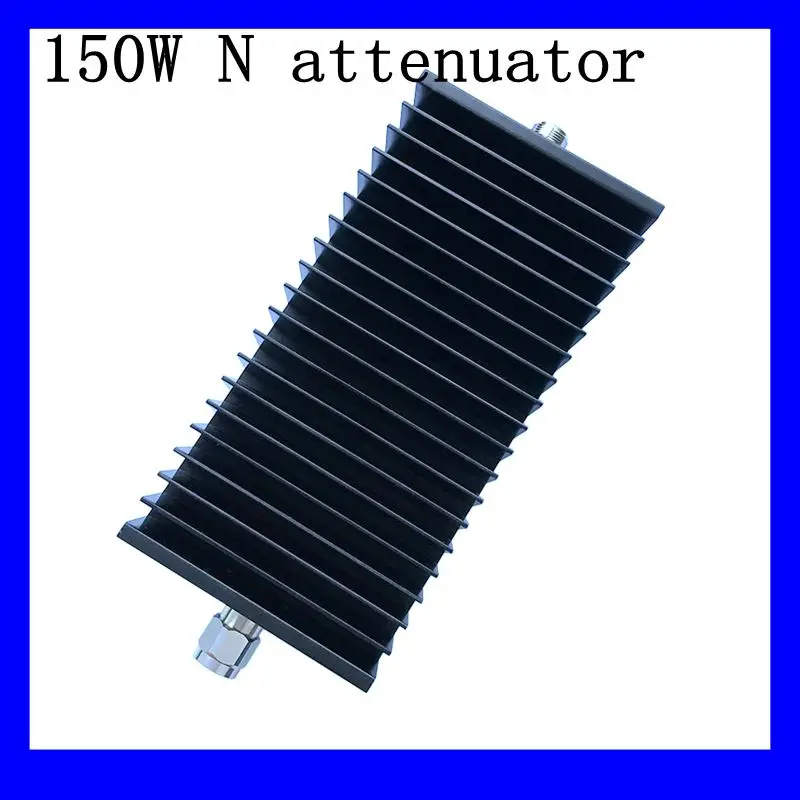

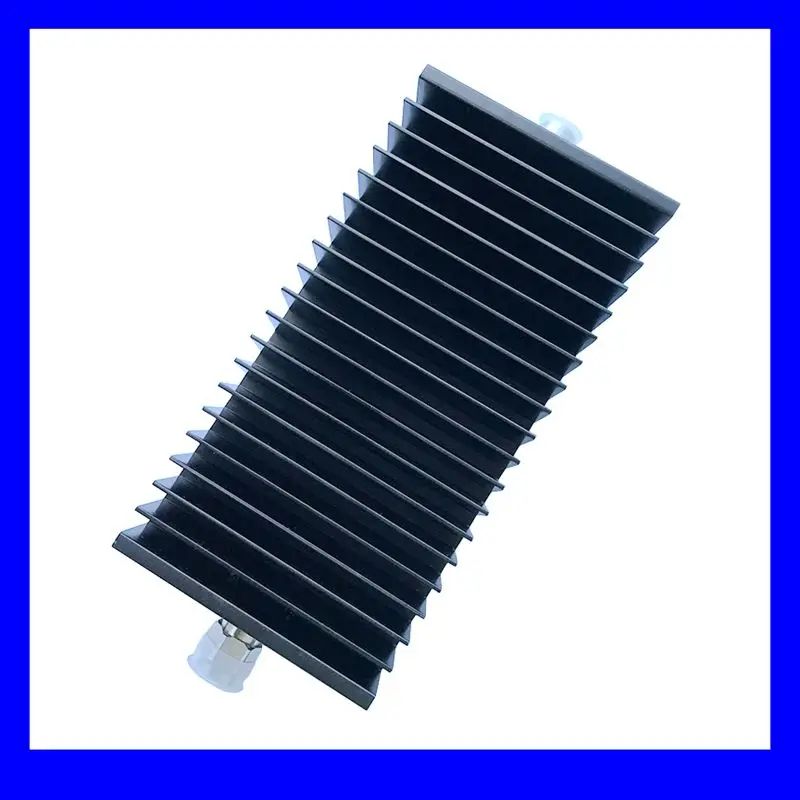

150W N-JK coaxial fixed attenuator DC to 3GHz 50 ohm 1dB 3dB 5dB 6dB 10dB 15dB 20dB 30dB 40dB 50dB Обустройство дома - купить

The company is made in rf microwave field has a very rich experience in research and development team together to form a backbone, is one specialized is engaged in the connector, rf microwave attenuator, terminal load rf microwave devices, such as research and development, production, sales and provide rf solutions of national high and new technology enterprise.

Company main products: high power resistor, power attenuation, coaxial attenuator, terminal load, the company has a high precision imported testing instruments, and advanced research and development team, the company in line with the good faith management, the principle of the pursuit of excellence, with the domestic and foreign companies set up long-term, stable relations of cooperation, we insist on do it all for the users to fully satisfied.You are welcome to negotiate business with us.Technical parameters:

1. Power: 150W

2. 50 Ω impedance:

3. Standing wave ratio: less than or equal to 1.20

4. Frequency range: DC to 3.0ghz

5. The temperature features: - 55 ℃ to + 125 ℃

6. Attenuation value: 1-10db. Plus or minus 0.5db, 15-60db plus or minus 1dB

7. Material: stainless steel

Connection: N male head turn N female head

9. Purpose: microwave equipment, electronic instruments or communication systems.Features wide band, low standing wave, high power, stable performance, etc
