Main Features:
- 7" digital color TFT LCD screen
- From the perspective of range - 50 degrees, the next 70 degrees, 70 degrees left -, right - 70 degrees
- Automatic modulation recognition system PAL / NTSC
- OSD control the brightness, contrast, color, volume, mode, flip, languages(English, German, French, Spanish, Portuguese, Italy, Holland, simplified Chinese)
- Built-in 2.4GHz wireless transmitter and receiver with an effective distance of 100 meters
- 2 way video input
- Aluminum alloy material shell, plug-in design
- 18 IR LEDs camera supports night vision

Product Specifications:
Main Features:
- 7" digital color TFT LCD screen
- From the perspective of range - 50 degrees, the next 70 degrees, 70 degrees left -, right - 70 degrees
- Automatic modulation recognition system PAL / NTSC
- OSD control the brightness, contrast, color, volume, mode, flip, languages(English, German, French, Spanish, Portuguese, Italy, Holland, simplified Chinese)
- Built-in 2.4GHz wireless transmitter and receiver with an effective distance of 100 meters
- 2 way video input
- Aluminum alloy material shell, plug-in design
- 18 IR LEDs camera supports night vision

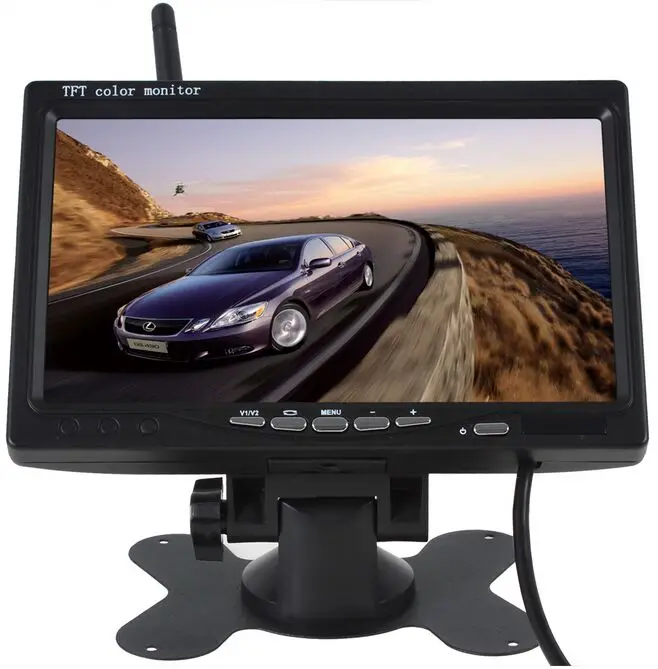

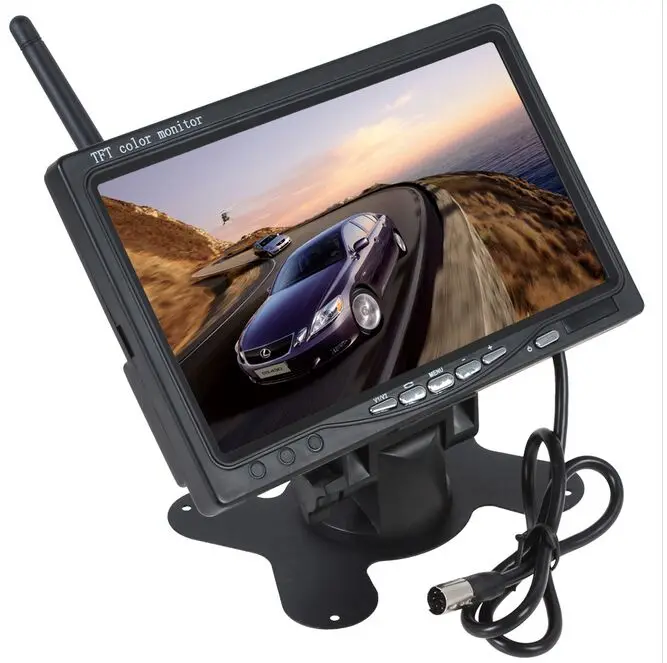

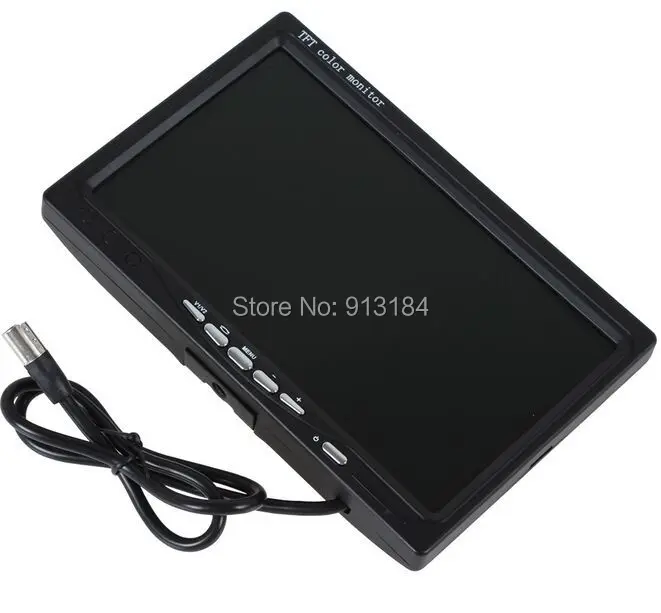

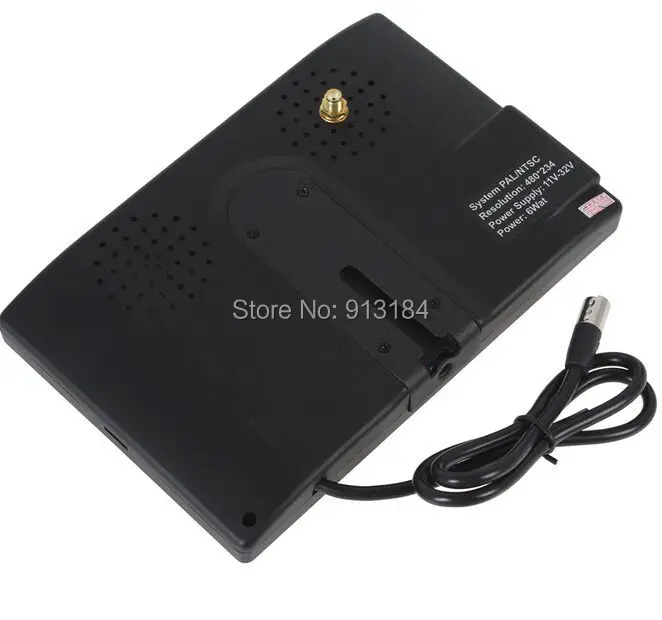

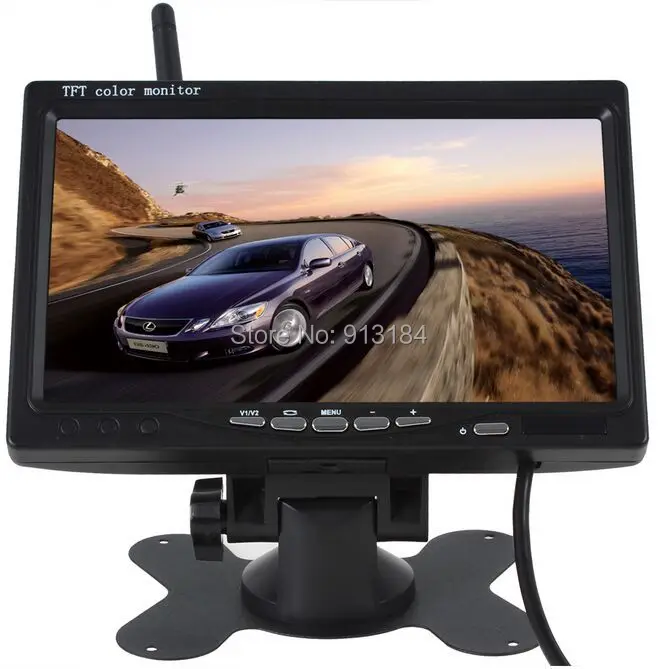

Monitor:
Function of keys:
- "V1/V2": AV1/AV2 video quick switch, press the key to switch the cycle of AV1/AV2 video picture
- "MENU": Press the key can circularly open menu
- "-": Select the down regulating parameters in the menu
- "+": Select the up regulating parameters in the menu
- "POWER": On / Off
Connection Method: Red wire is connected to the +12V / 24V DC, black wire to the +12 / 24(GND), green wire to the reversing forced wire, AV plug to camera(AV2), AV socket to DVD VIDEO(AV1)
Screen Size: 7 inches
Display Component: Color TFT LCD
LED Backlight Brightness: 300 cd/m2
Screen Ratio: 16:9
Pixel: 800 x 480
System: PAL / NTSC system(auto switch)
Contrast Ratio: 1000:1
Power Requirement: DC 12V / 24V
Power: <=5W
Current:<=450mA
Seismic Level: 4G
Reception: <=100 meters in the open air
Video: 2 way video input
Rear View: V2 auto reverse when trigger activated
Operate Mode: Key operation and remote control
Working Temperature: -10C~+60C
Storage Temperature: -20C~+70C
Dimension: 172mm x 113mm x 23mm
Net Weight: 287g

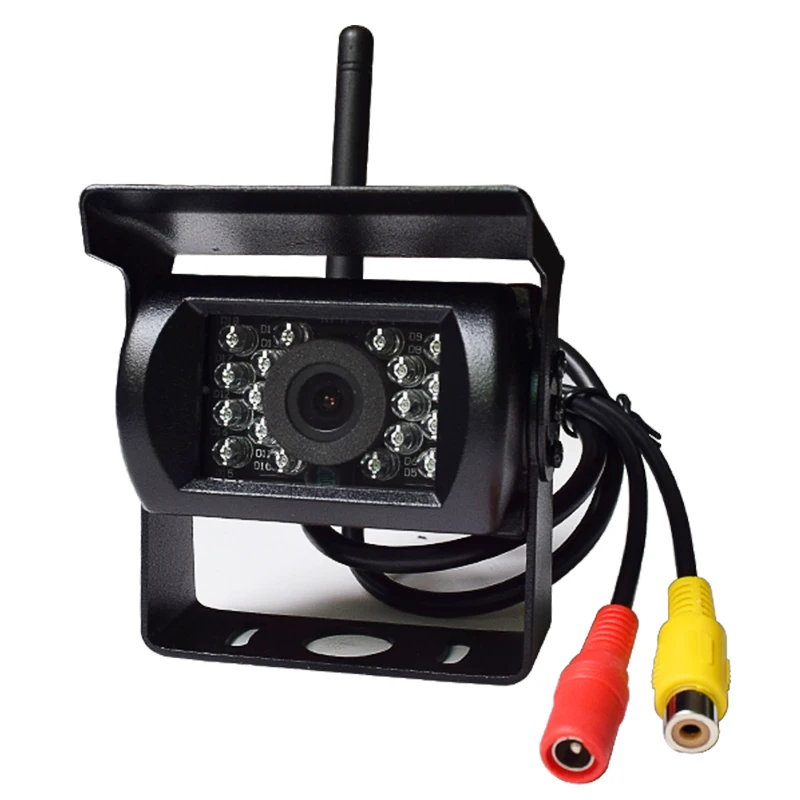

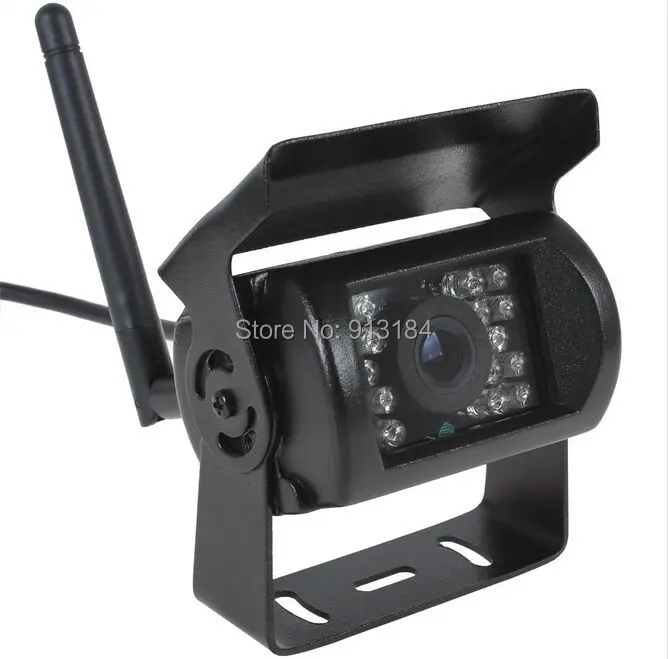

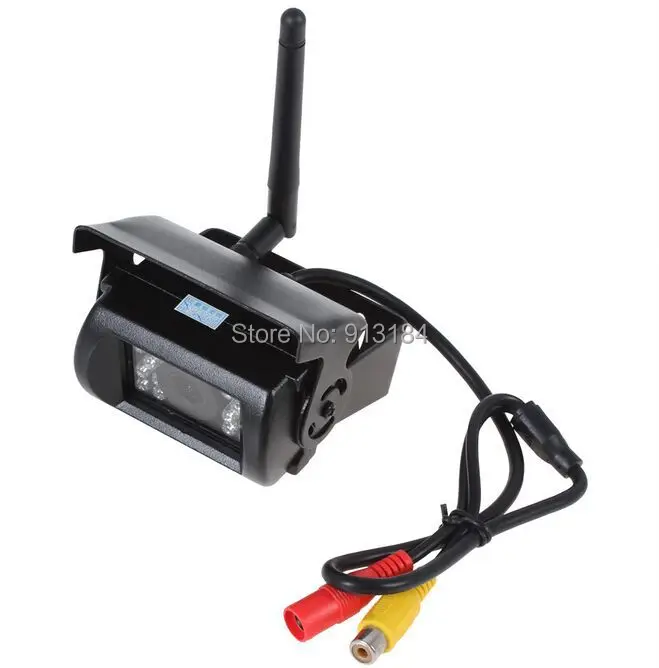

Camera:
Image Sensor: COMS
Definition: 420 TVL
Scanning System: 2:1 interface
Illumination: 0.5Lux, IR ON
Image Angle: 120 degrees
IR LEDs: 18pcs
Image: Mirror / Preimage optional
Video Format: PAL / NTSC
Video Output: 1.0vp-p, 75
Electronic Shutter: 1/60~1/10,000 second
Gama: 0.45
S/N Ration: > 48 db
Dustproof & Waterproof Level: IP67/68
Seismic Level: 4G
Reception: < = 100 meters in the open air
Power Requirement: DC 12V / 24V
Power: < = 3W
Current: < = 250mA
Working Temperature: -10C~+60C
Storage Temperature: -20C~+70C
Dimension: 95mm x 75mm x 50mm
Net Weight: 280g
Package Dimension: 230mm x 180mm x 125mm
Package Weight: 945g
After Sales Service: 1 Year Warranty

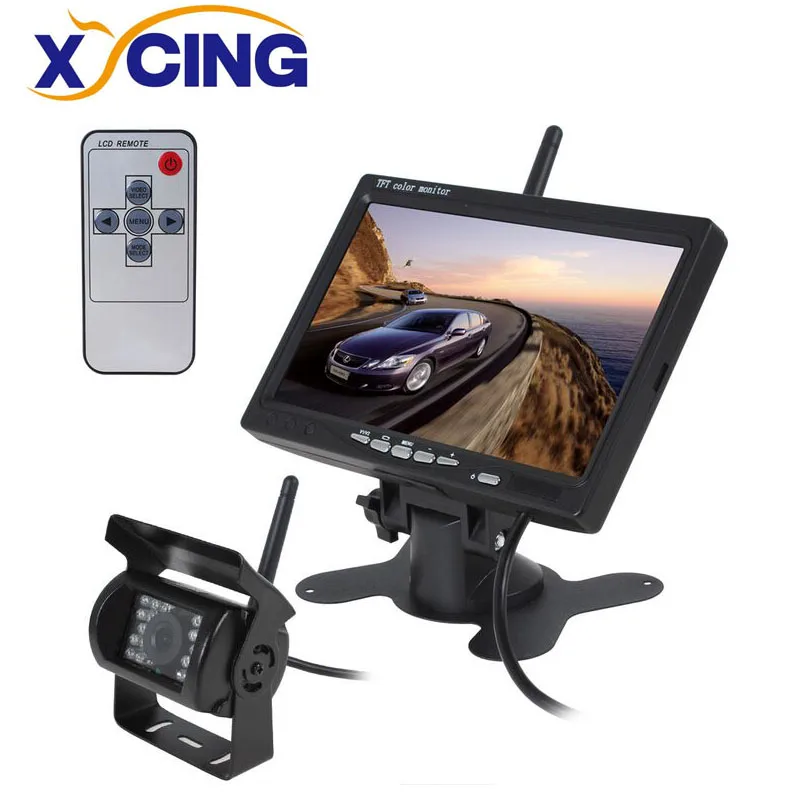

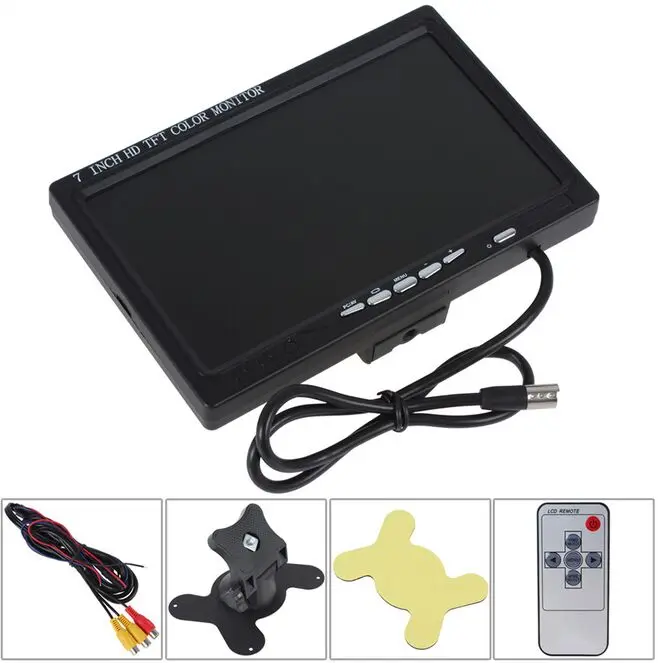

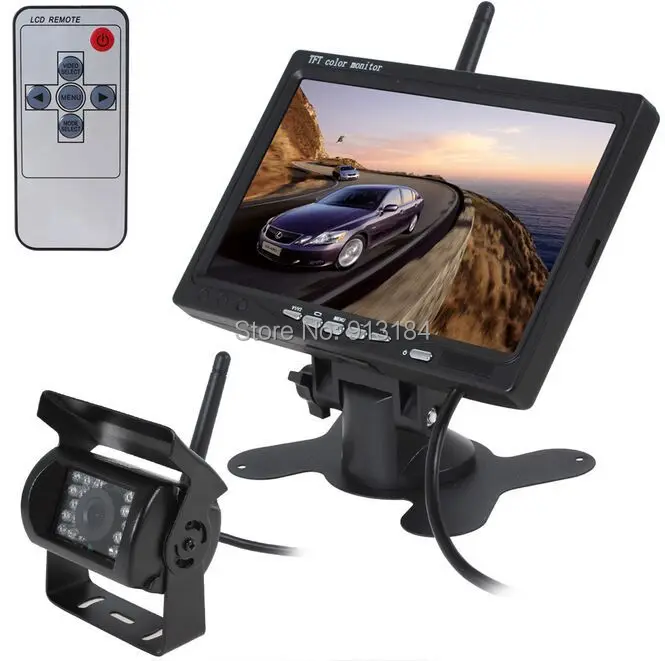

Package Include:
1 x Monitor
1 x Camera
1 x Bracket
1 x AV Cable
1 x Remote Control
2 x Antenna
3 x Screw
1 x User Manual
