Feature:

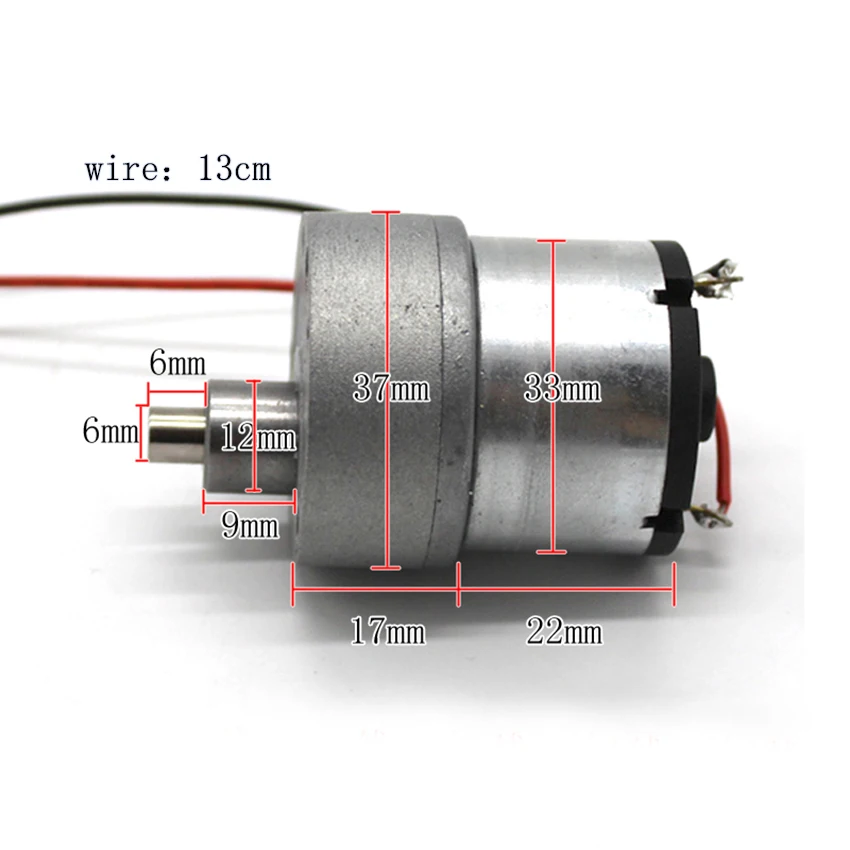

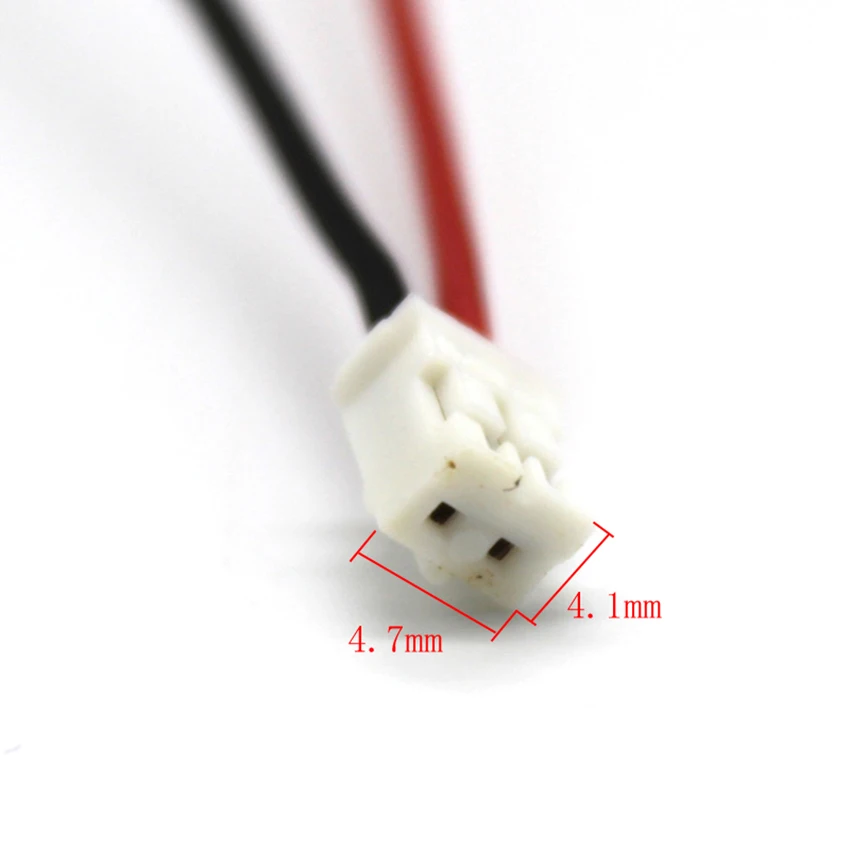

Rated voltage: 6-12V   When the power supply is 6V, the speed is 180 rev / min (plus or minus 5%), the no-load current is 0.12A, and the stall current is 0.62A;   When the power supply is 12V, the speed is 400 rev / min (plus or minus 5%), the no-load current is 0.11A, and the stall current is 1.4A.   Motor diameter: 33mm   Motor length: 22mm   Fixed aperture: 3mm (M3 screw)   Reducer diameter: 37mm   Reducer length: 17mm   Step height: 9mm   Step diameter: 12mm   Output shaft length: 6mm   Motor shaft diameter: 6mm, D-axis   Wire length: about 13cm

Note:

 *Please allow 1-3mm errors due to manual measurement.

 *Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
