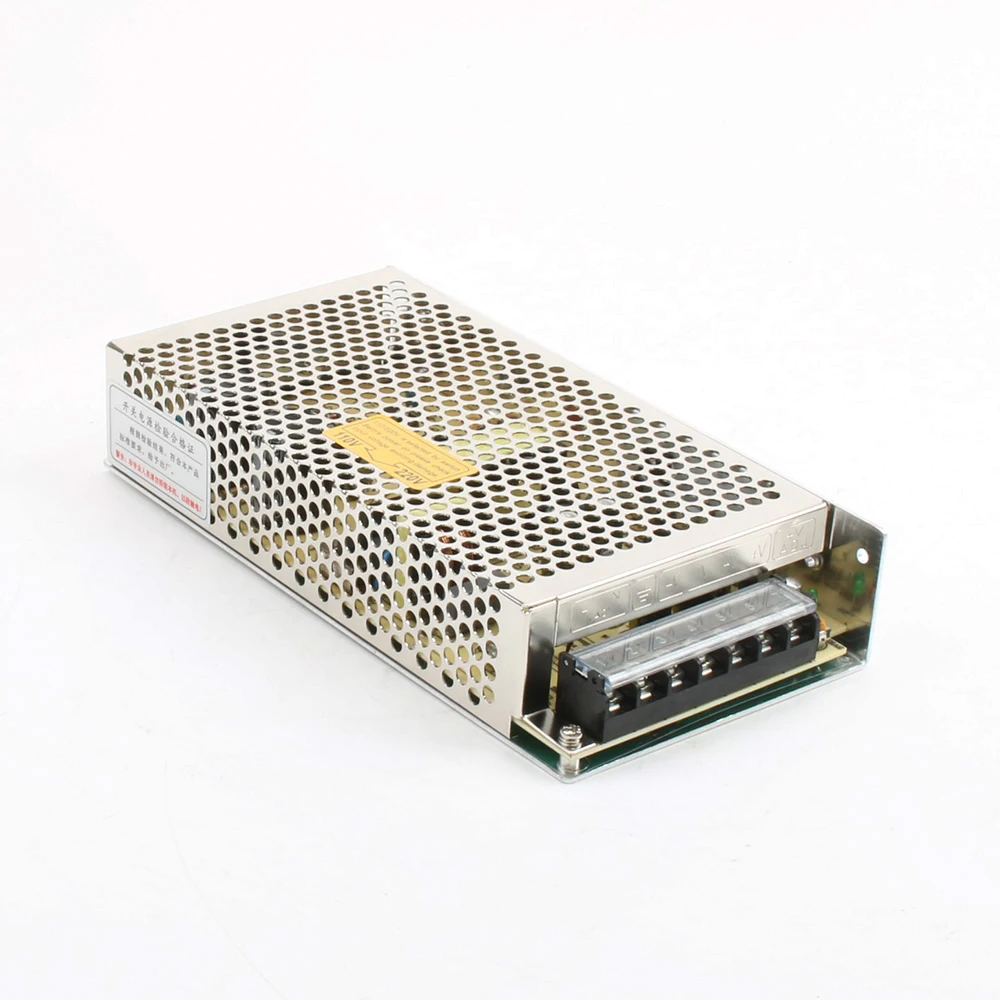

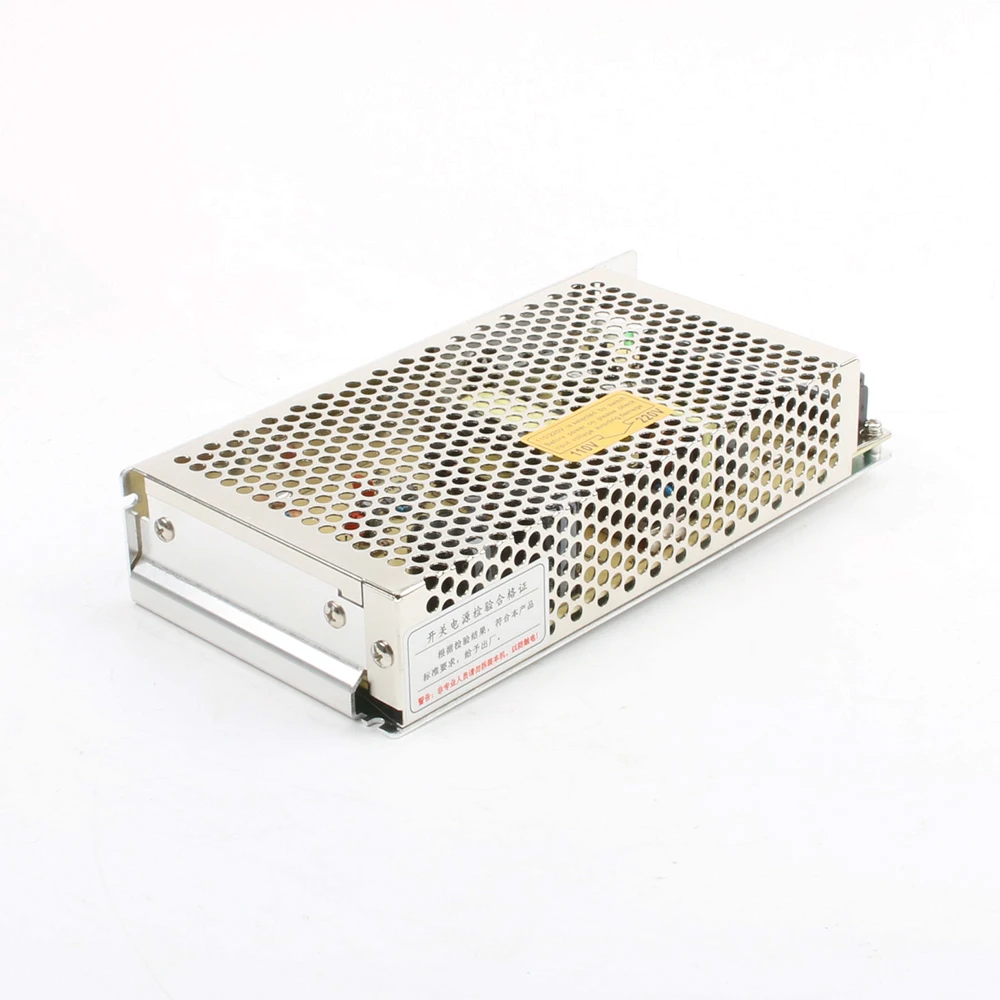

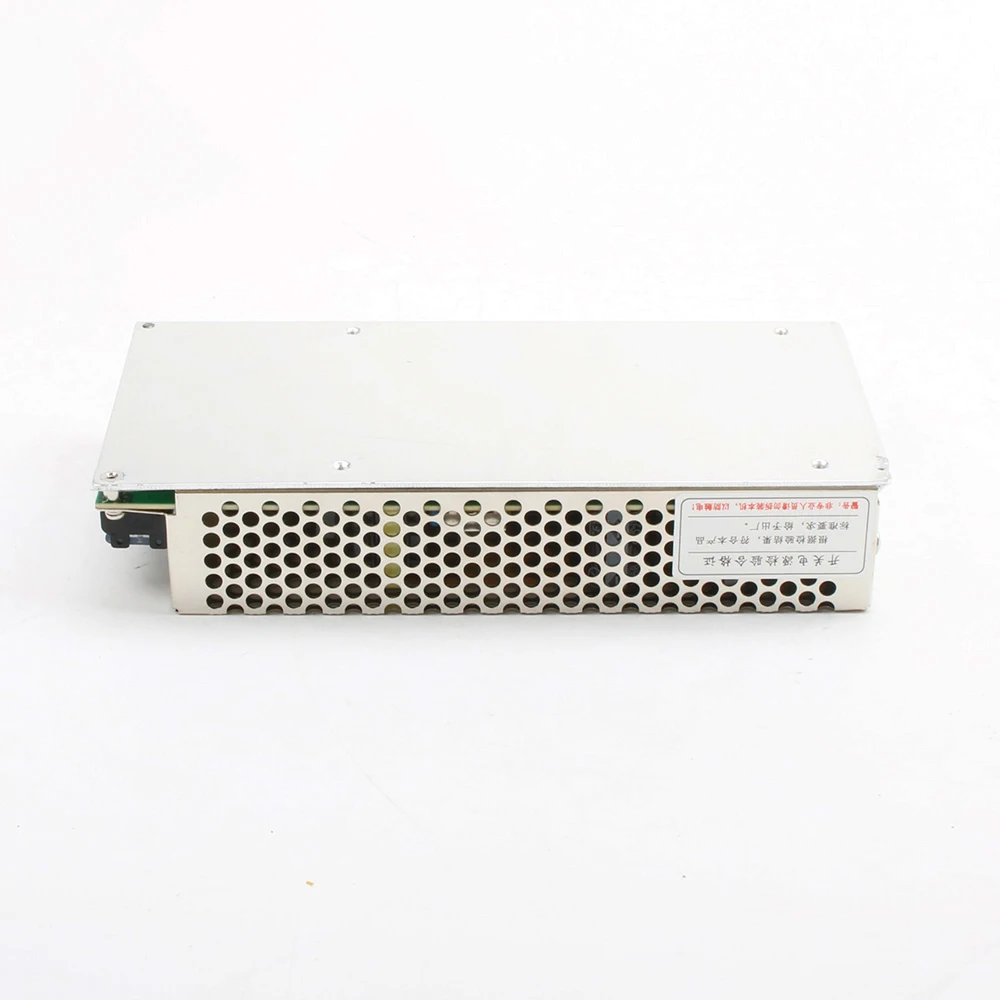

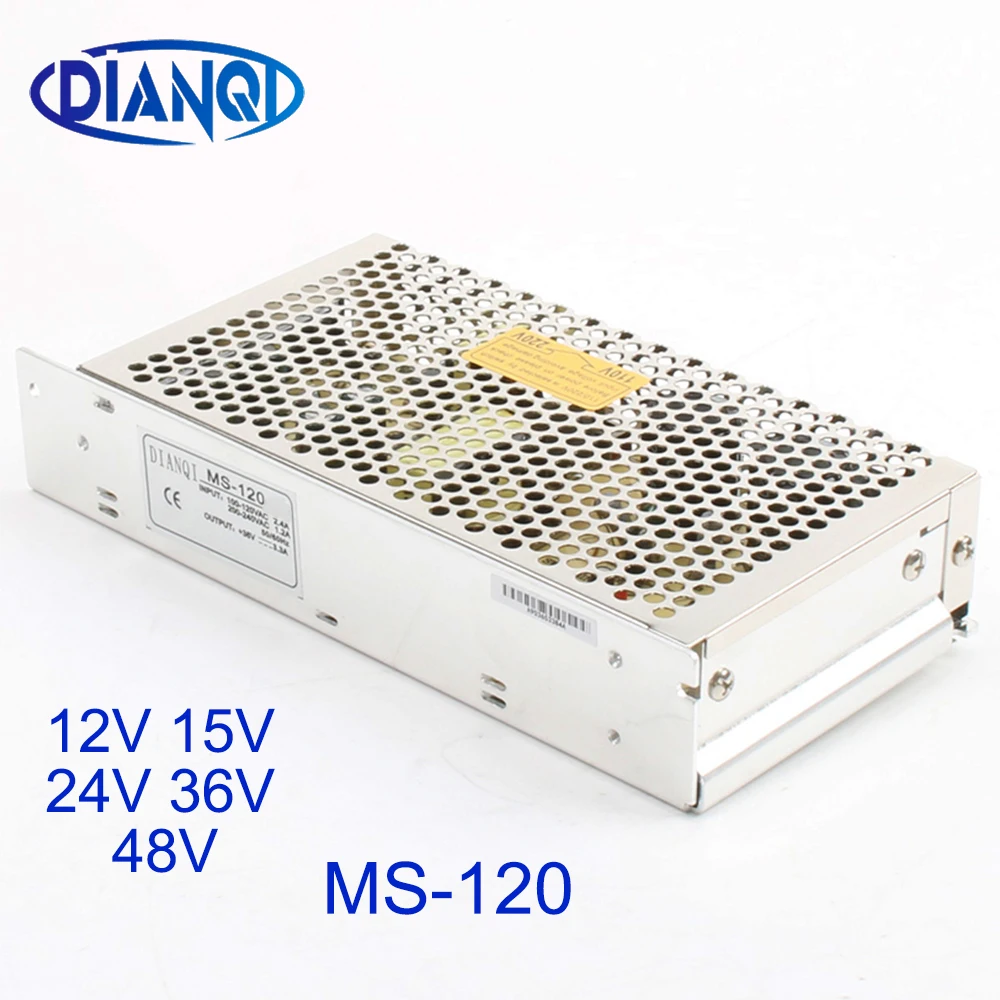

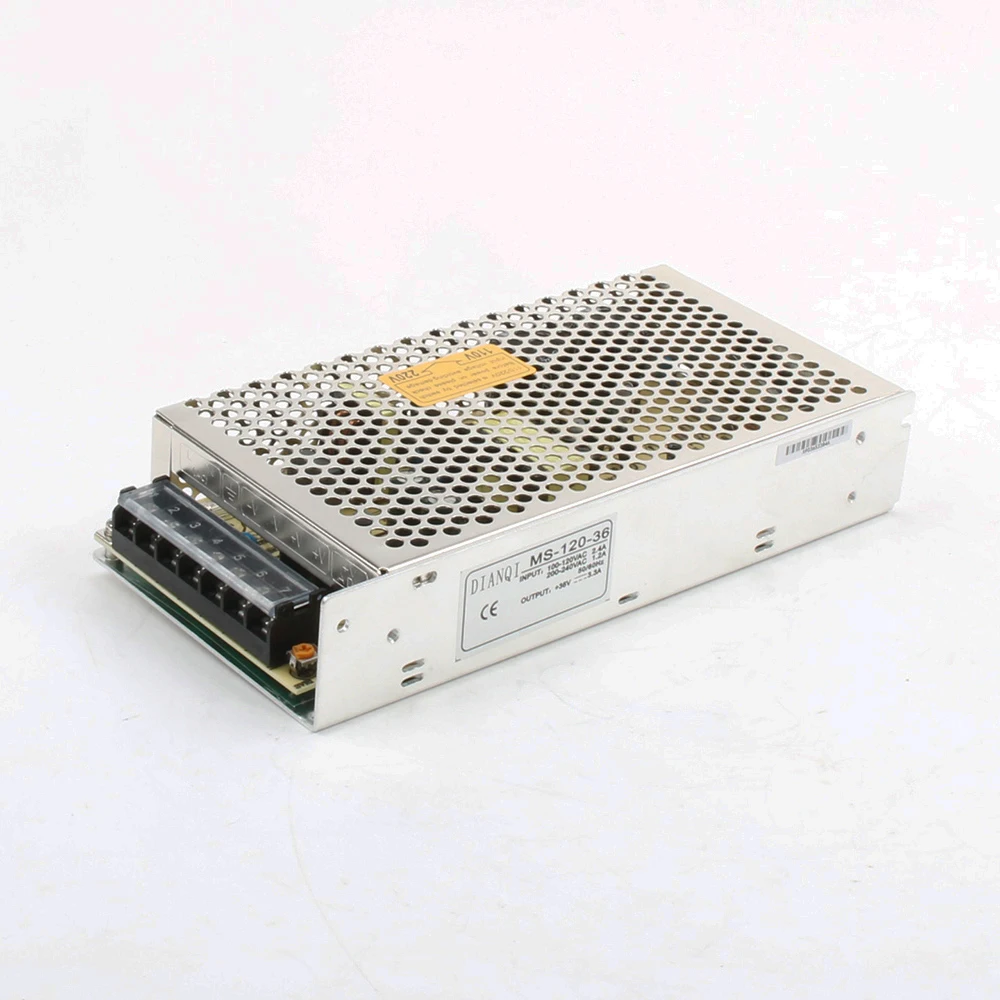

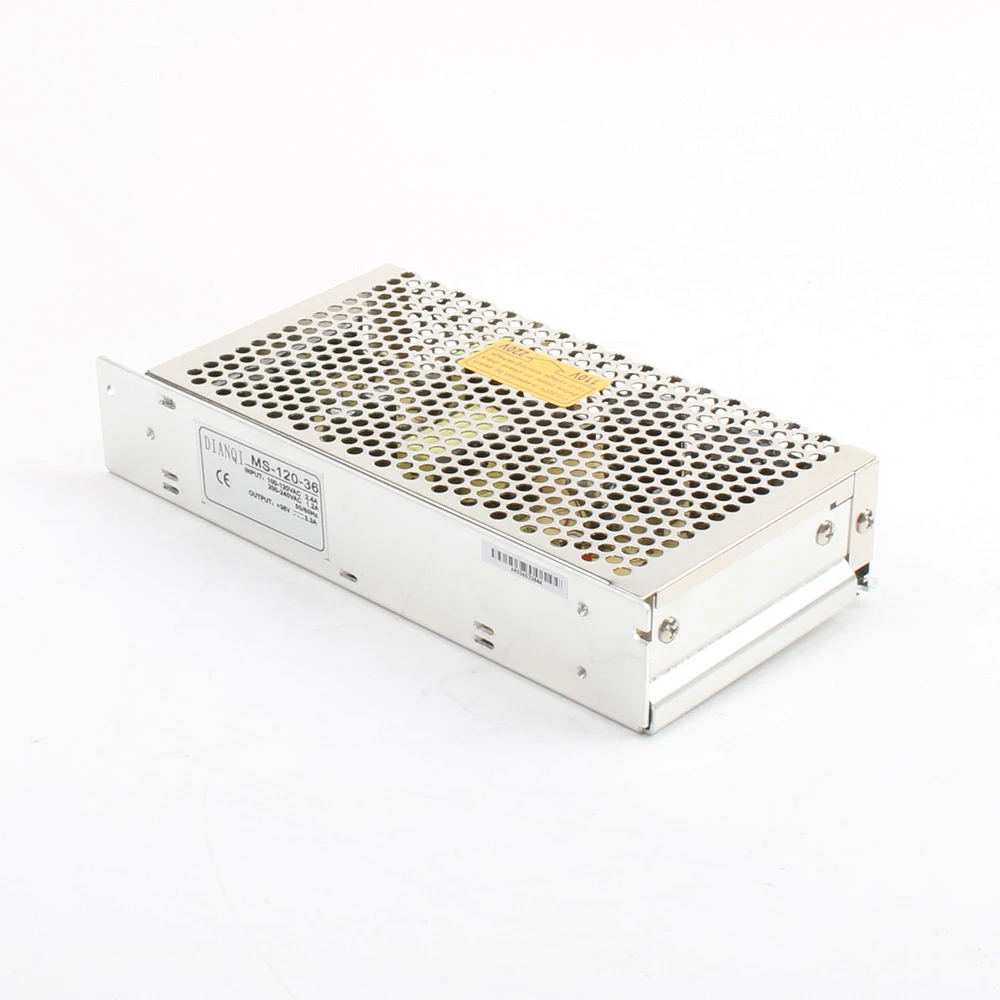

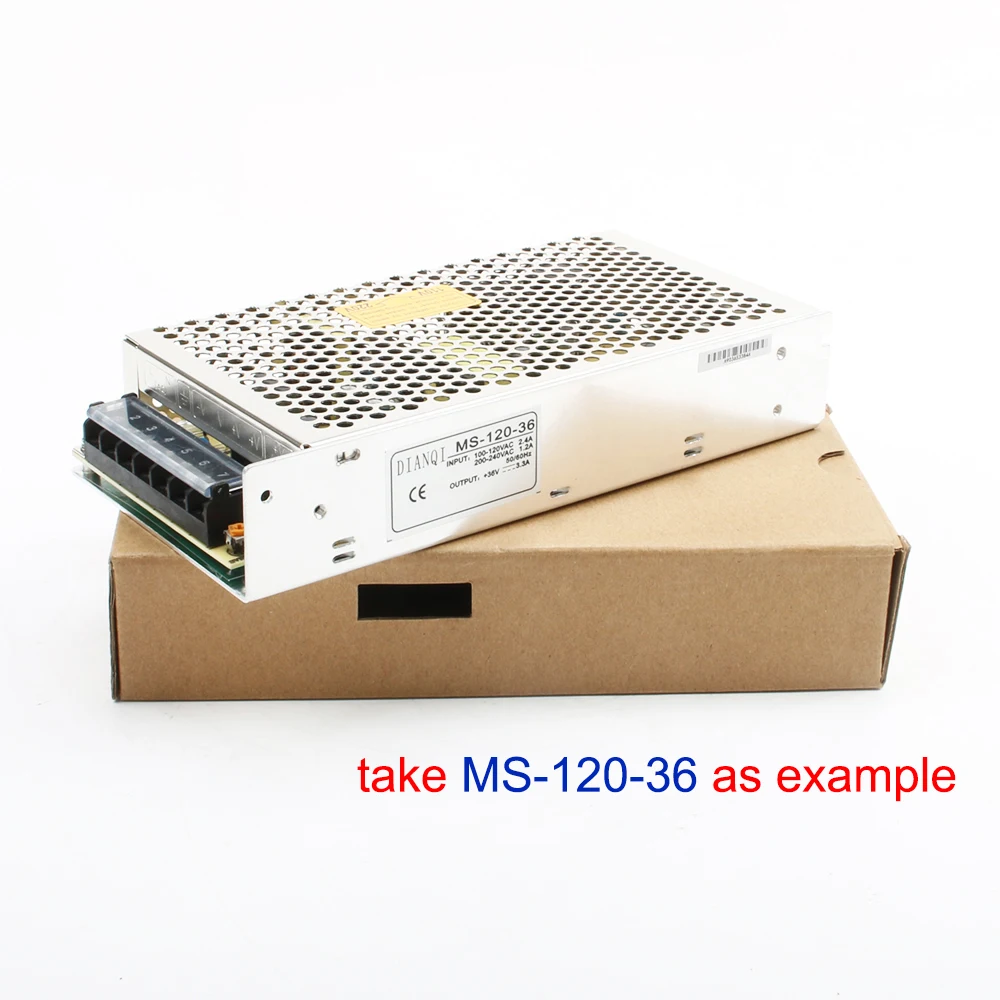

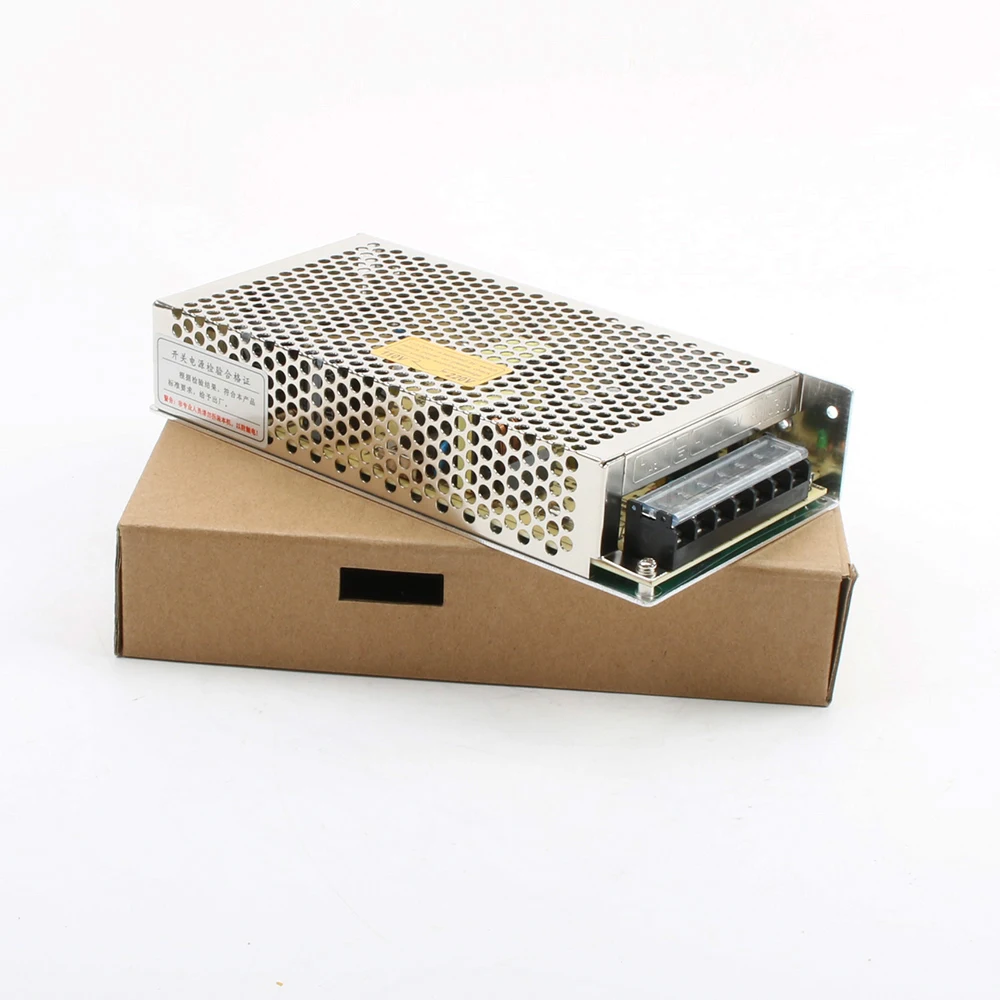

MS-120-12 MS-120-48 MS-120-36 MS-120-15 источник питания MS-120W 24v 36v 48v 12V 15v mini size ac dc преобразователь - купить
Специальная цена от 551,71 руб.*
Категория товара: Импульсный источник питания
История изменения цены
*Внимание! Указанная цена 551,71 руб. уже могла изменится, перед тем как купить данный товар перейдите на страницу продавца и проверьте актуальную стоимость.
| Месяц | Мин. | Макс. | Цена |
|---|---|---|---|
| 13.05.2026 | 700.40 | 714.81 | 707 руб. |
| 13.04.2026 | 568.31 | 579.4 | 573.5 руб. |
| 13.03.2026 | 689.43 | 703.47 | 696 руб. |
| 13.02.2026 | 683.17 | 697.38 | 690 руб. |
| 13.01.2026 | 545.74 | 556.65 | 550.5 руб. |
| 13.12.2025 | 672.11 | 685.13 | 678.5 руб. |
| 13.11.2025 | 667.5 | 680.20 | 673.5 руб. |
| 13.10.2025 | 661.96 | 674.1 | 667.5 руб. |
Купить MS-120-12 MS-120-48 MS-120-36 MS-120-15 источник питания MS-120W 24v 36v 48v 12V 15v mini size ac dc преобразователь |
Model | MS-120-12 | MS-120-15 | MS-120-24 | MS-120-36 | MS-120-48 | |
output | DC voltage | 12V | 15V | 24V | 36V | 48V |
Voltage tolerance | plusmn1% | plusmn1% | plusmn1% | plusmn1% | plusmn1% | |
Rated current | 10A | 8A | 5A | 3.3A | 2.5A | |
Current range | 0~10A | 0~8A | 0~5A | 0~3.3A | 0~2A | |
Rated power | 120W | 120W | 120W | 118.8W | 120W | |
Ripple&noise | 100mvp-p | 120mvp-p | 150mvp-p | 150mvp-p | 180mvp-p | |
DCvoltage ADJ.range | plusmn10% | plusmn10% | plusmn10% | plusmn10% | plusmn10% | |
input | Voltage range | 90~132VAC/180~240VAC,254~373VDC | ||||
frequency | 47~63HZ | |||||
AC current | 2.8A/115VAC,1.4A/230VAC | |||||
efficiency | 82% | 83% | 85% | 85% | 86% | |
Inrush current | Cold start current 18A/115VAC,36A/230VAC | |||||
Leakage current | < 3.5mA/240VAC | |||||
protection | overload | Rated output power115%~150% start over load protection | ||||
protection type:hiccup mode,auto-recovery after fault condition is removed | ||||||
Over voltage | 15.6~17.8V | 18.6~20.8V | 30.6~33.2V | 42.6~44.2V | 54.8~56.6V | |
protection type:hiccup mode,auto-recovery after fault condition is removed | ||||||
----- | ----- | |||||
----- | ||||||
environment | Working temp,humidity | -10degC~+60degC,20%~90%RH | ||||
Storagetemp,humidity | -20degC~+85degC,10%~95%RH non-condensing | |||||
Withstand vibration | 10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes | |||||
safety | Withstand voltage | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | ||||
Isolated resistance | I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC | |||||
Fitstandard | Safety standard | Fit UL1012 | ||||
EMC standard | Comply with EN55022,CLASSA | |||||

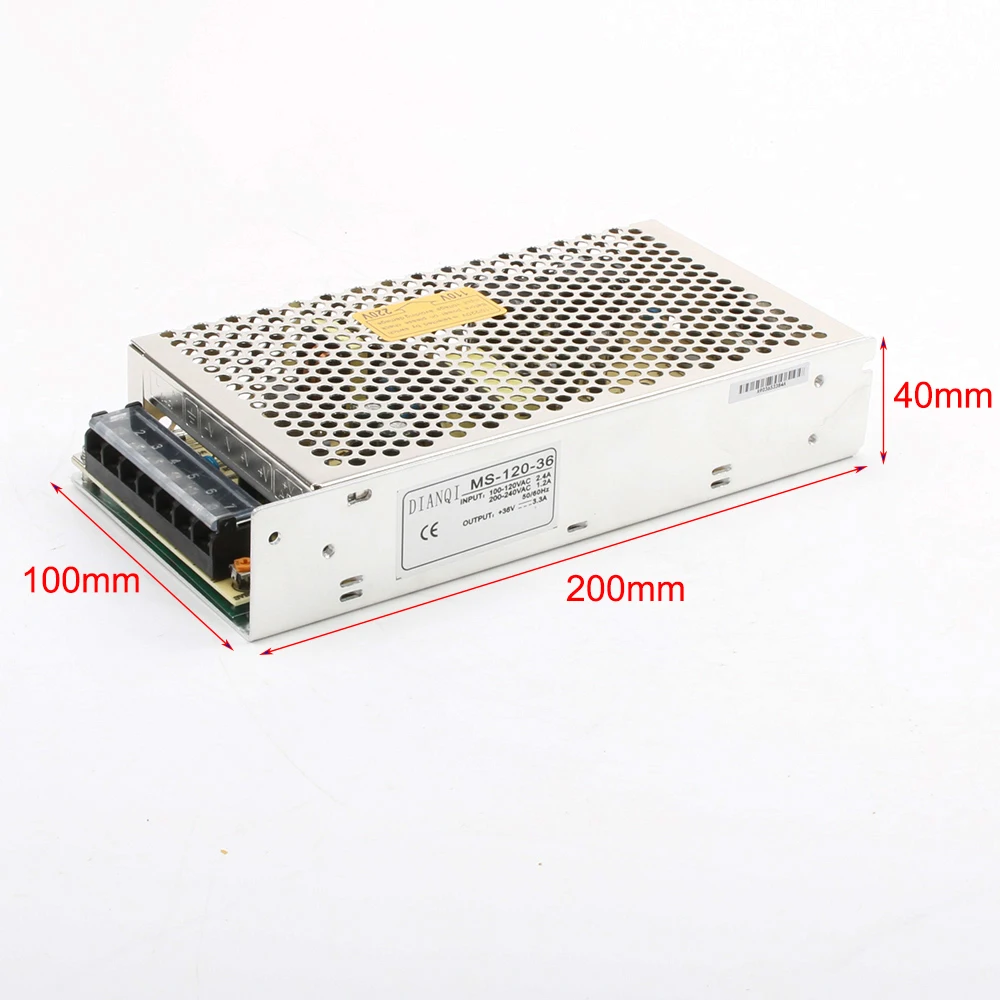

others | Dimension | 199*98*38mm (L*W*H) | ||||
Weight/packing | 0.54kg/45pcs/25kg | |||||
note | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25degCof ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. | |||||
Dimension |
